Powermatic 1.75 HP PM1300TX-CK Dust Collector 1 Ph 115/230 V 2 Micron Cartridge Kit Dust Collectors Woodworking & Other Power Tools

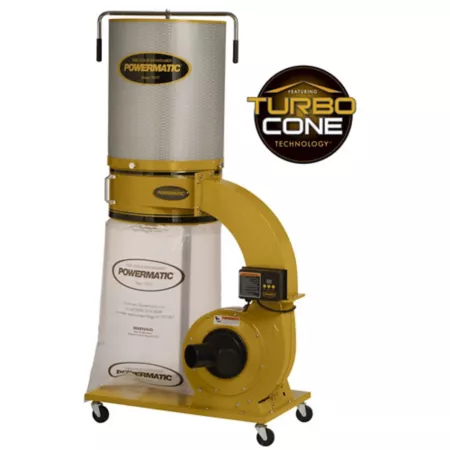

The Powermatic PM1300TX-CK Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter with the dust collector offers over six times the filtering area of standard filter bags and collects 98% of 2-micron particles. A digital timer included with the dust collector can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct of the dust collector improves rigidity and air flow. Multiple connection port capability makes this dust collector a central dust collection system for the entire woodworking shop.

TurboCone improves chip separation and collector bag packing efficiency
Large steel impeller is powered by a 1-3/4 HP motor for peak performance
Remote-controlled digital timer included with dust collector can be programmed for up to 99 minutes
Cone eliminates premature filter clogging for sustained performance
Dust collector features all-metal duct construction for rigidity and improved air flow
Dual 4 in. dust ports for simultaneous collection from two machines
Cloth collection bag with view window uses snap ring for rapid installation/removal
10 cubic feet capacity collection bag reduces number of bag changes
Dust collector features four swivel casters for easy maneuverability
Clear collector bags are large capacity, which means less down-time changing them
Air flow @ 6 in.: 1300 CFM
Static pressure: 11.31 in. of water
Sound rating: 75-90 dB
Bag diameter: 20 in.; Bag length: 30 in.
Collection bag capacity: 10 cu ft
12 in. diameter impeller included with dust collector

5 year

Powermatic 1.75 HP PM1300TX-CK Dust Collector 1 Ph 115/230 V 2 Micron Cartridge Kit Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	Powermatic
Country of Origin	Imported
Compatibility	Woodworking equipment with dust ports
Decibel Rating	75-90 dB
Phase	Single Phase
Filter Efficiency	98%
Filtration Material	Steel
Horsepower	1.75 HP
Maximum Airflow Rate	1,300 CFM
Product Height	72 in.
Product Length	37 in.
Product Weight	154 lb.
Product Width	29 in.
Warranty	5 Year
Manufacturer PartNumber	1791079K

Powermatic 1.75 HP PM1300TX-CK Dust Collector, 1 Ph, 115/230V, 2-Micron Canister Kit Specifications Expand/Collapse Specification Description Brand Powermatic Country of Origin Import Compatibility Woodworking Equipment with Dust Ports Decibel Rating 75-90 dB Phase Single Phase Filter Efficiency 98% Filtration Material Steel Power 1.75 HP Flow Rate maximum air 1,300 CFM Product height 72 in. Product length 37 in. Product weight 154 lbs. Product width 29 in. 5 year warranty Manufacturer part number 1791079K
