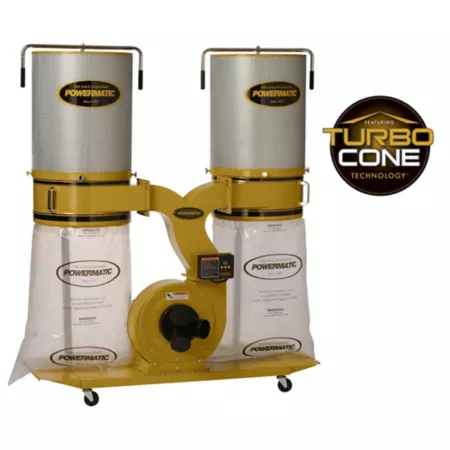

Powermatic 3 HP PM1900Tx-CK1 Dust Collector 1 Ph 230 V 2 Micron Cartridge Kit Dust Collectors Woodworking & Other Power Tools

The Powermatic PM1900Tx-CK1 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter with the dust collector offers over six times the filtering area of standard filter bags and collects 98% of 2-micron particles. A digital timer included with the dust collector can be set for up to 99 min., and an infrared sensor allows remote control operation. The all-metal duct of the dust collector improves rigidity and air flow. The clear collector bags that come with the dust collector are large capacity, which means less down-time changing them.

TurboCone improves chip separation and collector bag packing efficiency
Steel impeller is powered by a 3HP motor for peak performance
Remote-controlled digital timer included with dust collector can be programmed for up to 99 min.
Cone eliminates premature filter clogging for sustained performance
Dust collector is made with all-metal duct construction for rigidity and improved air flow
Triple 4 in. dust ports allow for several hoses to be attached at the same time
Dust collector includes 30-micron filter bags for improved capture of fine dust particles
Cloth collection bags with view window use a snap ring for rapid installation/removal
10 cu. ft. collection bag capacity reduces number of bag changes
Air flow @ 4 in.: 236 CFM
Air flow @ 8 in.: 1782 CFM
Static pressure: 12.15 in. of water
Sound rating: 86-92 dB
Bag diameter: 20 in.; Bag length: 30 in.
Collection bag capacity: 10 cu. ft.
14 in. dia. impeller included with dust collector

5 year

Powermatic 3 HP PM1900Tx-CK1 Dust Collector 1 Ph 230 V 2 Micron Cartridge Kit Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	Powermatic
Country of Origin	Imported
Compatibility	Woodworking equipment with dust ports
Decibel Rating	86-92 dBA
Phase	Single Phase
Filter Efficiency	98%
Filtration Material	Steel
Horsepower	3 HP
Maximum Airflow Rate	1,782 CFM
Product Height	72 in.
Product Length	61 in.
Product Weight	268 lb.
Product Width	30 in.
Warranty	5 Year
Manufacturer PartNumber	1792072K

Powermatic 3 HP PM1900Tx-CK1 Dust Collector, 1 Ph, 230V, 2-Micron Canister Kit Specifications Expand/Collapse Specification Description Brand Powermatic Country of Origin Imported Compatibility Woodworking Equipment with Dust Ports Decibel Rating 86-92 dBA Phase Single Phase Filter Efficiency 98% Filtration Material Steel Power 3 HP Maximum Air Flow 1,782 CFM Product Height 72 in. Product length 61 in. Product weight 268 lbs. Product width 30 in. 5 year warranty Manufacturer part number 1792072K
