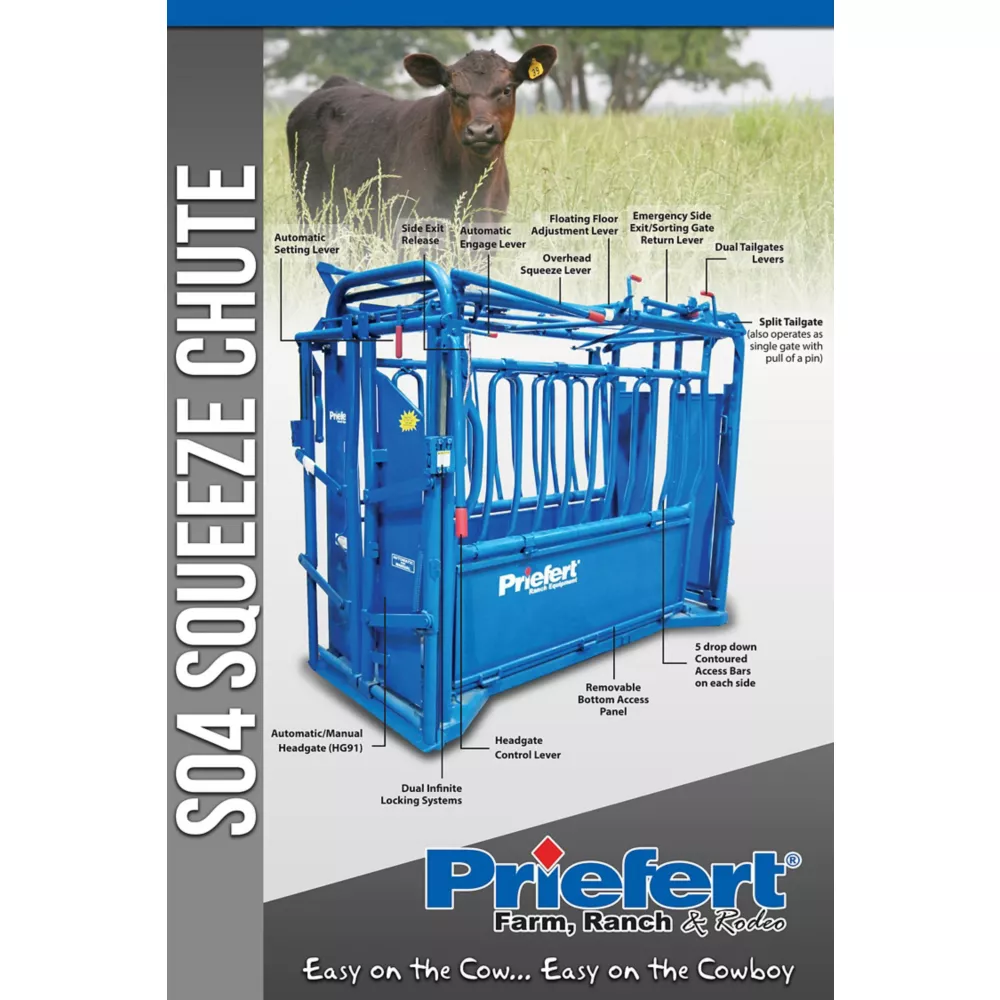

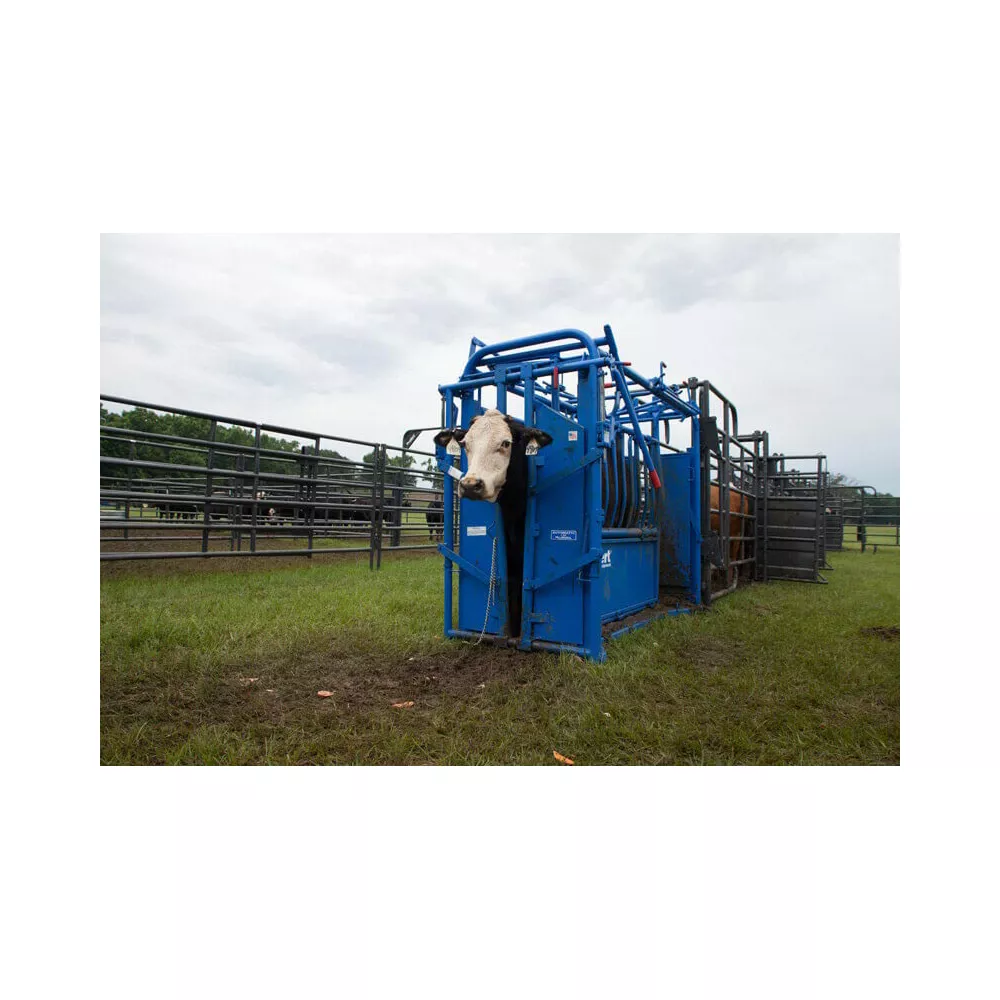

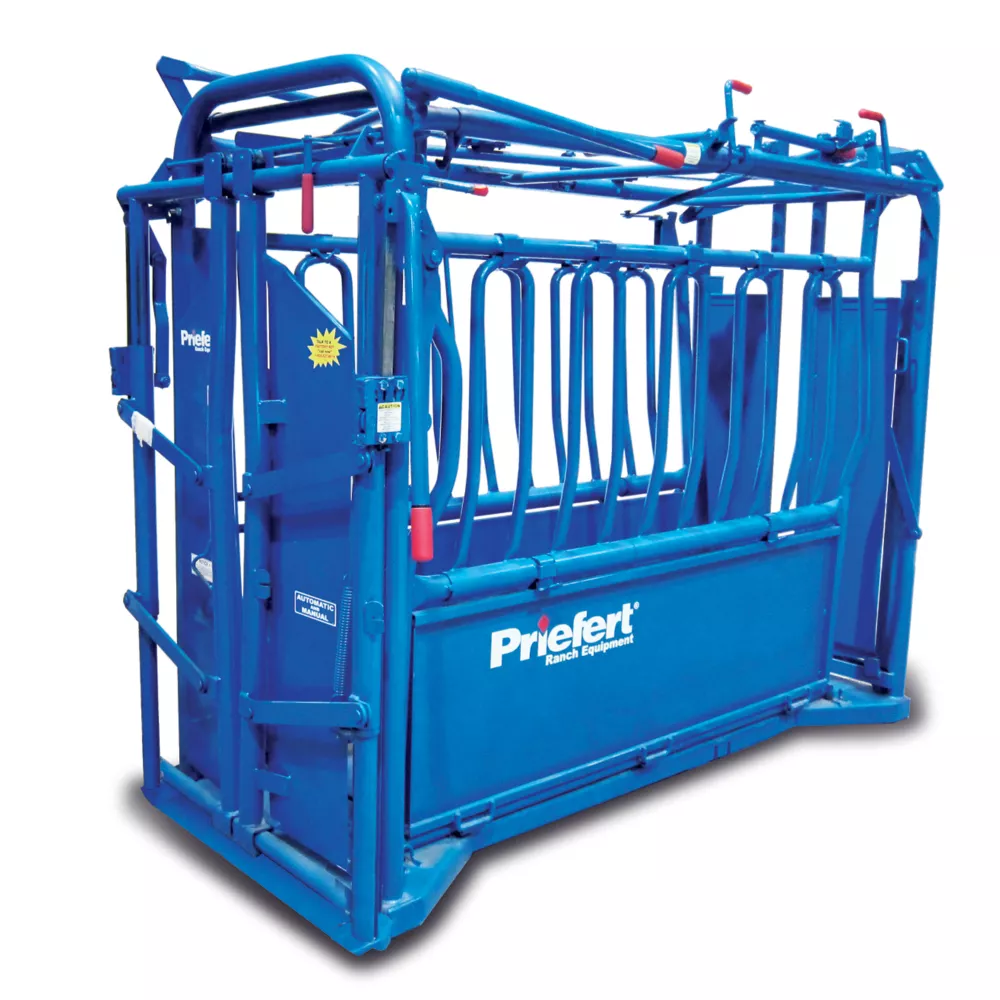

Priefert's number one selling squeeze chute of all time, the Priefert S04 Heavy-Duty Squeeze Chute helps take the 'work' out of working cattle. Designed to be 'Easy on the Cow, Easy on the Cowboy,' this chute offers a number of features that make it one of the safest chutes on the market for animals and operators. With our patented Infinite Locking System (which is Guaranteed for Life), cattle are always controlled by the lock, rather than by the strength of the operator. Never before has a manual squeeze chute been so easy to operate. A single individual can control the tailgate, headgate, squeeze and side exit from one spot with minimal effort. This chute is contoured to fit cattle and the headgate self-adjusts to the correct locking width to fit any size animal. This, coupled with the 'floating floor' adjustment and the split tailgate, makes this chute ideal for working cattle of all sizes. With multiple access points, the S04 livestock squeeze chute gives you total control of your herd for all your cattle working needs.

Split tailgate features dual controls to allow operation of the tail gate from the front or rear of the chute; the simple pull of a pin disengages half of the tailgate to create a calf-sized entry into the chute; put the pin back in place to resume split tailgate action

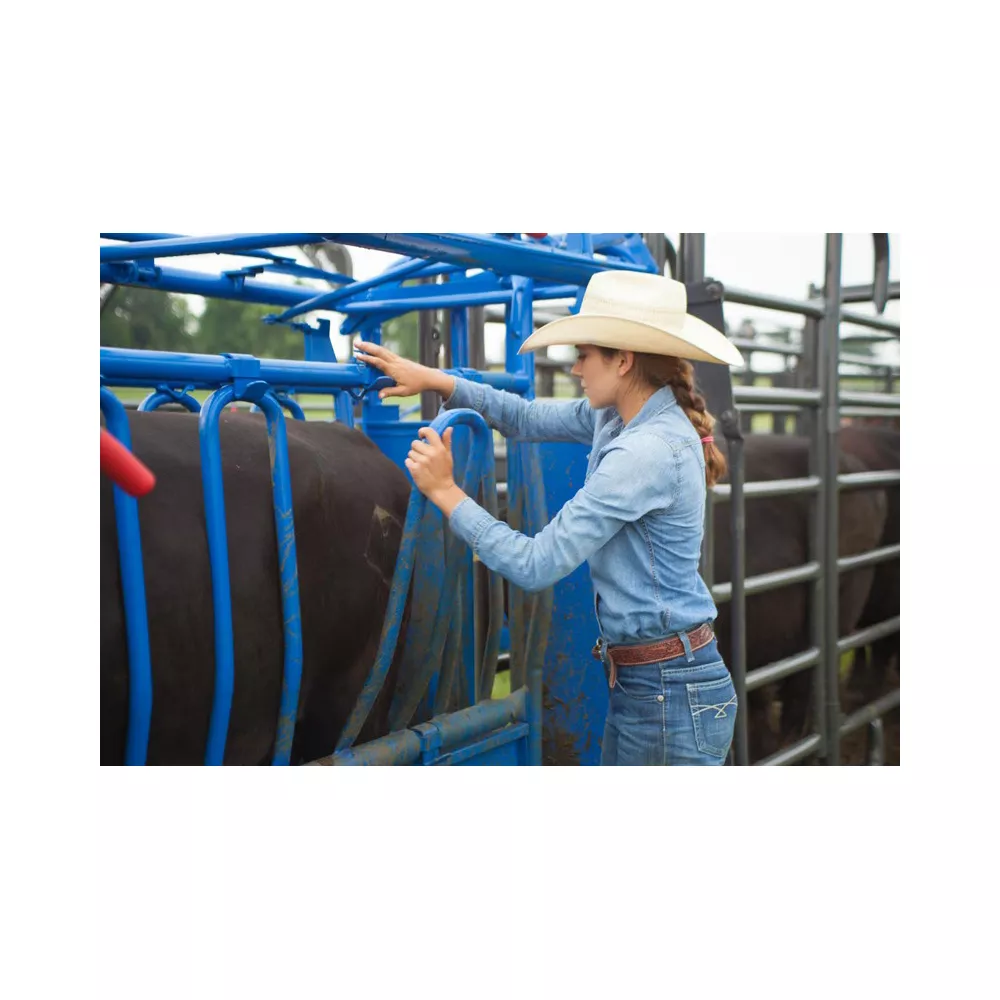

5 contoured upper access panels on each side of the chute are controlled by gravity latches, and allow maximum access to both sides of the animal
Inside width: 24 in. at the belly pipe, 30 in. at the bend of the contoured side panels
Inside height: 62.5 in. (floor to inside top of the tailgate frame)
Comes standard with the HG91 Manual/Automatic Headgate
Overall dimensions of the squeeze chute: 80 in. H x 53 in. W (including handles) x 94.5 in. L
Chute weighs approximately 1,210 lb.

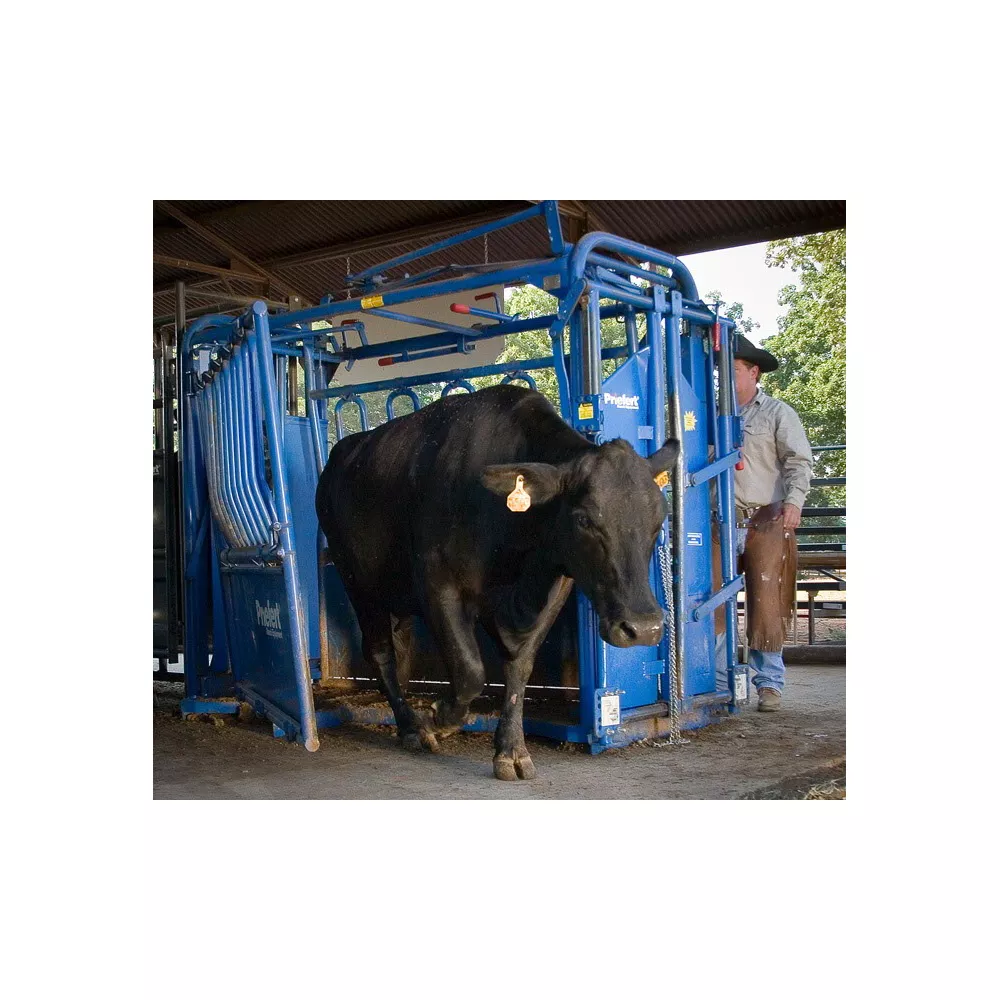

Side exit gate can be used as a sorting exit or as an emergency exit by simply pulling on the release rope; once the animal is clear of the chute, use the 'easy pull' return lever to close the side gate, returning it to its original locked position without ever moving around the chute; when not in use, the return lever is stored of the top of the chute, held in place with a gravity latch
Tailgate will lock in the closed position to secure the animal inside the chute; it will also lock in the open position to allow easy access for palpation and artificial insemination

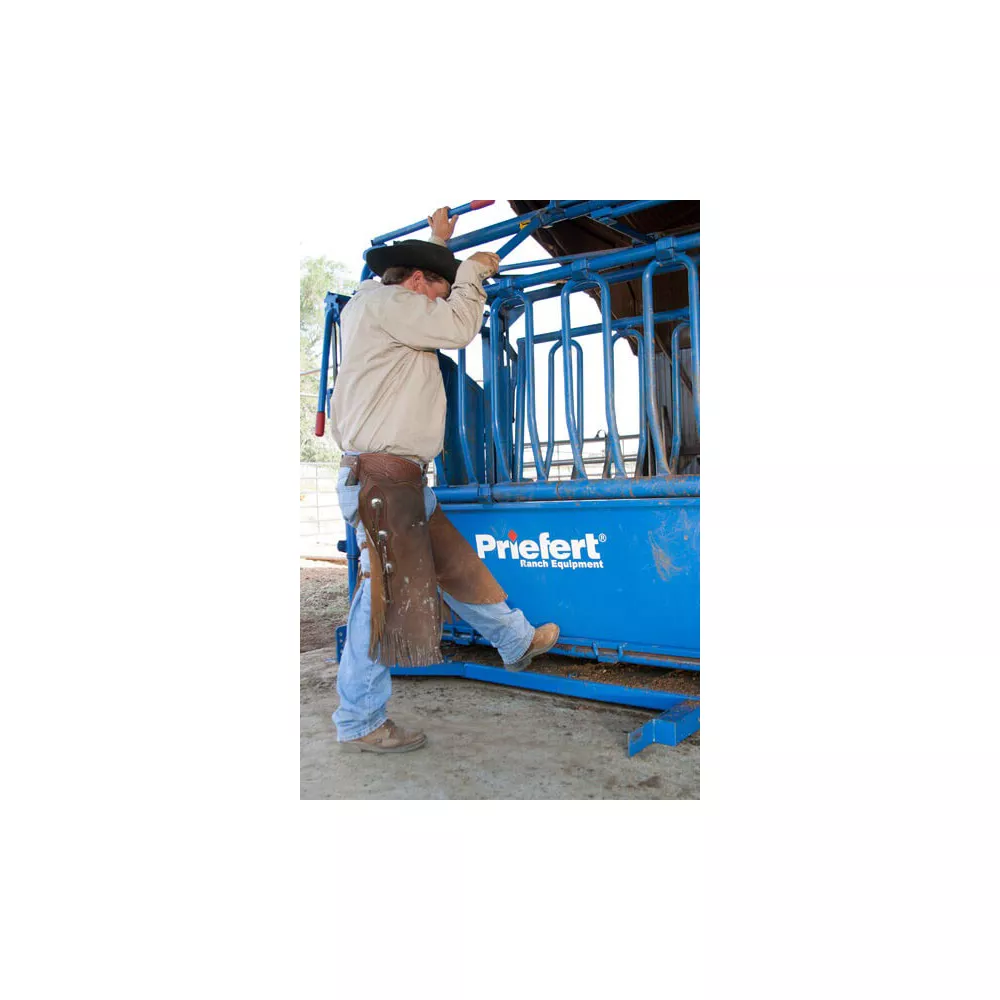

No head-banging handles in the way of the operator; all handles are parallel along the side of the chute or store over the chute and out of the way of the operator

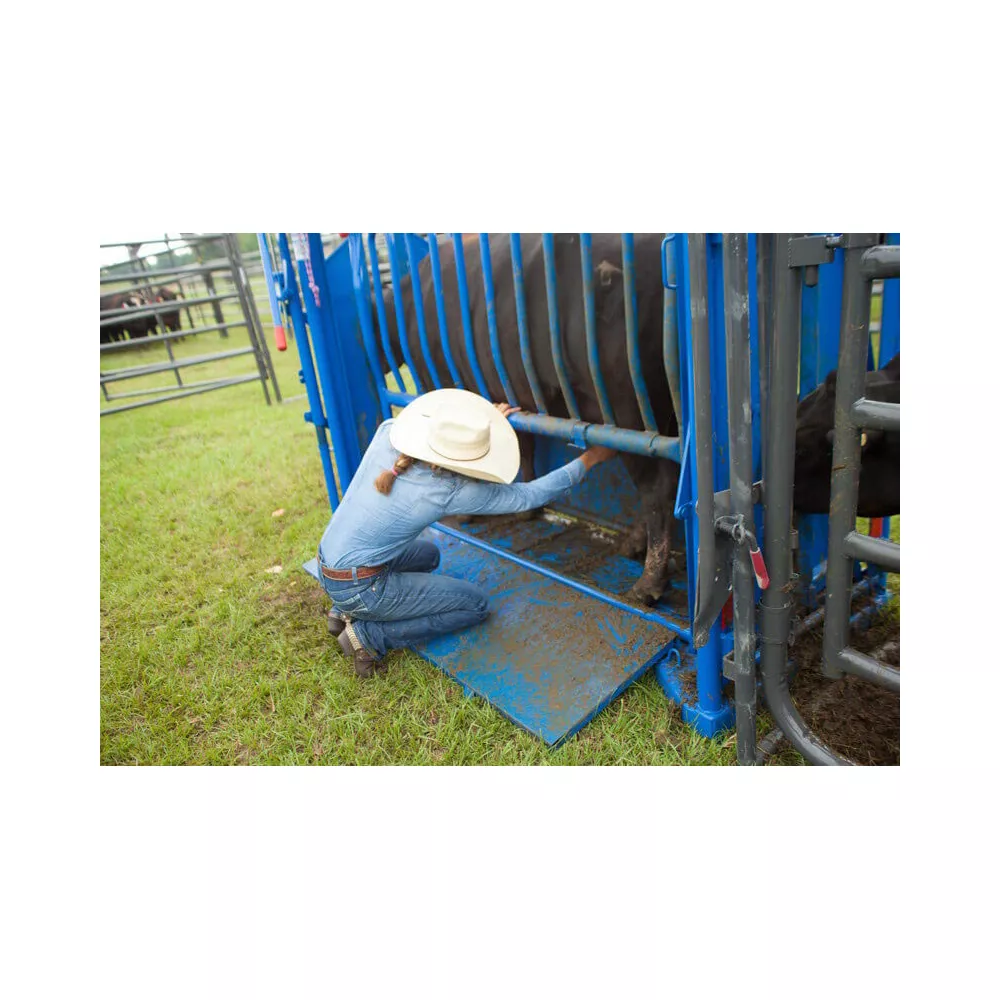

Removable bottom access panels on each side of the chute are controlled by gravity latches and allow easy access to the lower part of the animal, making it easy to check hooves and/or udders

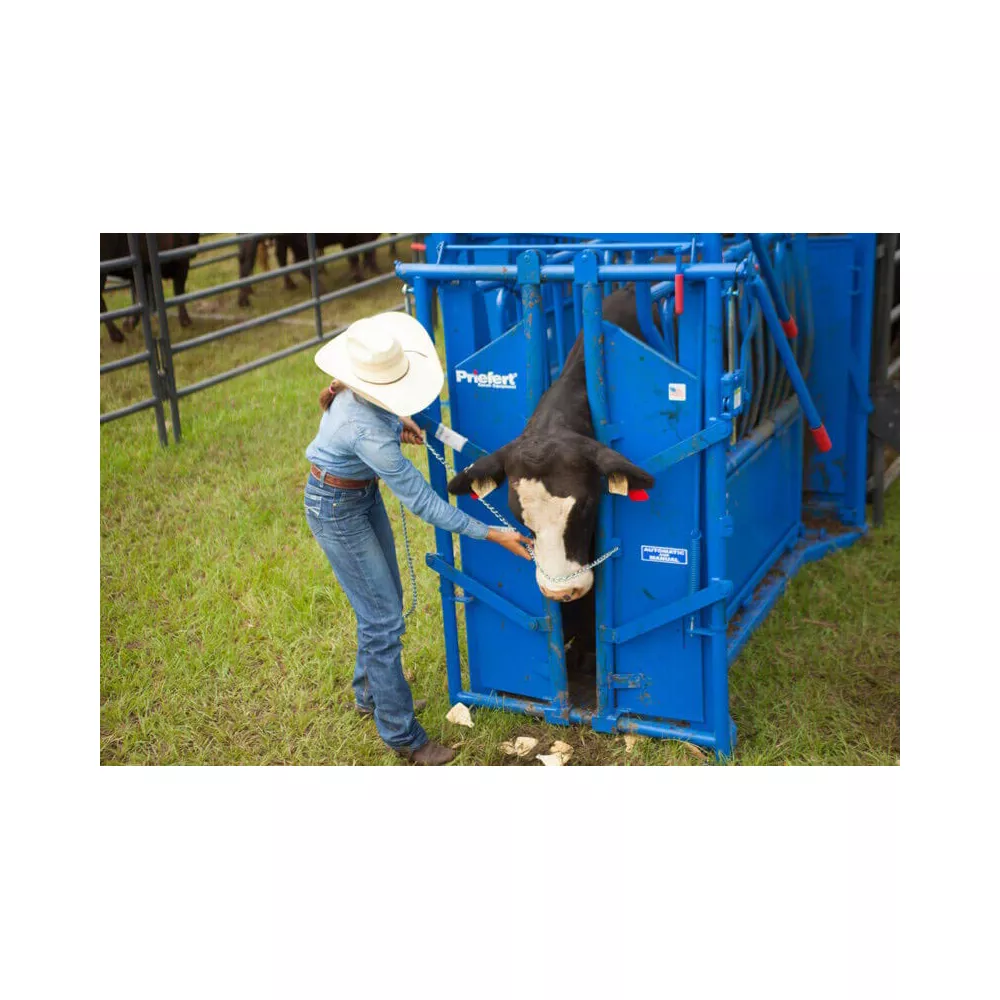

Head restraint chain can easily be secured around an animal's head to provide easy access for doctoring eyes or reading ear tags/tattoos

Priefert heavy-duty compression chute Chutes & Headgates Farm & Ranch> Livestock Handling Equipment> Chutes & Headgates

Specification	Description
Brand	Priefert
Country of Origin	Made in USA
Animal Type	Cattle
Bottom or Top Rollers	Top
Closure Type	Lock
Features	Comes standard with the HG91 Manual/Automatic Headgate
HookupType	None
Lock Type	Side Squeeze lock
Primary Material	Steel
Warranty	5 yr
Manufacturer PartNumber	S04
