Rainwater collection basin NDS 1882BLKIT Grates Heating & Cooling

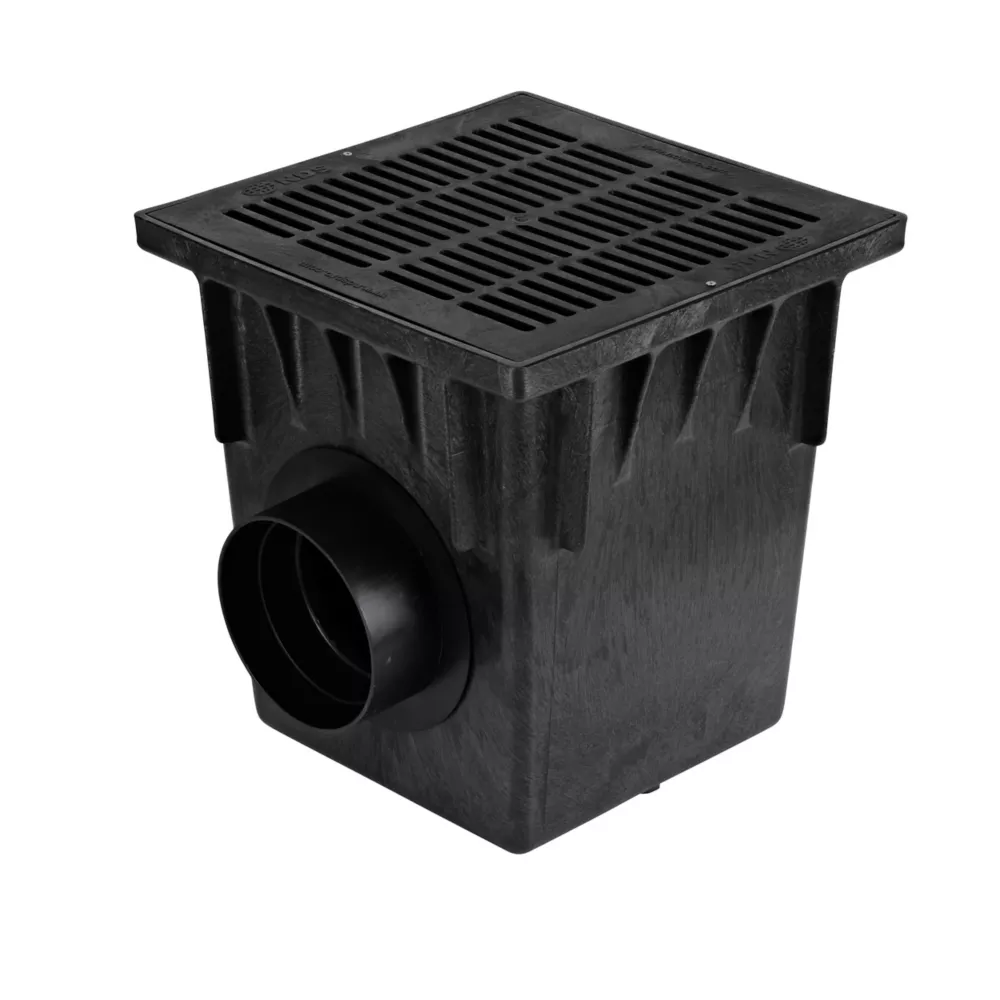

Stormwater that can't properly drain not only leaves a big, mucky mess and unsafe, slippery surfacesit can erode the soil, lead to mosquito breeding grounds, and cause costly water damage to property. The solution? Put a drainage system in place. The 18 in. Square Catch Basin Drain Kit is designed to take care of heavy flows from lawns, landscaped areas, parks, driveways, and courtyards, and includes the components you need to collect and direct water to drain pipe. The all-in-one kit contains a 2-opening polyethylene catch basin drain, polyethylene drain grate (or drain cover), 2 outlet adapters to make the connection to 6 in. and 8 in. drain pipes, 2 reducer rings to fit additional pipe sizes, and drain plug. Put the catch basin to work, and it does more than just "catch" water as part of a complete drainage system, it directs water to connected drain pipes which carry the water to a discharge point such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. Built-in basin sump is easy to access and clean. The storm drain with grate is rated for NDS Class B loads when properly installed. NDS offers free tools such as the Home Drainage Center, Calculators, and NDS Stormwater Drainage mobile app to help make your project a success. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.- Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
- Manage heavy flows of water from lawns, landscaped areas, parks, driveways, and courtyards
- Outlet adapters provide a secure, soil-tight fit to pipeno tape or glue required
- Included plug seals catch basin opening
- Connect to 6 in. & 8 in. Sewer and Drain Pipes & Single-Wall Corrugated Pipes with included outlet adapters; additional outlet adapters sold separately for connections to 3 in. & 4 in. Drain Pipes (1242, 1243, 1245)
- 18 in. square grate has an open surface area of 86.3 sq. in.
- 264 GPM flow rate for 18 in. square plastic grate
- Rated for NDS Class B loads (up to 175 psi) when properly installed with graterecommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph; ADA compliant
- Kit includes 2-Opening 18 in. Catch Basin, 1 Drain Grate, 2 Outlet Adapters, 2 Reducer Rings, 1 Plug
- Made in USA
Rainwater collection basin NDS 1882BLKIT Grates Heating & Cooling> Heating Parts & Accessories> Heating Accessories> Grates
| Specification | Description |
|---|---|
| Brand | NDS |
| Country of Origin | Made in USA |
| Bar Diameter/Width | 0 N/A |
| Distance Lifted From Floor | 0 N/A |
| Finish | Black |
| Indoor/Outdoor | Outdoor |
| Maximum Temperature | 140 deg F |
| Number Of Bars | 0 N/A |
| Primary Material | HDPE |
| Product Height | 18.6 in. |
| Product Length | 17.7 in. |
| Product Weight | 8.44 Ib. |
| Product Width | 17.7 in. |
| Warranty | Limited Lifetime |
| Manufacturer PartNumber | 1882BLKIT |
