Rainwater collection basin NDS 1882BLKIT Grates Heating Accessories

Stormwater that can't properly drain not only leaves a big, mucky mess and unsafe, slippery surfacesit can erode the soil, lead to mosquito breeding grounds, and cause costly water damage to property. The solution? Put a drainage system in place. The 18 in. Square Catch Basin Drain Kit is designed to take care of heavy flows from lawns, landscaped areas, parks, driveways, and courtyards, and includes the components you need to collect and direct water to drain pipe. The all-in-one kit contains a 2-opening polyethylene catch basin drain, polyethylene drain grate (or drain cover), 2 outlet adapters to make the connection to 6 in. and 8 in. drain pipes, 2 reducer rings to fit additional pipe sizes, and drain plug. Put the catch basin to work, and it does more than just "catch" water as part of a complete drainage system, it directs water to connected drain pipes which carry the water to a discharge point such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. Built-in basin sump is easy to access and clean. The storm drain with grate is rated for NDS Class B loads when properly installed. NDS offers free tools such as the Home Drainage Center, Calculators, and NDS Stormwater Drainage mobile app to help make your project a success. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.

Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
Manage heavy flows of water from lawns, landscaped areas, parks, driveways, and courtyards

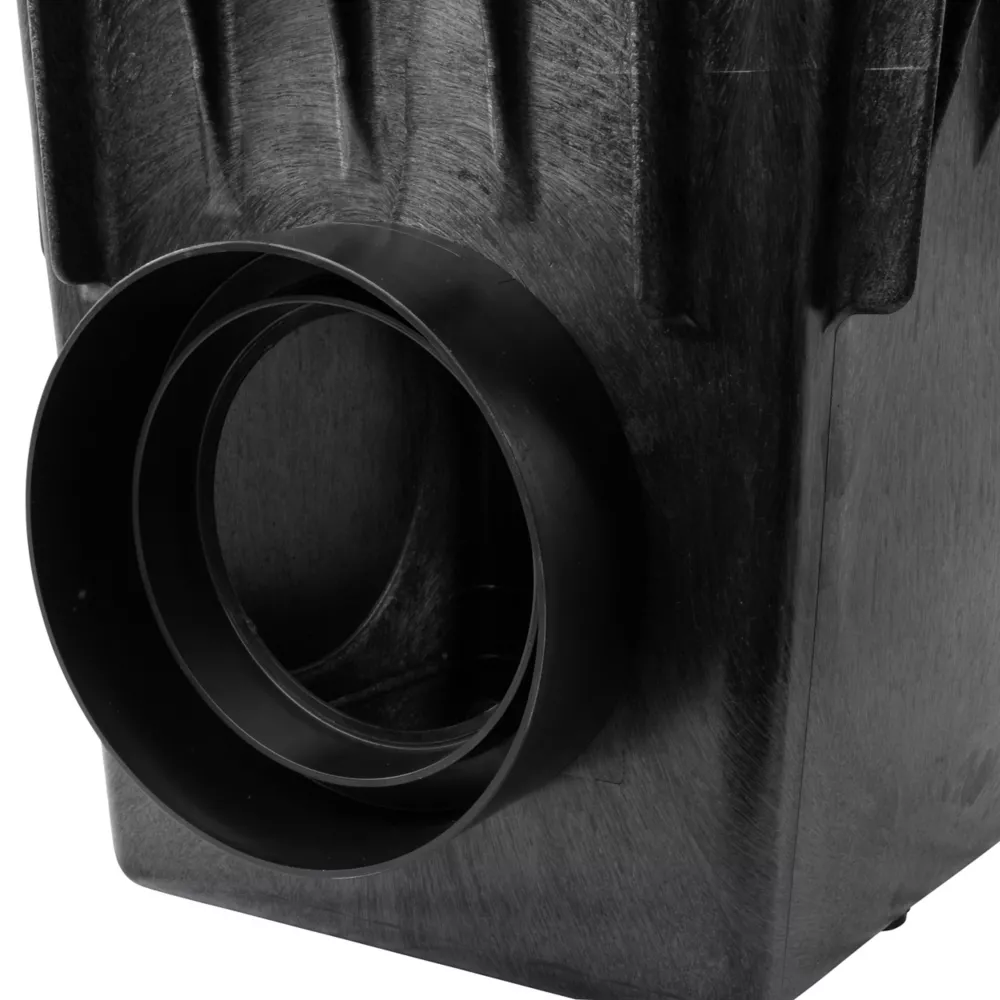

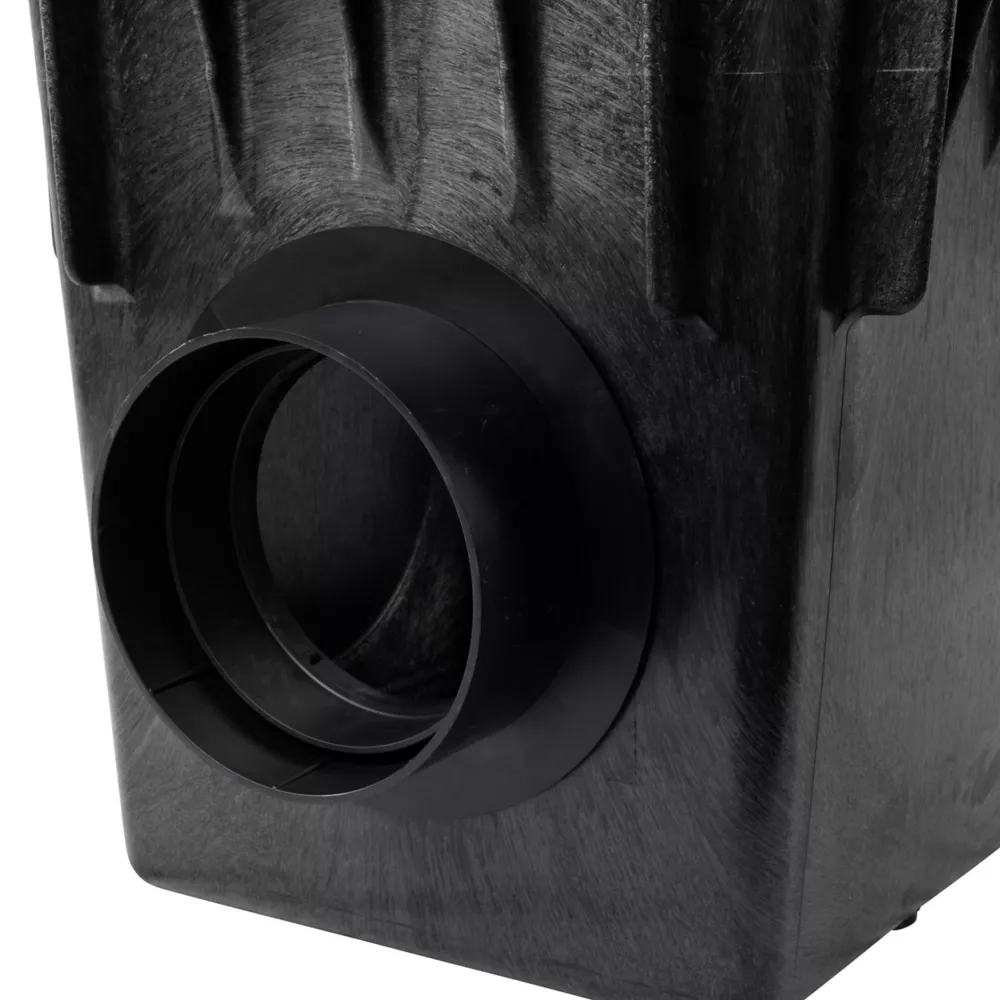

Outlet adapters provide a secure, soil-tight fit to pipeno tape or glue required

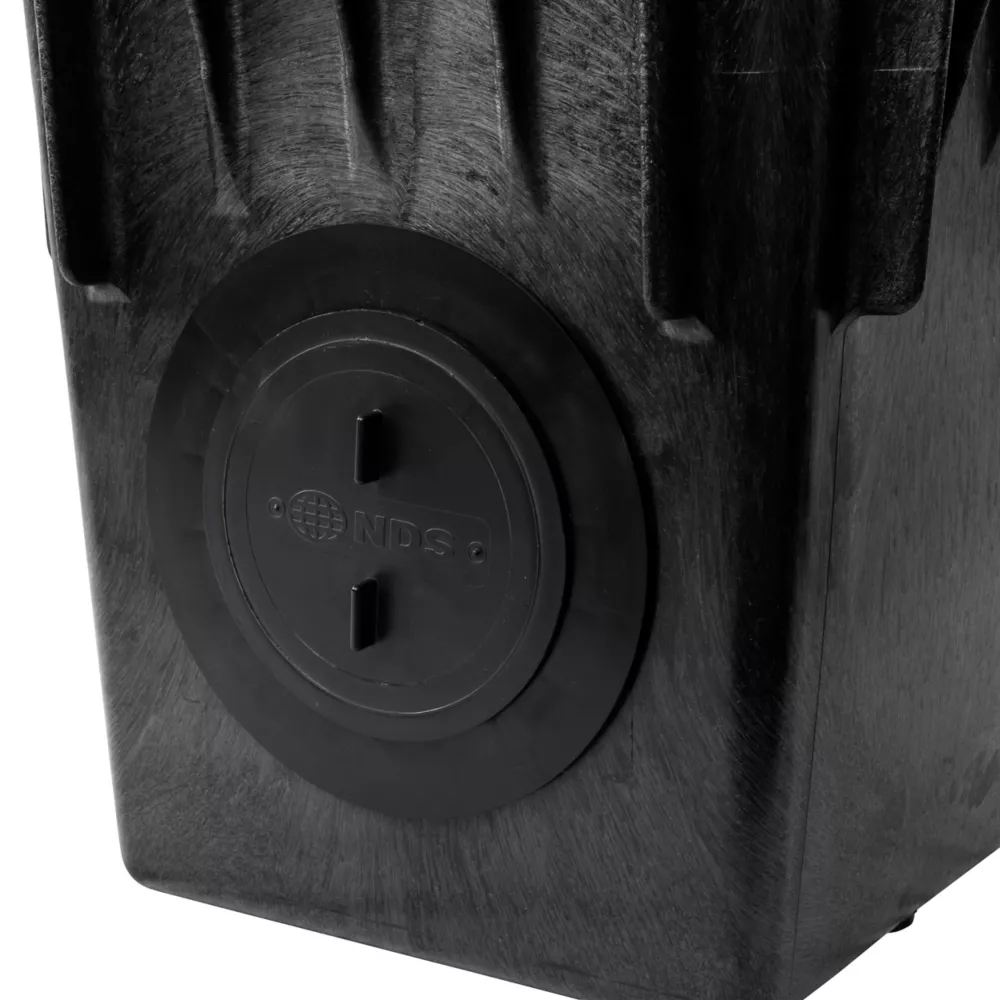

Included plug seals catch basin opening
Connect to 6 in. & 8 in. Sewer and Drain Pipes & Single-Wall Corrugated Pipes with included outlet adapters; additional outlet adapters sold separately for connections to 3 in. & 4 in. Drain Pipes (1242, 1243, 1245)

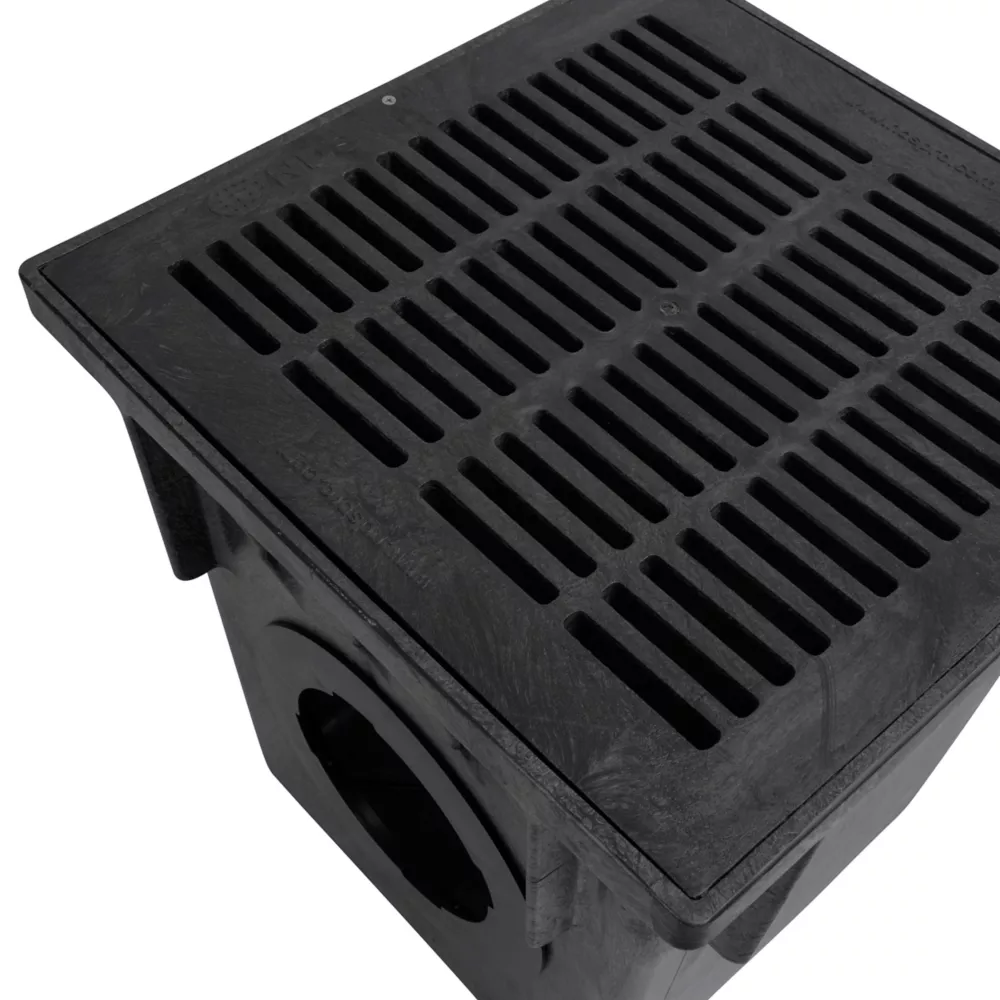

18 in. square grate has an open surface area of 86.3 sq. in.
264 GPM flow rate for 18 in. square plastic grate
Rated for NDS Class B loads (up to 175 psi) when properly installed with graterecommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph; ADA compliant

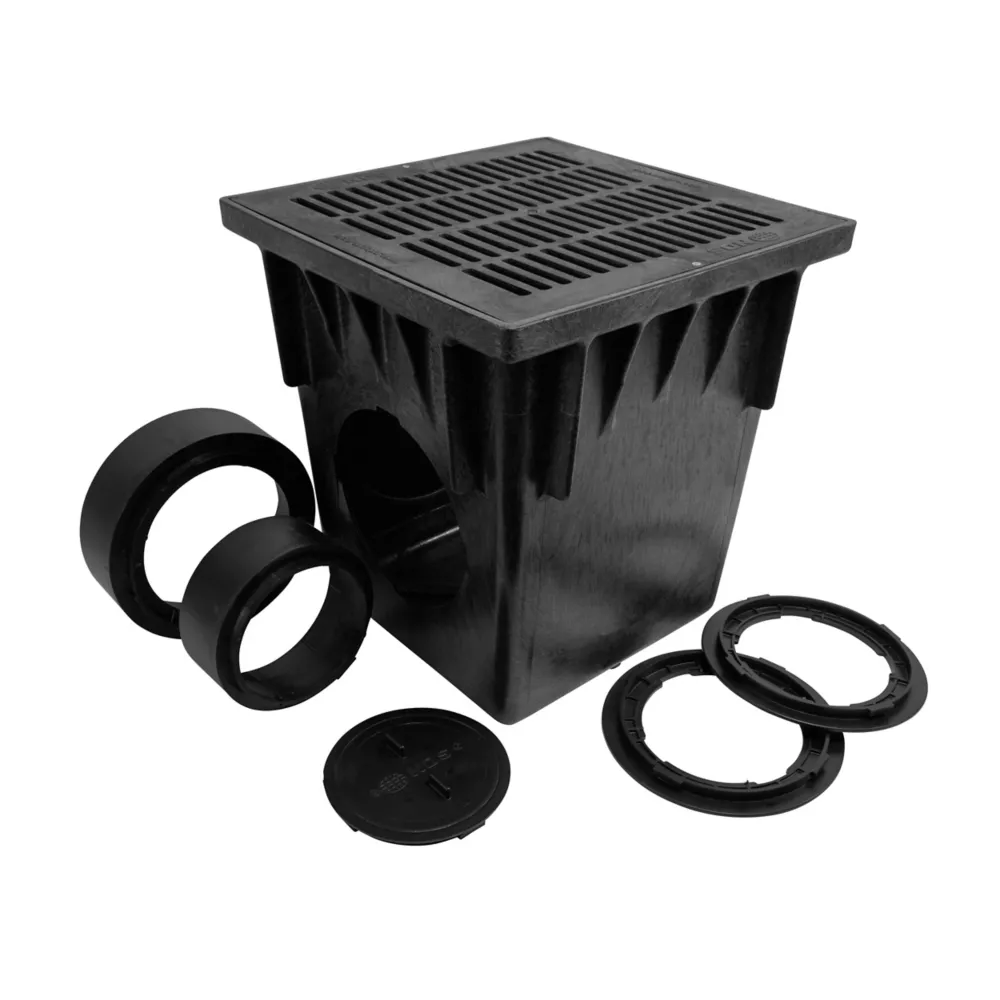

Kit includes 2-Opening 18 in. Catch Basin, 1 Drain Grate, 2 Outlet Adapters, 2 Reducer Rings, 1 Plug
Made in USA

Rainwater collection basin NDS 1882BLKIT Grates Heating & Cooling> Heating Parts & Accessories> Heating Accessories> Grates

Specification	Description
Brand	NDS
Country of Origin	Made in USA
Bar Diameter/Width	0 N/A
Distance Lifted From Floor	0 N/A
Finish	Black
Indoor/Outdoor	Outdoor
Maximum Temperature	140 deg F
Number Of Bars	0 N/A
Primary Material	HDPE
Product Height	18.6 in.
Product Length	17.7 in.
Product Weight	8.44 Ib.
Product Width	17.7 in.
Warranty	Limited Lifetime
Manufacturer PartNumber	1882BLKIT

NDS Stormwater Catch Basin, 1882BLKIT Specifications expand/collapse Specification Description Brand NDS Country of Origin Made in USA Bar Diameter/Width 0 N/A Ground Lift Distance 0 N/A Finish Black Indoor/Outdoor Outdoor Maximum Temperature 140 deg F Number of Bars 0 N/A Main Material Product Height HDPE 18.6 in. Product length 17.7 in. Product Weight 8.44 lb. Product Width 17.7 in. Limited Lifetime Warranty Manufacturer Part Number 1882BLKIT
