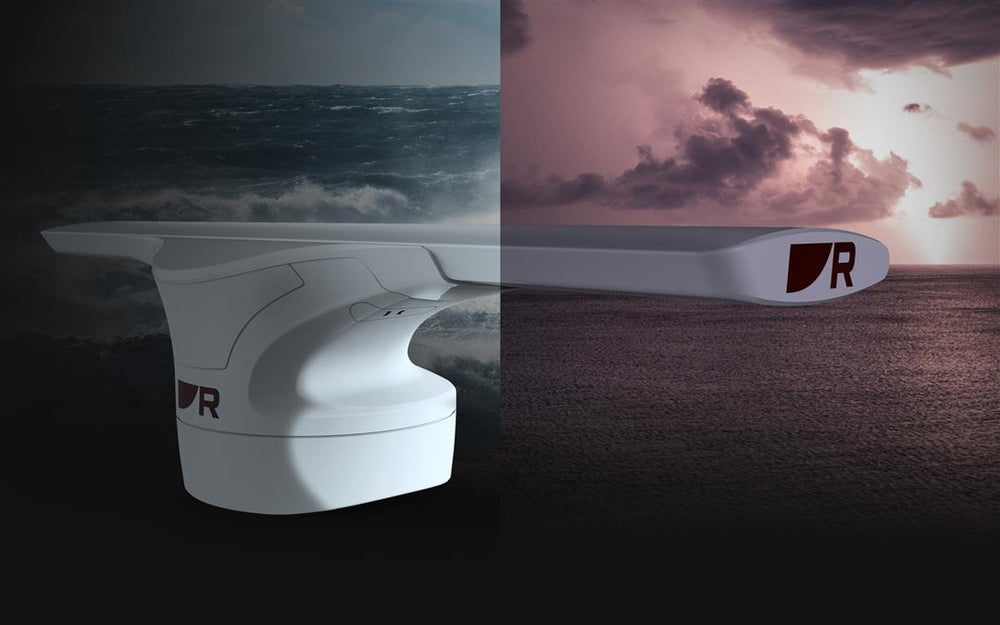

Raymarine Cyclone Pro radar with 4' open array and 15m cables Marine Navigation & Instruments
With a powerful 110-watt solid-state transmitter, Cyclone Pro delivers superior target separation and increased long-range resolution using CHIRP pulse compression and beam sharpening technology. The Cyclone Pro's increased power output is equivalent to a 12-kilowatt magnetron radar and gives the Cyclone Pro a range of up to 96 nautical miles. The Cyclone Pro model features innovative detection capabilities including Cyclone Bird Mode, RangeFusion™ technology and 60 RPM high-speed imaging.
Raymarine T70495 Attributes- Radar Type : Open Array
- Size: 4 foot array
- Range: 96 nautical miles
- Rotation speed: 12 to 60 rpm
- Output power: 110 watts
- Dimension: 15.27 inches length x 14.17 inches width x 13.18 inches height
- Input voltage: 12 volts to 24 volts
- Beam width: 1.99 degrees horizontal/25 degreesVertical
- Color: White
- Waterproof Rating: IPX6 Waterproof Rating
- Includes: Radar Pedestal/Voltage Converter/Power Supply Cable/Data Cable /Mounting kit
- Inspired by airplane wings: designed for extreme conditions with best-in-class 100 knot wind rating
- The Cyclone's lower profile allows for greater boat architecture flexibility and more adaptable installation options
- The Cyclone automatically tracks up to 50 targets using the same Arpa technology technology trusted by the United States Coast Guard
- RangeFusion™ technology combines short and long pulses into a single, high-clarity radar image, simultaneously providing exceptional short- and long-range targets.
- Fast rotation speed of 60 rpm provides 360 degree awareness and dPrecise target tracking in real time. -Time
- Doppler target tracking simplifies interpretation of dangerous and safe targets for added safety
- Innovative pedestal design conceals cable connections for cleaner installation
- Cyclone's 4 Legs Option Provides Superior Target SeparationIon Detections and Range
- 2 Year Limited Warranty
- Cyclone Cyclone Pro 87402 Installation Instructions (Rev. 5) (EN).pdf
- Raymarine-Global-Limited -Warranty-01-Jul-17-rev1-0.pdf
- Cyclone Cyclone Pro Installation Instructions 87402 (Rev 5) (EN).pdf
- Open Array 36 inches E70628 E70620 E70621 E70622 2D PDF.pdf
- Open Array 36 inches E70628 E70620 E70621 E70622 2D PDF.pdf
Radar Cyclone Pro 110 W with open networke 4' and 15M cables
SOLID OPEN RADAR ARRAY
Ultimate expression of design, rugged performance and knowledge From the unrivaled situation, Cyclone open-array solid-state radars give sailors the confidence to tackle the toughest conditions, gain the upper hand in the hunt for fish, and confidently navigate busy waterways.
Cyclone raDars provide superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative sensing capabilities including Cyclone Bird Mode, RangeFusion™ technology and 60 RPM high-speed imaging.
ADVANCED DESIGN
- Airplane wing-inspired design is built for extremes with wind resistance of 100 knots, the besture in its class, and designed to meet the commercial grade IEC 62388 standard for onboard radar
- At 13.1 inches (335 mm) high, the Cyclone's lower profile allows for greater flexibility boat architecture and more adaptable installation options.
- Innovative pedestal design conceals cable connections for a cleaner installation
THE ULTIMATE SITUATIONAL AWARENESS
- Fast 60 RPM rotation speed provides 360-degree awareness and accurate, real-time target tracking
- Doppler target tracking simplifies dang interpretationHeavy, secure targets for added safety
- Professional-grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
- RangeFusion™ technology combines short pulses andlong in a single high clarity radar image, providing exceptional range and range. long-range targets simultaneously.
FISHING INTELLIGENCE
- Optimized performance for locating seabirds
- Improved Bird Cyclone Mode using CHIRP pulse compression technology
4' OPEN ARRAY SIZE
- The 4' option provides superior separation and range of detection targets
In the E70621 stand box:
- Pro Pedestal
- Stud M10 x4
- Nut M10 x8
- Spring washer M10 x4
- Flat washer M10 x4
- Mounting joint
- Mounting model
- Radar data cable 15 m
- Power cable 15 m
- VCM100
- Cable clamp
- VCM100 mounting screws x2
- Cable clamp mounting screws x3
4' antenna box E70629:
- Antenna
- Threaded alignment guide
- Washer
- Spring washer
- Nut
All Axiom displays require the upcoming LightHouse Hvar 3.16 software update for full compatibility with Cyclone. LightHouse Hvar 3.16 will be available in early November 2021.
PRODUCT ID: 91824
SKU: NVN-91824
CSKU: CWR-91824
REWRITE: 102935 -raymarine -cyclone-pro-radar-w-4-39-open-array
MPN: T70495
UPC: 723193836651
ASIN:
WSKU: RAYT70495
SSKU:
KSKU: RAYT70495
GSKU:
MSKU:
LSKU:
NAME: Raymarine Cyclone Pro Radar with 4FT Open Array and 15M Cables
NAME_EX: RAYMARINE CYCLONE PRO 4FT OPEN ARRAY RADAR WITH CABLE 15M
PTITLE: Raymarine Cyclone Pro Radar with 4' Open Array and 15M Cables
TYPE: Navigation and Marine Instruments | Radars
SELLER: Raymarine
ELECTRONICS> MARINE ELECTRONICS> MARINE RADAR
Categorie Amazon:
Gtags:
GSpecs:
Raymarine Cyclone Pro Radar with 4' Open Array and 15M Cables Product Description
With a powerful 110-watt solid-state transmitter, Cyclone Pro provides superior target separation and increased long-range resolution with CHIRP pulse compression and beam sharpening technology. The Cyclone Pro's increased power output is equivalent to a 12-kilowatt magnetron radar and gives the Cyclone Pro a range of up to 96 nautical miles. The Cyclone Pro model features innovative detection capabilities including Cyclone Bird Mode, RangeFusion™ technology, and 60 RPM high-speed imaging.
Raymarine T70495 Attributes- Radar Type: Open Array
- Size: 4 Foot Array
- Range: 96 nautical miles
- Rotation speed: 12 at 60 rpm
- PowerOutput: 110 watts
- Dimension: 15.27 inches length x 14.17 inches width x 13.18 inches in height
- Input voltage: 12 volts to 24 volts
- Width of beam: 1.99 degrees horizontal/25 degrees vertical
- Color: White
- Waterproof Rating: Waterproof Rating IPX6
- Includes: Radar Pedestal/Converter Voltage Cable / Power Cable / Data Cable / Mounting Kit
- Inspired by airplane wings: designed for extreme conditions with best-in-class 100 knot wind rating
- The Cyclone's lower profile allows for greater boat architecture flexibility and more adaptable installation options
- The Cyclone automatically tracks up to 50targets using the same advanced Arpa technology trusted by the United States Coast Guard
- RangeFusion™ Technology combines short and long pulses into a single, high-clarity radar image, providing exceptional range to short and long range targets simultaneously
- Fast 60 RPM rotation speed provides 360-degree awareness and precise real-time target tracking
- Tracks targets Doppler targets simplify interpretation of dangerous and safe targets for added safety
- Innovative pedestal design conceals cable connections for cleaner installation
- 4-leg option of Cyclone offers superior target separation and range detections
- 2-year limited warranty
- Cyclone Installation Instructions Cyclone Pro 87402 (Rev 5) (EN).pdf
- Raymarine-Global-Limited -Warranty-01-Jul-17-rev1-0.pdf
- Cyclone Installation Instructions Cyclone Pro 87402 (Rev 5) ) (EN).pdf
- 36 inch open die E70628 E70620 E70621 E70622 PDF 2D.pdf
- 36 inch open die E70628 E70620 E70621 E70622 PDF 2D.pdf
Cyclone Pro RaDar 110 W with 4' open array and 15 m cables
OPEN ARRAY RADAR SOLID STATE
The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone open-array solid-state radars give sailors the confidence to take on the toughest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.
Cyclone radars provide superior target separation and long-range resolution thanks toCHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative sensing capabilities including Cyclone Bird Mode, RangeFusion™ technology and 60 RPM high-speed imaging.
ADVANCED DESIGN
- Aircraft wing-inspired design is built for extremes with best-in-class 100 knot wind resistance and built to meet commercial grade IEC 62388 for onboard radars
- At 13.1 inches (335 mm) tall, the Cyclone's lower profile allows for greater boat architecture flexibility and more adaptable installation options.
- Innovative pedestal design conceals cable connections for a cleaner installation
ULTIMATE SITUATIONAL AWARENESS
- Fast 60 RPM rotation speed provides 360-degree awareness and trackingaccurate real-time target tracking
- Doppler target tracking simplifies interpretation of dangerous and safe targets for increased safety
- Professional-grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the U.S. Coast Guard.
- RangeFusion™ technology combines short and long pulses into one image Unique high clarity radar, providing exceptional range and range. long-range targets simultaneously.
FISHING INTELLIGENCE
- Optimized performance for locating seabirds
- Improved Bird Cyclone Mode using CHIRP pulse compression technology
4' OPEN ARRAY SIZE
- 4' option provides superior target separation and range detections
In the E70621 Stand Box:
- Pro Pedestal
- M10 Stud x4
- M10 Nut x8
- M10 Spring Washer x4
- li>
- Flat washer M10 x4
- Mounting gasket
- Mounting template
- Radar data cable 15m
- 15m power cable
- VCM100
- Cable clamp
- VCM100 mounting screws x2
- Cable clamp mounting screws x3
4' E70629 Antenna Housing:
- Antenna
- Threaded Alignment Guide
- Washer
- Spring Washer
- Nut
All Axiom displays require next LightHouse Hvar software update 3.16 for full compatibility with Cyclone. LightHouse Hvar 3.16 will be available in early November 2021.
Raymarine Cyclone Pro Radar with 4' Open Array and 15M Cables Related ProductsRaymarine 15M Data Cable for Cyclone Radar
Frequently asked questions (FAQ) about the Raymarine Cyclone Pro ave radarc 4' open array and 15M cables Who is the Raymarine?
How to describe the Raymarine Cyclone Pro radar with 4' open array and 15M cables?
What is the output voltage?
What is the size?
What is the color of the Raymarine Cyclone Pro radar with 4' open array and 15m cables?
What is the waterproof rating of the product?
br/> What is the size of the product?
What is the maximum range (in miles) of the product?
Who is the Raymarine? Raymarine, world leader in marine electronics, develops and manufactures the most complete range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the recreational and light commercial markets worldwide. Whether stand-alone units or fully integrated systems, Raymarine understands navigation and what it takes to do so.e make it safer.How to describe the Raymarine Cyclone Pro radar with 4' open array and 15M cables? "
Raymarine cyclone radar 110 watts with 4 ft antenna
Model: T70495The ultimate expression design, rugged performance and unmatched situational awareness, Cyclone solid-state open transom radars give sailors the confidence to tackle the toughest conditions, gain the upper hand in the hunt for fish and navigate in confidence on busy waterways.
Cyclonic radars provide superior target separationure and long-range resolution thanks to CHIRP pulse compression. and Raymarine beam sharpening technology. Each model features innovative sensing capabilities including Cyclone Bird Mode, RangeFusion™ technology and 60 RPM high-speed imaging.
Specifications| Supply voltage (with VCM100) | Nominal: 12 V DC or 24 V DC / Minimum: 10.2 V DC / Maximum: 31.2 V DC |
| Power consumption (typical) | 95 watts |
| Power consumption (max) | 195 watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 96 nm |
| Startup time | 40 seconds |
| Standby to transmit | less than 5 secwaves |
| Waterproof rating | IPX6 |
| Operating temperature range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum wind speed | 100 Kts |
| Electrical connection | 1xPower connector |
| Data connection | 1x RayNet connector |
| Transmitter frequency | 9370, 9400, 9430 MHz (user selectable) |
| Peak output power | 110 Watts |
| Receiver characteristic | Linear |
| Noise receiver | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18in (to the top of the antenna) |
| Weight | 16 Kg |
| Antenna | |
| Beam width (vertical) | 25 degrees |
| Beam width (horizontal) | 1.99 degrees |
| Polarization | Horizontal |
| Rotation speed | 12, 24, 36, 48, 60 rpm |
| Length | 1336 mm / 52.59 inches |
| Weight | 9 Kg / 19.84 lb |
What's in the box:
- A8058 15m Data Cable "
- Cyclone Pro 110W Radar with 4' Open Array and 15M Cables
- RADAR TO ARRAY OPEN SOLID STATE
- The ultimate expression of design, rugged performance andunmatched situational awareness.
- Cyclone solid-state open array radars give sailors the confidence to navigate in all conditions.
- Cyclone Pro 110W Radar with 4' Open Array and 15M Cables
- Solid State Open Array Radar with up to 50 Mile Range
- Powerful Design and rugged for harsh marine environments
- Cyclone Pro 110W Radar with 4' open array and 15M cables
- Semi-open array radar drivers for ultimate situational awareness
- Designed to be rugged and durable
- Unrivaled performance
- Cyclone Pro 110W Radar with 4' Open Array and 15M Cables
- SOLID STATE OPEN ARRAY RADAR
- The Expression ultimate design, rugged performance and unrivaled site knowledgeuation.
- Cyclone open array solid-state radars give sailors the confidence to navigate in all conditions.
- Cyclone Pro 110W radar with 4' open array and 15M cables
- Solid-state open array radar with a range of up to 50 miles
- Powerful, rugged design for harsh marine environments
- Cyclone Pro 110W Radar with 4' Open Array and 15M Cables
- Solid-State Open Array Radar for Ultimate Situational Awareness
- Designed to be Rugged and durable
- Unrivaled performance
Buyz at the best price Raymarine Cyclone Pro Radar with 4' Open Array and 15M Cablesfor only $8,999at NVN Marine! Free same day delivery before 3 p.m. Raymarine Cyclone Pro Radar with 4' Open Array and 15M Cables Technical Specifications
| Type: | Marine Navigation & Instruments | Radars |
|---|---|
| Supplier: | Raymarine |
| Die Size (inches): | 4FT |
| Power - Output: | 110 W |
| Range - Max (miles): | 96 NM |
| Product Brochure: | Download PDF |
