ReelWorks Low Pressure Air/Water Hose Air Hose Reels Air Compressor Accessories & Parts

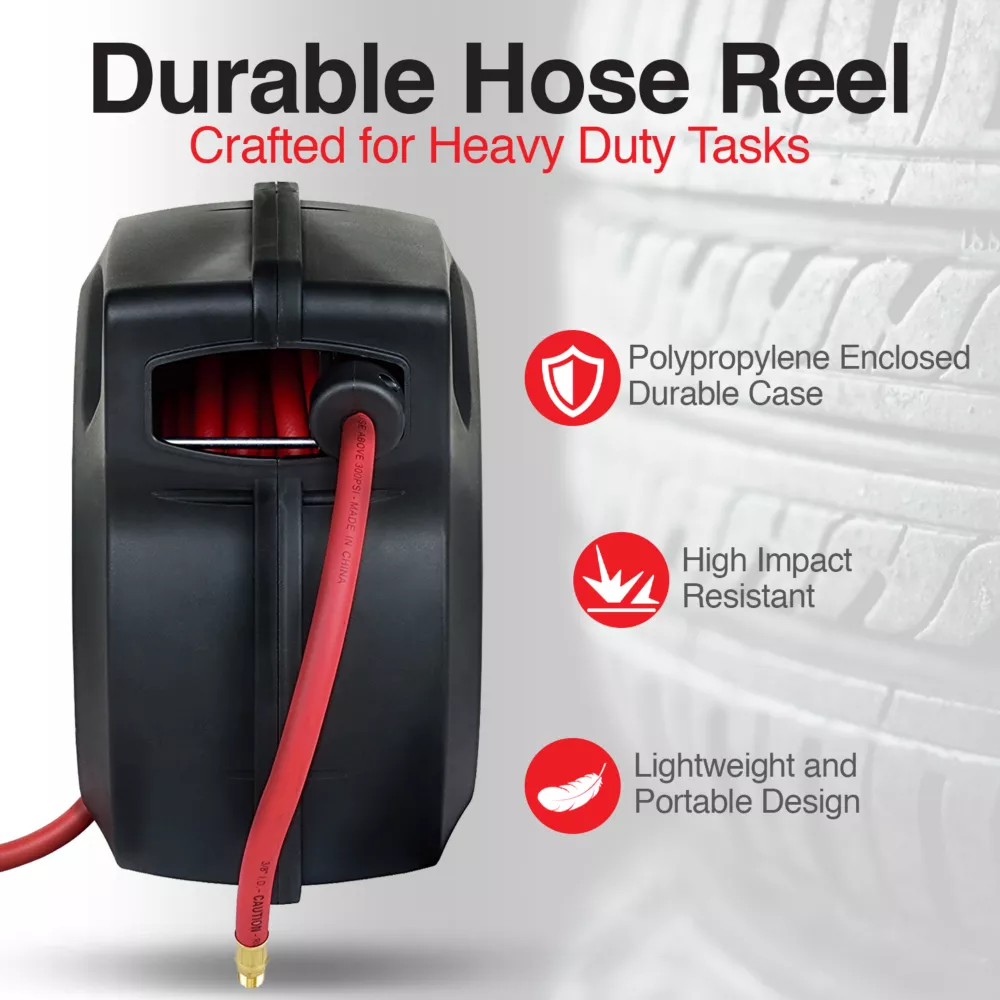

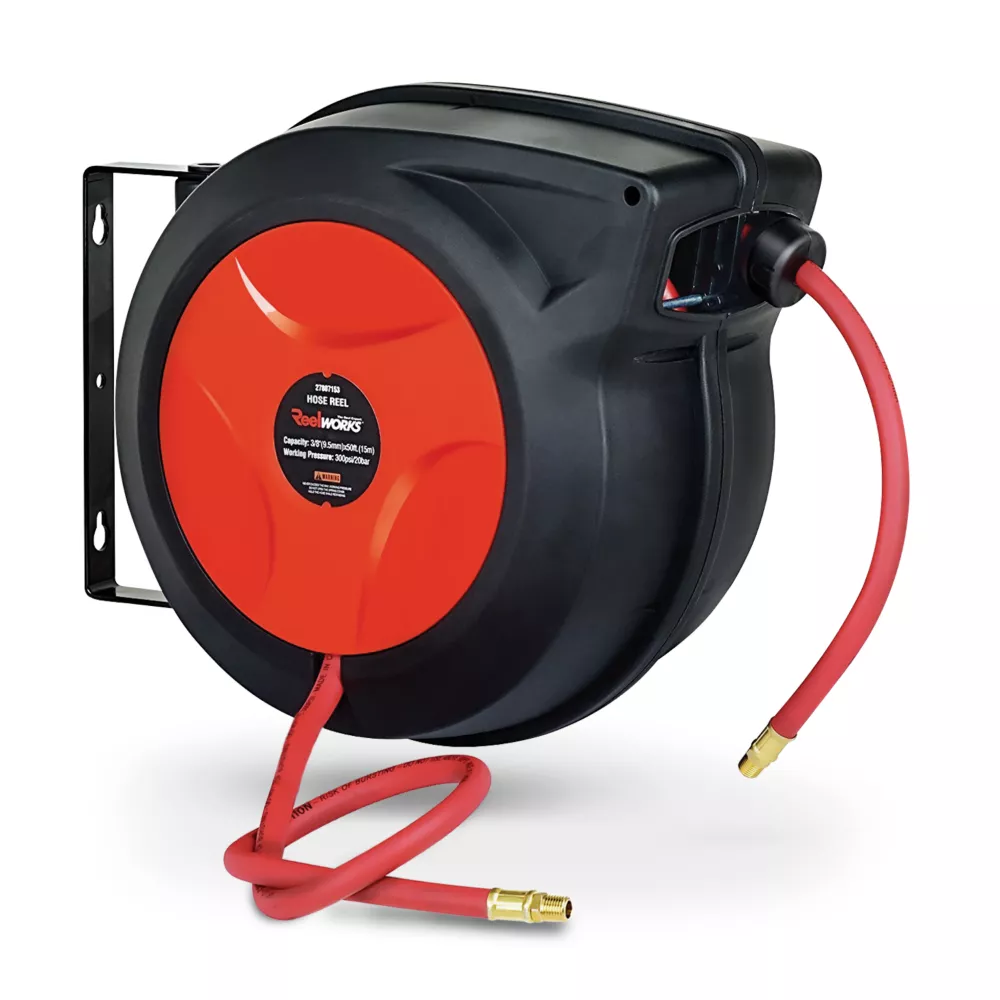

This Reelworks TRI-27807153A-R Hose Reel is crafted of heavy duty impact resistant light weight durable Polypropylene Enclosed Spring Driven Case, a newly designed swivel hose inlet connection protecting against leaks. The 3/8" x 50 FT Premium Commercial Flex Hybrid Polymer Hose has a working pressure of 300PSI / 20BAR with 1/4" MNPT connections, also includes a 36" (0.9m) Lead-in Hose + Adjustable Hose Stopper & Non-Snag Rollers, w/ a 180° Swivel bracket. Utilizing double adjustment enclosed multi-position release ratchet spring, locking the hose at any desired length. Automatic Guide System, retracts the hose orderly way w/ no pile up. Premium Flex Hybrid Polymer has superior: bend radius, abrasion & puncture resistance & no memory (eliminating kinks) lays flat, Resistant to: Water/Oil, Heat, Ozone, Weather, Abrasion & works in tough conditions of -40°F to 176°F (-40°C to 80°C), for the best advantage to suit your needs. Our Hose Reels are OSHA, RoHS, ISO: 9001, 14001, CNAS, SQC, IAF, Listed approved & certified, including cull quality tested. Reel works Reels are best suited for indoor/outdoor use, night or day environments, for DIY or industrial applications, allowing for extension to be up out of the way keeping the workplace safe. Our Air Hose Reels our suitable for both air & water usage. (NOT PETROLEUM or BIO-FUELS).

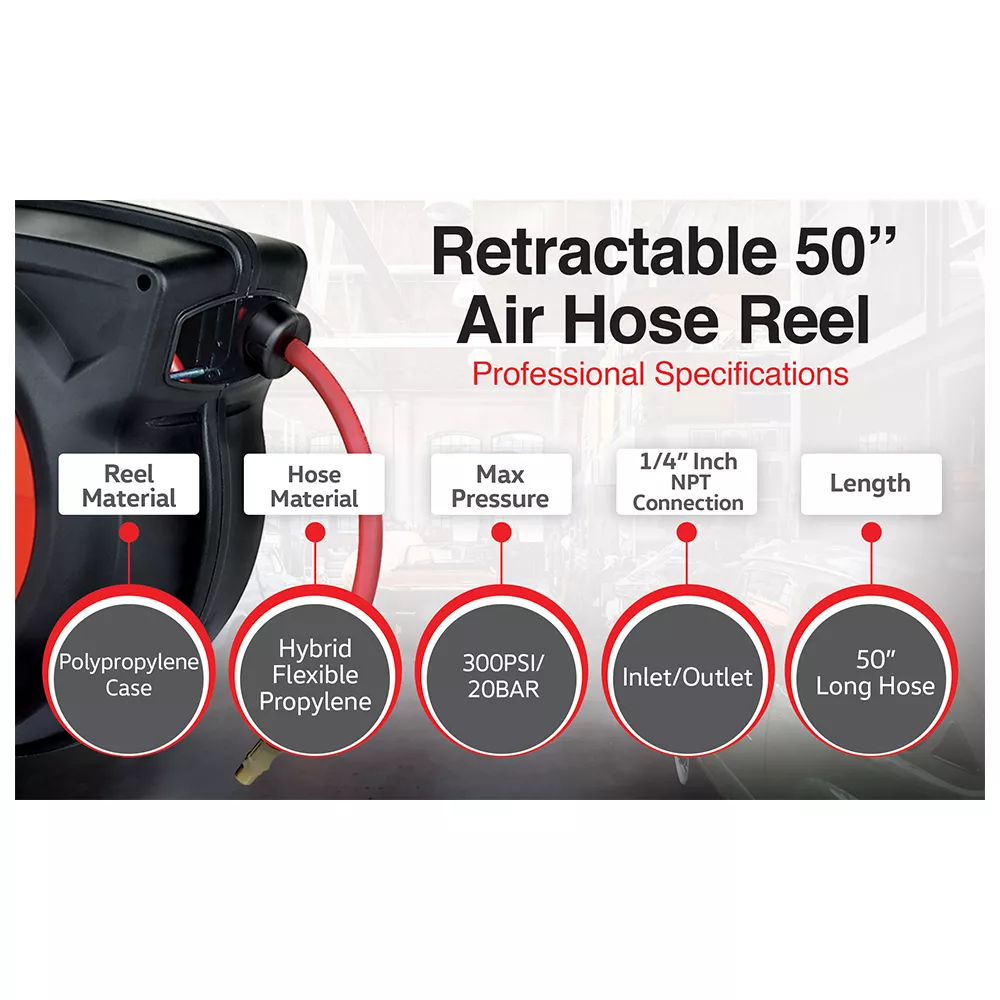

REEL SPECS; This 3/8" inch x 50' foot reel is constructed of heavy duty impact resistant light weight Polypropylene, Premium Commercial Hybrid Polymer Hose working pressure 300PSI/20BAR; 1/4" inch NPT connections; (Lead-in hose 36" inches/0.9m)
HOSE SPECS; Premium Commercial Hybrid Flex Polymer Hose is a blend of Rubber/PVC, has superior bend radius, no memory (eliminating kinks), lays flat, Resistant to: Water/Oil, Ozone, Weather, Abrasion; works in conditions of -40F to 176F (-40C to 80C)

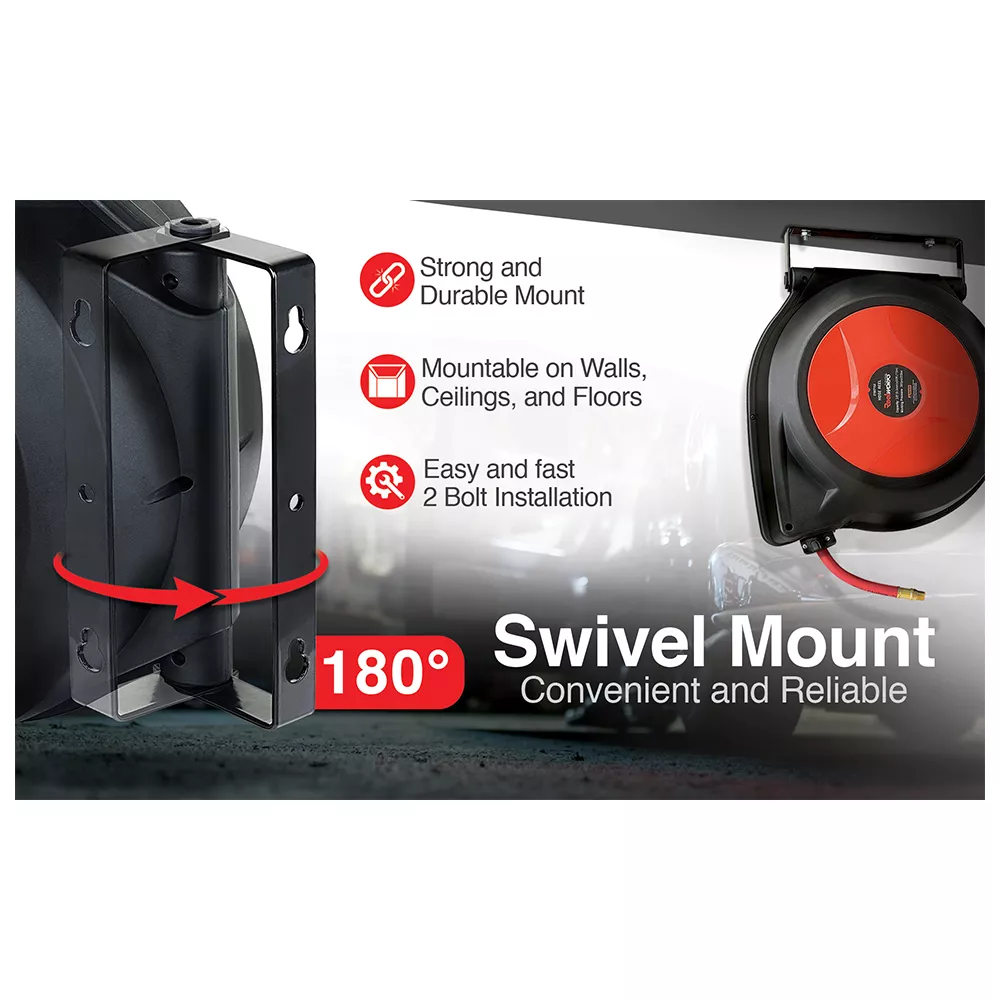

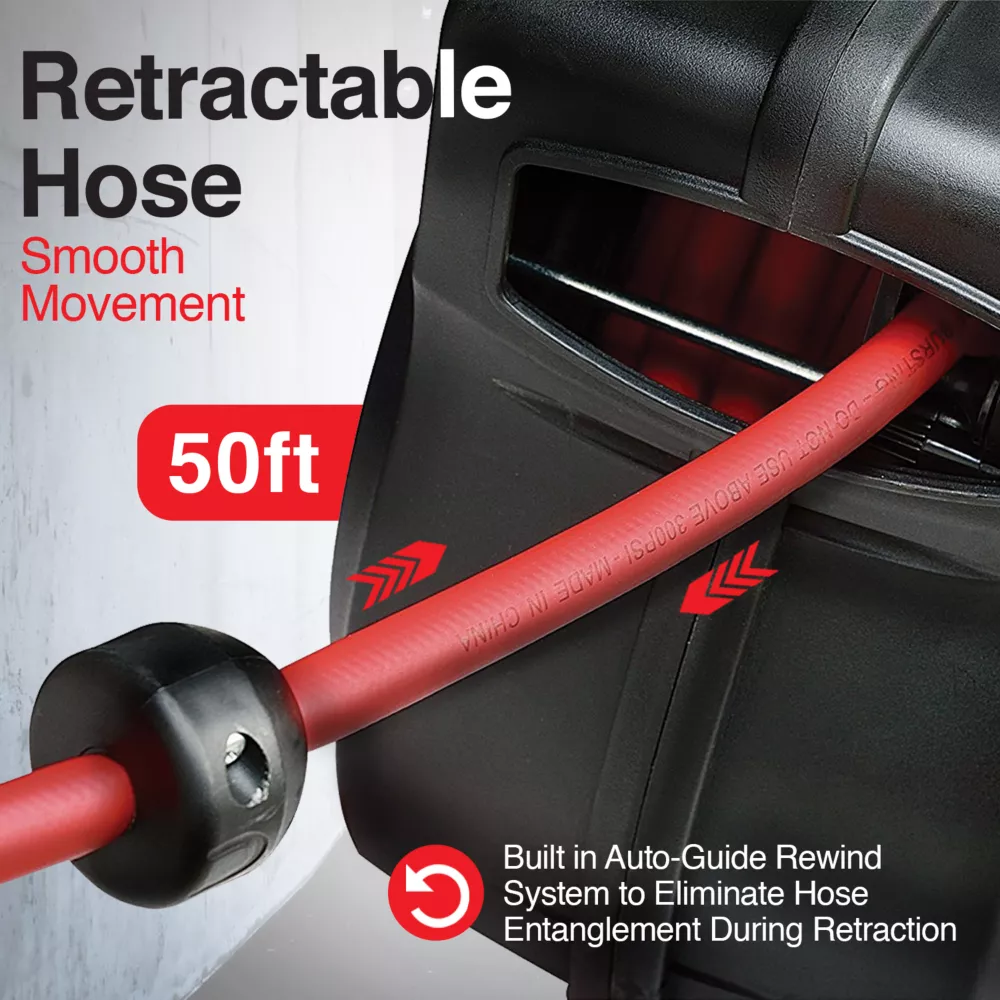

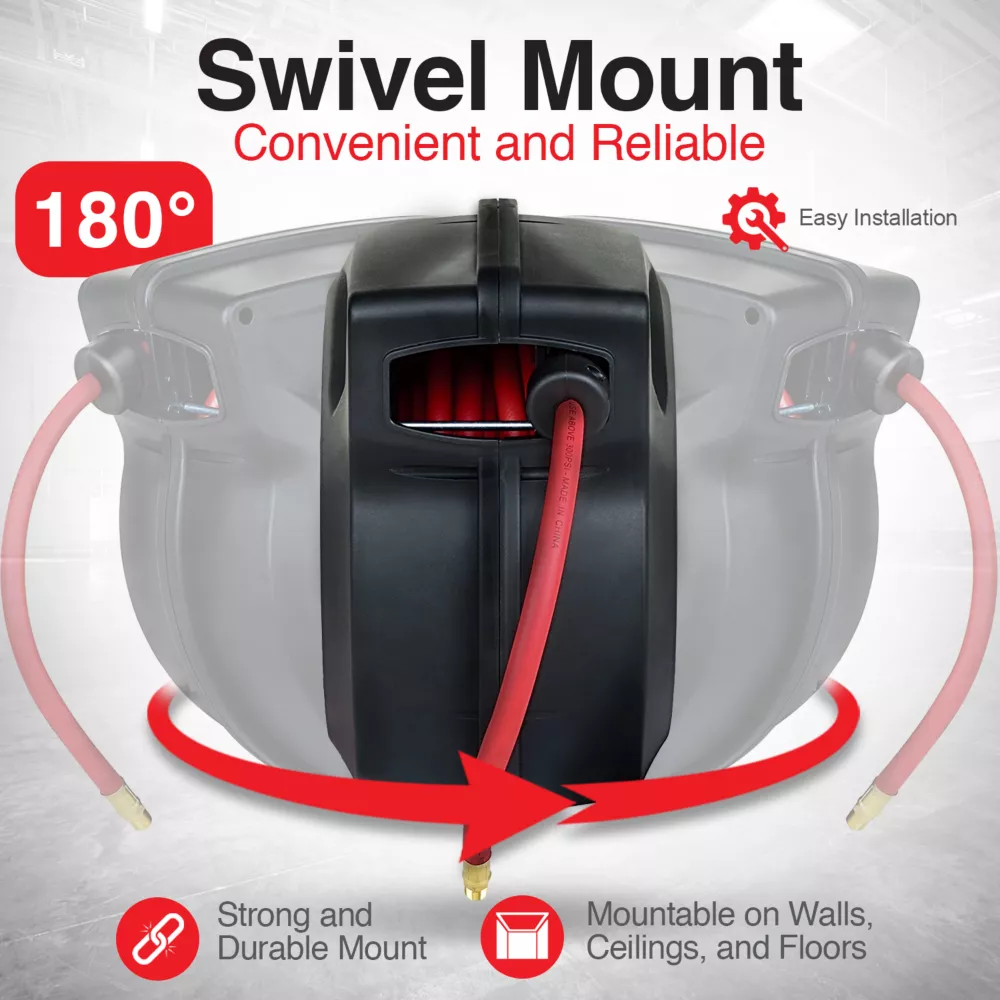

UNIQUE FEATURES; Enclosed Spring Driven Case houses the newly designed swivel hose inlet connection protecting against leaks; the Guide System, retracts the hose orderly way w/ no pile up; 180 degree Swivel Bracket providing stable support

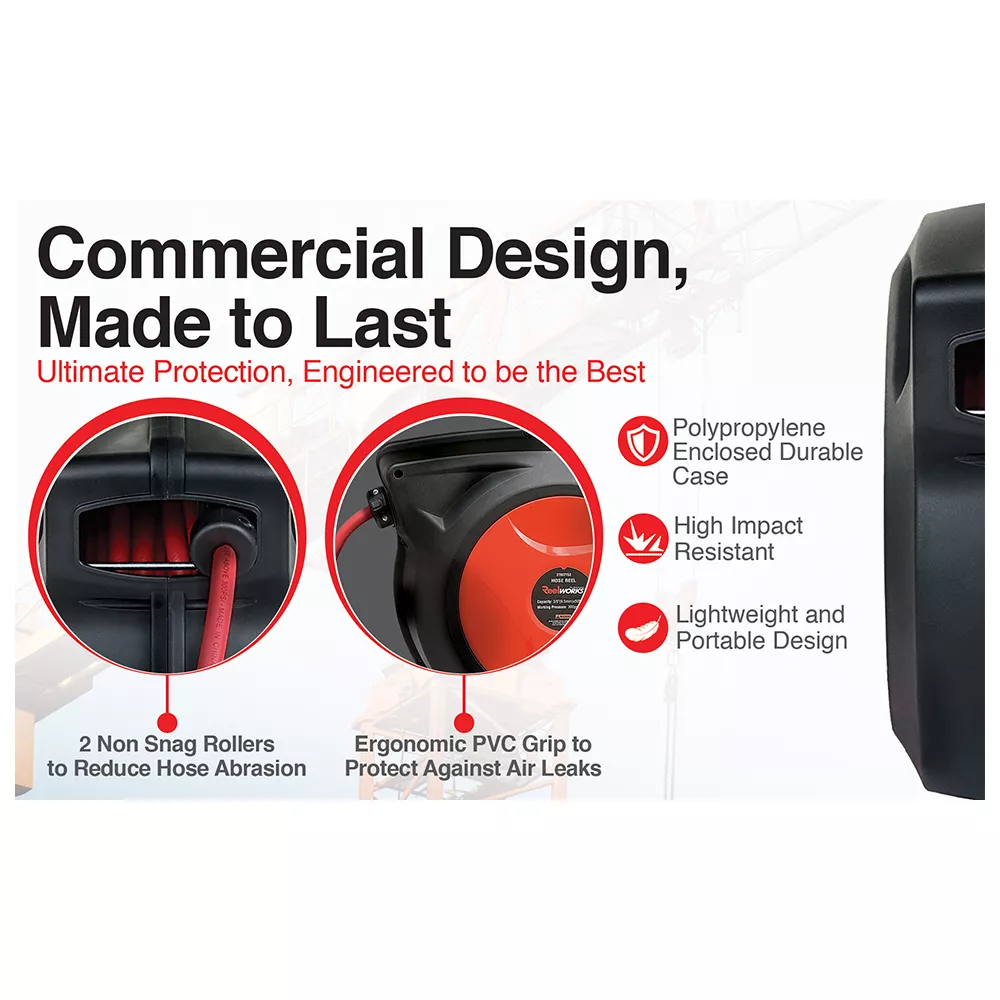

COMMERCIAL DESIGN; This Reel utilizes a double adjustment enclosed multi-position release ratchet spring locking at any desired length; includes an Adjustable Hose Stopper and 2 Non Snag Rollers, that assists to reduce hose abrasion
SAFETY and PROPER USE; Our reels are best suited for indoor/outdoor use, night or day environments, for DIY or industrial applications, allowing extension to be properly stored, keeping the workplace safe
12 months limited parts warranty

ReelWorks Low Pressure Air/Water Hose Air Hose Reels Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Air Hose Reels

Specification	Description
Brand	ReelWorks
Country of Origin	Imported
Compatible Hose Diameter	0.375 in.
Connector 1 Size	0.25 in.
Connector 1 Type	NPT
Connector 2 Size	0.25 in.
Connector 2 Type	NPT
Features	Retractable. 50 ft. Hose Reel. Easy mount. 180 degree swivel mount.
Hose Reel Type	Retractable
Maximum Hose Capacity	50 ft.
Maximum Operating Pressure	300 PSI
Primary Material	Polypropylene
Product Height	16 in.
Product Length	15 in.
Product Weight	13 lb.
Product Width	8 in.
Warranty	12 months limited parts warranty
Manufacturer PartNumber	TRI-27807153A-R

ReelWorks Low Pressure Air/Water Hose Specifications expand/collapse Specification Description Brand ReelWorks Country of Origin Imported Compatible Hose Diameter 0.375 in. Connector 1 Size 0.25 in. Connector 1 Type NPT Connector 2 Size 0.25 in. Connector 2 Type NPT Characteristics Retractable. 50 foot hose reel. Easy assembly. 180 degree swivel mount. Hose Reel Type Retractable Maximum Hose Capacity 50 Feet Maximum Operating Pressure 300 PSI Main Material Polypropylene Product Height 16 in. Product length 15 in. Product weight 13 lbs. Product width 8 in. Warranty 12 months limited parts warranty Manufacturer part number TRI-27807153A-R.
