RP-5 Traveler Manual Fuel Pump 6 gal./100 revolutions Fuel Transfer Pumps Truck & Automotive

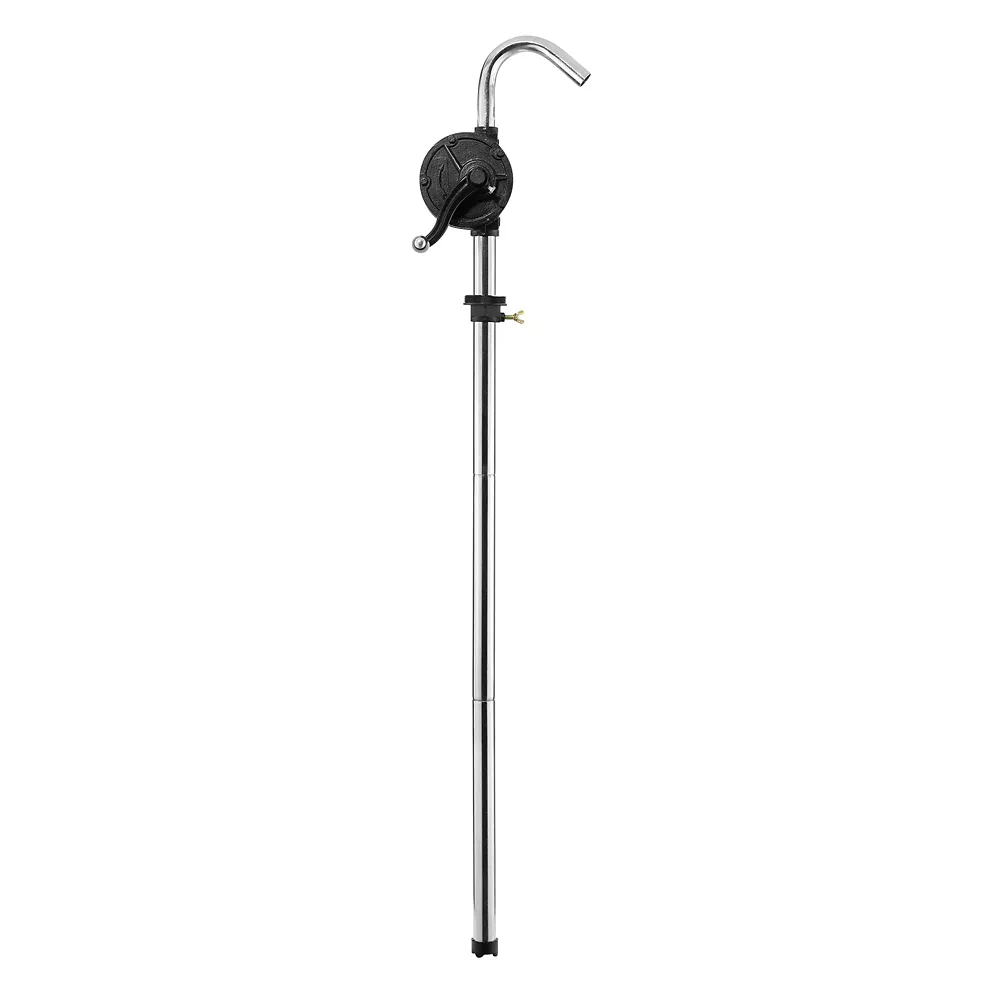

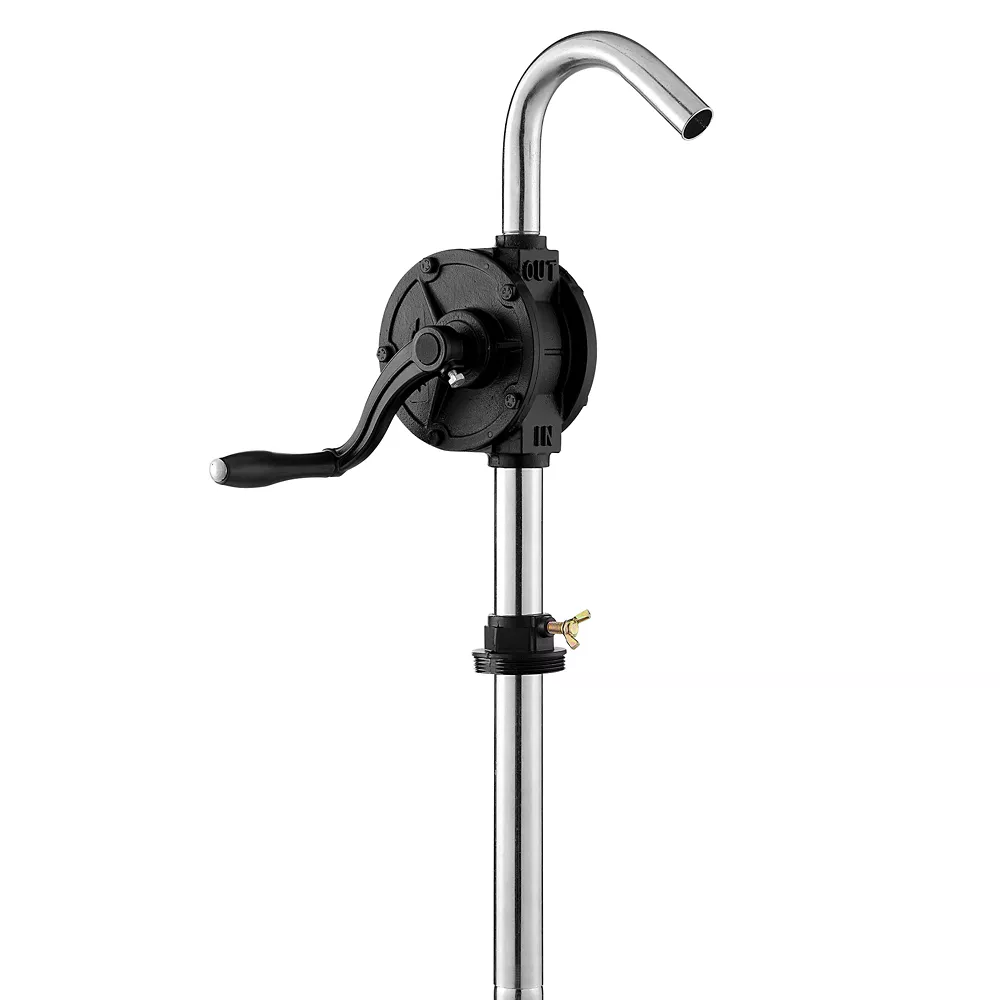

Transfer petroleum fluids easily with a Traveller RP-5 Fuel Hand Pump. This fuel hand pump is made for use with most fuels and oils including diesel, kerosene and mineral spirits. Crafted from durable cast-iron this rotary action fuel pump is designed to last.

Size of the barrel adapter: 2 in.
Color: silver/black
Durable cast-iron rotary action barrel pump
Pumping capacity: 22L/6 gal. per 100 rotaries

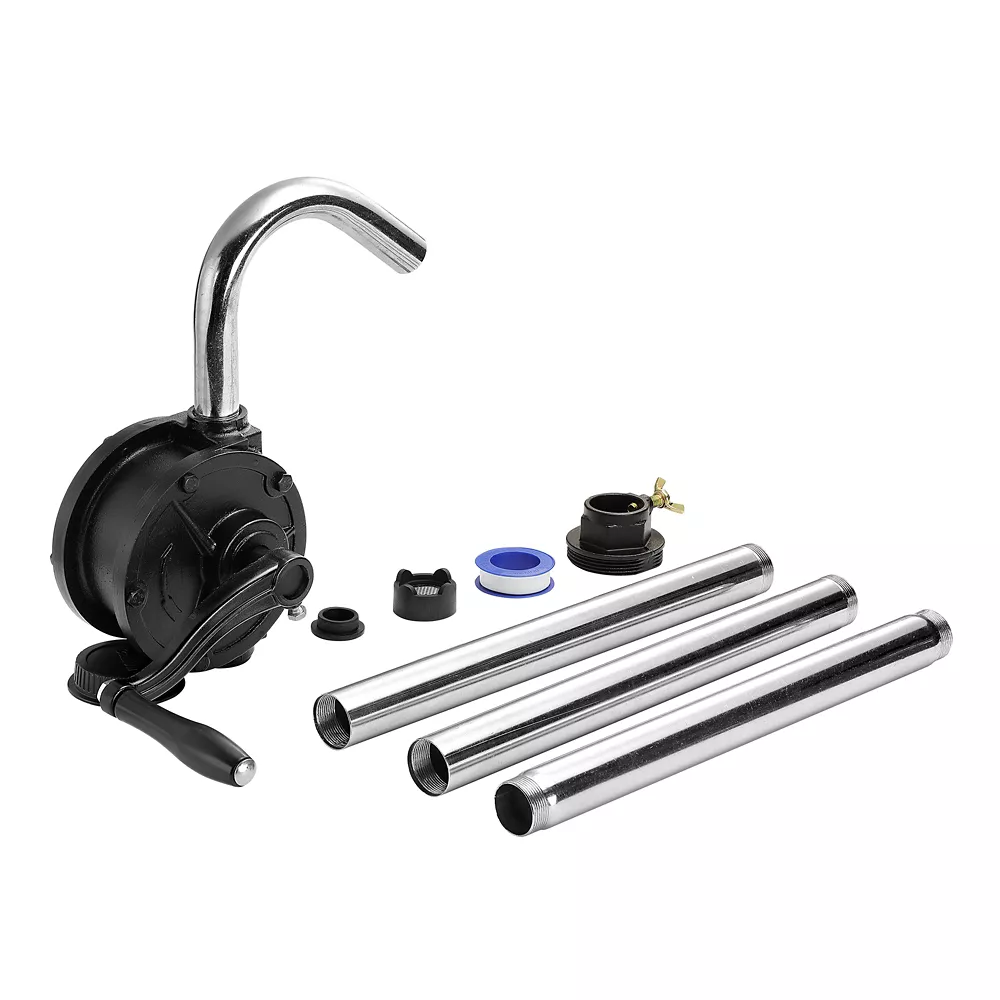

Fuel pump includes adjustable Spout, 39 in. 3-piece suction pipe with couplers, built-in strainer

RP-5 Traveler Manual Fuel Pump 6 gal./100 revolutions Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	Traveller
Country of Origin	Imported
Body Materials	Cast iron
Compatible Fluids	Diesel, Mineral Spirits
Discharge Connection	None
Discharge Diameter	2 in.
Duty Cycle	90 Pct.
Features	Size of the barrel adapter:2 in. Color: Silver/black. Durable cast-iron rotary action barrel pump. Pumping capacity:22L/6 gal. per 100 rotaries. Fuel pump includes adjustable Spout,39 inch. 3 piece suction pipe with couplers, built-in strainer.
Hose Diameter	1.22 in.
Inlet Connection	No Thread
Inlet Diameter	2 in.
Intended Use Grade	Standard
Maximum Flow Rate	6 gal. per 100 rotaries
Maximum Head Lift	6.56 ft.
Maximum Operating Pressure	284 PSI
Maximum Operating Temperature	40 C
Minimum Operating Pressure	7.5PSI
Minimum Operating Temperature	-10 C
Power Type	Manual, None
Product Height	8.27 in.
Product Length	49.80 in.
Product Weight	9.59 lb.
Product Width	10.16 in.
Warranty	90 Day Limited
Manufacturer PartNumber	17230210

Traveller Manual RP-5 Fuel Hand Pump, 6 gal./100 Revolutions Specifications expand/collapse Specification Description Brand Traveler Country of Origin Imported Body Materials Cast Iron Compatible Fluids Diesel, Mineral Spirits Discharge Connection None Discharge Diameter 2 in. Duty Cycle 90 Pct. Features Barrel Adapter Size: 2 in. Color: Silver/black. Durable cast iron rotary action drum pump. Pumping capacity: 22 L/6 gal. for 100 rotations. The fuel pump includes a 39-inch adjustable spout. 3-part suction hose with couplers, integrated strainer. Pipe diameter 1.22 in. Inlet connection without thread Inlet diameter 2 in. Intended Use Grade Standard Maximum Flow 6 gal. per 100 rotations Maximum head lift 6.56 feet Maximum operating pressure 284 PSI Maximum operating temperature 40 C Minimum operating pressure 7.5 PSI Minimum operating temperature -10 C Power type Manual, none Product height 8, 27 in. Length ofproduces 49.80 in. Product weight 9.59 lbs. Product width 10.16 in. 90 Day Limited Warranty Manufacturer Part Number 17230210
