Shop Fox W1666-2 HP Dust Collector Dust Collectors Woodworking & Other Power Tools

A powerful dust collector from Shop Fox. This dust collector has air suction capacity of 1550 CFM and has a max static pressure of 12.3 inches. Static pressure is produced by the 12" balanced steel, radial fin impeller to move the wood chips into the collector. This unit features filters that capture chips and dust as small as 2.5 microns. Perfect for keeping your shop clean! The W1666 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your dust collector.The upper 2.5 mic bag (D4572) and lower plastic bags (D4573-5-pack) can be purchased separately for any collectors that do not include them.

Made in an ISO 9001 factory

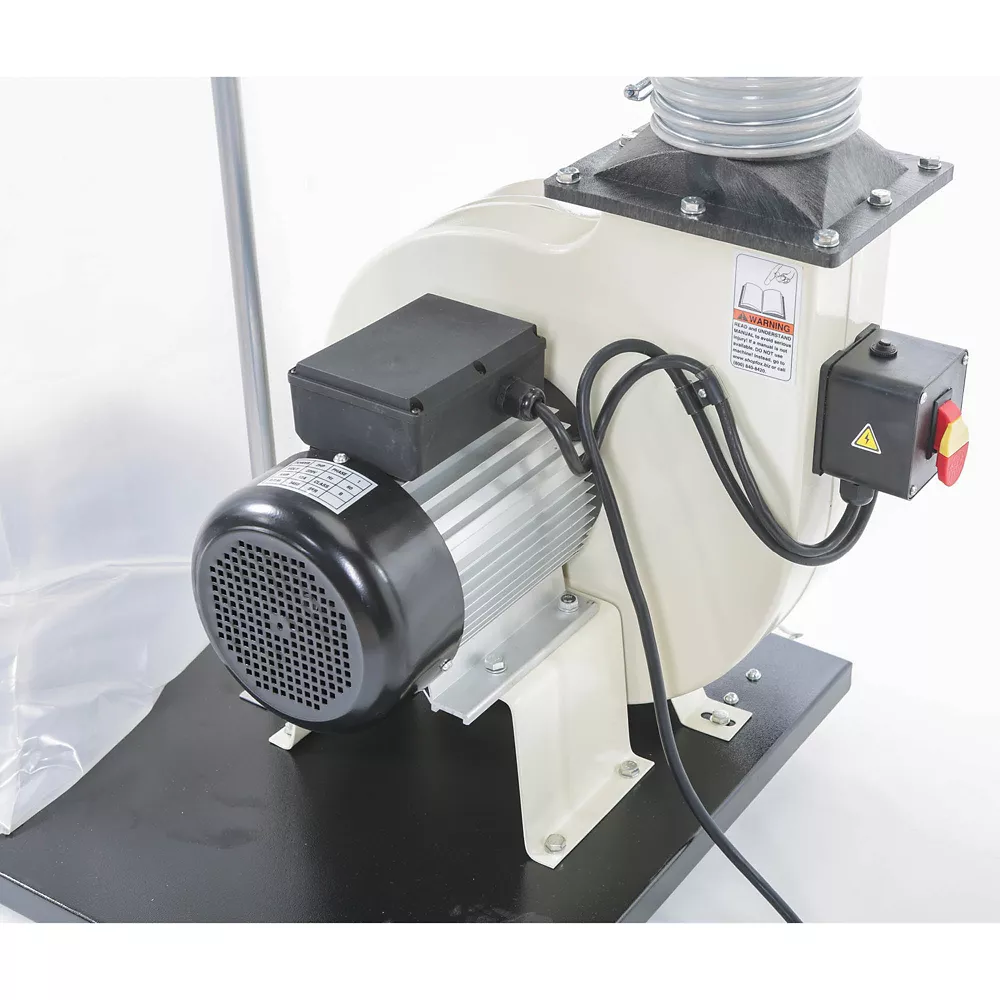

Motor Size: 2 HP, 220V, single-phase,12A

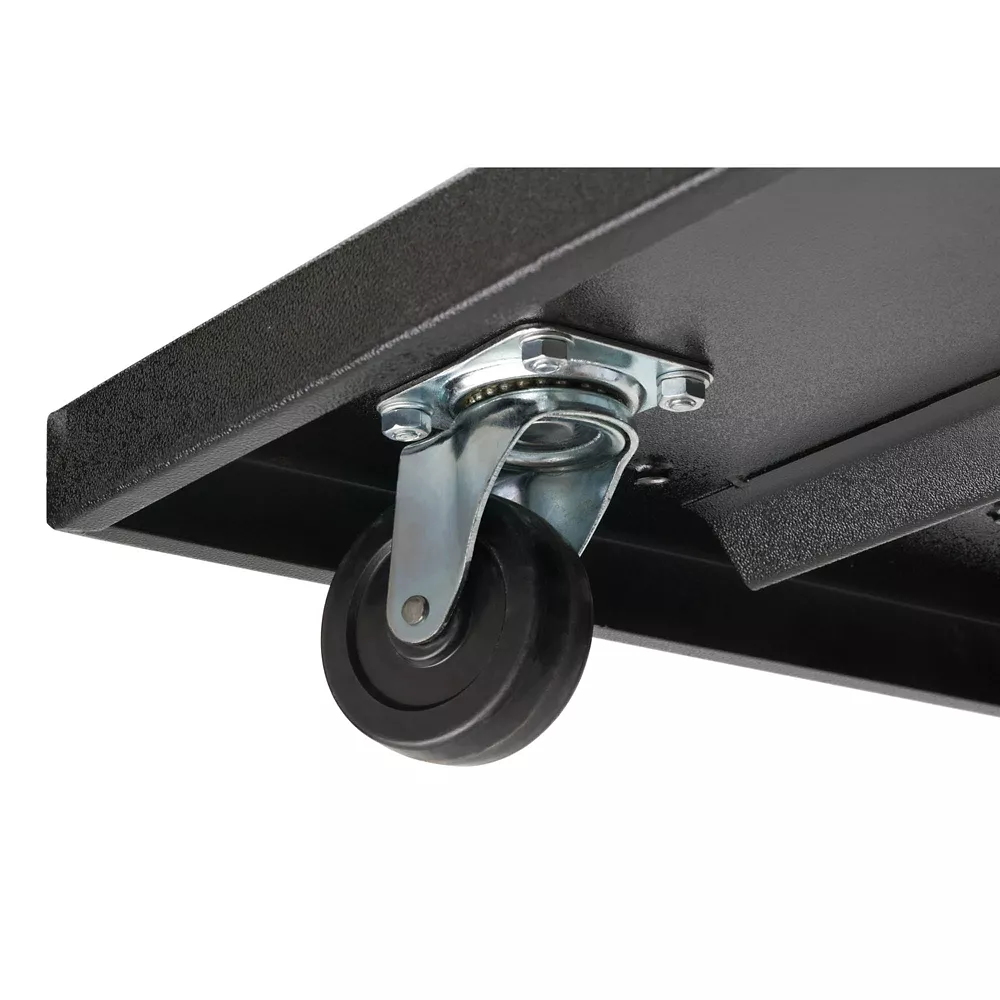

Portable Base Size: 21-1/2" x 33-1/2"
Bag Volume: 5.4 Cubic Feet
Height (With bags inflated): 78"

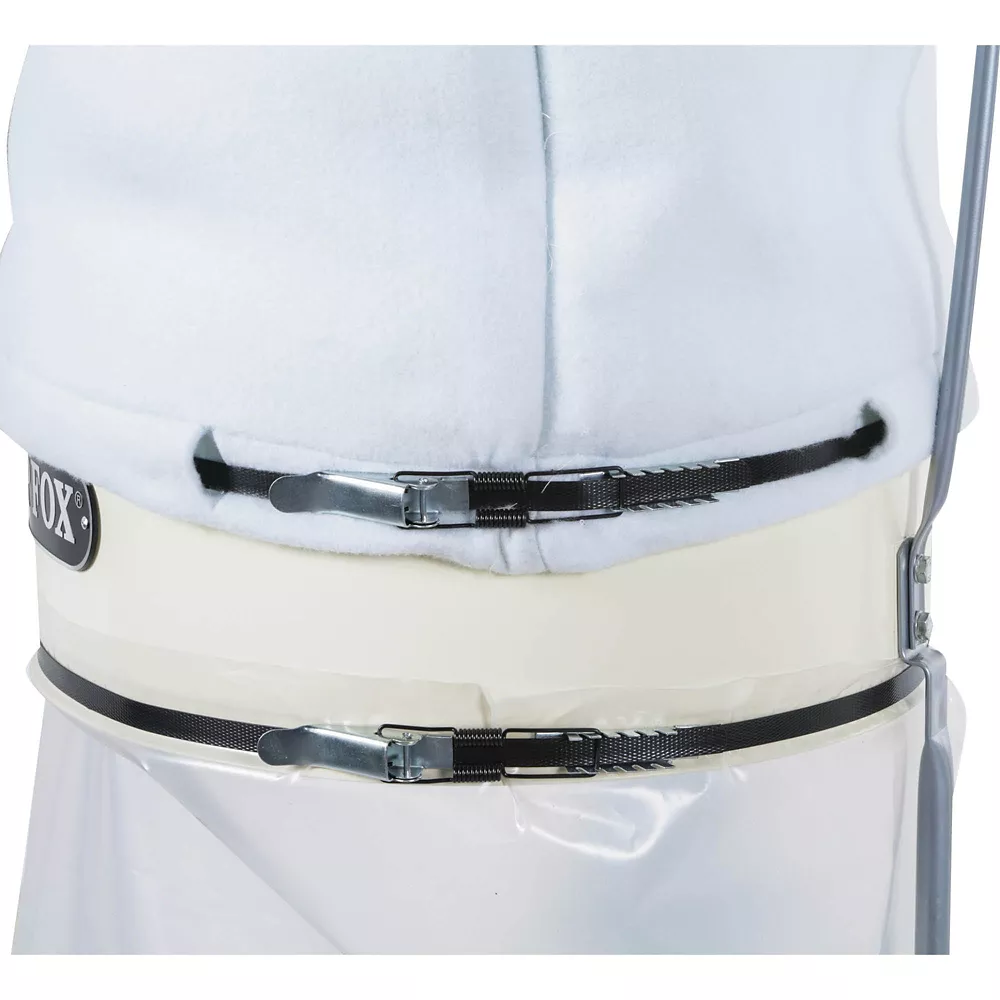

Bag Size (Dia. x depth): 19" x 33" (2)
Impeller: 12" Balanced Steel, Radial Fin
Air Suction Capacity: 1550 CFM
Static Pressure: 12.3"
Standard Bag Filtration: 2.5-Micron
Approximately Shipping Weight: 107 lbs.

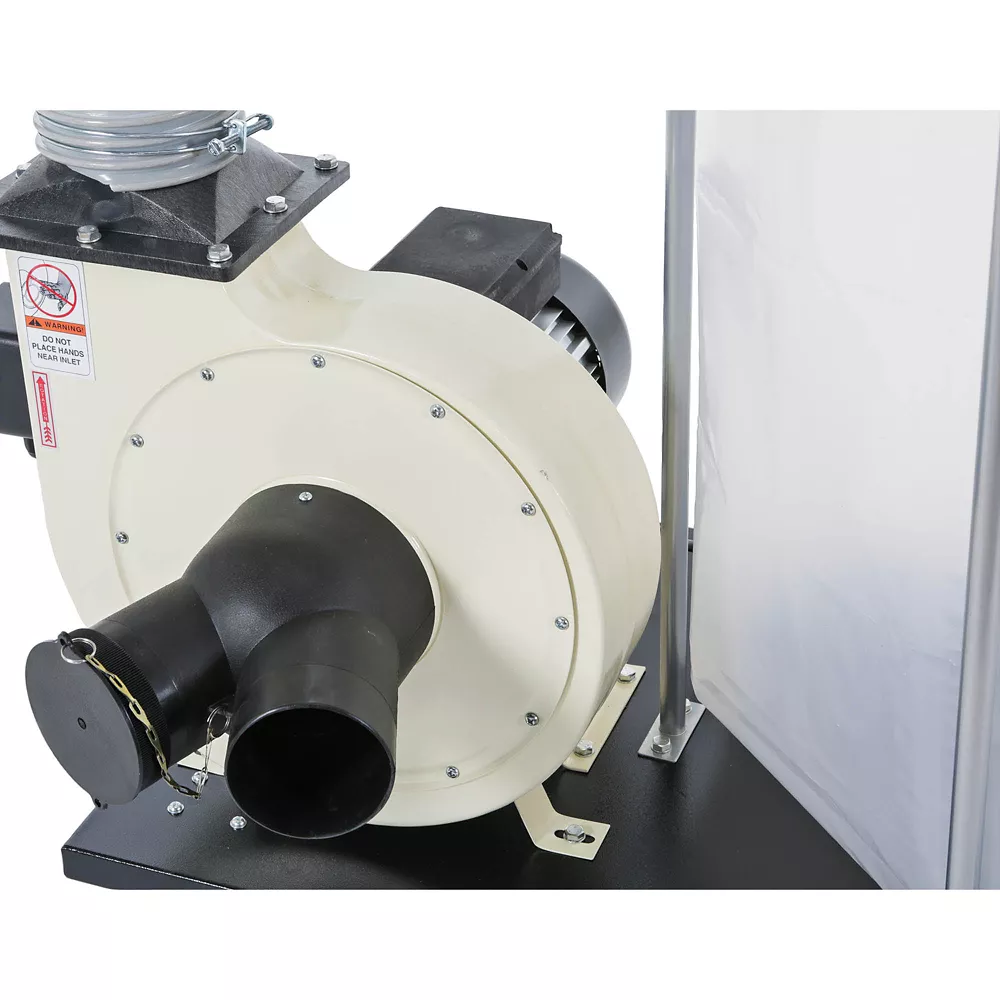

Has a 6" inlet with a removable "Y" fitting with two 4" openings

Shop Fox W1666-2 HP Dust Collector Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	Shop Fox
Country of Origin	Imported
Amperage	12 A
Compatibility	See manual
Decibel Rating	0 N/A
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 N/A
Filtration Material	Steel
Horsepower	2 hp
Hose Diameter	6 in.
Hose Length	0 in.
Maximum Airflow Rate	1550 CFM
Operating Velocity	1550 CFM
Product Height	78 in.
Product Length	21.5 in.
Product Weight	92 lb.
Product Width	33.5 in.
Warranty	2
Manufacturer PartNumber	W1666

Shop Fox W1666-2 HP Dust Collector Specifications expand/collapse Specification Description Brand Shop Fox Country of origin Imported amperage 12 A Compatibility View manual Decibel rating 0 N/A Phase Single phase Features No additional features Filter efficiency 0 N/A Filtration material Steel Power 2 hp Filter diameter pipe Pipe 6 in. Length 0 in. Maximum Air Flow 1,550 CFM Operating Speed 1,550 CFM Product Height 78 in. Product length 21.5 in. Product weight 92 lbs. Product width 33.5 in. Warranty 2 Manufacturer Part Number W1666
