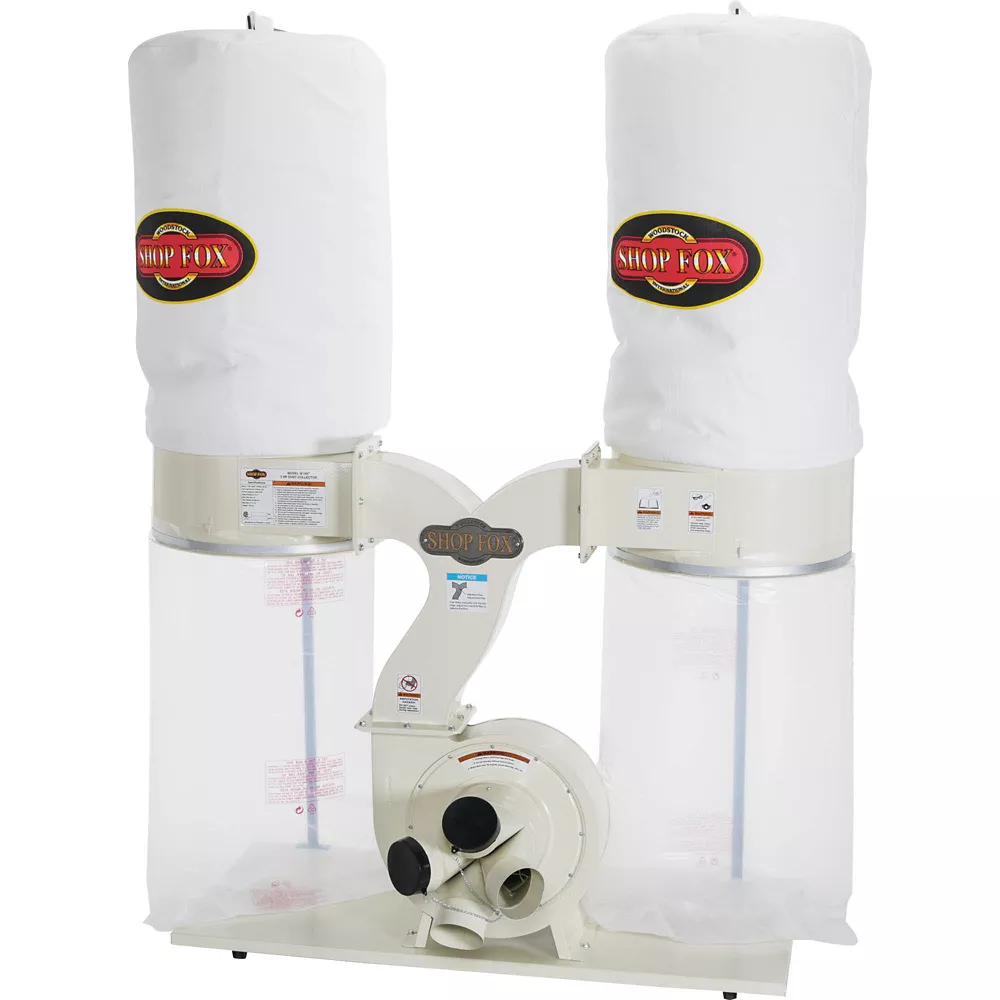

Shop Fox W1687-3 HP Dust Collector Dust Collectors Woodworking & Other Power Tools

If you are ready to take your dust collection system to the next level, make this 3 HP Dust Collector your first choice. The increased air suction capacity will allow you to build a bigger and more complex dust collection system with room to spare. Also, the double collection setup means less downtime emptying and shaking out bags, which means you'll be able to spend more time actually making the dust. CSA certified meeting CSA C22.2 #243-M91 and UL 1017-4th standards. For wood dust only.

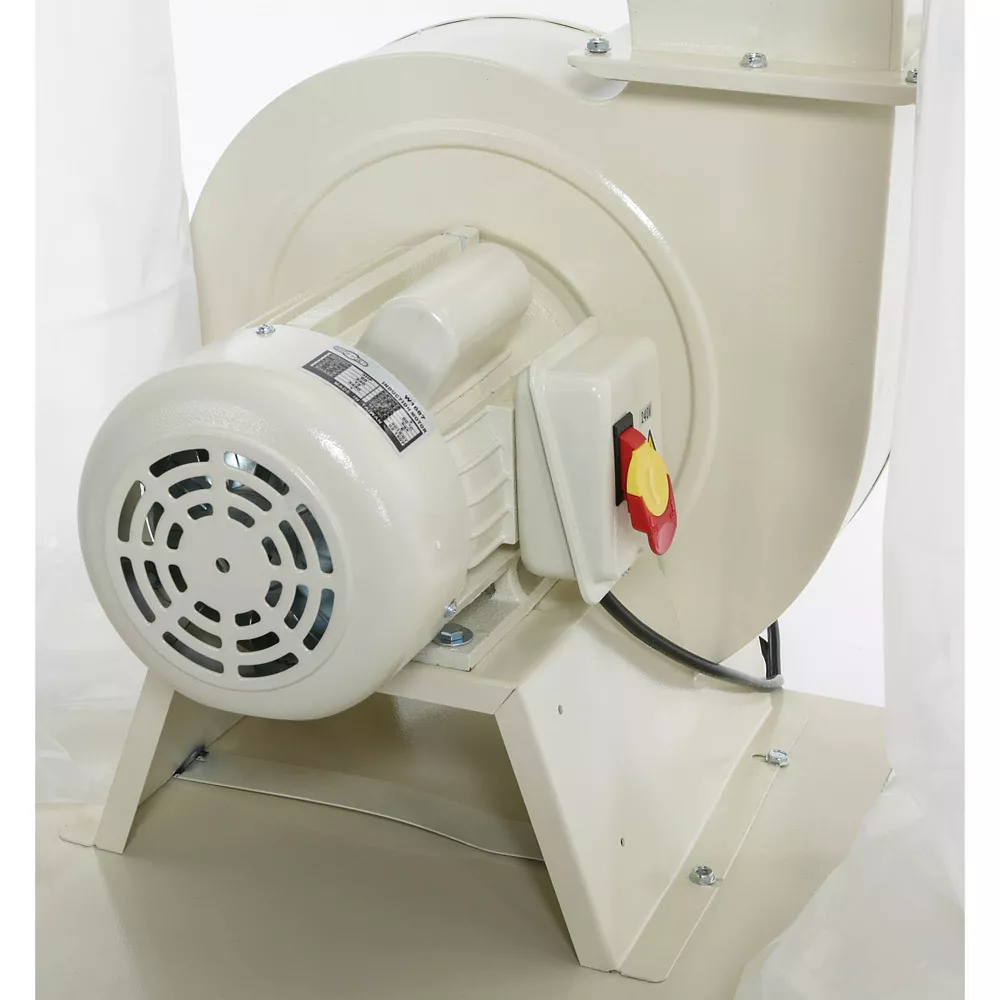

Motor: 3 HP, 240V, single phase, 12A
Air suction capacity: 2830 CFM
Static pressure: 14.4

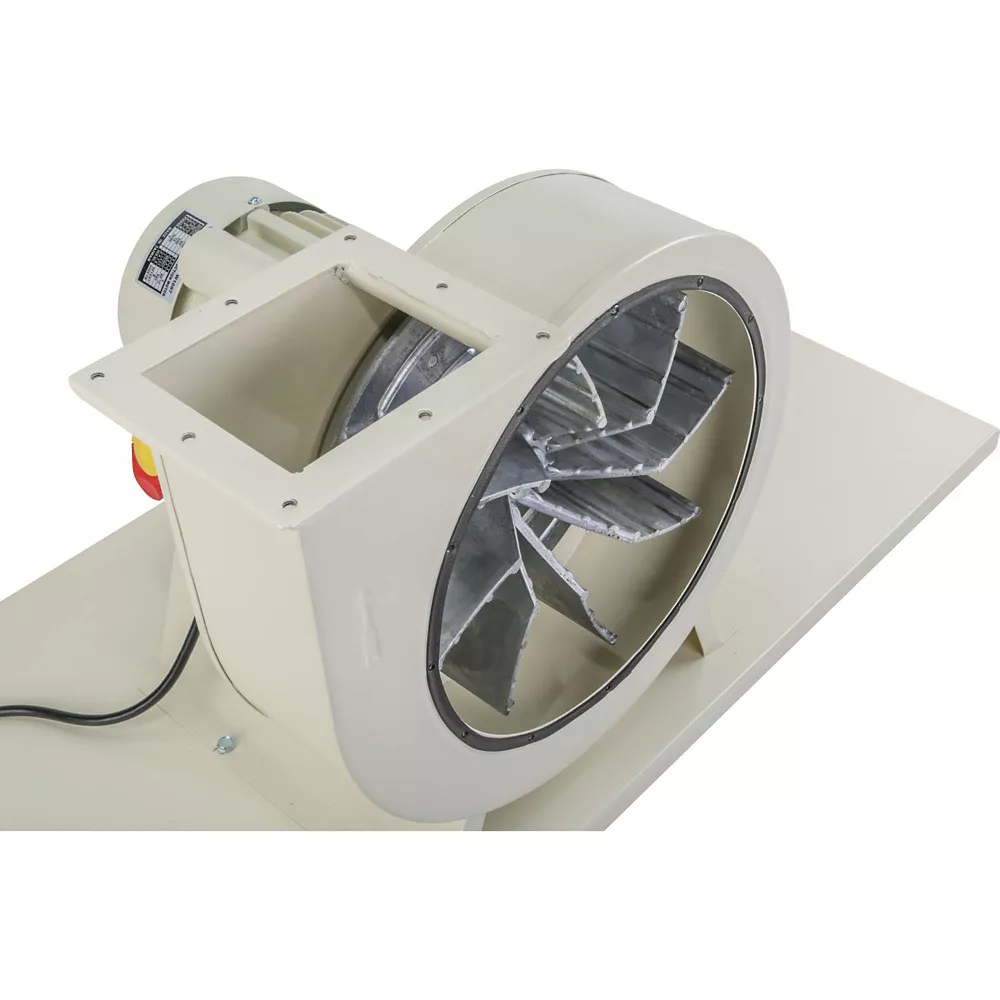

Impeller: 13" aluminum, radial fin
Max inlet size: 8"

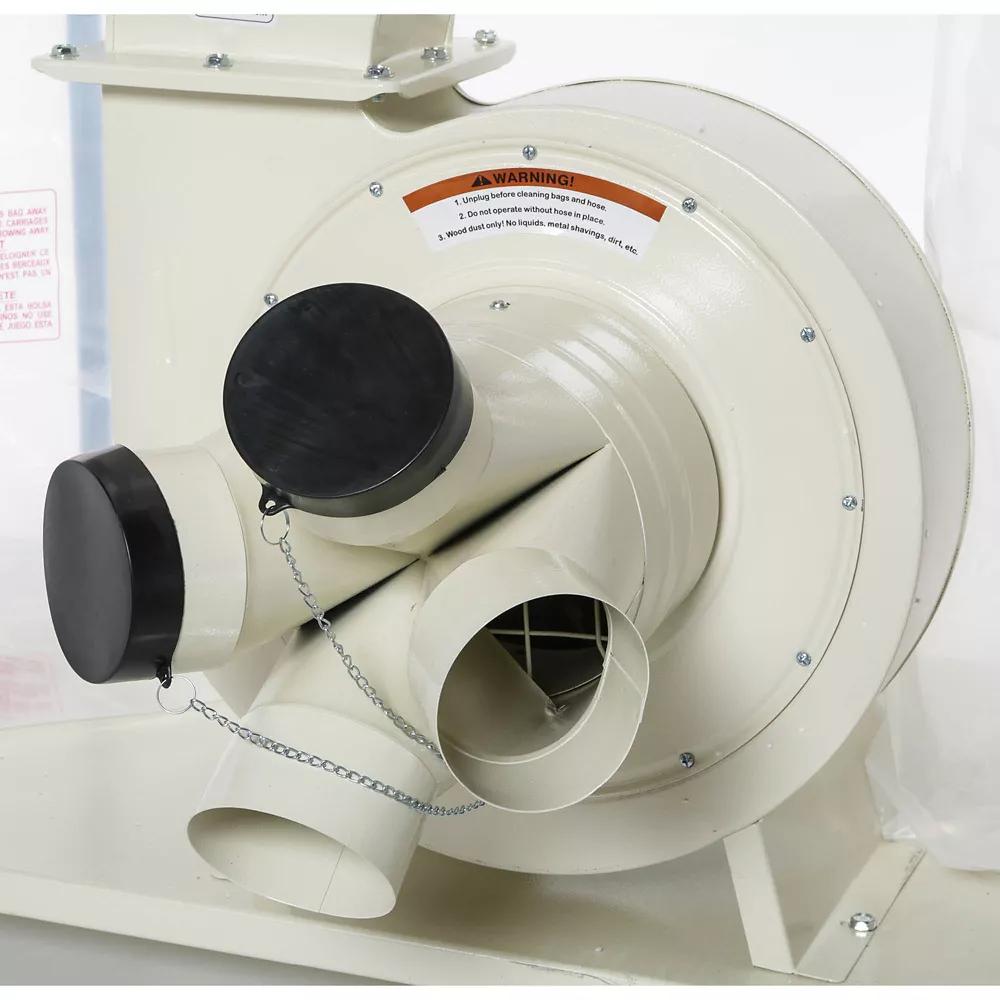

Inlet adapter: 4-way x 4" inlets
Bag size:19" Dia. x 33" Depth
Height (with bags inflated): 78"
Bag capacity: 10.8 cubic feet
Standard bag filtration: 2.5 micron
Approximate shipping weight: 167 lbs.

Shop Fox W1687-3 HP Dust Collector Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	Shop Fox
Country of Origin	Imported
Amperage	12 A
Compatibility	See manual
Decibel Rating	0 N/A
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 N/A
Filtration Material	Steel
Horsepower	3 hp
Hose Diameter	4 in.
Hose Length	0 in.
Maximum Airflow Rate	1550 CFM
Operating Velocity	1550 CFM
Product Height	78 in.
Product Length	33 in.
Product Weight	152 lb.
Product Width	58 in.
Warranty	2
Manufacturer PartNumber	W1687

Shop Fox W1687-3 HP Dust Collector Specifications expand/collapse Specification Description Brand Shop Fox Country of origin Imported amperage 12 A Compatibility View manual Decibel rating 0 N/A Phase Single phase Features No additional features Filter efficiency 0 N/A Filtration material Steel Power 3 hp Filter diameter pipe Pipe 4 in. Length 0 in. Maximum Air Flow 1,550 CFM Operating Speed 1,550 CFM Product Height 78 in. Product length 33 in. Product weight 152 lbs. Product width 58 in. Warranty 2 Manufacturer Part Number W1687
