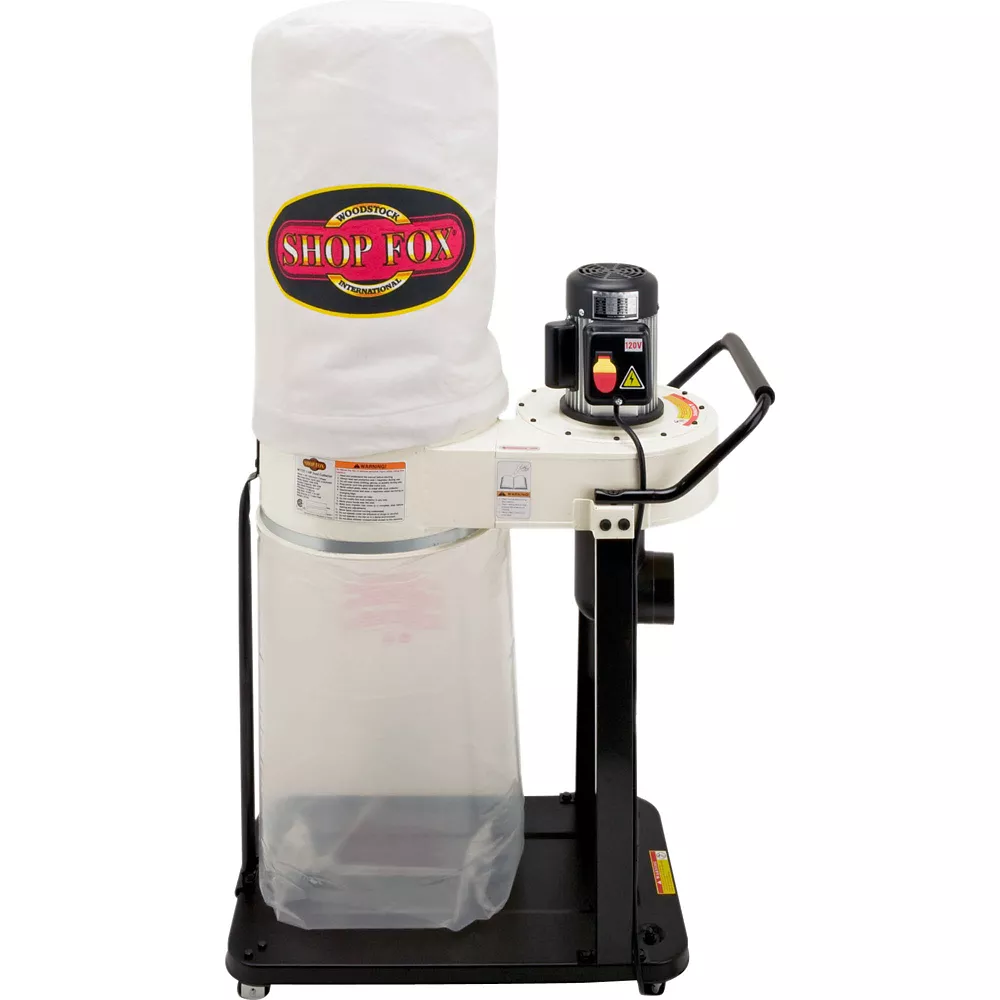

Shop Fox W1727-1 HP Dust Collector Dust Collectors Woodworking & Other Power Tools
Easily collect sawdust from your woodworking machines. Depending on the design of your dust collection system, the Shop Fox W1727 1 HP Dust Collector dust collector can draw up to 800 CFM. Designed for portability, this machine can be moved from one woodworking machine to another when needed, instead of having to build an entire fixed dust collection system and running ducts to each machine. The air drawn in by the 9" balanced steel impeller is filtered down to 2.5 microns before it falls and collects in the lower dust storage bag. That bag stores 2.1 cubic feet of collected dust in a plastic bag with a quick disconnect bag clamp. Like all dust collectors, the W1727 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. The W1727 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your dust collection system. The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts for your machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.- Made in an ISO 9001 factory
- CSA certified

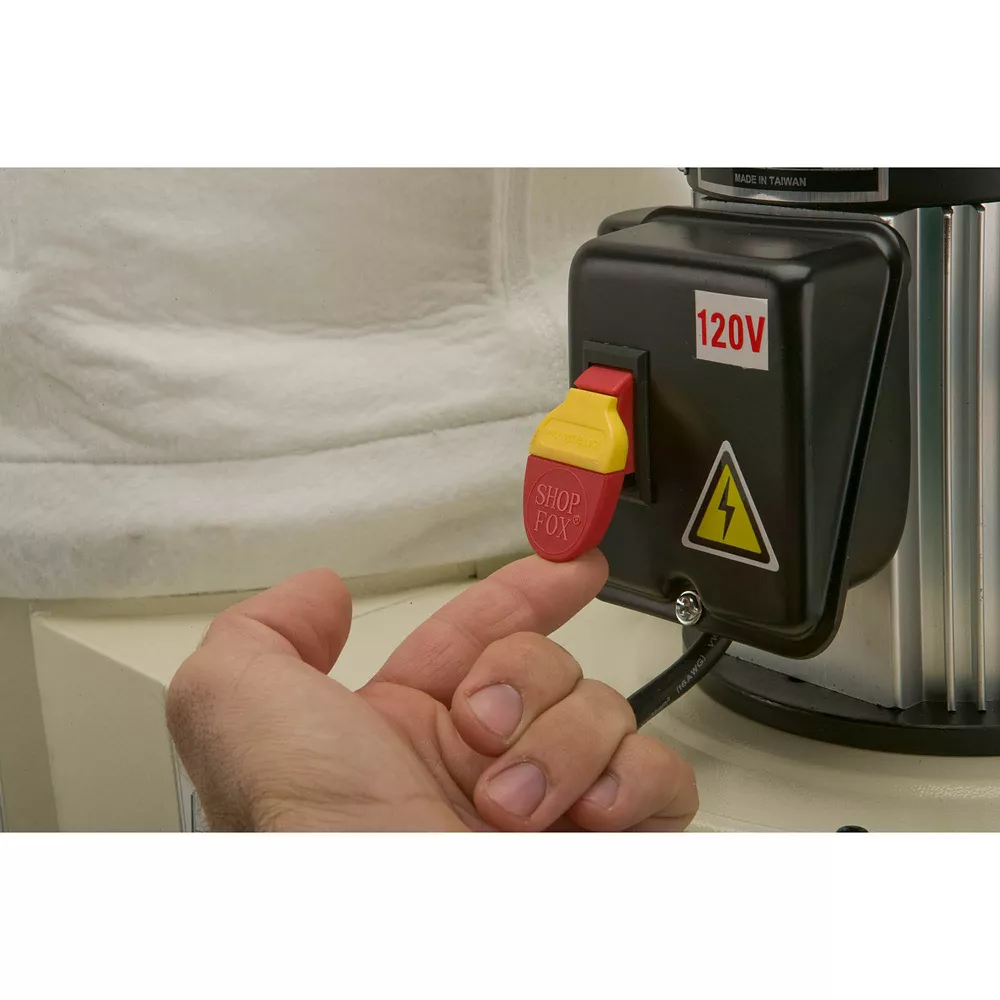

- Motor: 1HP, 110V/220V (prewired for 110V), single-phase, 9A/4.5A
- Airflow capacity: 800 CFM
- Max static pressure: 5.67"
- Filtration: 2.5-micron
- Bag capacity: 2.1 cubic feet

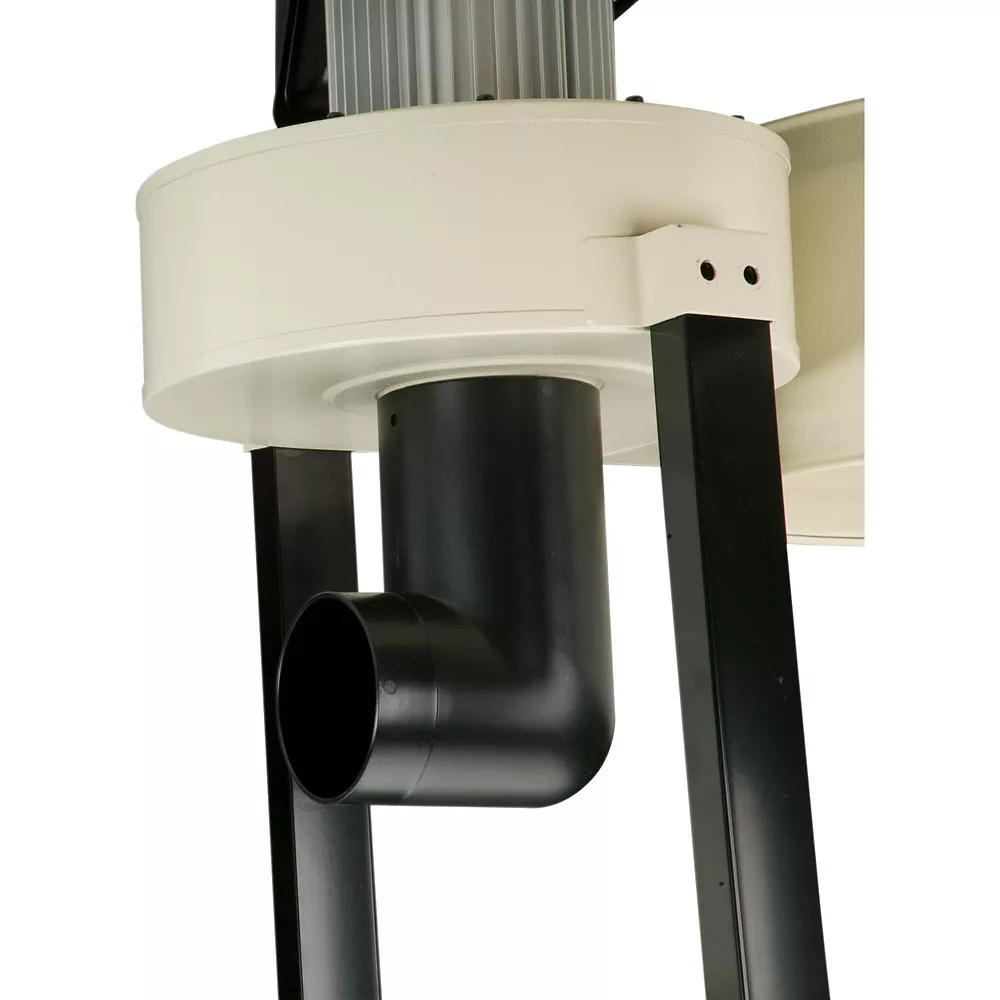

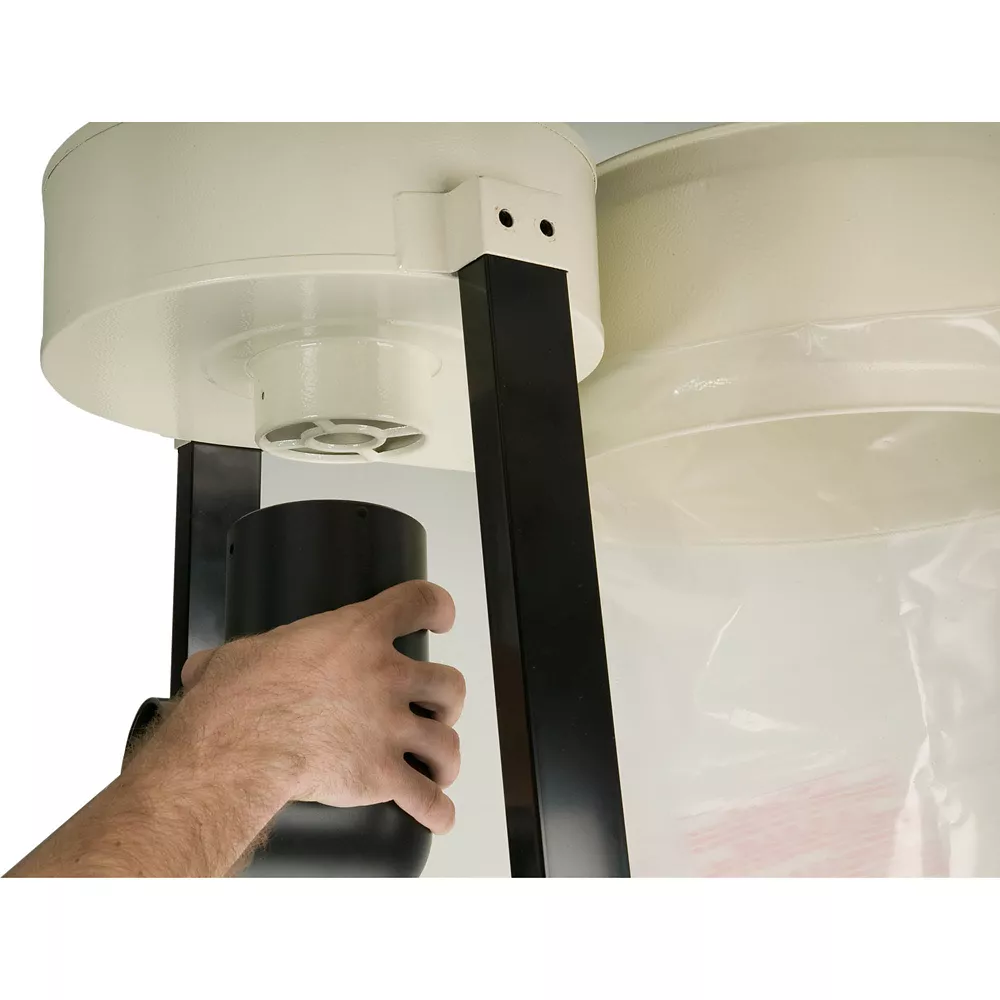

- Intake hole size: 4"
- Impeller: 9" balanced steel, radial fin
- Lower bag size: 14-3/4" Dia. x 24-3/8"
- Fine dust from filter falls directly into the collection bag

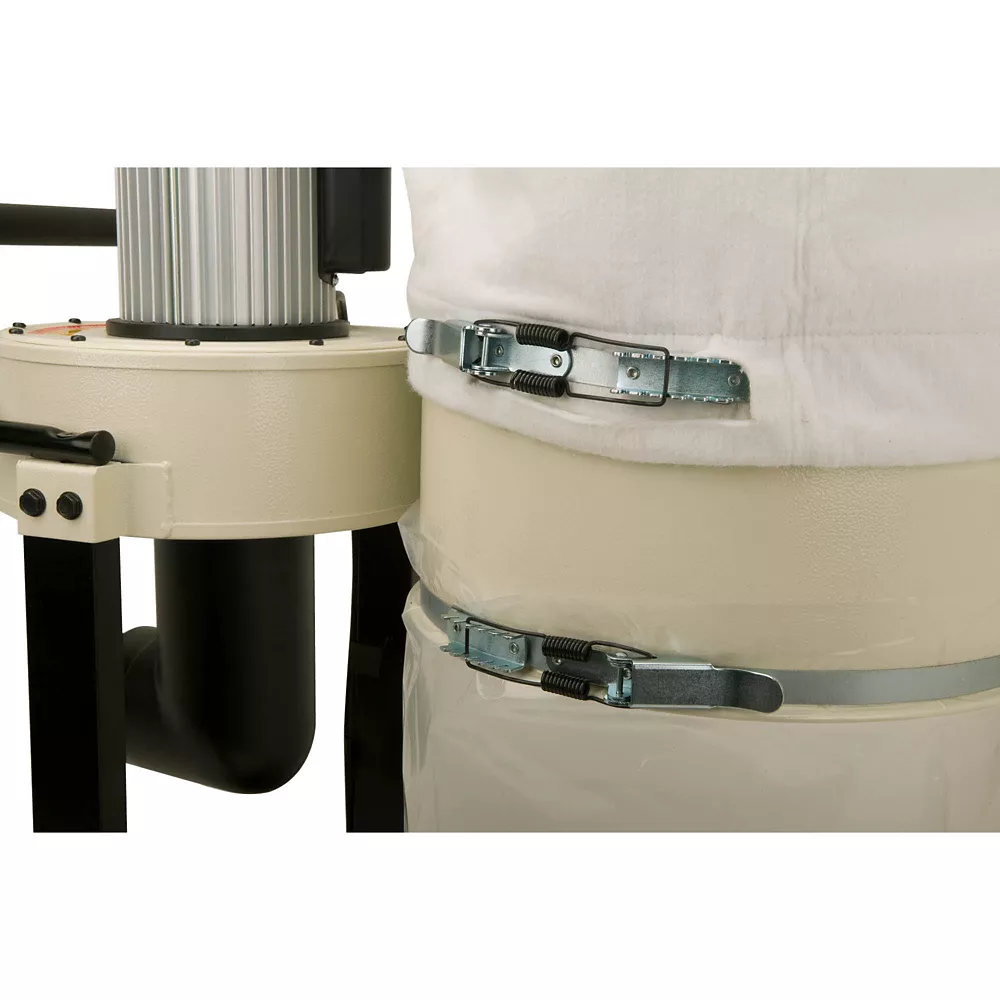

- Clear plastic collection bag with quick clamp
- Heavy-duty steel intake improves rigidity
- Durable powder-coated finish

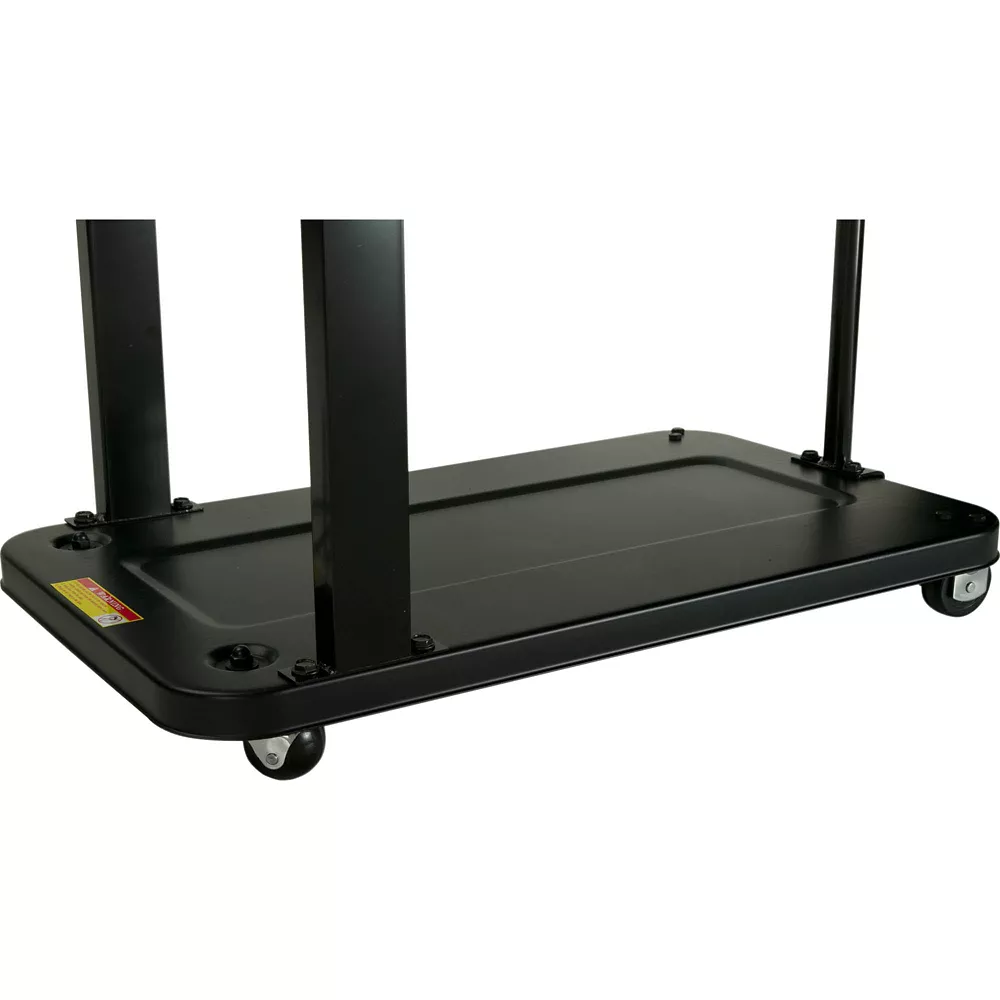

- Includes steel base with casters
- Overall dimensions: 39-3/4" W x 15-3/4" D x 54-1/2" H
- Approximate shipping weight: 59 lbs.
Shop Fox W1727-1 HP Dust Collector Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors
| Specification | Description |
|---|---|
| Brand | Shop Fox |
| Country of Origin | Imported |
| Amperage | 9 A |
| Compatibility | See manual |
| Decibel Rating | 79 dBA |
| Phase | Single Phase |
| Features | No Additional Features |
| Filter Efficiency | 0 N/A |
| Filtration Material | Steel |
| Horsepower | 1 hp |
| Hose Diameter | 4 in. |
| Hose Length | 0 in. |
| Maximum Airflow Rate | 800 CFM |
| Operating Velocity | 800 CFM |
| Product Height | 54.5 in. |
| Product Length | 15.75 in. |
| Product Weight | 55 lb. |
| Product Width | 39.75 in. |
| Warranty | 2 |
| Manufacturer PartNumber | W1727 |
