Shop Fox W1826-1 HP Wall Mounted Dust Collector Dust Collectors Woodworking & Other Power Tools

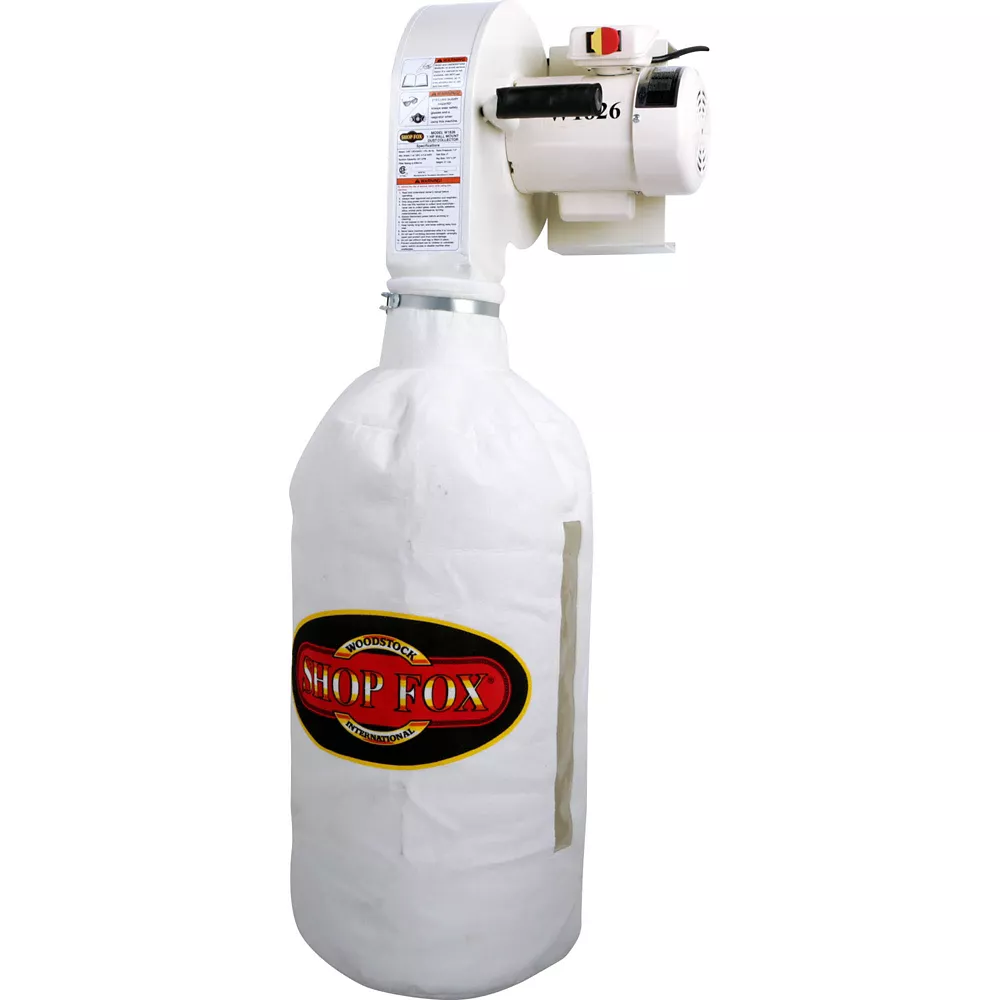

The Shop Fox W1826 1 HP Wall Dust Collector is designed to capture dust right at the source, eliminating the reduced efficiency of a duct system. With 537 CFM capacity, it will handle just about any hungry woodworking machine and without a complicated duct system, static pressure loss is minimal. A simple wall-mount bracket and locking screw system ensures you'll be safely up and running in no time! The bag filter features a window to gauge dust levels in the bag and a bottom zipper for easy cleaning. Like all Shop Fox benchtop machines, the W1826 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.) The W1826 manual was written by the U.S. based Woodstock Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your dust collector.

Made in an ISO 9001 factory
CSA certified

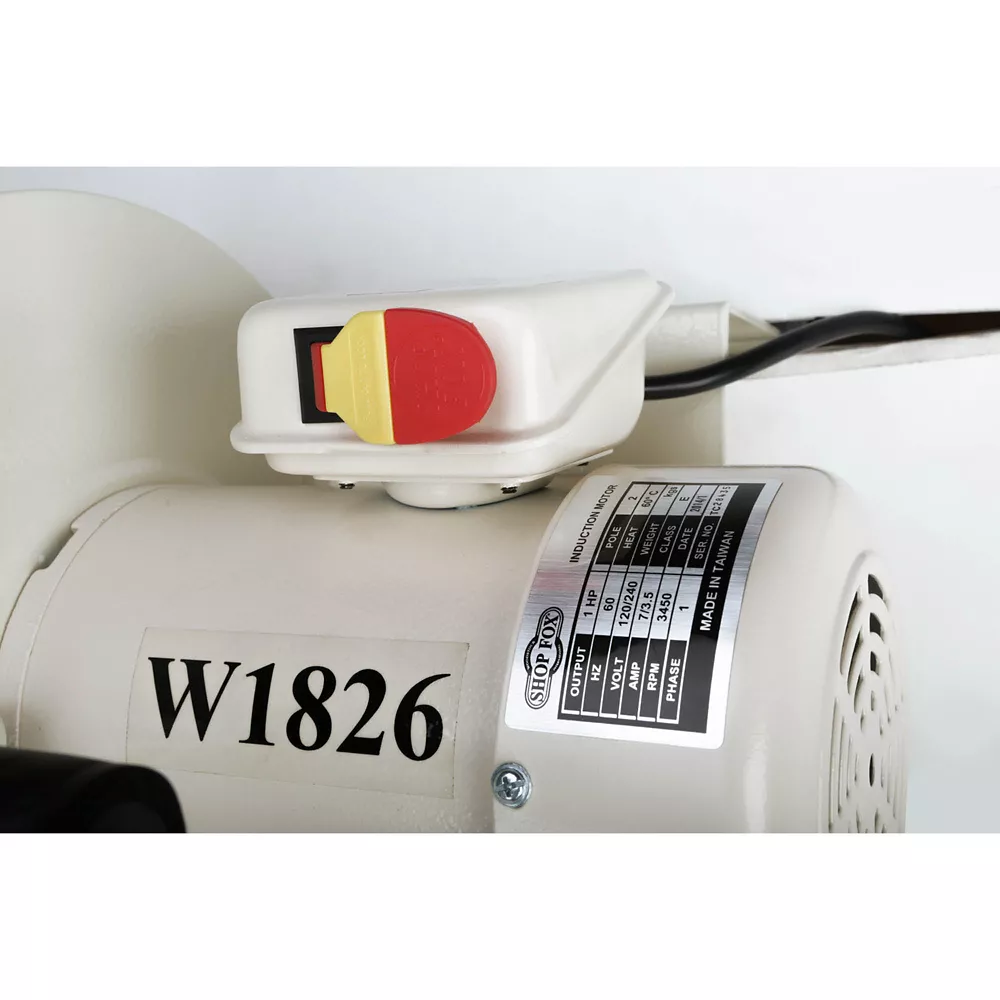

Motor: 1 HP, 120V/240V (prewired 120V), single-phase, 7A/3.5A
Air suction capacity: 537 CFM
Static pressure: 7.2"
Intake hole size: 4"
Impeller: 10" balanced cast-aluminum
Bag capacity: 2 cubic feet
Bag size (diameter x depth): 13-1/2" x 24"
Standard bag filtration: 2.5-micron
Steel base plate easily mounts to most walls
Ideal point-of-use dust collector
Height with bag inflated: 44"
Approximate shipping weight: 55 lbs.

Shop Fox W1826-1 HP Wall Mounted Dust Collector Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	Shop Fox
Country of Origin	Imported
Amperage	7 A
Compatibility	See manual
Cord Length	6 ft.
Decibel Rating	0 N/A
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 N/A
Filtration Material	Metal
Horsepower	1 hp
Hose Diameter	4 in.
Hose Length	0 in.
Maximum Airflow Rate	537 CFM
Operating Velocity	537 CFM
Product Height	44 in.
Product Length	18 in.
Product Weight	51 lb.
Product Width	19.5 in.
Warranty	2
Manufacturer PartNumber	W1826

Shop Fox W1826-1 HP Wall Dust Collector Specifications expand/collapse Specification Description Brand Shop Fox Country of Origin Imported Amperage 7 A Compatibility See Manual Cord Length 6 ft. Decibel Rating 0 N/A Phase Single Phase Features No additional features Filter Efficiency 0 N/A Filtration Material Metal Power 1 hp Pipe Diameter 4 in. Hose length 0 in. Maximum Air Flow 537 CFM Operating Speed 537 CFM Product Height 44 in. Product length 18 in. Product weight 51 lbs. Product width 19.5 in. Warranty 2 Manufacturer Part Number W1826
