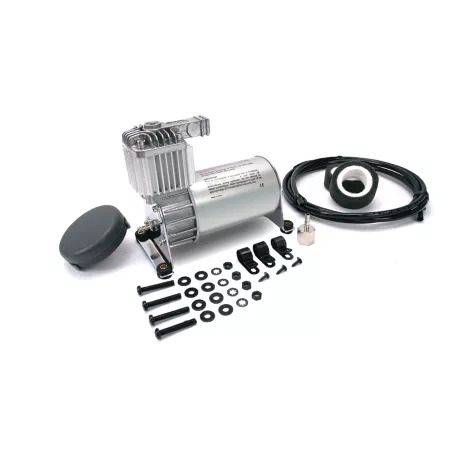

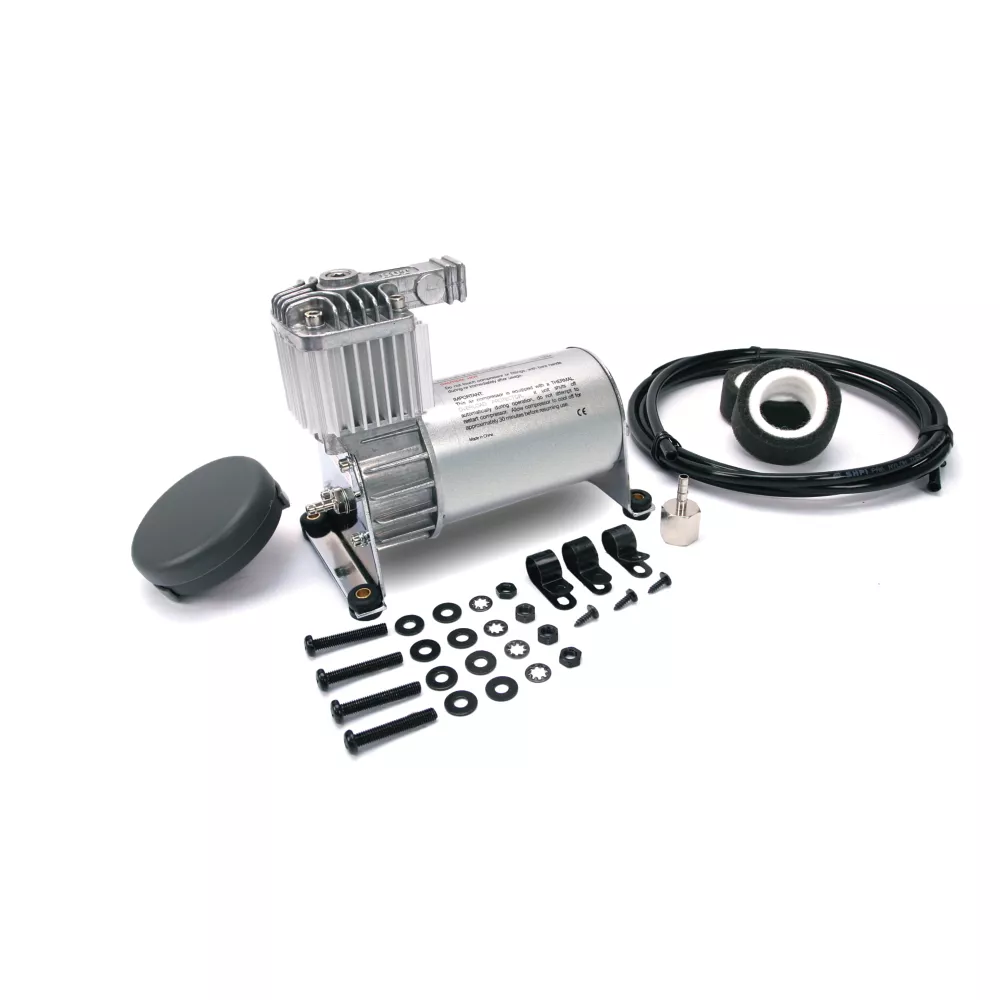

Silver VIAIR 100C bare compressor kit without main pipe and check valve Portable Air Compressors Air Compressors

The Viair - 100C Silver Compressor Kit comes with a remote mount air filter assembly, rubber isolated mounting feet as well as insulated electric terminals. The maximum working pressure of the silver compressor kit is 130 PSI and the maximum 12V amp draw is 14 amps. The mounting hardware included with the compressor kit allows for easy installation. Two replacement air filter elements are also included in the compressor kit as a backup to keep the system running efficiently.

12-volt silver compressor kit
Duty Cycle: 15% @ 100 PSI
Max. working pressure of compressor kit: 130 PSI
No leader hose or check valve
Max. air tank size of compressor kit: 1.0 gal.
Max. 12V amp draw: 14 Amps
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lb.
Thermal overload protector
Vibration isolators
Mounting hardware included for easy installation
Air line for remote mount air filter included in silver compressor kit
Two replacement air filter elements
Permanent magnetic motor
Ingress protection rating: IP54
Dimensions: 6.35 in. L x 3.3 in. W x 4.9 in. H
Net weight: 3.55 lb.
Rubber isolated mounting feet and insulated electric terminals included

Silver VIAIR 100C bare compressor kit without main pipe and check valve Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.59 CFM
Airflow Volume	1.27 CFM
Air Outlet Size	1/8 in. NPT
Amperage	14A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	130 PSI
Compressor Tank Capacity	1 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	Https://www.viaircorp.com/c-models/100c-14
Hose Fitting Size	1/8 in. NPT
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminum
Product Height	4.9 in.
Product Length	6.35 in.
Product Weight	3.55 lb.
Product Width	3.3 in.
Pump Material	Metal
Tank Fill Time	2 min.
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	10014

VIAIR 100C Silver Bare Compressor Kit, No Leader Hose or Check Valve Specifications Expand/Collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 0.59 CFM Air Flow Volume 1.27 CFM Air Outlet Size 1/8 in. NPT Amperage 14 A Wattage Compressor Rating 0.25 HP Compressor Maximum PSI 130 PSI Compressor Tank Capacity 1 gal Compressor Type Oil-Free Compressor Voltage 12V Cord Length 1 ft. Drain System None Drive Type DC Features https://www.viaircorp.com /c-models/100c-14 Pipe Fitting Size 1/8 in. NPT Number of Power Speeds Single Power Type 12 Volt Primary Color No Color Primary Material Aluminum Product Height 4.9 in. Product length 6.35 in. Product weight 3.55 lbs. Product width 3.3 in. Pump material Metal Reservoir filling time 2 min. Tank Orientation Horizontal Warranty 1 Year Manufacturer Part Number 10014
