Simrad GO9 XSE Chartplotter/Fishfinder with C-MA Discovery Card – without transducer Marine Navigation & Instruments

Simrad GO Series displays are designed to help you get the most out of your time on the water and are a perfect complement to sport boats, dayboats and center consoles. Behind every sunlight-viewable GO Series touchscreen is a built-in GPS receiver, echo sounder, wireless connectivity and industry-standard NMEA 2000(R) networking. Navigate, connect to mobile devices, control accessories like your in-car audio system, and choose from a range of built-in sonar features. Radar Capability: Available on GO7 and above: Provides additional security and fish finding features. Benefit from enhanced autopilot functionality with SteadySteer™ (compatible with RPU drive pumps) and integrate an expanded range of third-party technologies - CZone(R), Mercury(R) Smart Tow(R) digital switching for surfingand wakeboarding, control lighting effects with an ITC lighting control bar and Honda ECO mode engine information.

Simrad 0013210002 Attributes

Screen size: 9 inches
DiType: LCD
Resolution: 800 X 480 pixels
Interface: Touchscreen
Dimensions: 9.56 inches wide X 6.71 inches tall ul>Simrad 0013210002 Features and Benefits
- 9-inch widescreen display with bright LED backlight
- Works as a display for 3G™/4G™ and HALO(R) broadband radars
- Integrated sonar supports CHIRP sonar, HD StructureScan(R) imaging, or ForwardScan™ sonar
- Supports SteadySteer™, an autopilot performance enhancement for NAC-2 and NAC-3 autopilot computers equippedof RPU drive pumps
- Compatible with a CZone digital switching device, allowing control from the MFD via the NMEA 2000 network
- Mercury Smart Tow enabled for activation shape of the wake
- ITC lighting systems can be controlled with an ITC lighting control bar
- Supports Honda Engine information in ECO mode
- Easy for us With simple, intuitive touch controls
- 2-year limited warranty
Simrad Warranties 0013210002
- Simrad-Professional-Global-Warranty -Policy-2016-v2.pdf
GO9 XSE plotter/sounder with C-MAP discovery card - No transducer

GO9

Features:
- Easy to use, high brightness Table-style touch screen9-inch head
- Integrated advanced echo sounder capable of displaying CHIRP, Forwardscan, Sidescan and Downscan images
- Radar port for connection to a Simrad solid-state radar
- Direct audio, autopilot, communication and connection to motor and control via NMEA2000
- Built-in Wi-Fi for mobile device mirroring and Internet downloading of maps and software
- Multi-easy to use touchscreen software
- Navigate easily and safely using your favorite mapping (Insight, Navionics, CMAP)
- Determine depth , bottom type and find fish with one of the many sonar technology options
- Quick and simple control of connected entertainment systems on NMEA2000
- Vessel circuit control when connected to a C-zone digital switching system
- View and monitor motor data while runningute
- Low profile glass dash style
- Low profile glass dash style
- li>
- Ultra widescreen bright
- Built-in Wi-Fi connectivity
- Notifications of software updates and downloads when connected to the Internet
- Screen mirroring when connected to a mobile device
- Integrated 10 Hz GPS antenna
- Dual Micro SD card slots
- Integrated echo sounder (high speed and Chirp) (transducer required)
- Integrated DownScan and Sidescan Imaging (transducer required)
- Integrated Forwardscan Imaging (transducer required)
- Radar port for direct connection to Simrad 3G/4G Scanners or Halo Radar
- Operational with OP40/OP50 remote control
- Advanced NMEA2000 network
Easy-to-use multi-touch screen

The GO9 XSE offers true ease of use with intuitive touchscreen controls that usersSmartphone and tablet users will find it instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across maps. The simple layout of the home screen and menus makes all functions quickly accessible, with large, clearly labeled icons that are easy to recognize and press.

Navigation with chartplotter and waypoint management

The GO9 XSE is a complete chartplotter, supporting the widest range of mapping options available, including C-MAP MAX-N+, Navionics , Insight, Insight Genesis and NV Digital Charts. Confidently navigate to destinations near and far, with the flexibility to choose the maps that best suit your needs and location. Easily set and save these destinations with simple waypoint managementinement: Mark the waypoint with a single tap and assign meaningful names that make it easier to find the desired destination, whether you've mapped ten locations or a thousand.

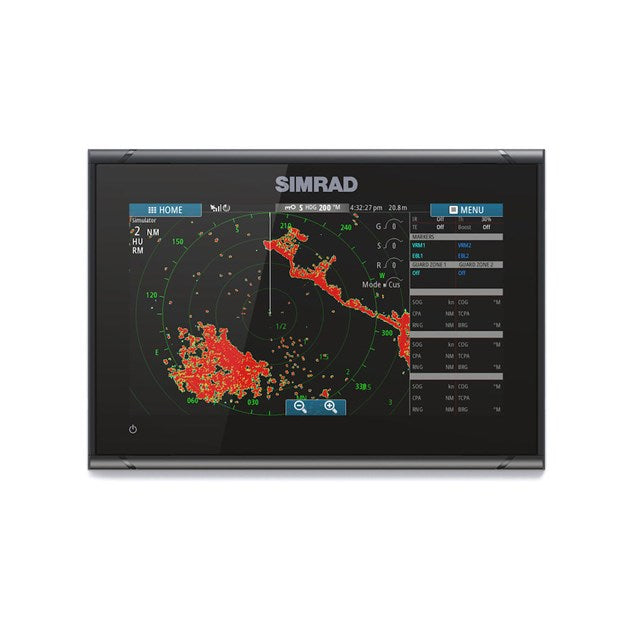

Expand your view with a solution Simrad radar The Simrad GO9 XSE is a complete radar display with plug-and-play connectivity to the Simrad Broadband 3G, Broadband 4G and Halo Pulse Compression radar systems. Cruise confidently through crowded harbors, navigate safely in poor visibility conditions, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Auto-tuning helps provide a clear radar picture in all conditions, while Radar Overlay combines radar data with navigation maps for an easy-to-interpret view of your surroundings.

Interface entirely pCustomizable

The Simrad GO9 XSE is fully customizable to fit your boat and your favorite on-water activities, from powerboating to fishing to water sports. Personalize your home screen with shortcuts to the features you use most and personalize it with your choice of wallpaper. Adjustable split-screen views and customizable panel layouts let you see everything you need on screen at once, no matter what you're doing.

Plan smarter with TripIntel™ Technology

Designed for power boaters, TripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel autonomy overlaid on charts, easy access to current and future tide levelsrs and a detailed history of your previous trips, including the route you took and the performance of your boat.

Built-in 10 Hz GPS receiver*

With a high-speed GPS receiver updating your position ten times per second, the Simrad GO9 XSE is ideal for use aboard RIBs and fast powerboats. Watch your boat's movements tracked smoothly, accurately and in real time, without "jumping" from one point to another on the screen.

Cruising map view

strong>

Designed for power boating, the Simrad GO9 XSE offers a unique cruising chart page that brings together crucial navigation data and charts into an easily readable display. Choose the information most relevant to your cruising style and on-water activities with the ability to edit on-screen data elements.

NMEA 2000 engine monitoring and instrumentation

The Simrad GO9 XSE connects to any NMEA 2000 compatible equipment on board your vessel, including outboard and inboard engines -edge ; fuel level and flow meters; speed, heading and water temperature sensors; and much more. Create your own custom digital instrument displays, bringing a wealth of information to even the most cluttered dashboard while keeping a clean look with as few gauges as possible.

Monitor your depth with built-in sonar Knowing the true depth beneath your hull can help you enjoy your time on the water with less worry and makes it more enjoyable. It's easier to locate suitable anchorages in unfamiliar waters. With built-in sonar, simply add an appropriate sonar transducer for precise, real-time depth tracking. One seenThe depth history drop-down lets you easily track and set waypoints for promising anchorages, while StructureScan Imaging combines DownScan and SideScan sonars to provide an image-like view of the bottom beneath your vessel. /p>

Cruise Confidently with ForwardScan Sonar

With an optional ForwardScan transducer, this forward-facing sonar technology provides a clear, two-dimensional image of the bottom in front of your vessel, allowing you to navigate at shallow depths or in difficult conditions. -mapped the waters with confidence. With real-time updates and a forward view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safe day on the water.

Find Fish with CHIRP and StructureScan Side-Scan HD Imaging

Let the fishing beyour life or just a casual hobby, any fishing activity will benefit from the wide range of sonar technologies built into the Simrad GO9 XSE. Add a suitable transducer, available separately or included with your display, and the GO9 With an optional HDI or Active Imaging 3-in-1, the GO9 XSE also offers StructureScan HD side-scan imaging for a picture-like view of fish structure beneath and around your boat.

Simrad SonicHub2 and Bluetooth audio integration

If you're not comfortable on the water without a good soundtrack, the Simrad marine audio system SonicHub2 is the perfect companion to a GO9 XSE display. Stream music from tablets, smartphones and other mobile devices connected via Bluetooth, play filesMP3 from a USB drive or listen to the SonicHub 2's built-in AM/FM radio. SonicHub 2 brings complete control of your audio entertainment to your GO9 XSE display, eliminating the need for a separate stereo head unit and allowing you to listen to your music your way.

Cloud GoFree™ enabled with built-in Wi-Fi

With built-in Wi-Fi, the Simrad GO9 XSE provides direct access to GoFree cloud services, including easy wireless map downloads, software updates and more. Whether you're connected to your home Wi-Fi with your boat towed in the driveway, connected to your marina's Wi-Fi, or connected to your smartphone on the lake, you can access GoFree cloud services anywhere you have an Internet connection. On the water, GoFree connects the Simrad GO9 XSE to your mobile devices, mirroring your smartphone screen or giving you full remote control from yourbe a tablet with the free GoFree Controller app.

SiriusXM Weather Integration

The Simrad GO9 XSE is the only weather-compatible display in the GO series via SiriusXM Marine satellite, via the optional WM-4 expansion module, for real-time access to weather information directly on your screen. With onboard access to weather radar, surface buoy reports, NOAA marine area forecasts and more, you can check offshore conditions before you even leave the dock. SiriusXM Marine is a subscription service, available exclusively in North America.

* Built-in GPS receiver works in any rack installation and when flush-mounted with most fiber hulls of glass. When embedded in a metal hull vessel, an external GPS receiver such as the Simrad GS25 may be required.

Specifications:
- Housing: PC/ABS
- Operating temperature: -15°C to +55°C (+5°F to +131°F)
- Water inlet: IPX6 and 7
- Weight (excluding mounting hardware): 1.315 kg (2.9 lbs) - GO9 XSE
- Screen brightness: 1200 nits
- Screen resolution: 480 x 800 (H x W)
- Viewing angle in degrees (typical value for contrast ratio = 10): L/R: 70, top: 50, low: 60
- Operating voltage: 10 - 17 V DC
- Current draw at 13.6 V (sonar off, max B/L): 1 A
- Low power sleep mode: yes
- Protection: reverse polarity and temporary overvoltage up to 36V
- Alarm output current: 1A max
- Processor: single-core iMX61
- Compliance: CE, C-Tick
- NMEA 2000 (compliant): 1 port (Micro-C male) -, network load 1 LEN: 1 combo port Power and NMEA 2000 (7-pin connector)
- Sonar 1 port (9-pin connector) Radar 1 port (Ethernet 5-pin connector) )
- Leccard reader: dual microSD
Comes with:
- 000-13702-001 - Gimbal holder, GO9, V9
- 000-13700-001 - GO9/V9 Frame Replacement
- 000-13699-001 - GO9/V9 Dash Mount Kit
- 000 -00128-001 - Power Cable
- 000-13698-001 - GO9 XSE Suncover
C-MAP Discovery Board Features
- Complete vector maps
- Custom depth shading
- High resolution bathymetry
- Easy routing
- Tides & Currents
Get up to $300 back (including purchase qualifications) through 04/30/2021 VIEW Chartplotter/Sounder GO9 XSE with C-MAP Discover Chart-No Transducer GO9 Function: Easy-to-use multi-touch software uses yourPreferred mapping technology (Insight, Navionics, CMAP) to easily and safely navigate to determine depth, bottom type and find fish. Use one of the many echo sounder technology options to quickly and easily control the NMEA2000 connected entertainment system. Controls the vessel's circuit when connected to the digital switching system in Area C. View and monitor engine data while it is running. Dashboard-style slim glass Ultra-bright widescreen display Built-in Wi-Fi connectivity Software update notification and download connection when connected to the internet Screen mirroring on mobile devices Built-in 10Hz GPS antenna Dual card slots Micro SD Built-in sonar (high flow and chirp) (transducer required) Built-in DownScan and Sidescan imaging (transducer required) Built-in forward scan imaging (required transducer)quis) Radar port for direct connection to Simrad 3G/4G or Halo radar scanner Can be used with advanced NMEA2000 network remotely OP40/OP50 Easy to use multi-touch screen GO9 XSE has intuitive touch screen controls that can really make it easy for users to use, and smartphone and tablet users will immediately feel familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to move between maps. The simple home screen and menu layout make all functions quickly accessible, with large, clear title icons that are easy to identify and click on. Chartplotter Navigation and Waypoint Management GO9is and NV. You can flexibly choose the chart that best suits your needs and location, and sail with confidence to far-flung destinations. With simple waypoint management, you can easily configure and save these destinations: tap to mark waypoints and assign meaningful names. So whether you have ten locations planned or a thousand locations planned, you can easily find the destination you need. Expand your field of view with Simrad radar solutions Simrad GO9 chartplotter -fishfinder-w-c-ma-discover-chart
MPN: 000-13210-002
UPC: 9420064120154
ASIN:
WSKU: SIM00013210002
SSKU: SIM-000-13210-002
br>KSKU: SIM0013210002
GSKU:
MSKU:
LSKU: 941-00013210002
NAME: Simrad G Chartplotter/SounderO9 XSE with C-MA{Discovery Card - No Transducer
NAME_EX: SIMRAD GO9 Discovery Map - Without Transducer
TYPE: Navigation and maritime instruments| GPS - Combined depth sounder
SELLER: Simrad
ELECTRONICS> MARINE ELECTRONICS> MARINE CHART READERS AND GPS

Simrad GO9 XSE Chartplotter/ Fishfinder with C-MAP Discovery Chart - Without Transducer

Gtags:

GSpecs:

Simrad GO9 perfect for sport boats, day boats, and center consoles. Behind every sunlight-viewable GO Series touchscreen is a built-in GPS receiver, echo sounder, wireless connectivity and industry-standard NMEA 2000(R) networking. Navigate, connect to mobile devices, control accessories like your in-car audio system, and choose from a range of built-in sonar features. Radar Capability: Available on GO7 and above: Provides additional security and fish finding features. Benefit from enhanced autopilot functionality with SteadySteer™ (compatible with RPU drive pumps) and integrate a rangeExtended third-party technologies - CZone(R), Mercury(R) Smart Tow(R) digital switching for surfing and wakeboarding, control lighting effects with an ITC Lighting control bar and Honda ECO mode engine information .Simrad Attributes 0013210002
- Display size: 9 inches
- Display type: LCD
- Resolution: 800 X 480 pixels
- Interface: Touch screen
- Dimensions: 9.56 inches wide X 6.71 inches tall>Sensor Compatibility: NMEA 2000 Compatible
Simrad 0013210002 Features and Benefits
- 9-inch widescreen with bright LED backlight
- Works as a screen for the high diebit 3G™/4G™ and HALO(R) radar
- Built-in sonar supports CHIRP sonar, StructureScan(R) HD imaging, or ForwardScan™ sonar
- Supports Supports SteadySteer™, an autopilot performance enhancement for NAC-2 and NAC-3 autopilot computers equipped with RPU drive pumps
- Compatible With a CZone digital switching device, enabling control from the MFD via the NMEA 2000 network
- Mercury Smart Tow enabled for wake shaping
- ITC lighting systems can be controlled with an ITC Control Bar lighting system
- Supports Honda ECO mode engine information
- Easy to use with simple, intuitive touchscreen controls
- Limited warranty 2 years
Simrad 0013210002 Warranties
- Simrad-Professional-Global-Warranty-Policy-2016-v2.pdf
GO9 XSE Chartplotter/Sounder with C-MAP discovery map - Without transducer

GO9 XSE Multifunction screen with integrated echo sounder, GPS and Wi-Fi. Ultra-bright 9-inch multi-touch widescreen display with NMEA 2000 and radar interface.

Features:
- Easy to use, high brightness 9-inch tablet-style touchscreen
- Built-in advanced echo sounder capable of displaying CHIRP, Forwardscan, Sidescan and Downscan images
- Radar port for connection to a Simrad solid-state radar
- Direct audio, autopilot, communication and motor connection and control via NMEA2000
- Built-in Wi-Fi for mobile device mirroring and internet downloading of maps and software
- Easy-to-use multi-touch software
- Navigate easily and safely using your favorite cartography (Insight, Navionics, CMAP)
- Determine depth, bottom type and find fish usingide one of many sonar technology options
- Quick and simple control of entertainment systems connected over NMEA2000
- Control of vessel circuits when connected to a switching system C-zone digital
- View and monitor engine data while underway
- Low-profile glass dash style
- Ultra-bright widescreen display
- Built-in Wi-Fi connectivity
- Notifications of software updates and downloads when connected to the Internet
- Screen mirroring when you are connected to a mobile device
- Built-in 10 Hz GPS antenna
- Dual microphone SD card slot
- Built-in echo sounder (high bandwidth and Chirp) (transducer required)
- Integrated DownScan and Sidescan imaging (transducer required)
- Integrated Forwardscan imaging (transducer required)
- Radar port for direct connection to Simrad 3G/4G scannersor Halo Radar
- Usable with OP40/OP50 remote control
- Advanced NMEA2000 network
Easy-to-use multi-touch screen
strong>

The GO9 XSE offers true ease of use with intuitive touch controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across maps. The simple layout of the home screen and menus makes all functions quickly accessible, with large, clearly labeled icons that are easy to recognize and press.

Navigation with chartplotter and waypoint management

The GO9 XSE is a complete chartplotter, supporting the widest range of mapping options available. N+, Navionics, Insight, Insight Genesis and NV Digital. N / ASail confidently to destinations near and far, with the flexibility to choose the maps that best suit your needs and location. Easily set and save these destinations with simple waypoint management: mark waypoints with a single tap and assign meaningful names that make it easy to find your desired destination, whether you've mapped ten locations or a thousand.

Expand your view with a Simrad radar solution

The Simrad GO9 XSE is a complete radar display with plug-and-play connectivity to Simrad Broadband 3G, 4G Broadband and Halo. Pulse compression radar systems. Cruise confidently through crowded ports, navigate safely in poor visibility conditions, keep an eye out for distant weather cells, and find flocks of feeding birds that hint at good spots fishing. Auto-Tuning helps provide a clear radar picture in all conditions, while Radar Overlay combines radar data with navigation. Geographic maps for an easy-to-interpret view of your surroundings.

Fully Customizable Interface

The Simrad GO9 XSE is fully customizable to fit your vessel and your favorite on-water activities, from powerboating to fishing to water sports . Personalize your home screen with shortcuts to the features you use most and personalize it with your choice of wallpaper. Adjustable split-screen views and customizable panel layouts let you see everything you need on screen at once, no matter what you're doing.

Plan smarter with TripIntel™ technology

Designed for power boaters, theTripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on maps, easy access to current and future tide levels, and a detailed history of your previous trips, including the route you took and boat performance. your boat.

Built-in 10 Hz GPS receiver*

With a high-speed GPS receiver updating your position ten times per second, the Simrad GO9 XSE is ideal for use aboard RIBs and fast motorboats. Watch your boat's movements tracked smoothly, accurately and in real time, without "jumping" from one point to another on the screen.

Cruising map view

strong>

Designed for motorized boating, the Simrad GO9 XSE offers a cruise map pageunique display that brings together crucial navigation data and maps into a single, easily readable screen. Choose the information most relevant to your cruising style and on-the-water activities with the ability to edit on-screen data elements.

NMEA 2000 engine monitoring and instrumentation

The Simrad GO9 XSE connects to any NMEA 2000 compatible equipment on board your vessel, including outboard and inboard engines; fuel level and flow meters; speed, heading and water temperature sensors; and much more. Create your own custom digital instrument displays, bringing a wealth of information to even the most cluttered dashboard while keeping a clean look with as few gauges as possible.

Monitor your depth with built-in sonar

Knowing the true depth beneath your hull can help you profitEnjoy your time on the water with less worry and makes it easier to locate suitable anchorages in unfamiliar waters. With built-in sonar, simply add an appropriate sonar transducer for precise, real-time depth tracking. A scrollable depth history view lets you easily track and set waypoints for promising anchorages, while StructureScan Imaging combines DownScan and SideScan sonars to provide an image-like view of the bottom beneath your vessel.

Cruise Confidently with ForwardScan Sonar

With an optional ForwardScan transducer, this forward-facing sonar technology provides a two-dimensional image clear of the bottom in front of your vessel, allowing you to navigate at shallow depths or in difficult conditions. -mapped the waters with confidence. With real-time updates and a forward-looking view up to 6It times your current depth, ForwardScan lets you relax and enjoy a safe day on the water.

Find fish with CHIRP and StructureScan Side-scan HD imaging

Whether fishing is your life or just an occasional hobby, any fishing trip will benefit from the wide range of sonar technologies built into the Simrad GO9 XSE. Add a suitable transducer, available separately or included with your display, and the GO9 With an optional HDI or Active Imaging 3-in-1, the GO9 XSE also offers StructureScan HD side-scan imaging for a picture-like view of fish structure beneath and around your boat.

Simrad SonicHub2 and Bluetooth audio integration

If you're not comfortable on the waterWithout a good soundtrack, the Simrad SonicHub2 marine audio system is the ideal companion to a GO9 XSE display. Stream music from tablets, smartphones and other mobile devices connected via Bluetooth, play MP3 files from a USB drive, or listen to SonicHub 2's built-in AM/FM radio. SonicHub 2 brings control complete your audio entertainment on your GO9 XSE display, eliminating the need for a separate stereo head unit and allowing you to listen to your music your way.

GoFree™ cloud enabled with Wi- Built-in Fi

With built-in Wi-Fi, Simrad GO9 XSE provides direct access to GoFree cloud services, including easy wireless map downloads, software updates and more Again. Whether you're connected to your home's Wi-Fi with your boat towed in the driveway, connected to your marina's Wi-Fi, or connected to your smartphone on the lake, you can access serviceses GoFree cloud wherever you have an Internet connection. On the water, GoFree connects the Simrad GO9 XSE to your mobile devices, mirroring your smartphone screen or giving you full remote control from your tablet with the free GoFree Controller app.

SiriusXM Weather Integration

The Simrad GO9 XSE is the only display compatible with the GO series. with SiriusXM Marine satellite weather, via the optional WM-4 expansion module, for real-time access to weather information right on your screen. With onboard access to weather radar, surface buoy reports, NOAA marine area forecasts and more, you can check offshore conditions before you even leave the dock. SiriusXM Marine is a subscription service, available exclusively in North America.

* Built-in GPS receiver works in any rack installation and whenthat it is flush with most fiberglass hulls. When embedded in a metal hull vessel, an external GPS receiver such as the Simrad GS25 may be required.

Specifications:
- Housing: PC/ABS
- Operating temperature: -15°C to +55°C (+5°F to +131°F)
- Water inlet: IPX6 and 7
- Weight (excluding mounting hardware): 1.315 kg (2.9 lbs) - GO9 XSE
- Screen brightness: 1200 nits
- Screen resolution: 480 x 800 (H x W)
- Viewing angle in degrees (typical value for contrast ratio = 10): L/R: 70, top: 50, bottom : 60
- Operating voltage: 10 - 17 V DC
- li>
- Current consumption at 13.6 V (sonar off, max B/L): 1 A
- Low power standby mode: yes
- Protection: reverse polarity and temporary voltage overload at 36 V
- Alarm output current: 1 A max
- Processor: single-core iMX61
- Compliantity: CE, C-Tick
- NMEA 2000 (compliant): 1 port (Micro-C male) -, network load 1 LEN: 1 combined port Power and NMEA 2000 (7-pin connector)
- 1-port sonar (9-pin connector) 1-port radar (5-pin Ethernet connector)
- Card reader: dual microSD
Comes with :
- 000-13702-001 - Gimbal bracket, GO9, V9
- 000-13700-001 - GO9 / V9 frame replacement
- 000-13699-001 - GO9/V9 Dash Mount Kit
- 000-00128-001 - Power Cable
- 000-13698-001 - GO9 XSE Suncover
C-MAP Discovery Map Features
- Complete Vector Maps
- Custom Depth Shading
- High-Resolution Bathymetry
- Easy Routing
- Tides and Currents
Get a Refund up to $300 (including purchase qualifications) until 04/30/2021 VIEW The GO9 XSE plotter/sounder hasith C-MAP Discover Chart-No Transducer GO9 XSE multifunction display, integrated echo sounder, GPS and Wi-Fi. Super bright 9-inch multi-touch widescreen display with NMEA 2000 and radar interface. Function: Easy-to-use multi-touch software uses your favorite mapping technology (Insight, Navionics, CMAP) to easily and safely navigate to determine depth, bottom type and find fish. Use one of the many echo sounder technology options to quickly and easily control the NMEA2000 connected entertainment system. Controls the vessel's circuit when connected to the digital switching system in Zone C. View and monitor engine data while it is running. Thin glass dashboard style Ultra-bright widescreen display Built-in Wi-Fi connectivity Software update notification and download connection when connected to the Internet Screen mirroring on mobile devicesobiles Built-in 10 Hz GPS antenna Dual Micro SD card slot Built-in fishfinder (high throughput and chirp) (transducer required) Built-in DownScan and Sidescan imaging (transducer required) Built-in forward scan imaging (transducer required) Radar port for direct connection to scanner Simrad 3G/4G or Halo radar Can be used with OP40/OP50 remote control Advanced NMEA2000 network Easy to use multi-touch screen GO9 XSE has intuitive touch screen controls that can really make it easy to use for users, and Smartphone and tablet users will immediately feel familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to move between maps. The simple home screen and menu layout make all functions quickly accessible, with large, clear title icons that are easy to identify and click. Navigation by traChart Core and Waypoint Management GO9 . You can flexibly choose the map that best suits your needs and location, and navigate with confidence to far-flung destinations. With simple waypoint management, you can easily configure and save these destinations: tap to mark waypoints and assign meaningful names. So whether you have ten locations planned or a thousand locations planned, you can easily find the destination you need. Expand your field of view with Simrad radar solutions Simrad GO9 XSE is

Simrad GO9latinum Lake Maps - North - microSD™/ SD™
Navionics HotMaps Platinum Lake Maps South - microSD™/SD™
Navionics HotMaps Platinum Lake Maps - East - microSD™/SD™
Navionics HotMaps Platinum Lake Maps - West - microSD™/SD™
Navionics HotMaps Platinum Lake Maps - Canada - microSD™/SD™
Simrad power cable - 2 m - NSE and StructureScan 3D
Kit Simrad N2K Starter Kit
Navionics+ Preloaded Map of All US/Canada -Marine & Lakes- microSD™
Simrad HALO™-3 Pulse Compression Radar with 3' Antenna, Module RI-12 interface and 20M cable
Simrad HALO™-4 pulse compression radar with 4' antenna, RI-12 interface module and 20M cable

Frequently Asked Questions (FAQ) about the Simrad GO9 with C-MA{ Discover Graphic - No transducer?
QWhat is the resolution of the product?
What is the screen size of the product?
Transducer included with the product?
What is the weight of the product?
What is the size?
Is this product waterproof?
What is the display type of the product?
What is the display size of the product?
What is the interface control of the product?
What is the map mark of the product?
What are the dimensions of the product?
Is this product touchscreen?
Who is the Simrad? Simrad is part of the Navico family based in Norway, the world leader in marine electronics. Simrad manufactures a complete range of sophisticated marine electronic systems for the recreational and light commercial markets. Simrad products are based on six main areas of expertise: radar, echo sounder, communications, automatic guidance, navigation and systems integration. How to describe the plotter/sounderSimrad GO9 XSE fishing with C-MA{ Discover Table - No transducer? Get up to $300 cash back (including purchase qualifications) through 4/30/2021 VIEW GO9 XSE Chartplotter/Fishfinder with C-MAP Discover Chart-No Transducer GO9 built-in, GPS and Wi-Fi. Super bright 9-inch multi-touch widescreen with NMEA 2000 and radar interface. Function: Easy-to-use multi-touch software uses your fa
