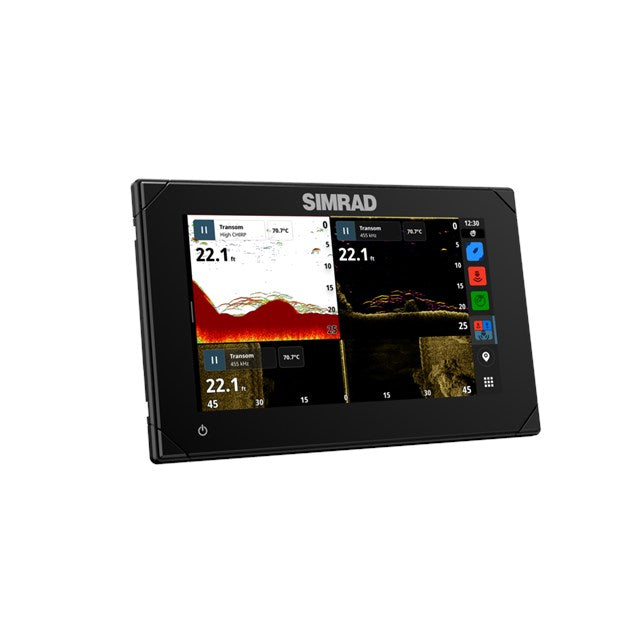

Simrad NSX 3007 7" Chartplotter and Sonar Combo - Screen Only - Without Transducer Marine Navigation & Instruments
Take your experience to a whole new level with the Simrad(R) NSX™ intelligent chartplotter and fishfinder. With an innovative, modern interface featuring powerful navigation capabilities with C-MAP(R) DISCOVER The NSX comes fully equipped with integrated sonar, radar and autopilot systems, and with our handy Setup Assistant tool, you'll be up and running in no time. All you have to do is choose your next adventure on the water. With an innovative, modern interface featuring powerful navigation capabilities with C-MAP(R) support, you'll see everything like never before. The NSX features built-in sonar, full compatibility with radar and autopilot systems, and with our handy Setup Wizard tool, you'll be up and running in no time. HeAll you have to do is choose your next adventure on the water. Discover modern simplicity and rich details. NSX combines a clean, simple interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including intelligent drag-and-drop screen customization, fully editable instrument bar, and enhanced day and night modes. Get crystal-clear views of map details, structure and bottom contours with the vibrant SolarMAX™ IPS touchscreen. The high-definition display is viewable from any angle, in direct sunlight and through polarized lenses with full touchscreen operation.
Simrad 0015214001 Attributes- Size screen: 7 inches
- Resolution: 1024 x 600 pixels
- Interface: multi-touch screen
- Dimensions: 7.68 inches wide x 3.13 inches ofdepth x 4.84 inches height
- Waterproof: IPX6/IPX7 Waterproof
- Sensor Compatibility: NMEA 2000 Compliant
- Includes a marine-optimized C-MAP(R) DISCOVER™
- High-definition IPS touchscreen with extreme viewing angles, even visible through polarized lenses
- Supports high-resolution views of fish and structures with Active Imaging™ featuring CHIRP and SideScan And DownScan Imaging™, plus 1 kilowatt transducer capacity to reach greater depths
- Setup wizard to get you up and running quickly, plus simpler sonar setup
- Complete integration with possibility of extending the system with Sonar Simrad , pilote auto, radar and more
- Faster autorouting with seamless accessibility
- See near and far simultaneously (up to 42nm), with support for HALO radar and get ultra-fast rendering Updates every second
- Stay on course with full Simrad autopilot integration
- Modern, simple interface
- 2 Year Limited Warranty
- NSX_IM_EN.pdf
- NSX_QG_EN.pdf
- Simrad-Professional-Global-Warranty-Policy-2016-v2.pdf
- NSX-3007_MT_988-12635-002_w .pdf
NSX™ 3007 7" Chartplotter and Sonar - Screen Only - No Transducer
Everything in the NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest ever highway and next-generation C-MAP maps.ration Discover intuitive touchscreens and a simple sonar setup with tips to help you when you need it. Count on high-resolution images from cutting-edge sonar technology, like FishReveal™. , DownScan Imaging™ and SideScan.
Add compatibility with a wide range of 1 kW transducers for even higher target resolution, and there's nothing else between you and your next adventure than open water.
An intuitive touchscreen experience
Easily access all NSX™ features through a modern, simple interface, including drag-and-drop screen customization and improved day and night modes. Get Crystal. clear vDetailed map views with the SolarMAX™ IPS touchscreen - viewable from any angle, in bright sunlight and even through polarized lenses.
Bring navigation to life with NSX™
See chart details in a different way with the next generation C-MAP DISCOVER™ X and REVEAL™ X optimized marine charts for day and night. Experience our fastest highway ever, and with the Simrad Companion app, plan trips, review routes, plot waypoints and sync directly.
Complete suite of Simrad technology at your fingertips
Expand your system with advanced Simrad technology. Experience high-resolution images from cutting-edge sonar technology, like Active Imaging™, plus compatibility with a wide range of 1 kW transducers. Immediately identify hazards and see near and far simultaneously with award-winning HALO pulse compression radars, and stay on course with legendary Simrad autopilots.
Simple to configure, easy to manage
Get up and running faster thanNever. The Setup Wizard provides step-by-step instructions and guidance throughout your initial setup and during future adjustments. Additionally, Sonar device setup provides easy-to-understand prompts for each step of the process, while the Simrad app provides access to best-in-class planning tools as well as software updates and a Hassle-free data transfer.
Features:
- Includes a marine-optimized C-MAP DISCOVER™ Fresh, intuitive mapping and daily updates – plus support for C-MAP REVEAL™ X Charts
- High-definition IPS touchscreen with extreme viewing angles, visible through polarized lenses
- Supports high-resolution views of fish and structures with Active Imaging™ with CHIRP, SideScan and DownScan Imaging™, more1 kW transducer capacity to reach greater depths
- Setup wizard to get you up and running quickly, plus simpler sonar setup
- Complete integration with the ability to expand the system with Simrad sonar, autopilot, radar and more
- Faster highway routing with seamless accessibility
- See near and far simultaneously (up to 48 nm), with HALO radar and get lightning-fast updates every second
- Stay on course with full Simrad autopilot integration
- Clean and simple interface
- Simrad app integration: keep your chart data at your fingertips, on and off the water
- Third-party app integration
- Wireless connectivity, plus full Ethernet and NMEA 2000 networking capabilities
- IP video support
PRODUCT ID: 93522
SKU: NVN-93522
CSKU: CWR-93522
REWRITE: 104633-simrad-nsx -3007-7-combo-chartplotter
MPN : 000-15214-001
UPC: 9420064110018
ASIN:
WSKU: SIM00015214001
SSKU:
KSKU: SIM0015214001
GSKU:
MSKU:
LSKU:
NAME: Simrad NSX™ 3007 7" Combo Chartplotter and Sonar - Display Only - No Transducer
NAME_EX:
PTITLE: Simrad NSX™ 3007 7" Combo Chartplotter and Sonar - Display Only - No of transducer>
Gtags:
GSpecs:
Simrad NSX™ 3007 7" Combo Chartplotter and Sonar - Display Only - No Transducer Product Description
Take your experience to a whole new level with the Simrad(R) NSX™ Intelligent Chartplotter and Sonar With a modern, modern interface featuring powerful navigation capabilities with C-MAP(R) DISCOVER Autopilot and with our handy Setup Wizard tool, you'll be up and running in no time. All you have to do is choose your next adventure on the water with an innovative and modern interface packed with powerful capabilities. navigation with C-MAP(.R), you'll see everything like never before The NSX features built-in sonar, full compatibility with radar and autopilot systems, and thanks to our out.It's handy setup wizard, you'll be up and running in no time. now it's choosing your next traveling adventure. Discover modern simplicity and rich details. NSX combines a clean, simple interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including intelligent drag-and-drop screen customization, fully editable instrument bar, and enhanced day and night modes. Get crystal-clear views of map details, structure and bottom contours with the vibrant SolarMAX™ IPS touchscreen. The high-definition display is viewable from any angle, in direct sunlight and through polarized lenses with full touchscreen operation.
Simrad 0015214001 Attributes- Screen size: 7 inches
- Resolution: 1024 : 7.68 inches wide X 3.13 inches deep X 4.84 inches high
- Waterproof: Waterproof rating IPX6/ IPX7
- Sensor compatibility: NMEA 2000 compatible
- Features A Marine-optimized C-MAP(R) DISCOVER™ MAP REVEAL™ Active Imaging™ including CHIRP, SideScan, and DownScan Imaging™, plus 1 transducer capacitykilowatt to reach greater depths
- Setup wizard to get you up and running quickly, plus simpler sonar setup
- Complete integration with the ability to expand the system with Simrad sonar, autopilot, radar, etc.
- Faster automatic routing with Seamless Accessibility
- See near and far simultaneously (up to 42 nm ), with support for HALO radar and get lightning-fast updates every second
- Stay on the ground with full Simrad autopilot integration
- Modern interface and simple
- 2 year limited warranty
- NSX_IM_EN.pdf
- NSX_QG_FR.pdf
- Simrad-Professional-Global-Warranty-Policy-2016-v2.pdf
- NSX-3007_MT_988 -12635-002_w.pdf
NSX™ 3007 7" Chartplotter and Sonar - Screen Only - No Transducer
All About NSX™ is designed to bring your fishing adventures closer Enjoy our fastest highway maps ever and our next-generation C-MAP maps Discover intuitive touchscreens and simple sonar setup tips for. help you when you need it Count on high-resolution images from cutting-edge sonar technology, like FishReveal™, DownScan Imaging™ and SideScan.
Add compatibility with a wide range of. 1 kW transducers for even more target resolution, and there's nothing between you and your next adventure except open water.
An intuitive touchscreen experience
Easily access all NSX™ features through a modern, simple interface, including swipe-d screen customization.epose and improved day and night modes. Get crystal-clear views of map details with the vibrant SolarMAX™ IPS touchscreen, viewable from any angle, in bright sunlight, and even through polarized lenses.
Give navigation life with NSX™
See chart details in a different way with next-generation C-MAP DISCOVER™ day and night. Experience our fastest highway ever, and with the Simrad Companion app, plan trips, review routes, plot waypoints and sync directly.
Complete suite of Simrad technology at your fingertips
Expand your system with advanced Simrad technology. Experience high-resolution images from cutting-edge sonar technology, like Active Imaging™, plus compatibility with a wide range of 1 kW transducers. Immediately identify hazards and see near and far simultaneously with award-winning HALO pulse compression radars, and stay on course with legendary Simrad autopilots.
Simple to configure, easy to manage
Get up and running faster than ever. The Setup Wizard provides step-by-step instructions and guidance throughout your initial setup and during future adjustments. Additionally, Sonar device setup provides easy-to-understand prompts for each step of the process, while the Simrad app provides access to best-in-class planning tools as well as software updates and a Hassle-free data transfer.
Features:
- Includes a marine-optimized C-MAP DISCOVER™ fresh and intuitive map and daily updates – as well as ae support for C-MAP REVEAL™ X Charts
- High-definition IPS touchscreen with extreme viewing angles, visible through polarized lenses
- Support for high-resolution views of fish and structures with Active Imaging™ including CHIRP, SideScan and DownScan Imaging™, plus 1 kW transducer capacity to reach greater depths
- Setup wizard to get you up and running quickly, plus simpler sonar setup
- Complete integration with the ability to expand the system with Simrad sonar, autopilot, radar and more
- Autorouting faster with seamless accessibility
- See near and far simultaneously (up to 48nm), with support for HALO radar and get lightning-fast updates every second.
- Stay on course with full Simrad autopilot integration
- Cleanand simple
- Simrad app integration: keep your map data at your fingertips, on and off the water
- Third-party app integration
- Wireless connectivity, plus full Ethernet and NMEA 2000 network capability
- IP video support
Simrad NSX™ 3007 7" Chartplotter and Sonar Combo - DisplayOnly - No Transducer Related ProductsNavico IP Cam-1 Stainless Steel POE IP Camera
Frequently Asked Questions (FAQ) about Simrad NSX ™ 3007 7" Chartplotter and Sonar Combo - Screen Only - No Transducer Who is the Simrad?
How to describe the Simrad NSX™ 3007 7" Combo Chartplotter and Sonar - Screen Only - No Transducer?
What is the resolution of the product?
Is this product waterproof?
What is the display size of the product?
What is the control interface of the product?
What are the dimensions of the product?
Who is Simrad? Simrad is part of the Navico family based in Norway, the world leader in marine electronics. Simrad manufactures a complete range of sophisticated marine electronic systems for the recreational and light commercial markets. Simrad products are based on six core areas of expertise: radar, echo sounder, communications, automation, piloting, navigation and system integration. How to describe the Simrad NSX™ 3007 combined chartplotter and sonar 7" - Screen only - No transducer? "
Simrad NSX 3007 - Intelligent chartplotter/sounder. No transducer
Model: 000-15214-001Experience modern simplicity and rich detail. NSX combines a clean, simple interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including intelligent drag-and-drop screen customization, fully editable instrument bar, and enhanced day and night modes. Get crystal-clear views of map details, structure and bottom contours with the vibrant SolarMAX™ IPS touchscreen. The high-definition screen is viewable from any angle, in direct sunlight and through polarized lenses with full touchscreen operation.
View map details of a new way with the next generation C-MAP DISCOVER X™ optimized nautical charts developed for NSX, with a presentation of fresh chartsche and intuitive and daily information. updates. NSX also supports marine-optimized C-MAP Reveal C-MAP charts include full vector maps with custom depth shading and high-resolution bathymetry displaying accurate contour lines down to 1 foot level of detail. You can improve route planning and plotting with tide and current projections and our fastest automatic routing ever. Additionally, there is a new map inspection feature with one-touch access to information on locations, POIs, tides, channels and much more. The Simrad Companion app acts as an extension of your NSX with the same map experiences and all your map data at your fingertips, on orout of the water. The app allows you to plan trips, view tracks and plot waypoints on your app and sync it directly with your NSX.
NSX opens up a world of possibilities, from the Active Imaging™ transducer 3-in-1 included with CHIRP sonar, SideScan and DownScan Imaging™ to system expansion options such as Autopilot and a wide range of compatible 1 kW transducers that allow you to search greater depths. Identify hazards immediately with our award-winning HALO pulse compression radars. See near and far simultaneously (up to 72nm) and be ready instantly with low-power sleep mode. Highlight targets using custom modes such as port, offshore and weather. Known for their legendary performance, Simrad autopilots allow you to enjoy all your activities. That it iswhether you're trawling for game or planning your next destination, we've got you covered. Available for both outboard and inboard engines, our "extra pair of hands" helps you execute patterns and routes, navigate to waypoints, and maintain course.
With everything from a setup wizard to Simrad® With app integration, simple sonar setup, and tips to help you when you need it, NSX makes life on the water easier than ever. The setup wizard helps you with step-by-step instructions to get you up and running quickly, while the Simrad app offers a whole host of added extras. These include hassle-free software updates, on- and off-water trip planning, a simplified map view that looks the same across all platforms, as well as easy navigation.Easy transfer of all data, including routes and waypoints. But that's not all. Sonar Tips offer guidance on what's happening during settings adjustments, and Sonar Device Setup gives you easy-to-understand prompts for each step of the process—you'll be up and running in no time. All that's left to do is choose your next adventure.
Specifications| Display | |
| Size and type | 7"" SolarMaxIPS touchscreen for wide viewing angles, extreme clarity and sunlight visibility with polarized sunglasses |
| Resolution | 1024 x 600 px |
| Viewing angles | 85° (top, bottom, left and right) |
| Screen brightness | >1200 nits |
| Backlight color | White |
| Power supply voltage | 12 V DC (10 - 17 V DC min - max) |
| Power | |
| Maximum power consumption | 11.5 W (830 mA at 13.8 V) |
| Recommended fuse rating | 2A |
| Physical | |
| Dimensions L x H x D | With stand: L: 220 mm (8.66"") x H: 145.9 mm (5.74"") x D: 79.5 mm (3.13"") Without stand, without lens hood: W: 195 mm (7.68"") x H: 123.0 mm (4.84"") x D: 79.5 mm (3.13"") Without stand, with lens hood: W: 199.9 mm (7.87"")x H: 127.9 mm (5.04"") x D: 84.5 mm (3.32"") "") |
| MountingType | Bracket (supplied), panel mount or flush mount |
| Compass safety distance | 50 cm (1.7 ft) |
| Environment | |
| Operating temperature range | -15°C to 55°C (5°F to 131°F) |
| Storage temperature range | -20°C to 60°C (-4°F to 140°F) |
| Waterproof rating | IPx6 and IPx7 |
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hours) |
| Vibration of shock | 100,000 cycles of 20 G |
| Interface and connections | |
| Interface | Multi-touch screen |
| Sonar compatibility | One 9-pin Xsonic 1 kW sonar port. Single channelCHIRP, 50/200khz, HDI, active imaging |
| Ethernet | 1 port (5-pin connector) |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 | No |
| USB | No |
| External storage | 1 MicroSD slot |
| GPS | Internal, 10 Hz, WASS, MSAS, EGNOS |
| GPS correction | 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS |
| GPS position accuracy | Horizontal accuracy 3 m (9.8 ft) |
| GPS receiver channels | 32 channels |
| GPS update rate | 10 Hz |
| J1939 | No |
| PcConnectivityConnectivity | No |
| WiFi | IEEE 802.11b/g/n |
| Bluetoothth | Bluetooth 4.0 with socket supports Bluetooth Classic |
| Languages | English (US), English (UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutchis, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish |
| Supported Graphics | C-MAP Discover C-MAP Reveal |
| Weather | No |
| AIS | Receive data AIS via NMEA 2000 |
| Digital switching | Simrad COMMAND DDS only when commercialized |
Box contents:
- Experience the most advanced technology to date with NSX™ 3007 .
- The 7" screen of the NSX™ 3007 is designed to be highly visible in alls lighting conditions.
- Dual frequency sonar and next generation C-MAP charts on NSX™ 3007 will make your fishing adventures more enjoyable.
- Dock display for easy viewing
- Comes with a built-in speaker -Sensitivity GPS antenna
- C-MAP maps are up to date, with latest NOAA revisions
- NSX™ 3007 7" Chartplotter and Sonar - Display Only - No Transducer
- C-MAP Mapping high resolution with the most accurate and up-to-date information
- Highway routing for quick and easy routing to your fishing spot
- New generation of C-MAP mapping that can be updated up to date at any time
- Experience the most advanced technology to date with NSX™ 3007.
- The 7" screen on NSX™ 3007 is designed to be highly visible in alllighting conditions.
- The NSX™ 3007's dual-frequency sonar and next-generation C-MAP charts will make your fishing adventures more enjoyable.
- Display docking station for easy viewing
- Comes with a built-in high-sensitivity GPS antenna
- C-MAP charts are up to date, with the latest NOAA revisions
- NSX™ 3007 7" Chartplotter and Sonar - Screen Only - No Transducer
- High-resolution C-MAP mapping with the most accurate, up-to-date information
- Highway routing for a quick and easy route to your fishing spot
- New generation of C-MAP mapping that can be updated at any time
Buy at the best price Simrad NSX™ 3007 7" Chartplotter and Sonar Combo - Screen Only - No Transducer for only $1,049 from NVN Marine Free Same Day Delivery before 3:00 p.m. Simrad NSX™ 3007 Combo Chartplotter and Fishfinder - Display Only - No Transducer Videos Simrad NSX™ 3007 Combo Chartplotter and Fishfinder - Display Only - No . Transducer Technical Specifications
| Type: | Marine Navigation and Instruments - Sonar Combos |
|---|---|
| Supplier: | Simrad |
| Mapping mark: | C- Map |
| Screen size: | 7" |
| Transducer included: | No |
| Product brochure: | Downloadroad PDF |
