Single Acting Snow Plow Hydraulic Cylinder 1.5" Bore x 10" Stroke 1.5" Rod Diameter Maxim Hydraulic Cylinders Tractor Repair & Parts

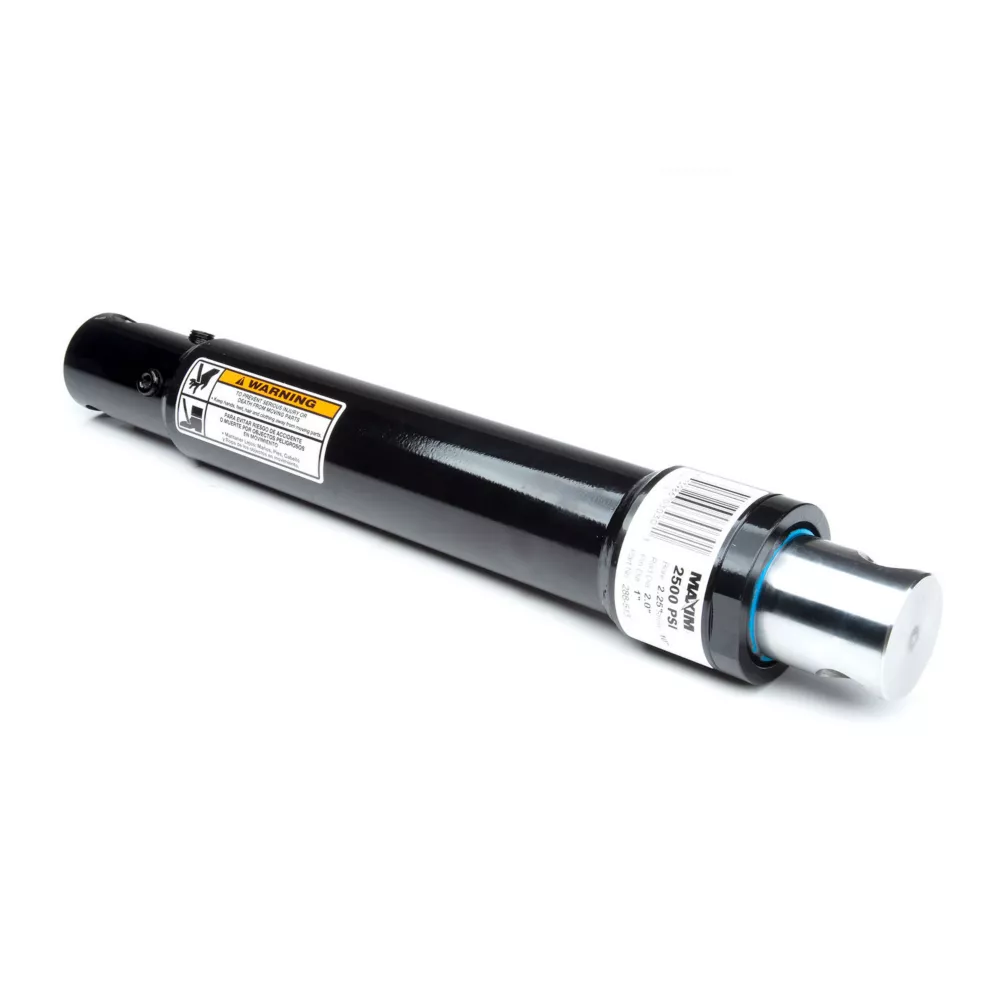

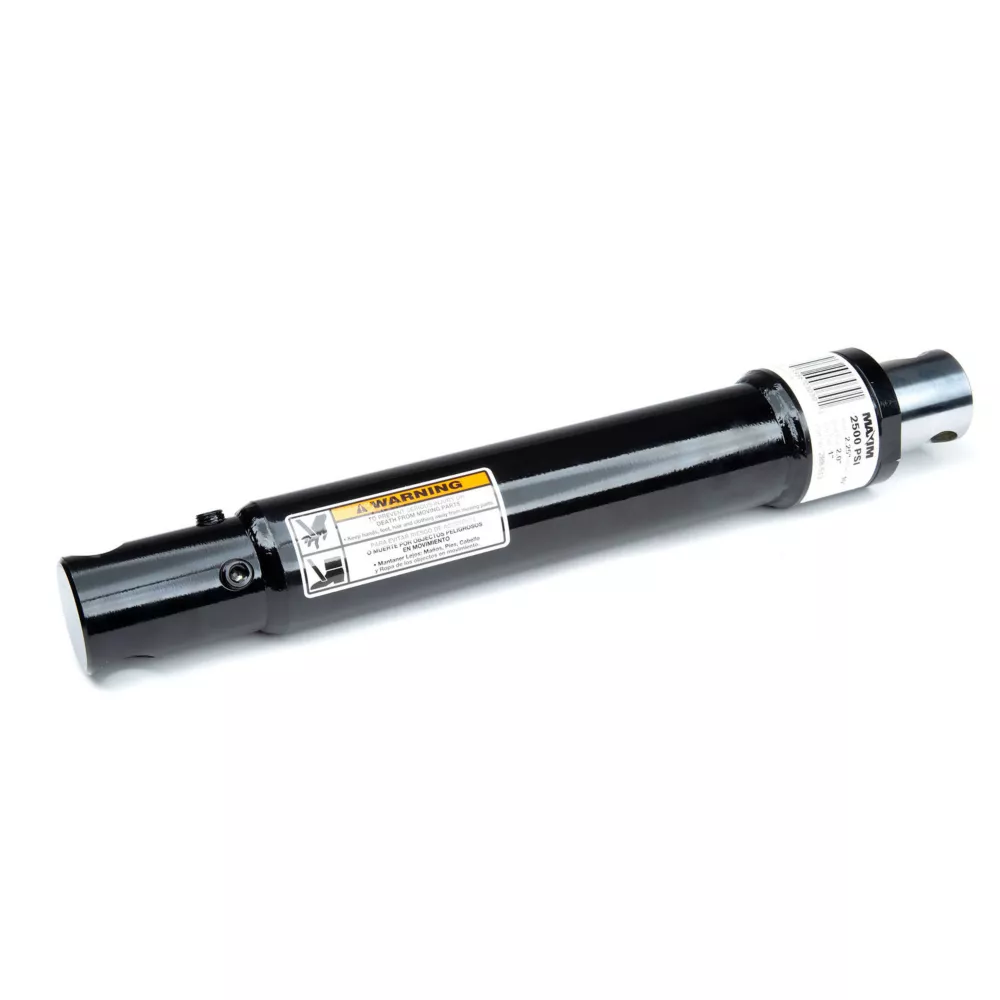

The Maxim 1.5 in. Bore x 10 in. Stroke Single-Acting Snowplow Hydraulic Cylinder features pin holes at base and rod end. This single acting hydraulic cylinder has two 1/4 in. ports 90 degrees apart to accommodate variable installation requirements. Made for hard winter work, this hydraulic cylinder has a 1.5 in. bore and 10 in. stroke length.

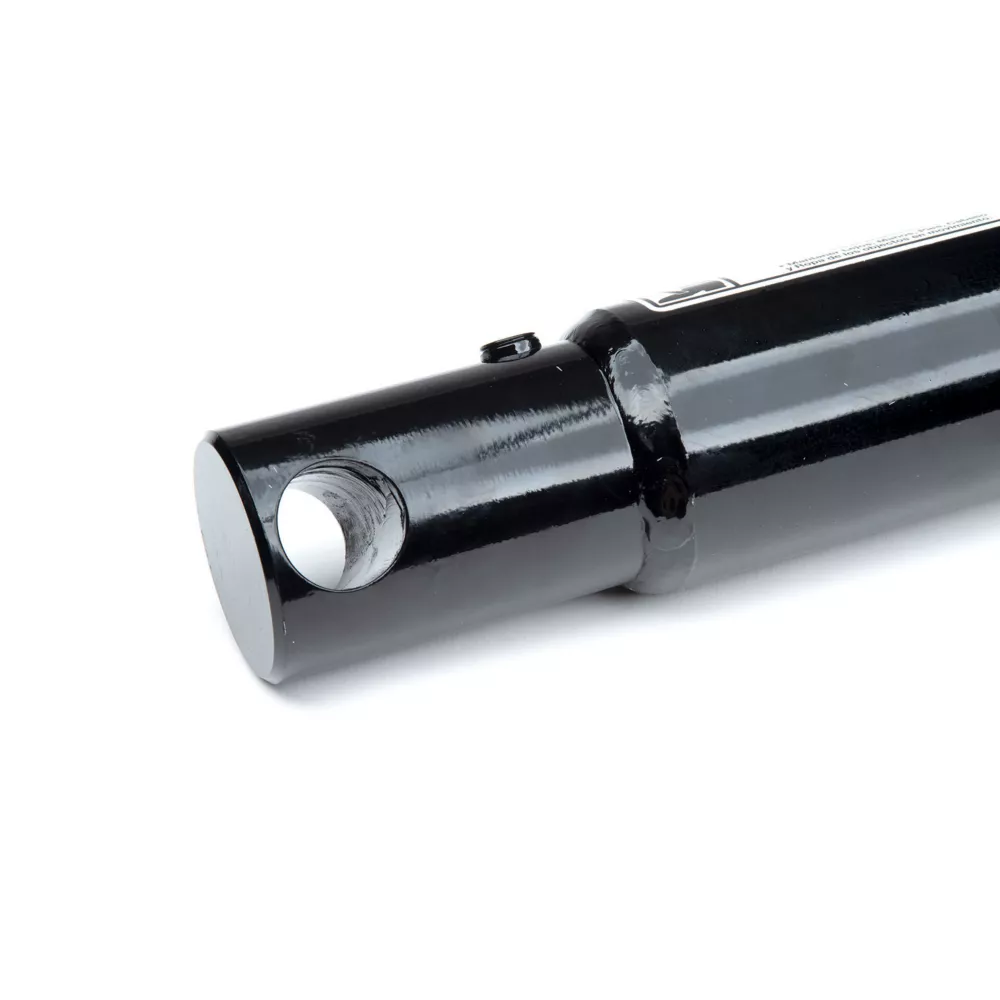

Two 1/4 in. ports 90 deg apart; 1 parallel to and 1 perpendicular to the pins in order to accommodate variable installation requirements
Maximum PSI: 2,500 PSI

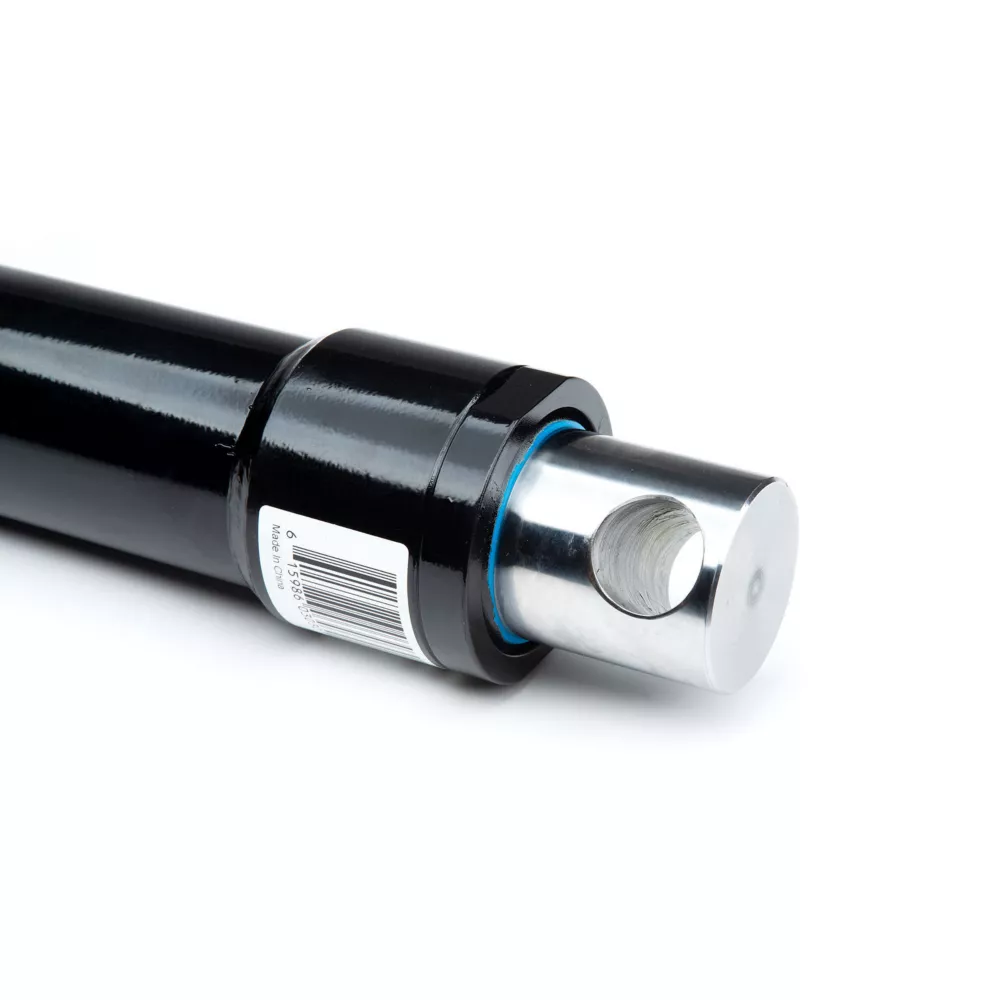

Pin hole center in the single acting hydraulic cylinder is 11/16 in. from rod end
Painted black for simple style
Hydraulic cylinder with 1.5 in. bore and 10 in. stroke
Pin diameter: .75 in.
Rod diameter: 1.5 in.
Measures 17.25 in. retracted and 27.25 in. extended
1 year warranty
Weight: 13.67 lb.

Note: This product may require up to 2 additional days for order processing prior to shipping

Single Acting Snow Plow Hydraulic Cylinder 1.5" Bore x 10" Stroke 1.5" Rod Diameter Maxim Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders

Specification	Description
Brand	Maxim
Country of Origin	Imported
Bore Diameter	1.5 in.
Brand Compatibility	Universal
Compatibility	2-1/2 in.
Extended Length	27.25 in.
Hydraulic Cylinder Type	Snowplow
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	13 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	0.75 in.
Port Size	N/A
Primary Material	Steel
Product Height	N/A
Product Length	N/A
Product Weight	13 lb.
Product Width	N/A
Retracted Length	17.25 in.
Rod Diameter	1-1/2 in.
Single/Double Acting	Single acting
Stroke Distance	10 in.
Warranty	1 Year
Manufacturer PartNumber	288505
