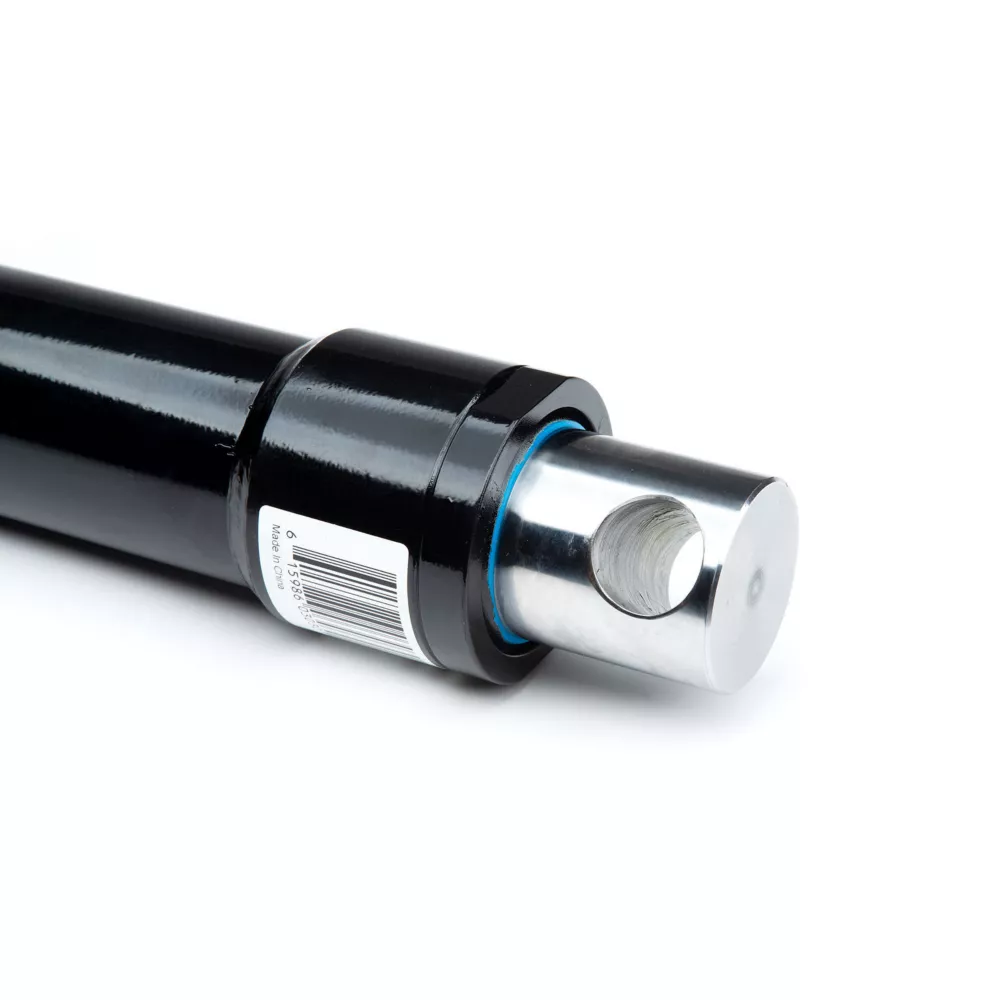

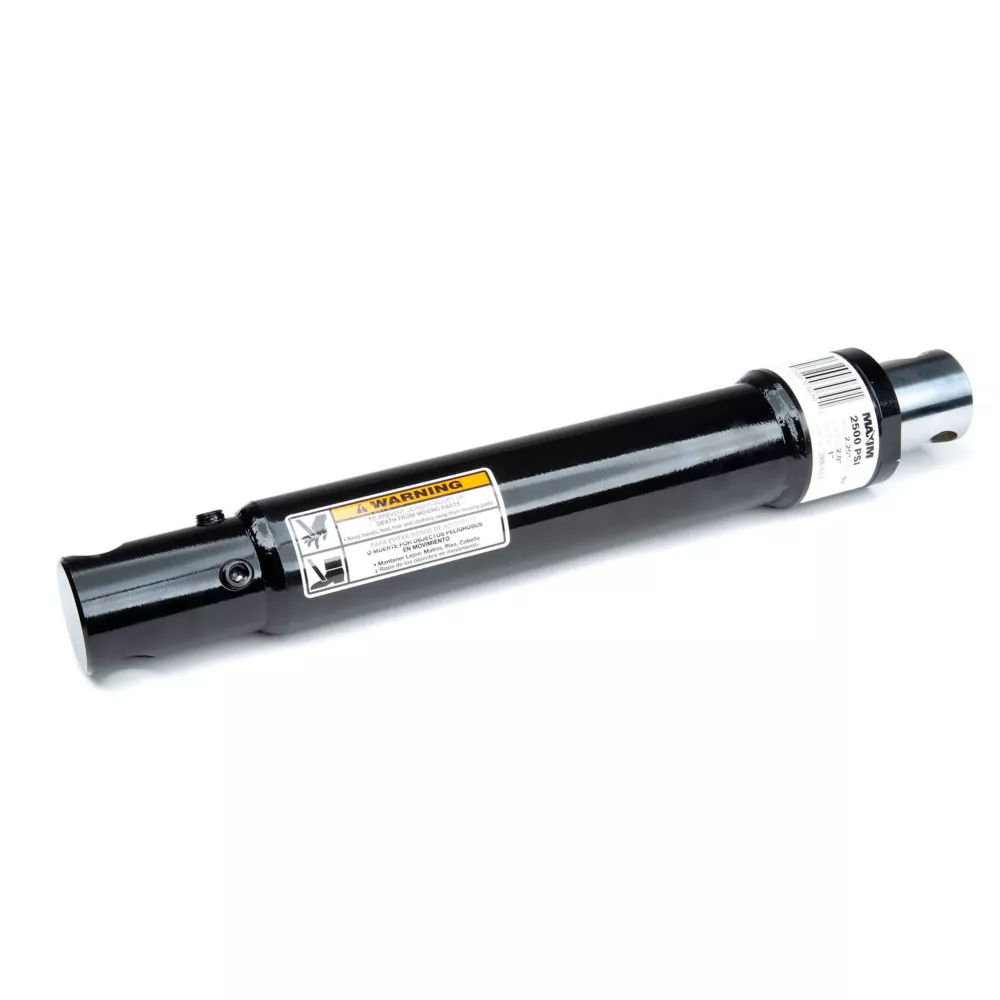

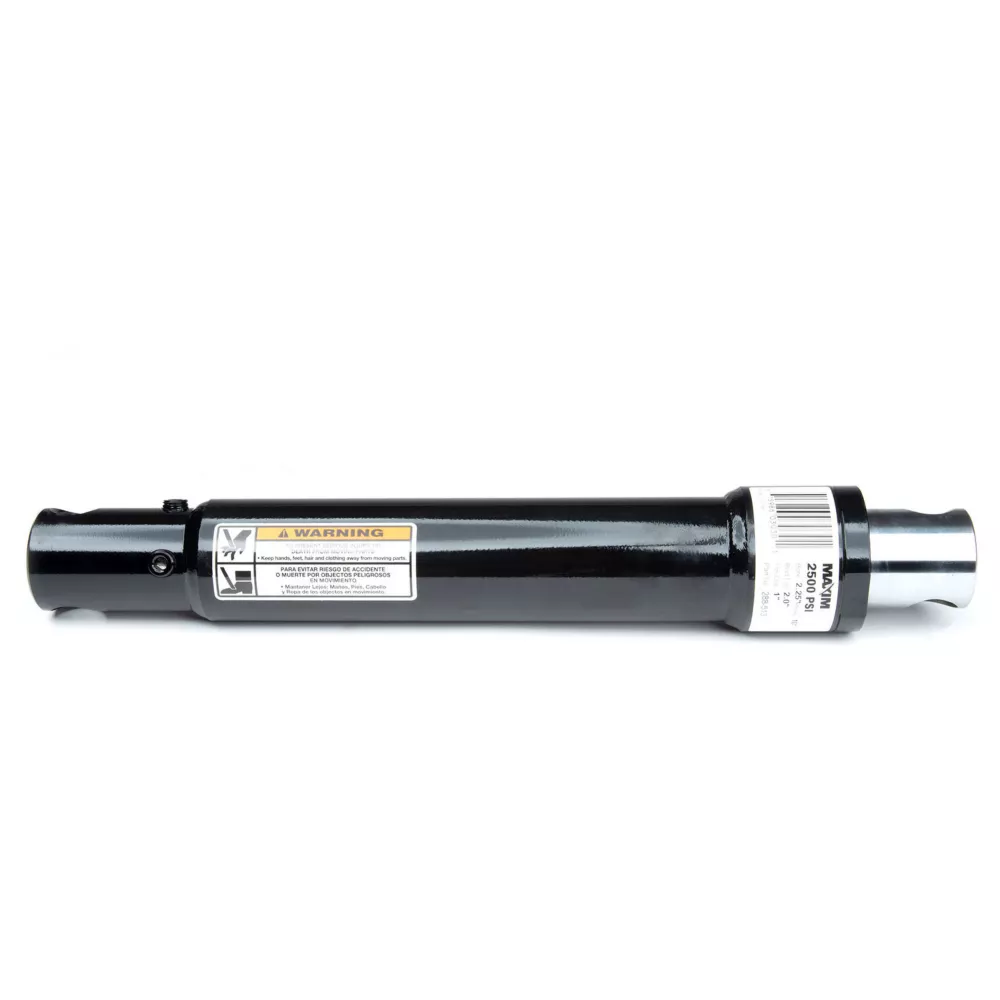

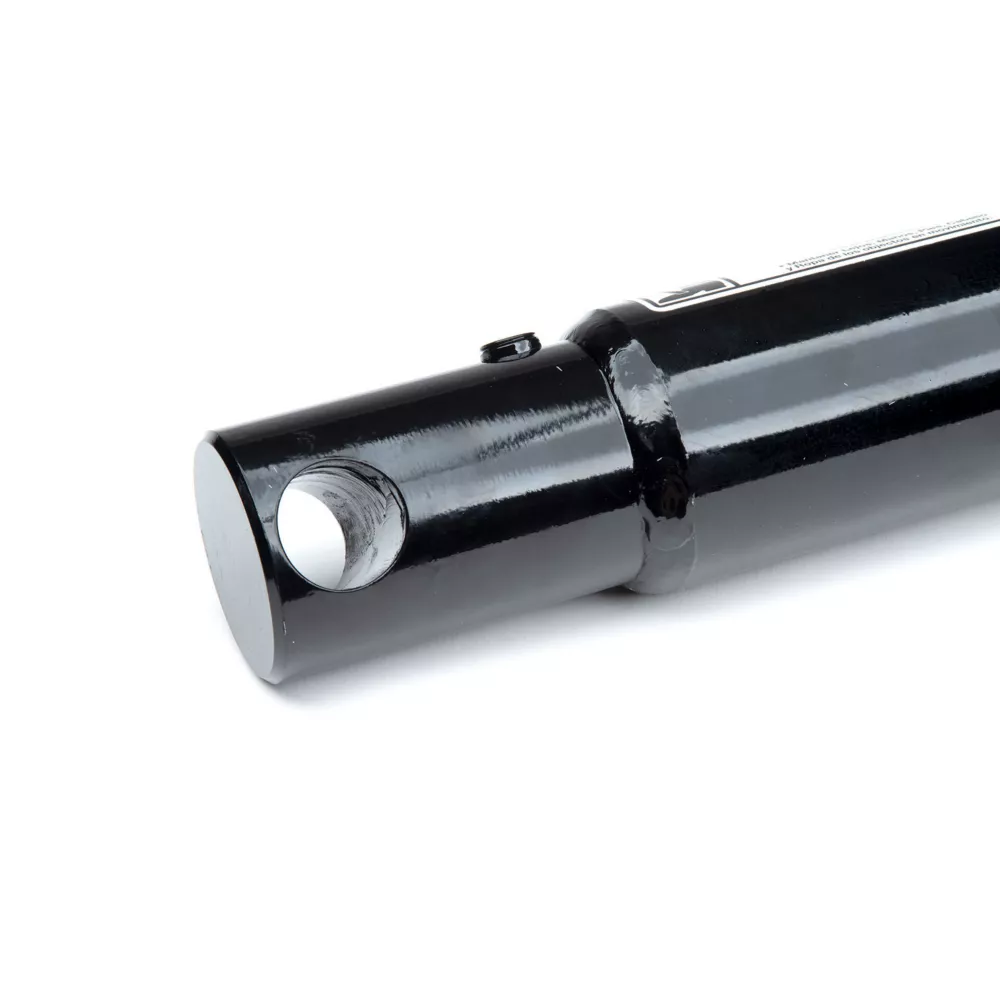

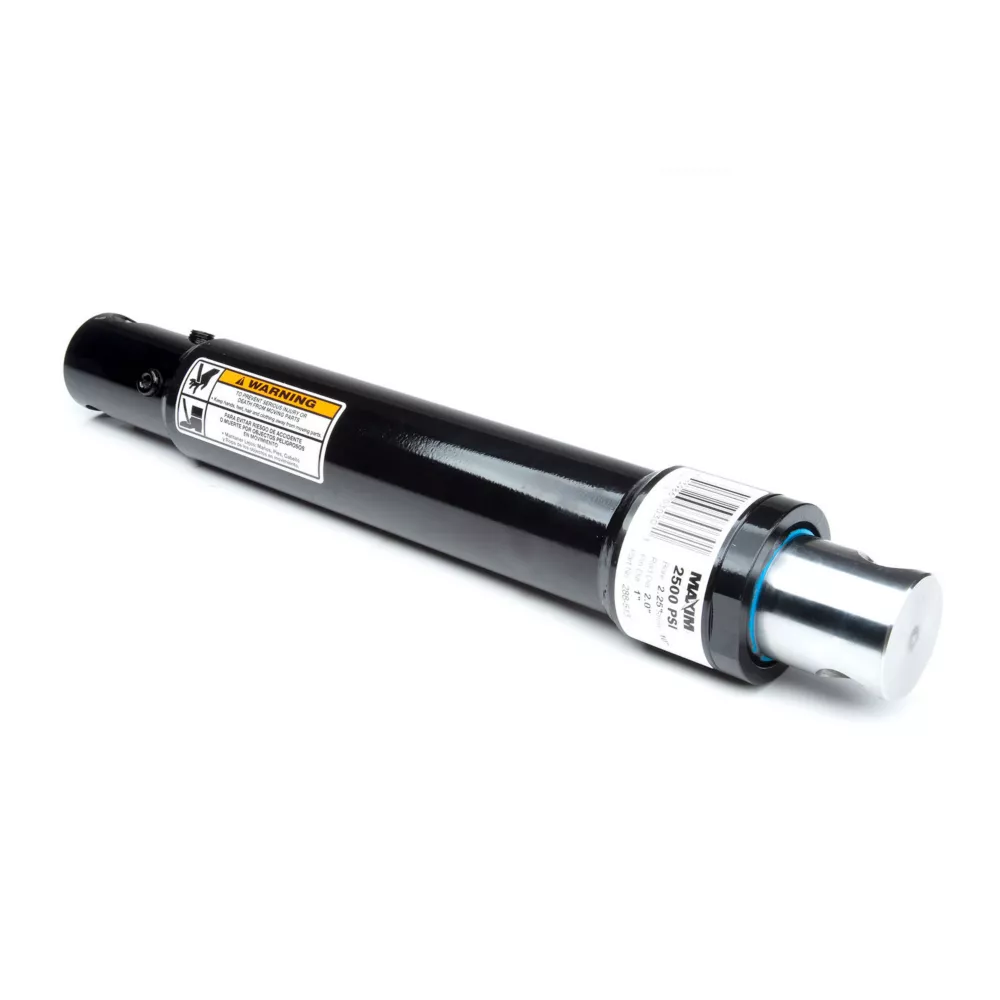

Single Acting Snow Plow Hydraulic Cylinder 2" Bore x 6" Stroke 2" Rod Diameter Maxim Hydraulic Cylinders Tractor Repair & Parts
The Maxim 2 in. Bore x 6 in. Stroke Single-Acting Snowplow Hydraulic Cylinder features pin holes at base and rod end. This single acting hydraulic cylinder has two 1/4 in. ports 90 degrees apart to accommodate variable installation requirements. Made for hard winter work, this hydraulic cylinder has a 2.25 in. bore and 6 in. stroke length.- Two 1/4 in. ports 90 degrees apart; 1 parallel to and 1 perpendicular to the pins in order to accommodate variable installation requirements
- Maximum PSI: 2,500 PSI
- Pin hole center in the single acting hydraulic cylinder is 11/16 from rod end
- Painted black
- Pin diameter: .75 in.
- Rod diameter: 2 in.
- Measures 13.19 in. retracted and 19.19 in. extended
- 1 year warranty
- Weight: 12.79 lb.
- Hydraulic cylinder with 2.25 in. bore and 6 in. stroke length
Single Acting Snow Plow Hydraulic Cylinder 2" Bore x 6" Stroke 2" Rod Diameter Maxim Hydraulic Cylinders Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Cylinders
| Specification | Description |
|---|---|
| Brand | Maxim |
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | 3-1/2 in. |
| Extended Length | 19.19 in. |
| Hydraulic Cylinder Type | Snowplow |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 14 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 0.75 in. |
| Port Size | 1.4 NPT |
| Primary Material | Steel |
| Product Height | N/A |
| Product Length | N/A |
| Product Weight | 14 lb. |
| Product Width | N/A |
| Retracted Length | 12.79 lb. |
| Rod Diameter | 2 in. |
| Single/Double Acting | Single acting |
| Stroke Distance | 6 in. |
| Warranty | 1 Year |
| Manufacturer PartNumber | 288512 |
