South Bend SB1094-5 HP Cyclone Dust Collector Dust Collectors Woodworking & Other Power Tools

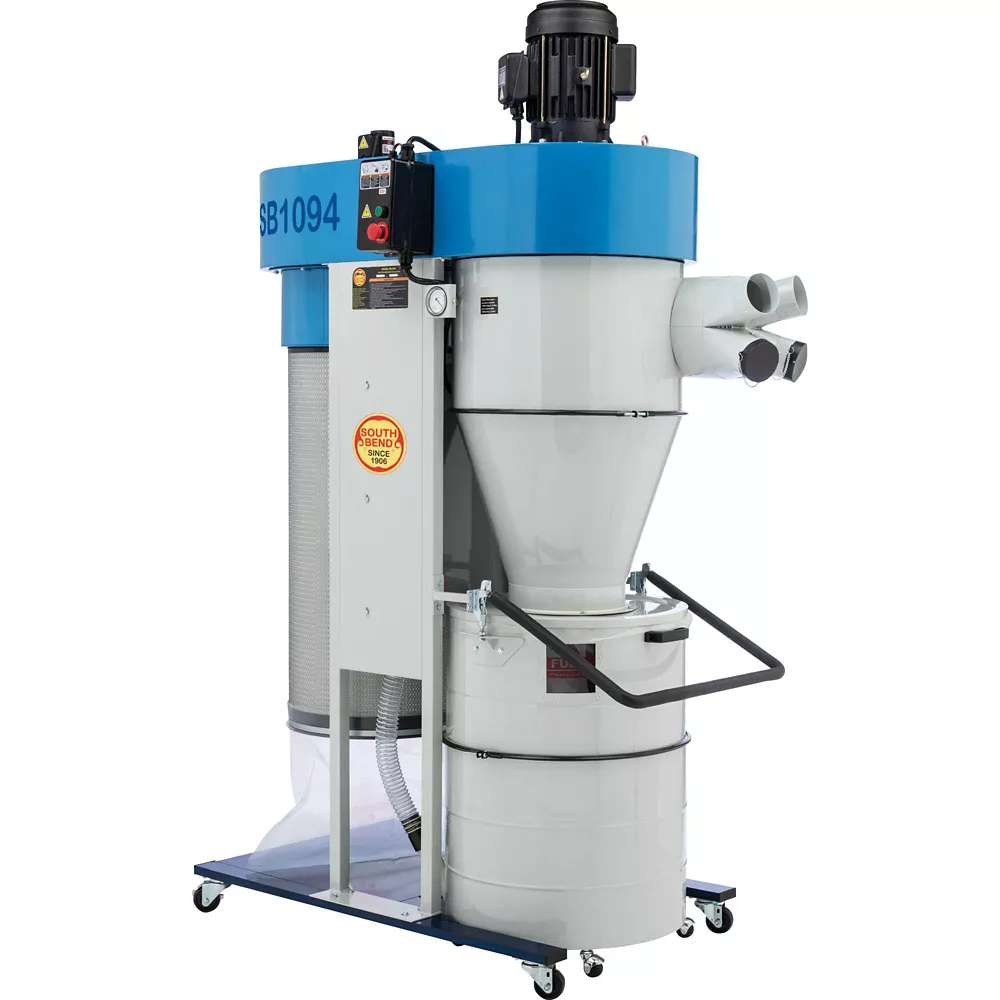

The powerful, yet quiet South Bend SB1094 dust collector with wireless remote is perfect for any shop, large or small. It has the collection capacity to be used with up to four machines at once, and the convenient portability of swivel casters for point-of-use versatility. You can start it up from anywhere in the shop, thanks to the wireless remote, and use the timer settings for automatic shutoff. On top of that, even at 5 HP, this dust collector won't add too much noise to an already loud shop environment, thanks to its built-in muffler system and balanced 15-5/8" steel radial fin impeller. The two-stage dust collection deposits larger chips into the primary collection drum, while cyclonic action funnels smaller particles and fine dust into the pleated spun-bond polyester 1-micron filter. Automatic, power-driven paddle brushes clean the filter, depositing the dust into the plastic collection bag for disposal, ensuring maximum efficiency. Additionally, you will be able to monitor your dust collector's performance with the external vacuum pressure gauge indicating normal operation, when it is time to clean the filter, and when to replace it. These high-end features coupled with unrivaled performance and durability make South Bend dust collectors the choice for uncompromising woodshops.

Motor: 5 HP, 220V, single-phase, 34A
Main inlet size: 10"
Impeller: 15-5/8", radial fin
Airflow capacity: 2399 CFM @ 2.12" SP
Maximum static pressure: 11.4"
Filtration rating: 1-micron
Filter surface area: 90 sq. ft.
Collection drum size: 60 gallons
Sound rating: 84-86dB
Overall dimensions: 59" W x 38" D x 93-1/2" H
Approximate shipping weight: 560 lbs.

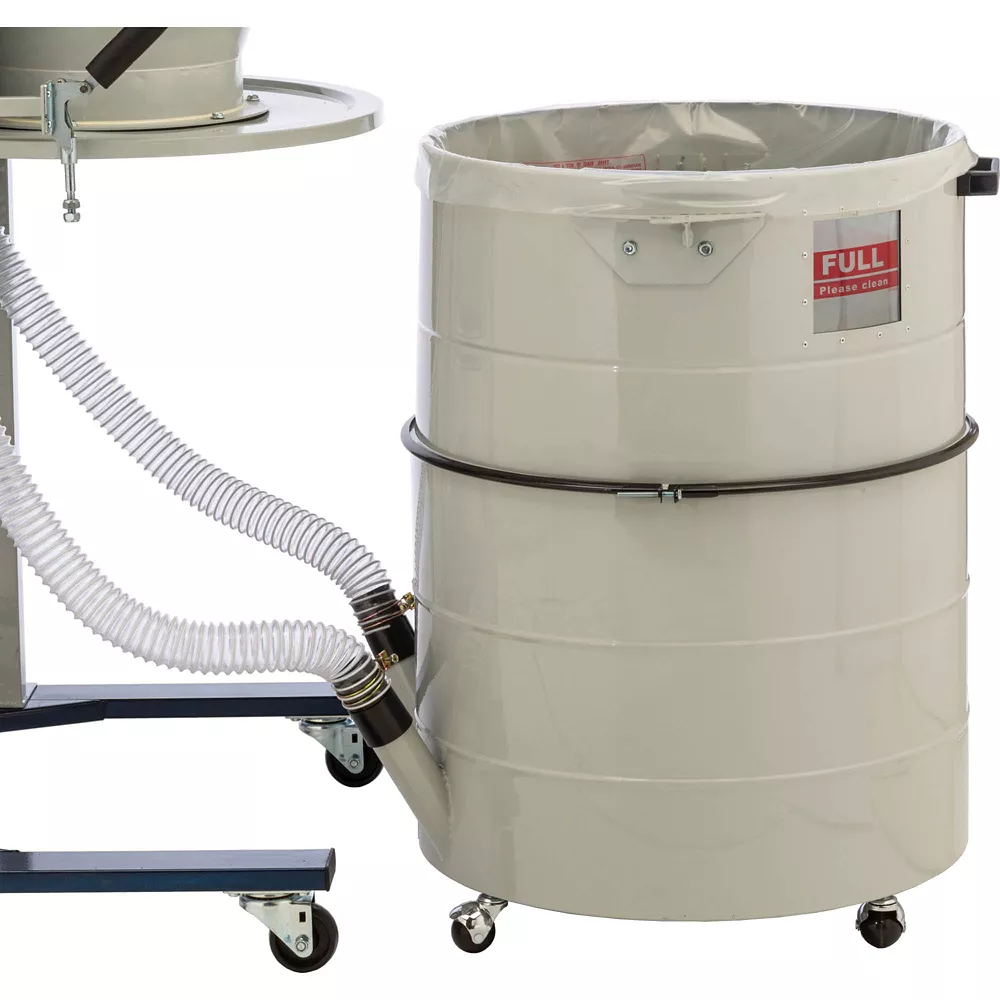

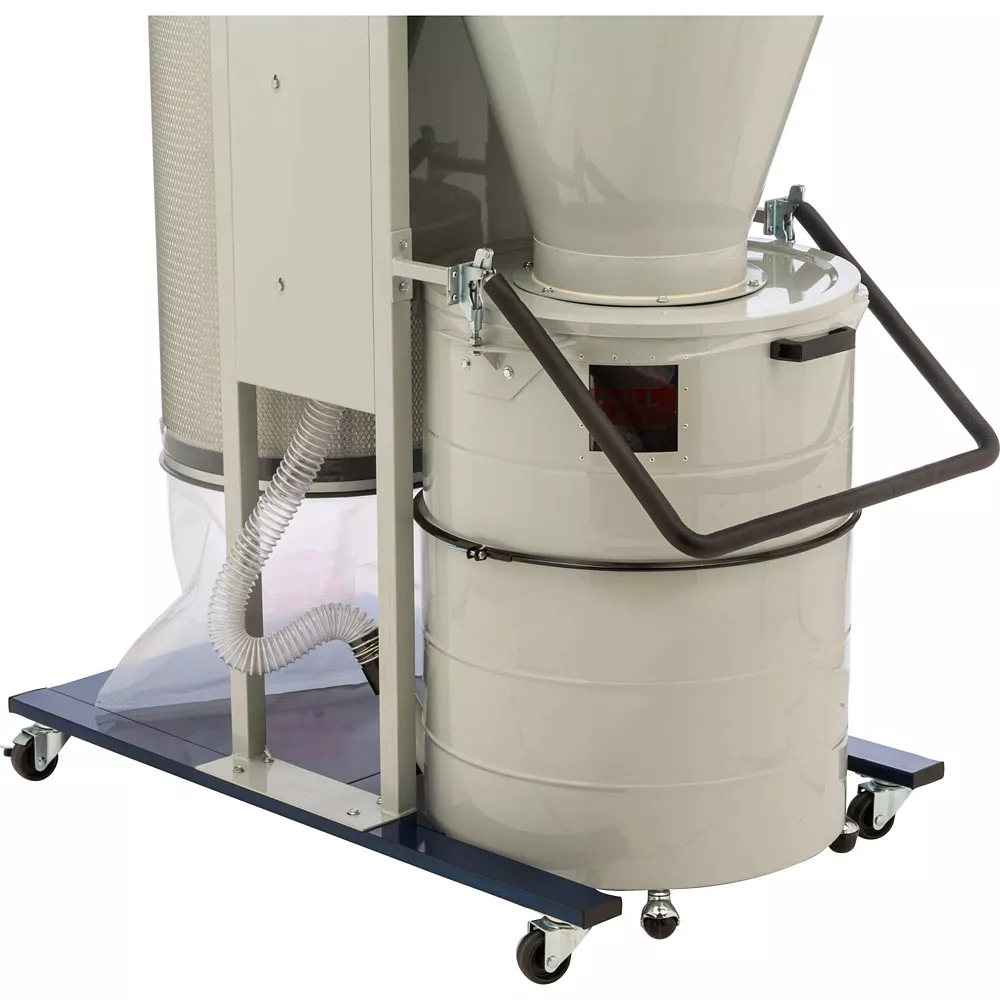

Rolling collection drum with quick-release lift handle for easy sawdust disposal
Collect dust from up to 4 machines running simultaneously

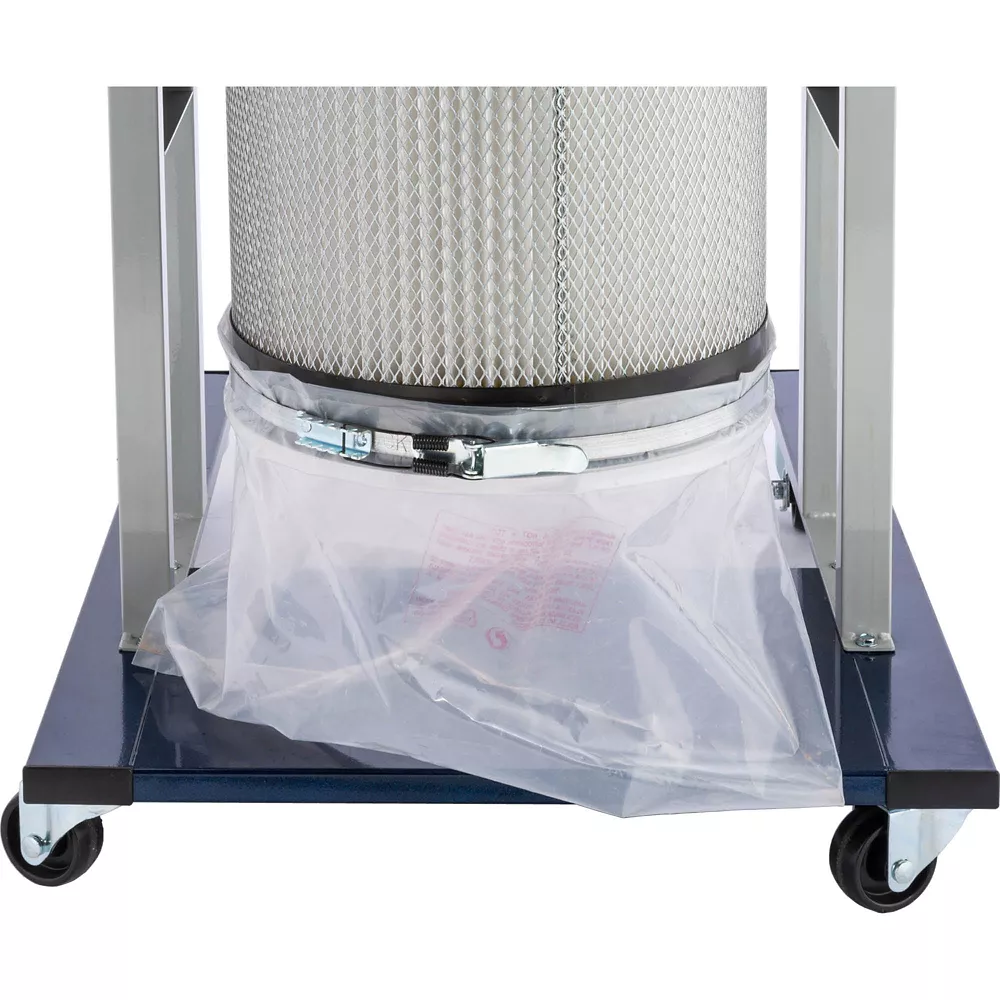

Automatic filter paddle brush for easy cleaning

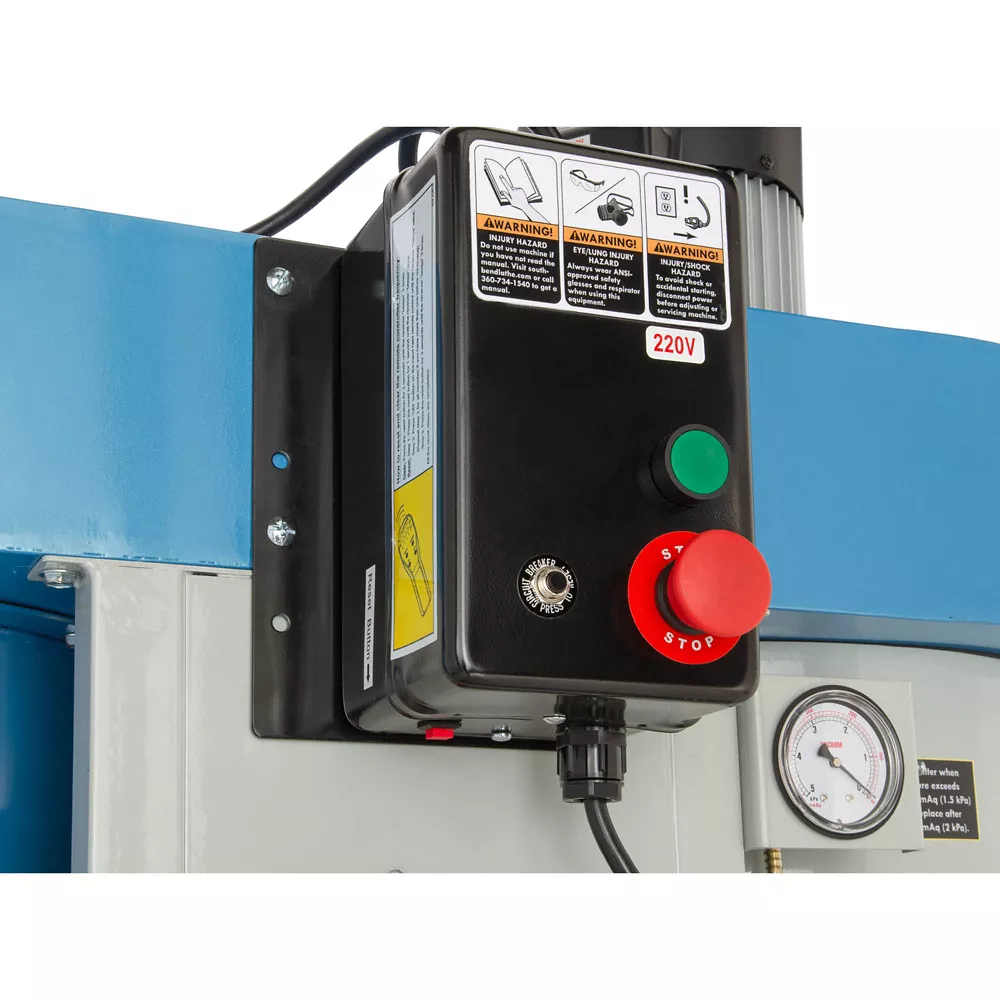

Remote controlled magnetic switch
Vacuum equalizer built into collection drum for use with collection bags
Built-in pressure gauge
Built-in sound muffler
Steel stand with casters for mobility

South Bend SB1094-5 HP Cyclone Dust Collector Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	South Bend
Country of Origin	Imported
Amperage	34 A
Compatibility	See manual
Cord Length	10 ft.
Decibel Rating	0 N/A
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 - Not Measured
Filtration Material	Steel
Horsepower	5 hp
Hose Diameter	0 in.
Hose Length	0 in.
Maximum Airflow Rate	2399 CFM
Operating Velocity	2399 CFM
Product Height	93.5 in.
Product Length	38 in.
Product Weight	487 lb.
Product Width	59 in.
Warranty	2
Manufacturer PartNumber	SB1094

South Bend SB1094-5 HP Cyclone Dust Collector Specifications expand/collapse Specification Description Brand South Bend Country of Origin Imported Amperage 34 A Compatibility View Manual Cord Length 10 ft. Decibel Rating 0 N/A Phase Single Phase Features No additional features Filter Efficiency 0 - Not measured Filtration Material Steel Power 5 hp Pipe Diameter 0 in. Hose length 0 in. Maximum Air Flow 2399 CFM Operating Speed 2399 CFM Product Height 93.5 in. Product length 38 in. Product weight 487 lbs. Product width 59 in. Warranty 2 Manufacturer Part Number SB1094
