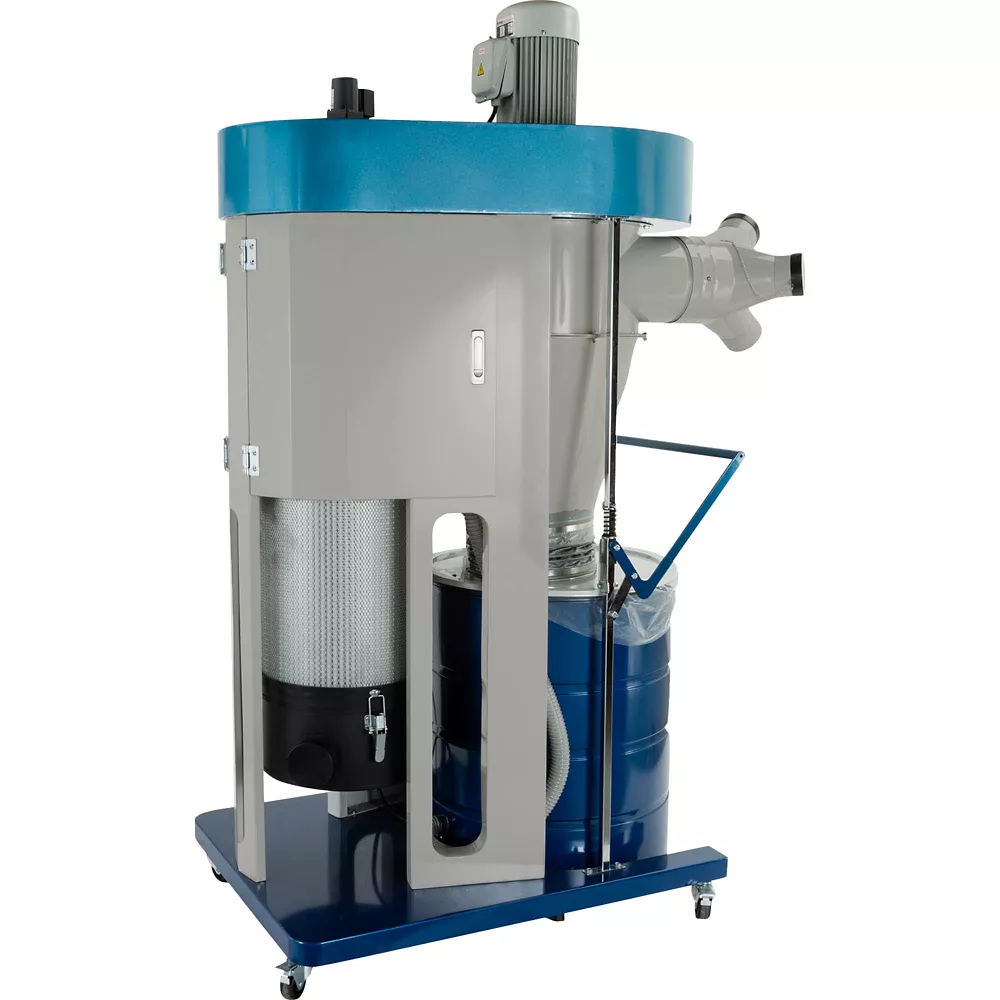

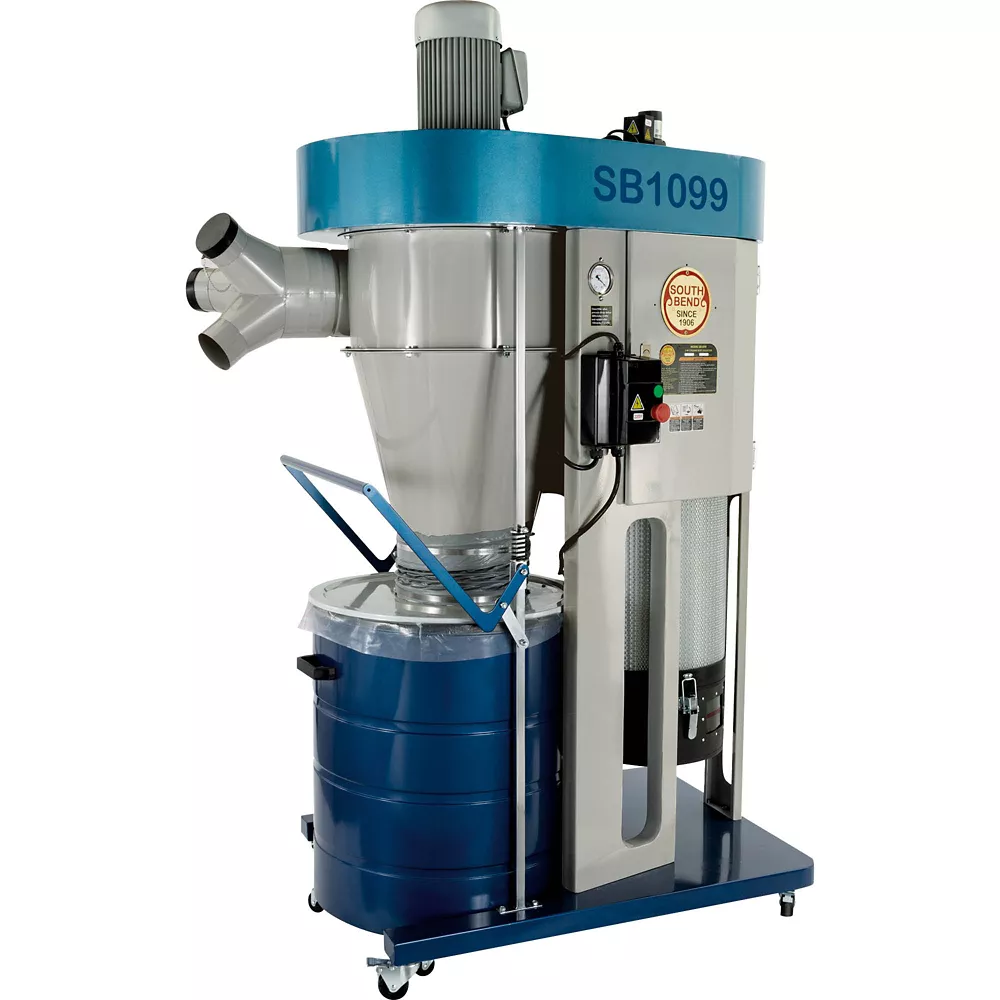

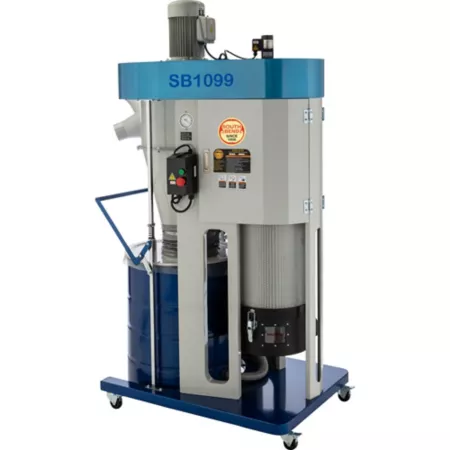

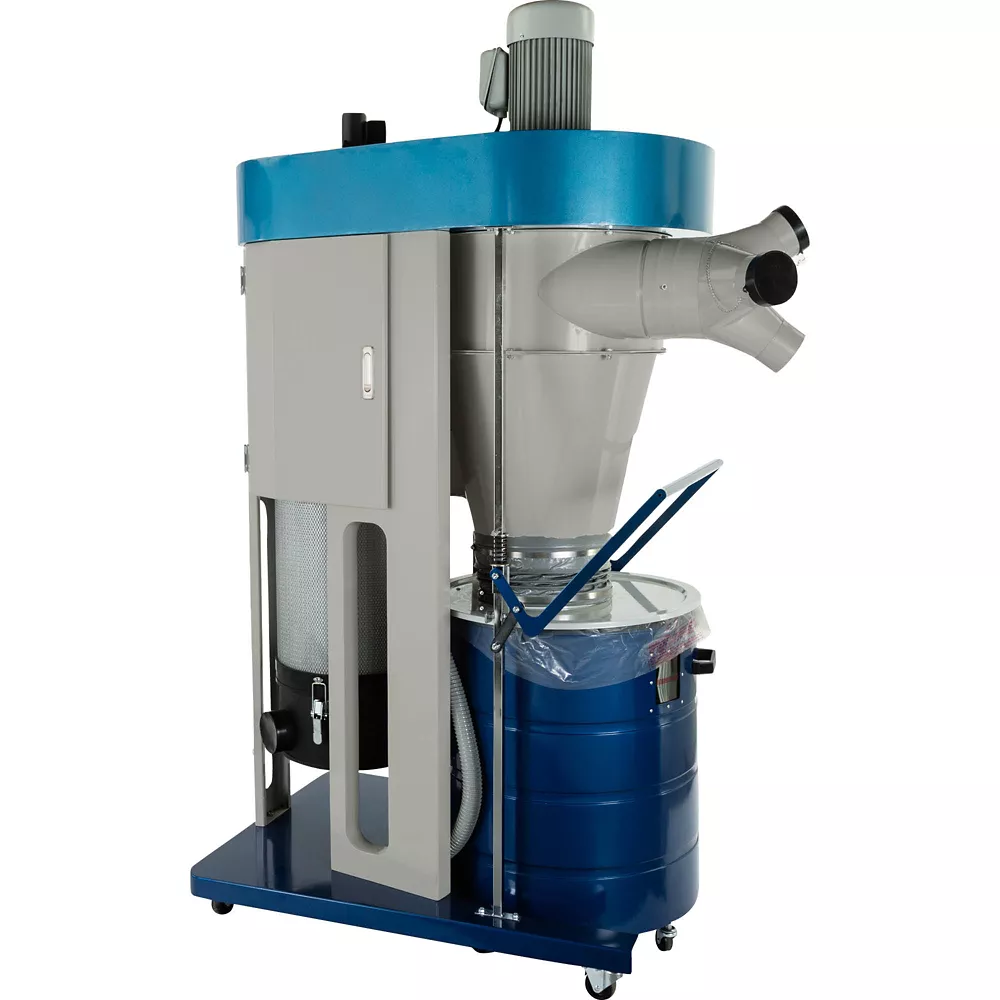

South Bend SB1099-3 HP Cyclone Dust Collector Dust Collectors Woodworking & Other Power Tools

This precision-built SB1099 3 HP Cycl1 Dust Collector from South Bend will give you professional-level dust collection with industry-leading features you won't find elsewhere. It is equipped with automatic motorized filter brushes that clean the internal dust from the canister filter pleats at regular intervals, a vacuum gauge that tells you when it is time to replace the filter and a remote-controlled magnetic switch with timer settings. With a 52 Gal. collection capacity and an included 3-inlet adapter, you will be able to connect to up to 3 machines running simultaneously. Machines manufactured after 2021 feature a heavy-gauge clear plastic adapter that allows 3 4 in. lines to be connected simultaneously. This allows for easy visibility and will help track down potential clogs. This unit works equally well either as a stationary machine or as a mobile point-of-use dust collector. As a 2-stage cycl1 dust collector, the impeller first funnels chips and large particles into a 52 Gal. collection drum. The fine particles are caught by the 1 mic filter and deposited into a separate mini collection drum-a great improvement over plastic bags, which are typically used.

Motor: 3 HP, 220V, single-phase, 9A
Main inlet size: 8" with three 4" adapter inlets
Airflow capacity: 1941 CFM @ 2.0" SP
Maximum static pressure: 10.9"
Filtration rating: 1-micron
Filter surface area: 46-1/4 sq. ft.
Impeller: 16" radial fin
Collection drum size: 52-gallon
Sound rating 79-81dB
Overall dimensions: 44-1/2" W x 46-3/4" D x 81" H
Approx. shipping weight: 437 lbs.
Separate collection drum for canister filter for easy disposal of fine particles
Built-in vacuum pressure gauge that indicates when to replace the filter
Steel stand with locking swivel casters
Motorized filter brushes come on automatically at regular intervals
Remote-controlled magnetic switch with timer shutoff settings

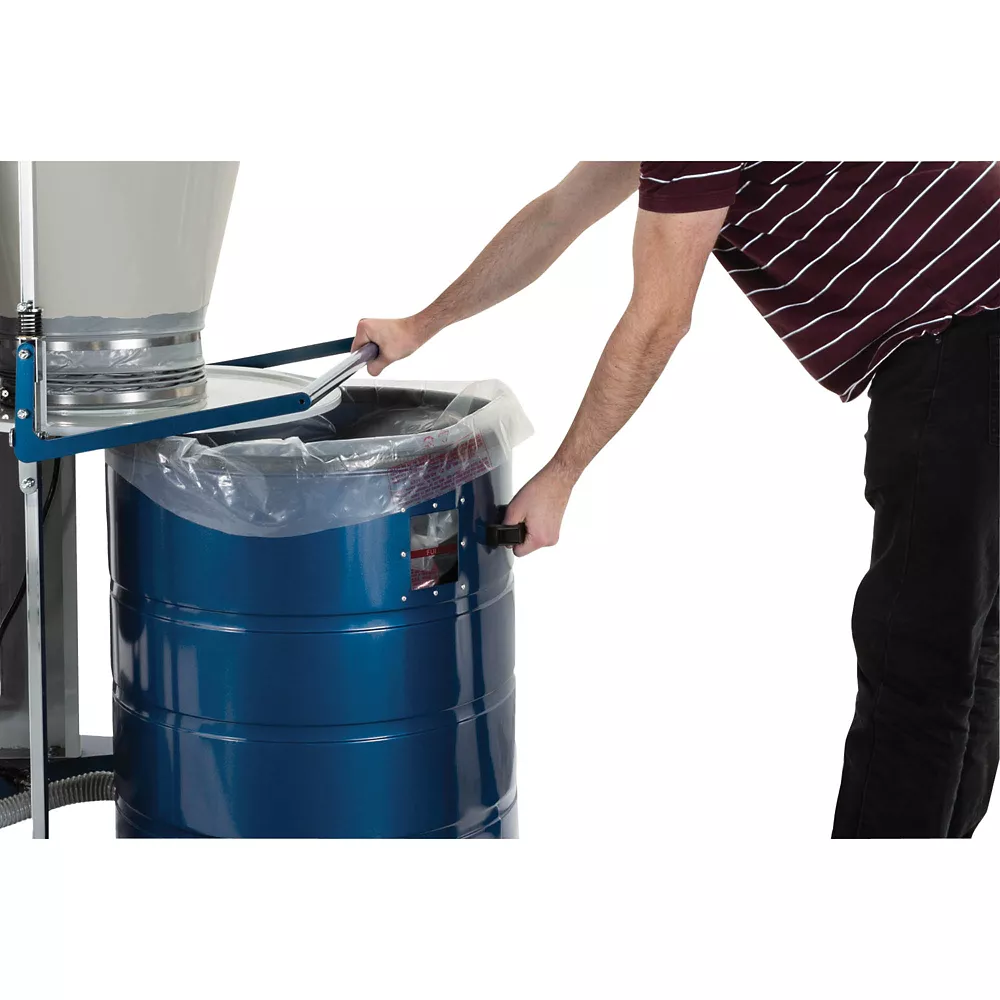

Rolling collection drum with quick-release lid-lifting handle for easy sawdust disposal
Vacuum equalizer built into collection drum for use with collection bags

South Bend SB1099-3 HP Cyclone Dust Collector Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	South Bend
Country of Origin	Imported
Amperage	9 Amps
Compatibility	See manual
Decibel Rating	81 dBA
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 - Not Measured
Filtration Material	Steel
Horsepower	3 hp
Hose Diameter	0 in.
Hose Length	0 in.
Maximum Airflow Rate	0 CFM
Operating Velocity	0 CFM
Product Height	81 in.
Product Length	44.5 in.
Product Weight	409 lb.
Product Width	47 in.
Warranty	2
Manufacturer PartNumber	SB1099

South Bend SB1099-3 HP Cyclone Dust Collector Specifications Expand/Collapse Specification Description Brand South Bend Country of Origin Imported Amperage 9 A Compatibility View Manual Decibel Rating 81 dBA Phase Single Phase Features No Additional Features Filter Efficiency 0 - Not Measured Filtration Material Steel Power 3 hp Pipe Diameter 0 in. Pipe Length 0 in. Maximum Air Flow 0 CFM Operating Speed 0 CFM Product Height 81 in. Product length 44.5 in. Product weight 409 lbs. Product width 47 in. Warranty 2 Manufacturer Part Number SB1099
