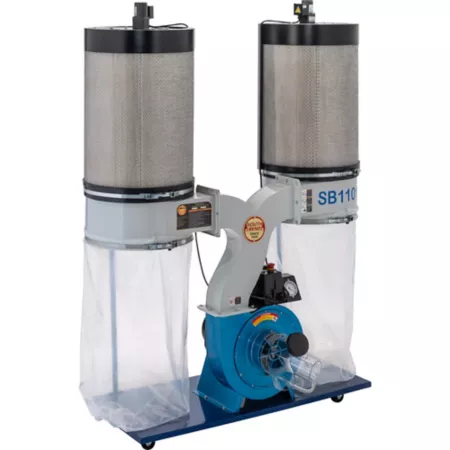

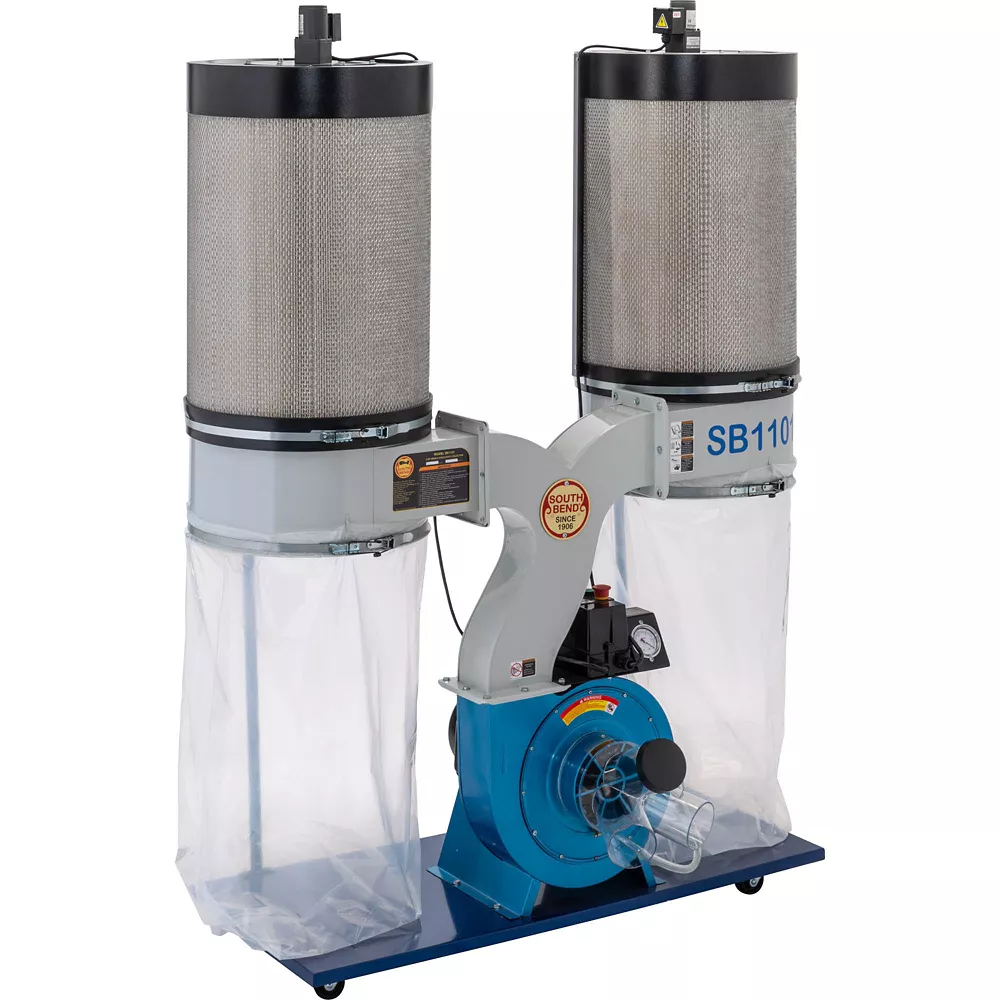

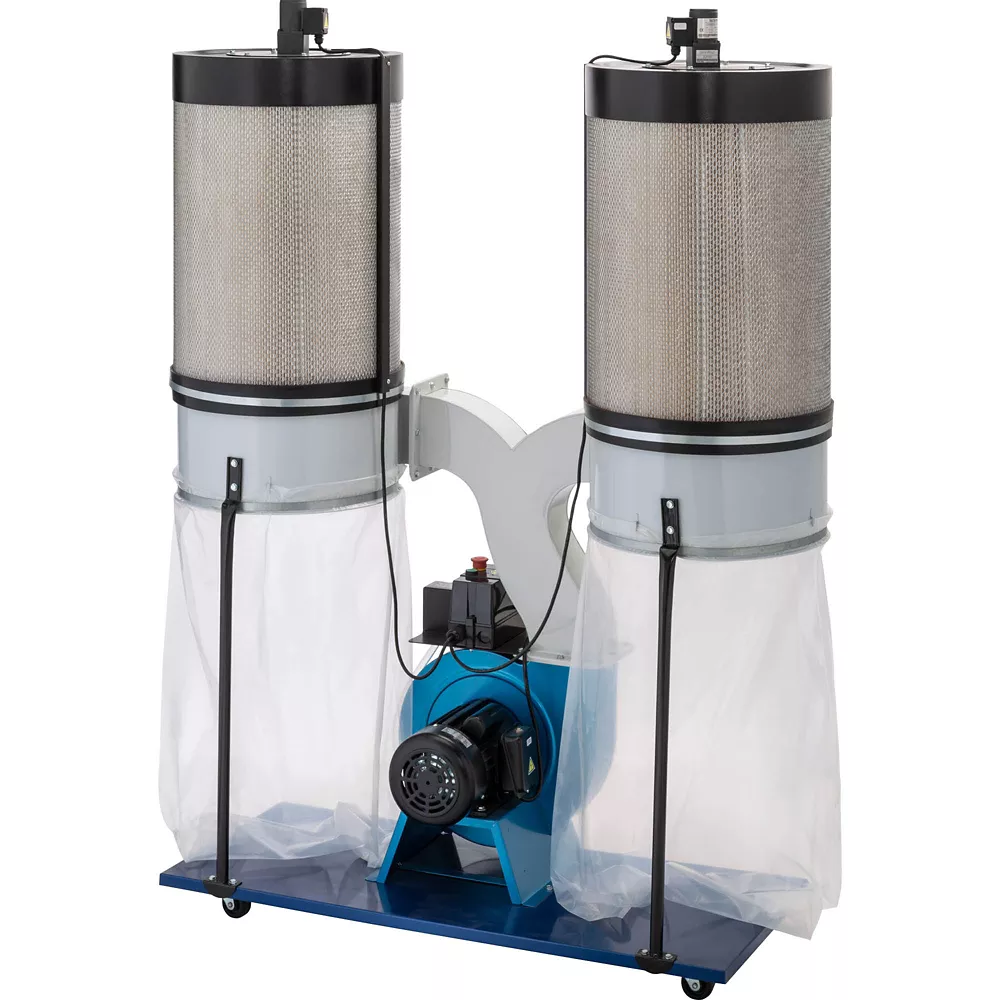

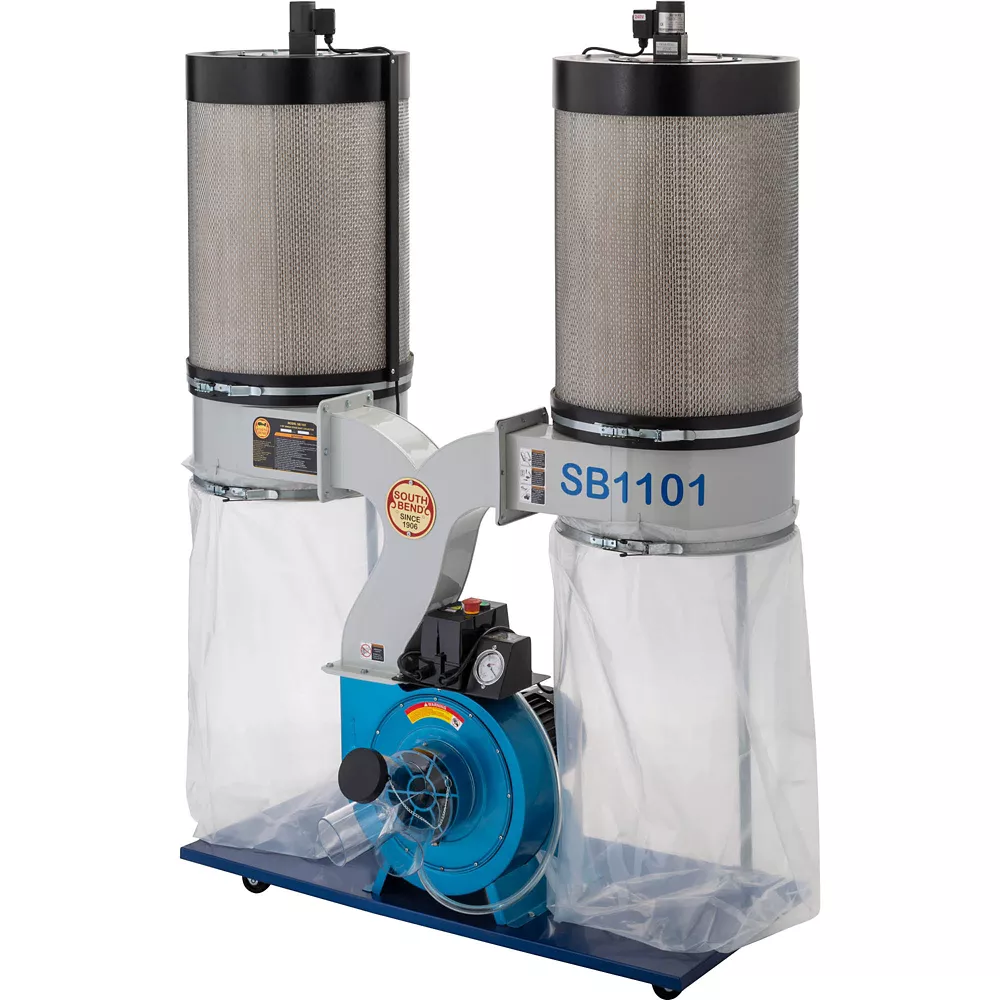

The South Bend SB1101 3 HP Double Canister Dust Collector is the perfect mid-sized dust collector for serious hobbyists and professionals alike. It can be connected to up to 3 machines running simultaneously - either as a stationary unit or with its locking swivel casters, easily moved around as a point-of-use machine. Machines manufactured after 2021 feature a heavy-gauge clear plastic adapter that allows three 4 in. lines to be connected simultaneously. This allows for easy visibility and will help track down potential clogs. Its 3 HP motor, 67 Gal. collection capacity and high-end features not found on typical dust collectors sold by other brands will help keep the air and surfaces in your shop dust free. South Bend dust collectors feature automatic motorized filter brushes that clean the internal dust from the canister filter pleats at regular intervals. A built-in vacuum gauge that tells you when it's time to replace the filter and a remote-controlled magnetic switch that allows you to power up and shut down the collector from anywhere in your shop, the SB1101 comes with a 2-year warranty and is built to South Bend high-precision industrial standards.

Made in an ISO 9001 factory
Motor: 3 HP, 240V, single-phase, 12A
Main inlet size: 7" with three 4" adapter inlets
Airflow capacity: 1429 CFM @ 3.2" SP
Maximum static pressure: 12"
Filtration rating: 1-micron
Filter surface area: 160 sq. ft.
Impeller: 12-3/4" radial fin
Machine collection capacity at same time: 3
Material collection capacity: 67 gallons
Sound rating 8183dB
Overall dimensions: 58" W x 31-1/2" D x 76" H
Approximate shipping weight: 237 lbs.
Remote controlled magnetic switch
1-Micron canister filters with 6 times the surface area of regular filter bags

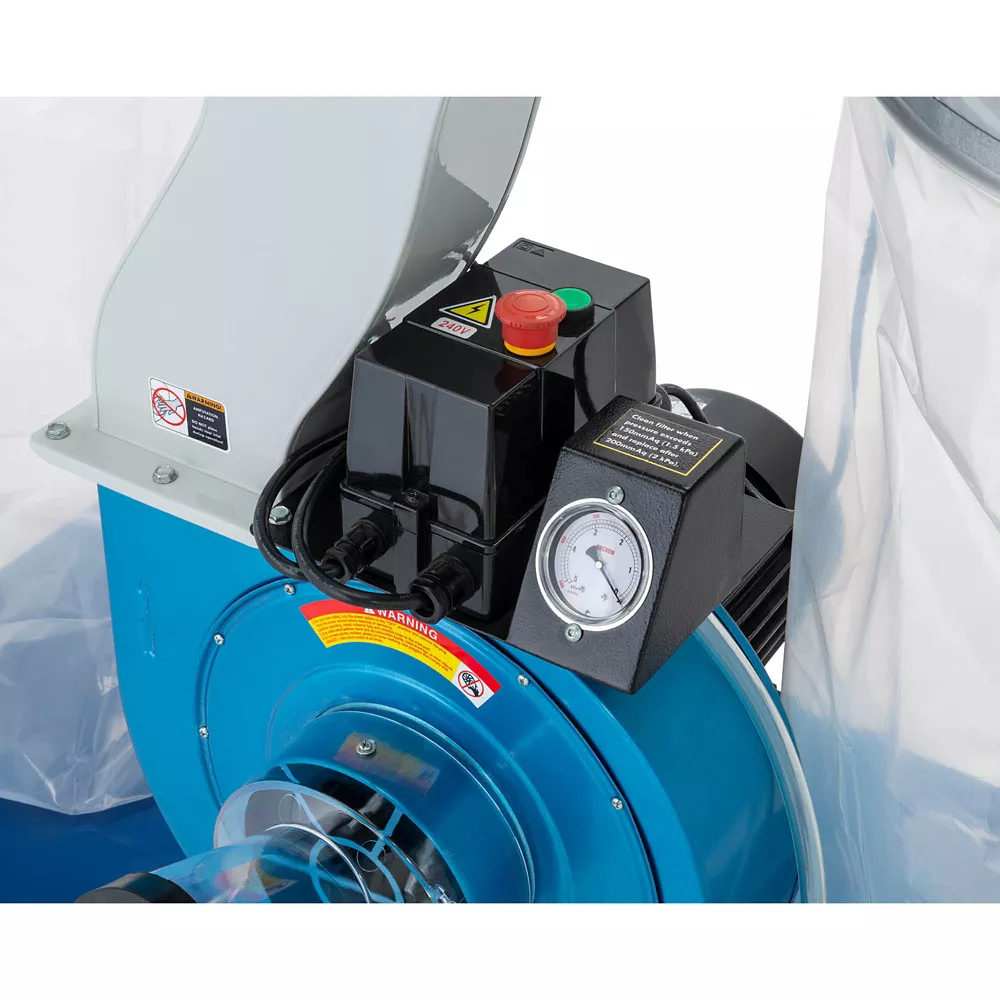

Vacuum gauge that indicates when filter needs to be cleaned or replaced
Motorized filter paddle brushes that automatically clean the filter at regular intervals
Steel stand with built-in locking casters
Heavy-gauge clear plastic adapter for easy visibility
Clear disposable plastic collection bags

South Bend SB1101-3 HP Dual Cartridge Dust Collector Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	South Bend
Country of Origin	Imported
Amperage	0 N/A
Compatibility	See manual
Decibel Rating	83 dBA
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 - Not Measured
Filtration Material	Steel
Horsepower	3 hp
Hose Diameter	0 in.
Hose Length	0 in.
Maximum Airflow Rate	1429 CFM
Operating Velocity	1429 CFM
Product Height	76 in.
Product Length	58 in.
Product Weight	208 lb.
Product Width	31.5 in.
Warranty	2
Manufacturer PartNumber	SB1101
