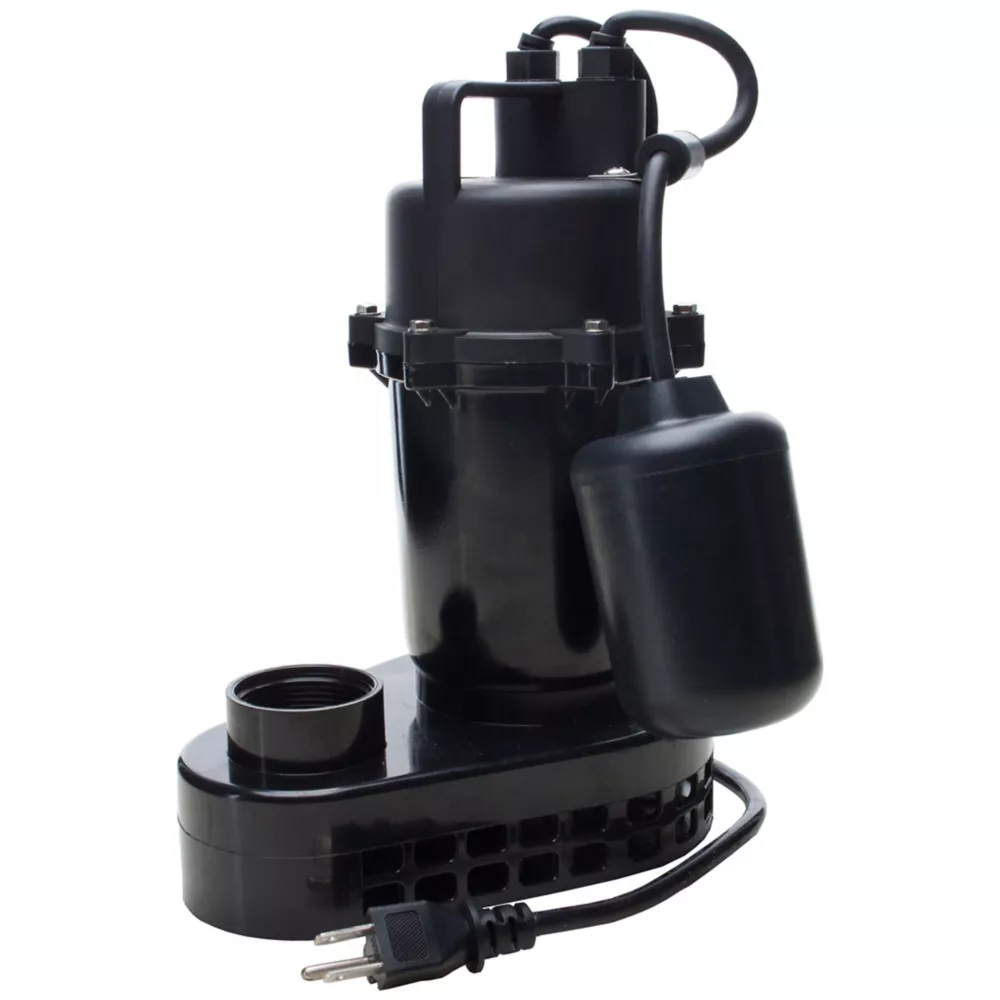

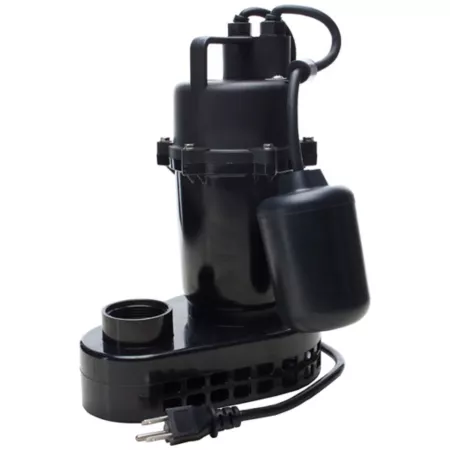

Star Water Systems 1/2 HP Cast Aluminum Submersible Sump Pump with Connected Switch Sump Pumps Farm & Ranch

The Star Water Systems 1/2 HP Cast-Aluminum Submersible Sump Pump with Tethered Switch features a cast aluminum motor housing to ensure heat dissipation. This sump pump is designed with a 115V energy-efficient 1/2 HP motor, built-in thermal overload protection, a 9 ft. double-sealed cord and a 1-1/2 in. FNPT discharge.

1/2 HP, 115V energy-efficient motor helps keep the sump pump running
Cast aluminum body resists heat and ensures optimal durability
Submersible sump pump features built-in thermal overload protection for enhanced dependability
Fits in 12 in. sump basin
1-1/2 FNPT discharge
Sump pump includes a 9 ft. double-sealed cord that offers convenient and strong use
1-year limited warranty

Star Water Systems 1/2 HP Cast Aluminum Submersible Sump Pump with Connected Switch Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	Star Water Systems
Country of Origin	Imported
Amperage	4 Amp
Basin Diameter	12 in.
Body Material	Cast aluminum
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	1.5 in.
Discharge Rate at 0 ft.	3,300 GPH
Discharge Rate at 10 ft.	2,700 GPH
Engine Displacement	0.5 HP
Features	Cast Aluminum Motor Housing, 115V Energy-Efficient Motor, Built-In Thermal Overload Protection
Horsepower	0.5 HP
Hose Diameter	1.5 in.
Inlet Connection	None
Inlet Diameter	0 N/A
Maximum Flow Rate	3,300 GPH
Maximum Head Lift	26 ft.
Maximum Operating Pressure	11 PSI
Maximum Operating Temperature	130 deg. F
Maximum Suction Lift	26 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	34 deg. F
Power Cord Length	9 ft.
Power Type	Electric
Product Height	12.2 in.
Product Length	8 in.
Product Weight	10.9 lb.
Product Width	9.2 in.
Pump Mechanism	Centrifugal
Motor Type	115V PSC
Switch-Off Height	6.25 in.
Switch-On Height	15.5 in.
Voltage	115V
Warranty	1 Year Limited Warranty
Manufacturer PartNumber	5USPHC

Star Water Systems 1/2 HP Cast-Aluminum Submersible Sump Pump with Tethered Switch Specifications expand/collapse Specification Description Brand Star Water Systems Country of Origin Imported Amperage 4 A Basin Diameter 12 in. Body Material Cast Aluminum Pipe Material PVC Compatible Discharge Connection Female Threaded Discharge Port Diameter 1.5 in. Discharge rate at 0 ft. 3,300 GPH discharge rate at 10 feet 2,700 GPH Motor displacement 0.5 HP Features Cast aluminum motor housing, energy efficient 115V motor, built-in thermal overload protection Power 0.5 HP Diameter 1.5 in. pipe. Inlet Connection None Inlet Diameter 0 N/A Maximum Flow 3,300 GPH Maximum Head Lift 26 feet. Maximum operating pressure 11 PSI Maximum operating temperature 130 degrees. F Maximum suction height 26 feet Minimum operating pressure 0 N/A Minimum operating temperature 34 deg. F Power cord length 9 ft. Type of power supply Electric Height of the product 12.2 in. Product length 8 in. Product weight 10.9 lbs. Product width 9.2 in. Pump mechanism Motor type centrifugal 115 V PSC Stop height 6.25 in. To a height of 15.5 in. Voltage 115V Warranty 1 Year Limited Warranty Manufacturer Part Number 5USPHC
