Star Water Systems 1/3 HP 115V Electric Sink/Laundry Pump 22 GPM Utility Pumps Farm & Ranch

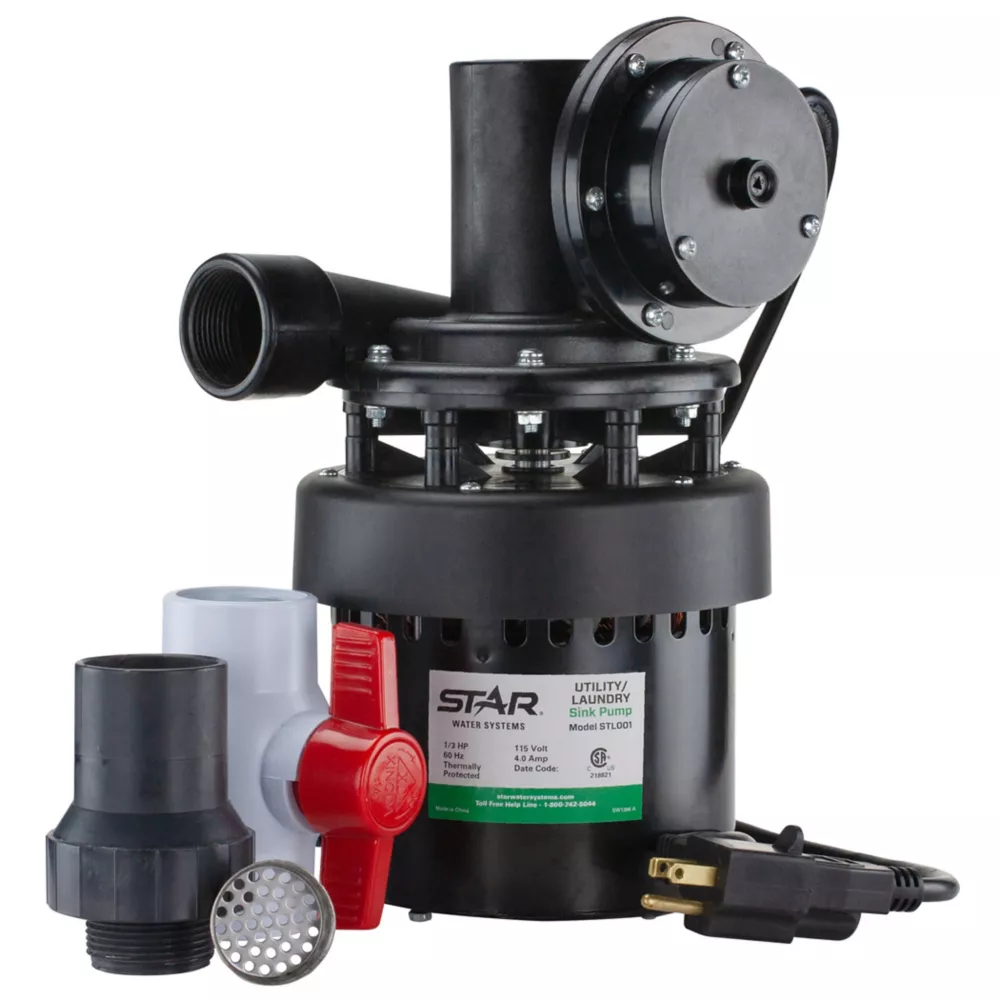

Constructed of reinforced thermoplastic, this 1/3 HP Utility Sink Pump is perfect for basement bars, utility sinks, and washing machines. Simple installation, no need for traps, vents, and costly labor charges. Includes pump assembly, sink drain screen, 1-1/4 in. x 1-1/4 in. slip check valve, and 1-1/4 in. ball valve. Easily mounts directly underneath your sink when a gravity drain line is not available.

115V, 60 Hz Thermally protected motor
Automatic operation
Includes: pump assembly, sink drain screen, 1-1/4 in. x 1-1/4 in. slip check valve, and 1-1/4-in ball valve
1 year limited warranty

Star Water Systems 1/3 HP 115V Electric Sink/Laundry Pump 22 GPM Utility Pumps Farm & Ranch> Tanks & Pumps> Utility Pumps

Specification	Description
Brand	Star Water Systems
Country of Origin	Imported
Amperage	4 Amp
Body Material	Thermoplastic
Compatible Pipe Material	Universal
Discharge Connection	Threaded Female
Discharge Diameter	1.25 in.
Discharge Rate at 0 ft.	22 GPM
Discharge Rate at 10 ft.	3.5 GPM
Engine Displacement	0.3 HP
Features	Includes pump assembly, sink drain screen, 1-1/4 in. x 1-1/4 in. slip check valve, and 1-1/4 in. ball valve
Horsepower	0.3 HP
Hose Diameter	1.25 in.
Inlet Connection	Threaded Female
Inlet Diameter	1.5 in.
Maximum Flow Rate	22 GPM
Maximum Head Lift	15 ft.
Maximum Operating Pressure	0 PSI
Maximum Operating Temperature	95 deg. F
Maximum Suction Lift	15 ft.
Minimum Operating Pressure	0 PSI
Minimum Operating Temperature	34 deg. F
Power Cord Length	8 ft.
Power Type	Electric
Product Height	13.625 in.
Product Length	10.25 in.
Product Weight	15.035 lb.
Product Width	9.375 in.
Motor Type	Permanent Split Capacitor (PSC)
Utility Pump Type	Transfer utility
Voltage	115V
Warranty	1
Manufacturer PartNumber	STL001

Star Water Systems 1/3 HP 115V Electric Utility/Laundry Sink Pump, 22 GPM Specifications expand/collapse Specification Description Brand Star Water Systems Country of Origin Imported Amperage 4A Body Material Thermoplastic Compatible Hose Material Universal Discharge Fitting Female Threaded Discharge Diameter 1.25 in. Displacement 0.3 HP Features Includes pump assembly, sink drain filter, 1-1/4" x 1-1/4" slip check valve and 1- 1/4 in. Power 0.3 HP Pipe Diameter Inlet 1.25 in. Female Threaded Connection Inlet Diameter 1.5 in. Maximum flow 22 GPM maximum head lift 15 feet. Maximum operating pressure 0 PSI Maximum operating temperature 95 deg. F Maximum suction height 15 feet Minimum operating pressure 0 PSI Minimum operating temperature 34 deg. F Power cord length 8 ft. Power Type Electric Product Height 13.625 in. Product length 10.25 in. Product weight 15,035 lbs. Thereproduct width 9.375 in. Motor Type Permanent Split Capacitor (PSC) Utility Pump Type Transfer Use Supply Voltage 115V Warranty 1 Manufacturer Part Number STL001
