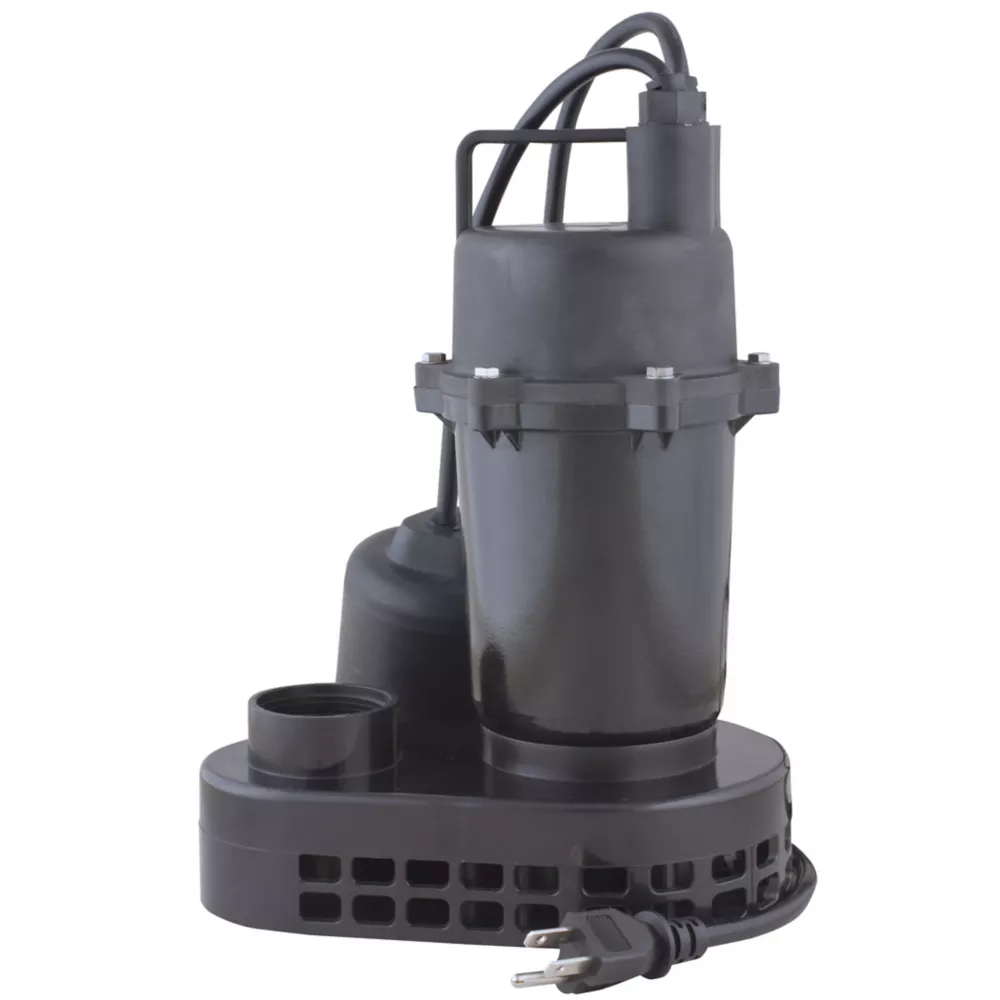

Star Water Systems Cast Aluminum Submersible Electric Sump Pump 1/3 HP 115V with Connected Switch 3 000 GPH Sump Pumps Farm & Ranch

The Star Water Systems 1/3 HP Cast-Aluminum Submersible Sump Pump with Tethered Switch features a cast aluminum motor housing to ensure heat dissipation. This sump pump is designed with a 115V energy-efficient 1/2 HP motor, built-in thermal overload protection, a 9 ft. double-sealed cord and a 1-1/2 in. FNPT discharge.

1/3 HP, 115V energy-efficient motor helps keep the sump pump running
Cast aluminum body provides optimal durability and resists heat
Submersible sump pump features built-in thermal overload protection for enhanced dependability
Fits in 12 in. sump basin
1-1/2 FNPT discharge
Sump pump includes a 9 ft. double-sealed cord for convenient and strong use
1-year limited warranty

Star Water Systems Cast Aluminum Submersible Electric Sump Pump 1/3 HP 115V with Connected Switch 3 000 GPH Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	Star Water Systems
Country of Origin	Imported
Basin Diameter	12 in.
Body Material	Cast aluminum
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	1.5 in.
Discharge Rate at 0 ft.	3,000 GPH
Discharge Rate at 10 ft.	2,220 GPH
Engine Displacement	0 N/A
Features	Cast aluminum motor housing, 1/3 HP 115V motor, built-in thermal overload, fits in 12 in. sump basin, 1-1/2 in FNPT discharge, 9 ft. double-sealed cord.
Horsepower	0.33 HP
Hose Diameter	1.5 in.
Inlet Connection	None
Inlet Diameter	0 N/A
Maximum Flow Rate	3,000 GPH
Maximum Head Lift	23 ft.
Maximum Operating Pressure	10 PSI
Maximum Operating Temperature	130 deg. F
Maximum Suction Lift	23 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	34 deg. F
Power Cord Length	9 ft.
Power Type	Electric
Product Height	12.2 in.
Product Length	8 in.
Product Weight	10.9 lb.
Product Width	9.2 in.
Pump Mechanism	Centrifugal
Motor Type	115v PSC
Switch-Off Height	6.25 in.
Switch-On Height	15.5 in.
Voltage	115V
Warranty	1 Year Limited Warranty
Manufacturer PartNumber	3USPHC

Star Water Systems 1/3 HP 115V Electric Cast-Aluminum Submersible Sump Pump with Tethered Switch, 3,000 GPH Specifications expand/collapse Specification Description Brand Star Water Systems Country of Origin Imported Basin Diameter 12 in. Body Material Cast Aluminum Pipe Material PVC Compatible Discharge Connection Female Threaded Discharge Port Diameter 1.5 in. 2,220 GPH Motor Displacement 0 N/A Features Cast Aluminum Motor Housing, 1/3 HP 115V Motor, Built-in Thermal Overload, Fits 12" Sump Basin, 1-1 FNPT Discharge /2 in., double 9 ft. sealed cord. Horsepower 0.33 HP Pipe Diameter 1.5 in. Inlet Connection None Inlet Diameter 0 N/A Maximum Flow 3,000 GPH Maximum Head Lift 23 feet Maximum Operating Pressure 10 PSI Maximum Operating Temperature 130 deg. F Maximum suction height 23 feet Minimum operating pressure 0 N/A Minimum operating temperature 34 deg. F Power cord length 9 ft. Power supply type Electric Product height 12.2in. Product length 8 in. Product weight 10.9 lbs. Product width 9.2 in. Pump Mechanism Centrifugal Motor TypeStopping Height PSC 115 V 6.25 in. Ignition height 15.5 in. Voltage 115V Warranty 1 Year Limited Warranty Manufacturer Part Number 3USPHC
