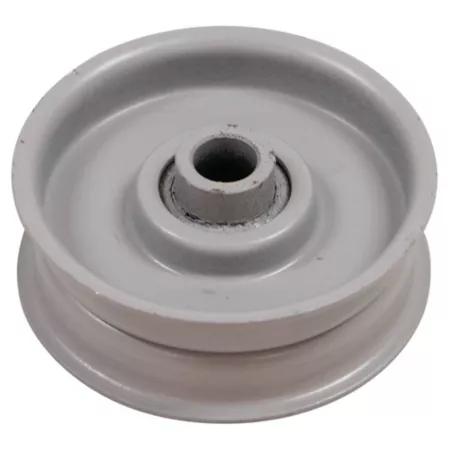

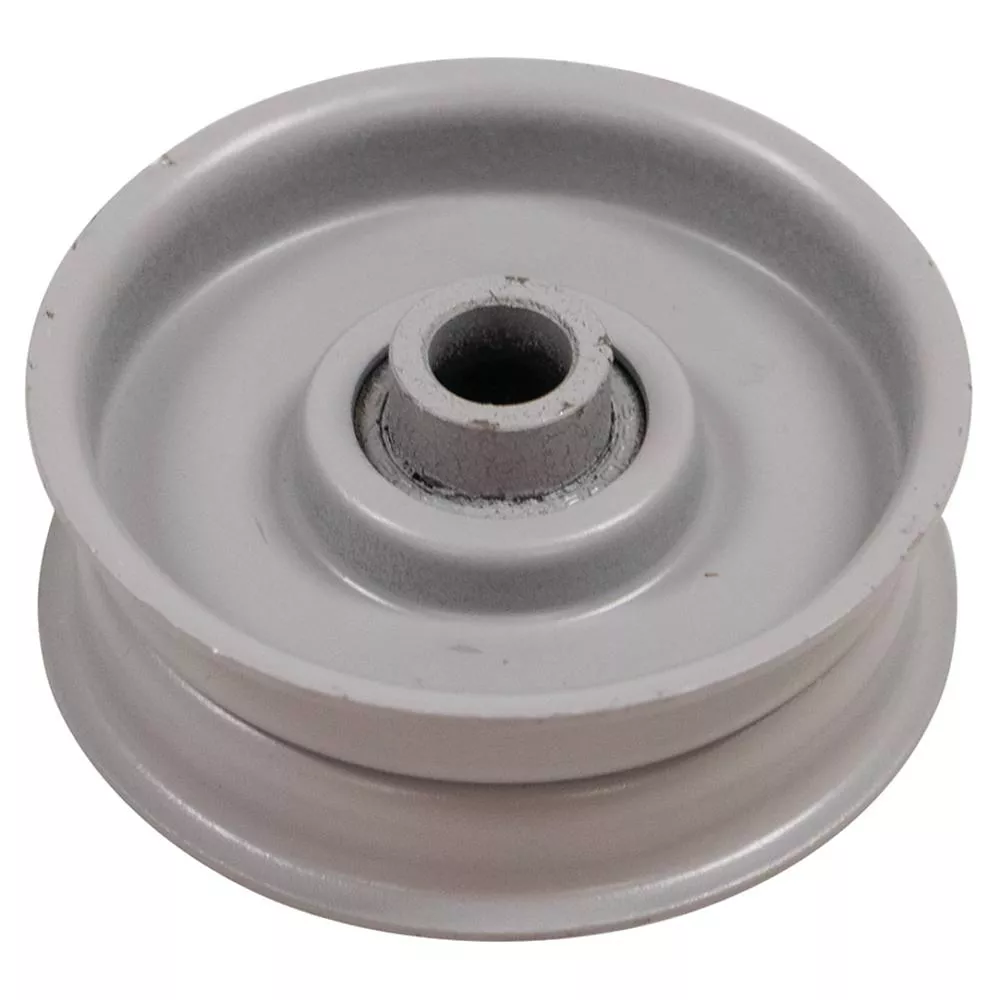

Stens Flat Tensioner for Snapper 7013850YP Mower Engines & Parts Mower Parts

Stens flat idlers are made with exacting specifications for direct-fit applications to leading brands of outdoor power equipment. Precision engineering ensures a replacement part that performs at optimal standards and installs easily without modifications or adjustments. Flat idlers are an integral component in the pulley system to transfer power. A flat idler works in conjunction with a drive pulley that receives power from the motor but is not connected to the original power source itself. Stens flat idlers are designed for smooth and consistent movement of a belt to enhance overall operation. Flanges with exact tolerances keep the belt in place to prevent slippage that could adversely affect performance. Flat idlers provide just enough pressure to engage the belt and redirect motion.

2 7/16 in. OD flange
Color may vary
For explanation of letters, refer to the drawing by clicking on More Info
A:: 2 1/2 in.
B:: 2 1/4 in.
C:: 3/8 in.
D:: 3/4 in.
E:: 1/2 in.
F:: 11/32 in.
H:: 1/16 in.
Height: 7/8 in.
ID: 3/8 in.
Made By: An OEM Supplier
Material: Metal
OD: 2 1/2 in.
V:: 7/8 in.
OEM Part Numbers: AYP: 4933H, 583768601, 78744, CaseIH: C15672, C23535, Exmark: MW8821, FMC: 171-0566, MTD: 1626-071, 1626-69, 756-0137, Murray: 27332, Snapper: 1-3850, 7013850, 7013850YP, Toro: 3-4244, MW8821, Troy-Bilt: 1710566, White: 1710566
Fitment: MTD: 225, 440, 450, 550, 552, 586 and 588 series snowblowers, 1987-1988

Stens Flat Tensioner for Snapper 7013850YP Mower Engines & Parts Lawn & Garden> Lawn Mowers & Attachments> Mower Parts> Mower Engines & Parts

Specification	Description
Brand	Stens
Country of Origin	Made in USA
Brand Compatibility	MTD
Features	Made by an OEM supplier
Model Compatibility	MTD: 225, 440, 450, 550, 552, 586 and 588 series snowblowers, 1987-1988,
Product Height	7/8 in.
Product Length	3.8 in.
Product Weight	0.27 lb.
Product Width	3.4 in.
Warranty	1 Year
Manufacturer PartNumber	280-032

Stens Flat Idler for Snapper 7013850YP Specifications expand/collapse Specification Description Brand Stens Country of Origin Made in USA Brand Compatibility MTD Features Manufactured by OEM Supplier MTD Model Compatibility: 225, 440, 450, 550, 552, 586 and Series Snow Blowers 588, 1987-1988, product height 7/8 in. Product length 3.8 in. Product weight 0.27 lbs. Product width 3.4 in. 1 year warranty Manufacturer part number 280-032
