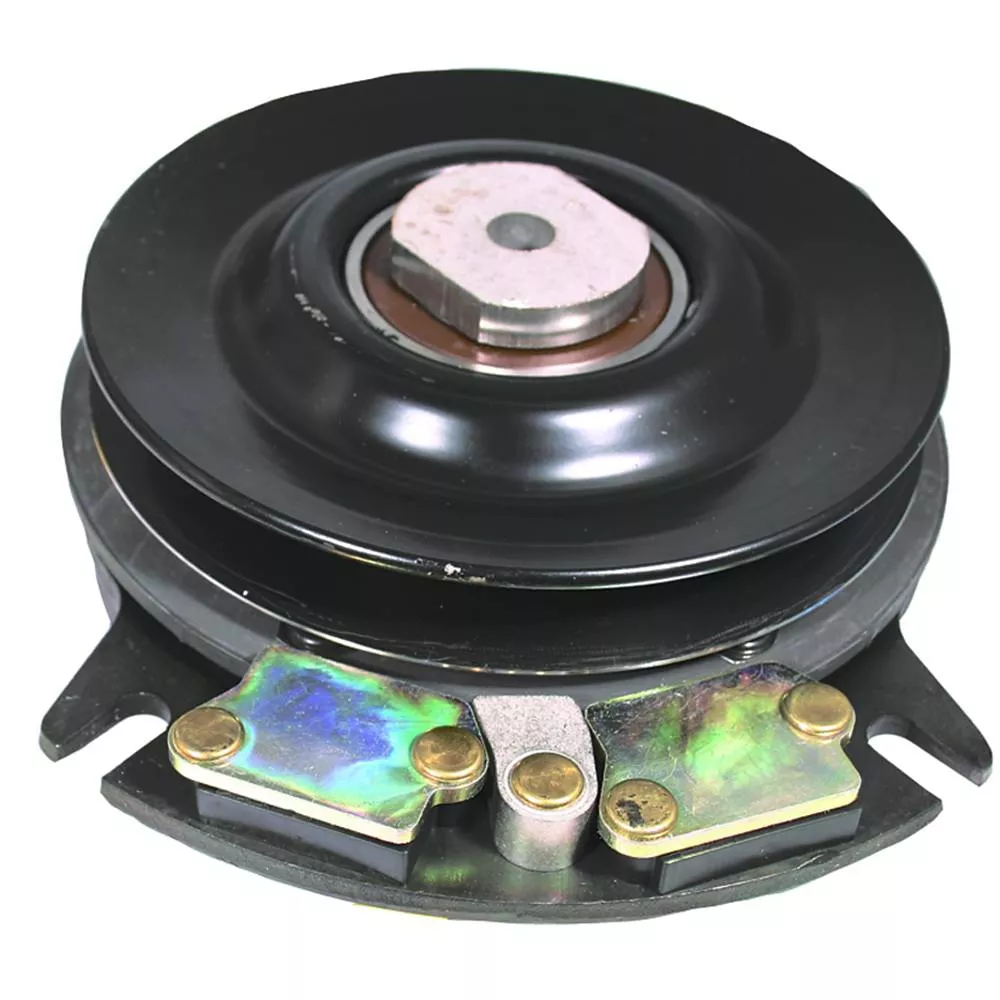

Stens Xtreme PTO Clutch for Gravely Lawn Mowers 00389900 09208000 09232700 09266700 Mower Engines & Parts Mower Parts
Combining innovative design with exceptional durability, the Stens Xtreme PTO Clutch keeps your mower working longer and delivering better lawn care results. The Electric Xtreme PTO Clutch's Cool Coil technology with a proprietary composite coil runs approximately 20% cooler than many electromagnetic clutches. Heat reduction extends clutch service life. Machined billet pulleys allow for smoother and faster blade speeds, resulting in lawns that looks more even and cleanly cut. High performance bearings with a proprietary high temperature grease extends anticipated working life. Tripled layered, integrated watertight connectors protect the wiring system from moisture, rocks, sticks, stumps, curbs and other objects that can cause damage. Stainless steel rivets improve the overall strength of the clutch and exceed the performance of weaker aluminum or copper rivets. Xtreme PTO clutches are recommended for lawn care professionals and homeowners who depend on their equipment to deliver exceptional performance with a long service life.- Cool Coil technology with a proprietary composite coil runs approximately 20% cooler than many electromagnetic clutches
- Machined billet pulleys allow for smoother and faster blade speeds, resulting in lawns that looks more even and cleanly cut
- High performance bearings with a proprietary high temperature grease extends anticipated working life
- Tripled layered, integrated watertight connectors protect the wiring system
- Xtreme PTO Clutch replaces OEM part numbers: Ariens: 00389900, 09208000, 09232700, 09266700, Craftsman: 00389900, Gravely: 00389900, 09208000, 09232700, 09266700, 389900, 9232700, Great Dane: GDA10122, Warner: 5218-169, 5218-31, 5218-94, Woods: 00389900, 09232700, 09266700
- Designed for Rugged Use
- For proper ordering, reference Warner or Ogura part numbers stamped on clutch
- To prevent premature clutch failure, follow the instruction sheet included with the clutch
- Belt Width: 1/2 in. or 5/8 in.
- Height: 3 1/4 in.
- ID: 1 1/8 in.
- Made By: An OEM Supplier
- Pigtail: Included
- Pulley Diameter: 6 in.
- Rotation Direction: Counter Clockwise
Stens Xtreme PTO Clutch for Gravely Lawn Mowers 00389900 09208000 09232700 09266700 Mower Engines & Parts Lawn & Garden> Lawn Mowers & Attachments> Mower Parts> Mower Engines & Parts
| Specification | Description |
|---|---|
| Brand | Stens |
| Country of Origin | Made in USA |
| Brand Compatibility | Craftsman, Woods, Gravely, Warner, Great Dane, Ariens |
| Features | Xtremes Cool Coil technology |
| Model Compatibility | Ariens: 00389900, 09208000, 09232700, 09266700; Craftsman: 00389900; Gravely: 00389900, 09208000, 09232700, 09266700, 389900, 9232700; Great Dane: GDA10122; Warner: 5218-169, 5218-31, 5218-94; Woods: 00389900, 09232700, 09266700 |
| Product Height | 3-1/4 in. |
| Product Length | 8.45 in. |
| Product Weight | 11.92 lb. |
| Product Width | 1/2 in. or 5/8 in. |
| Warranty | 1 Year |
| Manufacturer PartNumber | 255-927 |
