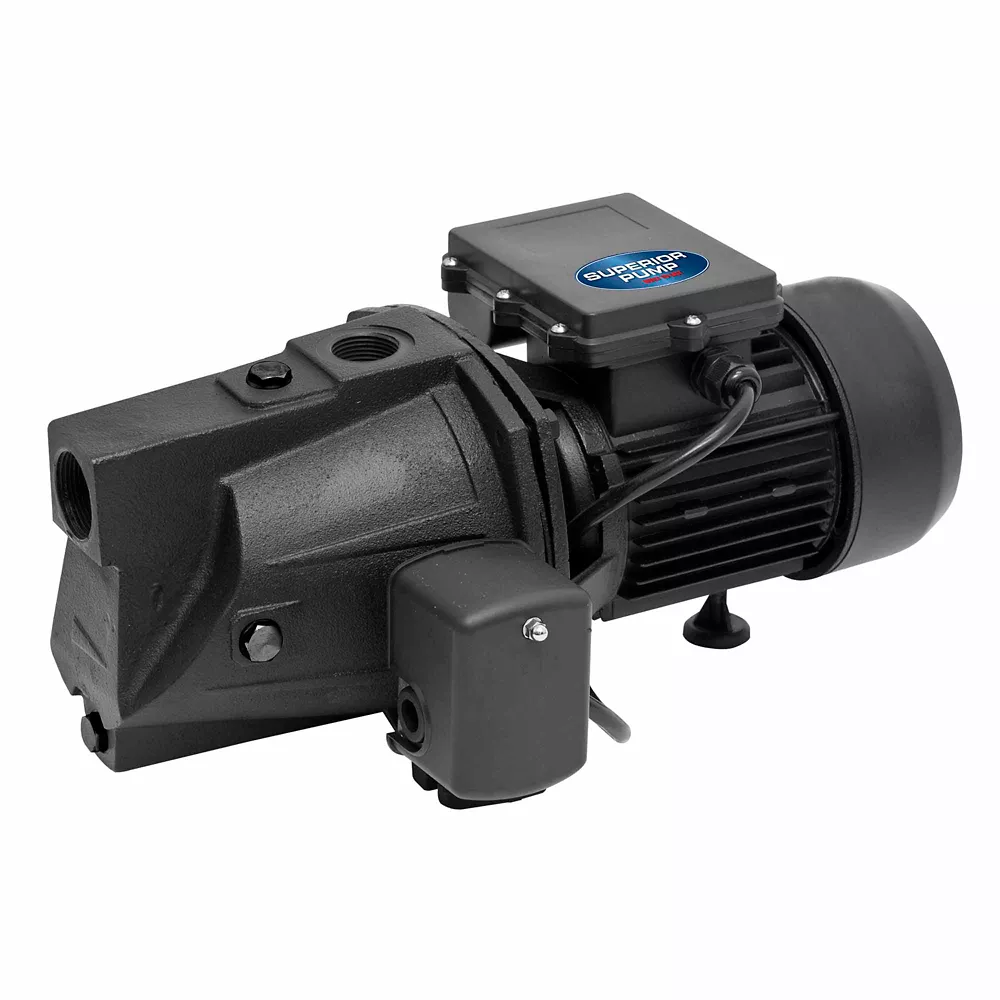

Superior Pump 1/2 HP 115/230 V Electric 1.25 in Shallow Well Jet Pump 12.5 GPM Well Pumps Home Improvement

The Superior Pump 1/2 HP 1.25 in. Electric-Powered Shallow Well Jet Pump boasts rugged cast-iron construction. Superior Pump builds pumps that are truly built to last and are 100% factory tested. Superior Pump uses quality components including solid copper motor windings, heavy-duty stainless steel jacketed shaft seals, double O-ring seals on motor plate, and electronically controlled split capacitors. Superior Pump model 94505, 1/2 HP dual voltage cast iron shallow well jet pump, will move water up to 25 ft. of lift. This pump is UL/cu listed and backed by a 3 year warranty.

Rugged cast-iron construction
Pumps water from well up to 25 ft. of vertical lift
Dual voltage motor (115/230V)

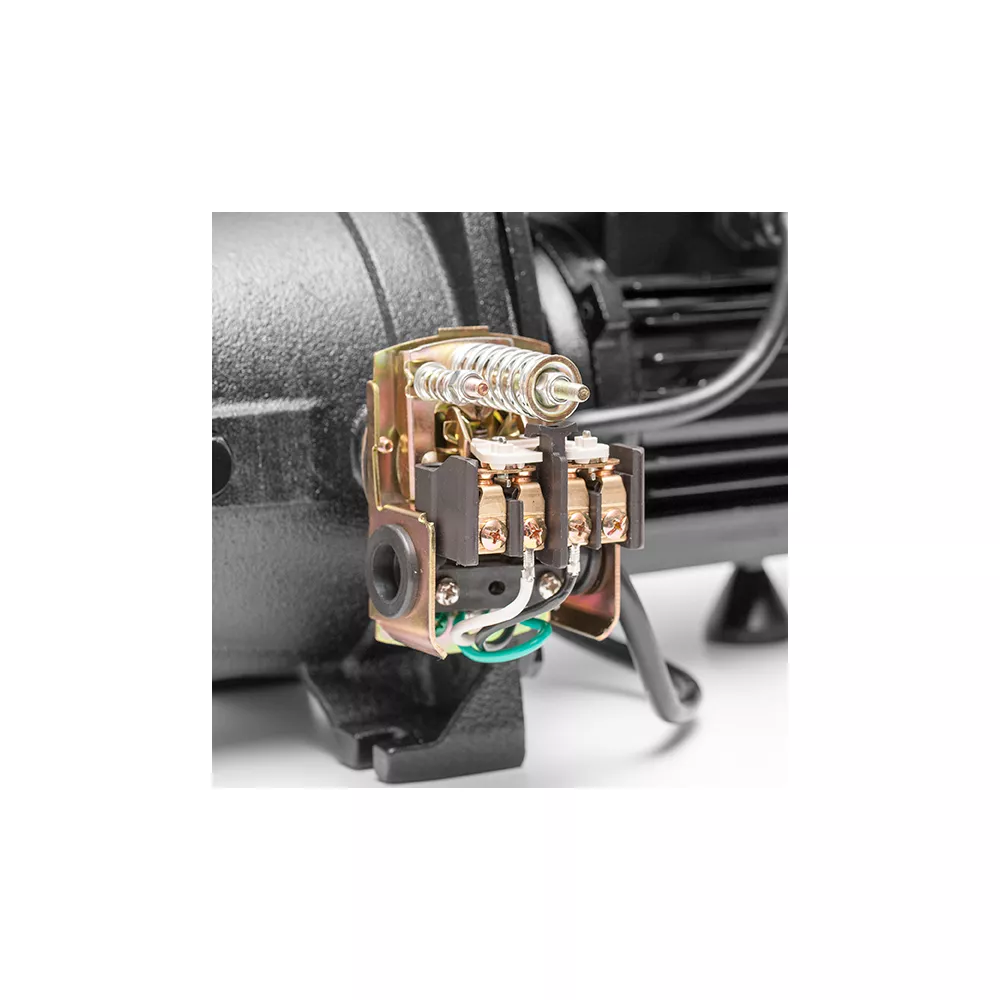

Pre-mounted fully adjustable pressure switch
Cast-iron seal plate

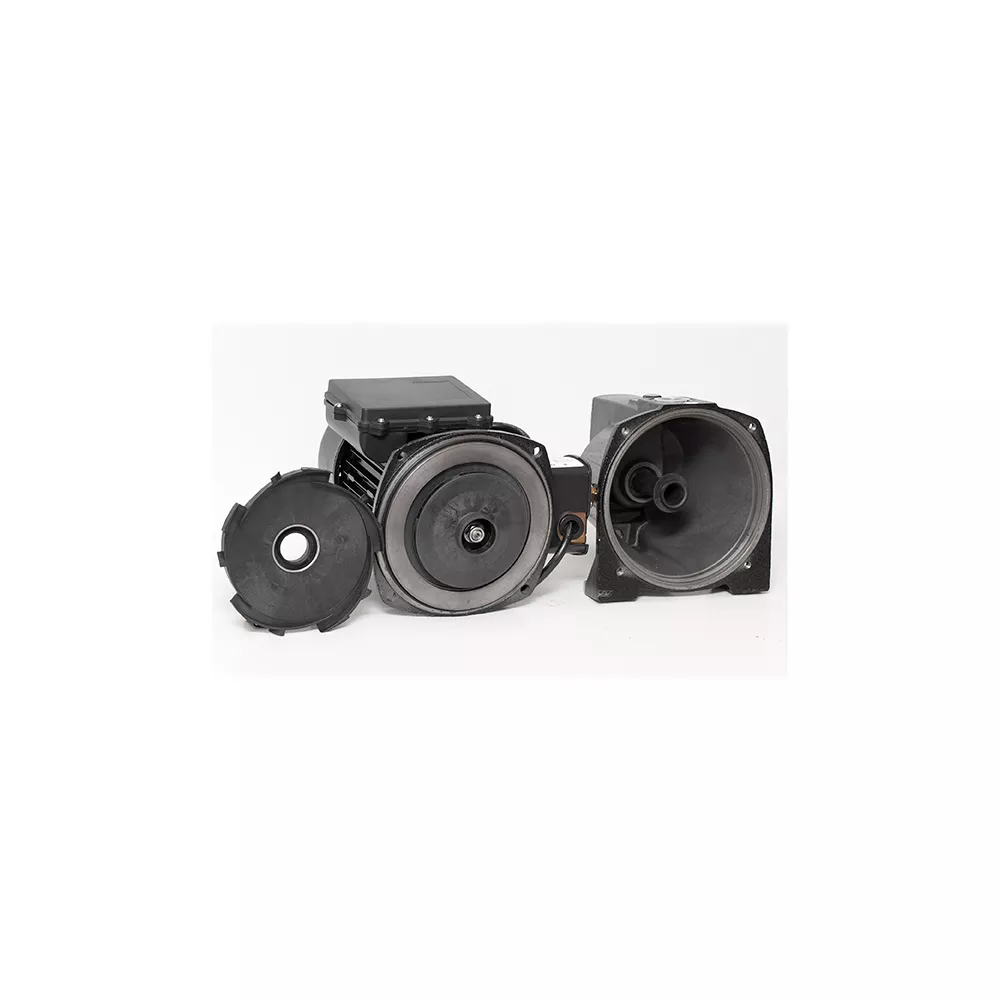

Tough thermoplastic impeller and glass filled thermoplastic diffuser
For use in shallow well applications up to 25 ft.

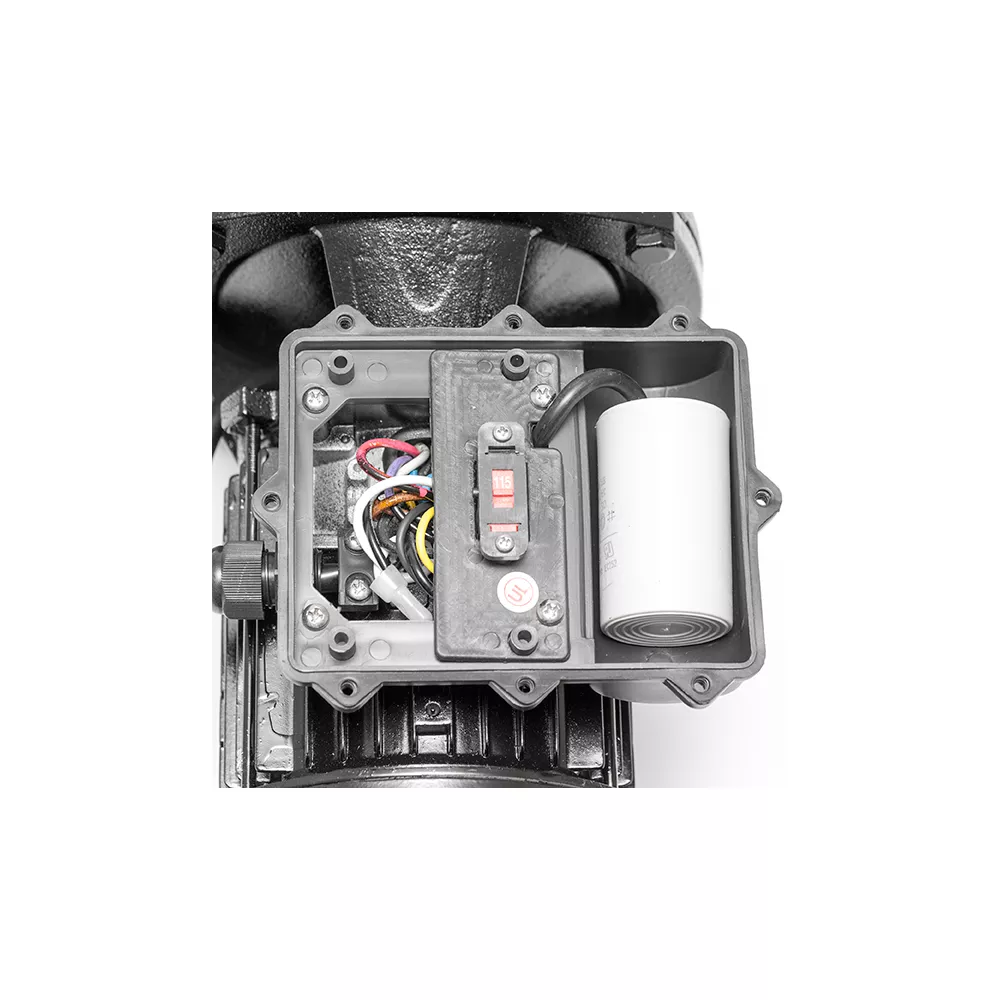

Continuous duty, thermally protected split capacitor motor
Prop 65: Vinyl chloride chemical not found in water delivery system
3 year warranty

Superior Pump 1/2 HP 115/230 V Electric 1.25 in Shallow Well Jet Pump 12.5 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	Superior Pump
Country of Origin	Imported
Amperage	6.4 3.2
Body Material	Cast iron
Compatible Pipe Material	ABS
Compatible Well Diameter	24 in.
Discharge Connection	Threaded Female
Discharge Diameter	1 in. NPT
Discharge Rate at 0 ft.	10 gpm
Discharge Rate at 25 ft.	6.8 gpm
Discharge Rate at 50 ft.	0 GPH
Features	1/2 HP dual voltage motor (115/230v), Rugged cast iron pump body for durability, Tough thermoplastic impeller, Glass filled thermoplastic diffuser, Cast iron seal plate, Pre-mounted, fully adjustable pressure switch, For shallow well applications
Head Pressure	67 PSI
Horsepower	0.5 HP
Impeller Material	Thermoplastic
Inlet Connection	Threaded Female
Inlet Diameter	1-14 in.
Maximum Flow Rate	12.5 GPM
Maximum Head Lift	25 ft.
Maximum Operating Depth	25 ft.
Maximum Operating Temperature	120 deg.
Minimum Operating Temperature	32 deg.
Power Type	Electric
Product Height	8 in.
Product Length	17-14 in.
Product Weight	33.1 lb.
Product Width	10-34 in.
Motor Type	Split Capacitor
Voltage	115V230V
Warranty	3 Year Limited
Manufacturer PartNumber	94505

Superior Pump 1/2 HP 115/230V Electric 1.25 in. Shallow Well Jet Pump, 12.5 GPM Specifications expand/collapse Specification Description Brand Superior Pump Country of Origin Imported Amperage 6.4 3.2 Body Material Cast Iron Compatible Hose Material ABS Compatible Well Diameter 24 in. Discharge fitting 1 in. threaded female discharge diameter. NPT Discharge Rate at 0 ft. 10 gpm Discharge Rate at 25 ft. 6.8 gpm Discharge Rate at 50 ft. 0 GPH Features 1/2 HP (115/230 V) dual voltage motor, heavy-duty cast iron pump body for more durability, heavy-duty thermoplastic impeller, glass-filled thermoplastic diffuser, cast iron seal plate, Pre-mounted, fully adjustable pressure switch, for shallow well applications Head pressure 67 PSI Horsepower 0.5 HP Impeller material turbine Thermoplastic inlet fitting Female thread Inlet diameter 1-14 in. Maximum flow 12.5 GPM Maximum head lift 25 ft. Maximum operating depth 25 ft. Maximum operating temperature 120 degrees. Temperatureminimum operating temperature 32 degrees. Power Supply Type Product Height 8 in. Product length 17-14 in. Product weight 33.1 lb. Product width 10-34 in. Motor Type Split Capacitor Voltage 115V 230V 3 Year Limited Warranty Manufacturer Part Number 94505
