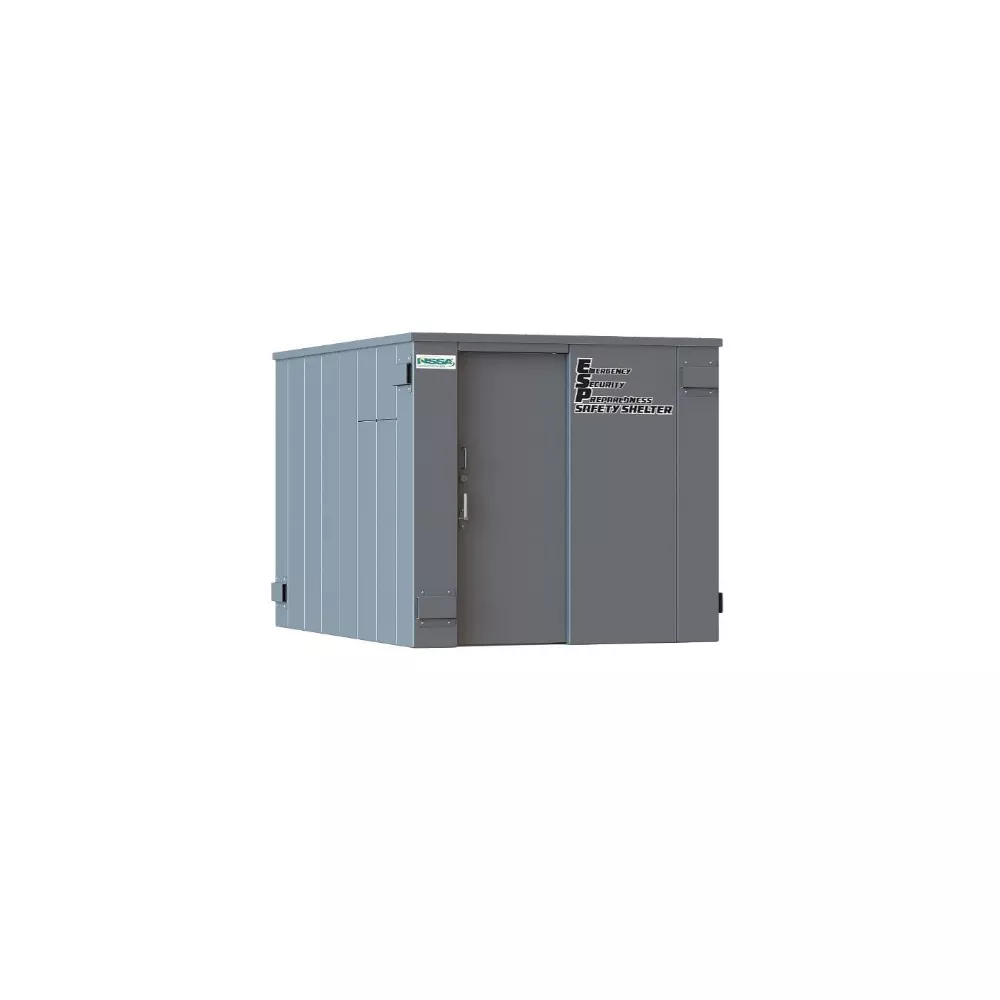

Swisher ESP safety shelter 20 people private/12 people business - SR84X114G Storm Shelters Storm Shelters
ESP Safety Shelters (above-ground only) offer the ultimate in multi-purpose protection and security for you and loved ones against violent acts of nature and multiple threats posed by man. This shelter will withstand the most extreme tornado activity and offer a safe zone against home invasion. It is preferable for the shelter to be installed within the interior of a residence. If you choose to install it outdoors, it must be within 150 feet of the residence it is intended to serve and must be protected from all external weather conditions. THIS SHELTER IS NOT WATERPROOF. The shelter has undergone and passed testing at the National Wind Institute at Texas Tech University. It has been tested and withstood a total of nine impacts from 15 lb. 2x4s traveling at 100 mph. These impacts are equivalent to the force produced by an F5 tornado with 250mph winds. All ESP Safety Shelters have been verified by the National Storm Shelter Association (NSSA) to be in compliance with FEMA 320, FEMA 361 and the ICC-500-2014 Code requirements when installed per the manufacturer's guidelines and inspected by a qualified inspector. Installation checklists and inspection checklists are provided. All shelters have been designed by Registered Structural Engineers and have undergone a rigorous 3rd party review process. Near Absolute Protection definition from FEMA P-361: Level of protection afforded to the occupants of a safe room built according to the guidance in the most current edition of FEMA P-361. Our current knowledge of tornadoes and hurricanes indicates that safe room occupants will have a very high probability of being protected from injury or death. These shelters are designed to be a DIY project, but once the shelter installation is completed, it must be inspected by a qualified inspector. Contact your local building inspector or find an engineer or architect in your area. Visit www.nssa.cc to find a pre-approved list of installation companies. The NSSA type 4 seal will provide a warranty after the installation check list and final inspection checklist are complete and sent to the manufacturer. The NSSA type 4 seal and a Certificate of Installation will be sent to customers after the manufacturer has received the installation checklist and final inspection checklist. The Limited Lifetime Storm Damage Replacement Benefit does require that all installation procedures be followed and documented proof must be submitted to the manufacturer.- Bolt-together design for easy construction and relocation
- Emergency panels for rapid shelter exit
- Quick manipulating locking mechanism with a latch/key lock
- Quick release sliding door allows opening when blocked by debris and reduces space
- Shielded air vents allow uninterrupted air flow
- Bench, shelf, gun rack and other interior accessories available
- Up to 12 person residential capacity
- 5 year limited warranty
- Acts as vault to protect valuables (not fire rated due to the design requirements to withstand severe storms)
- Made from 3/16 in. (0.188 in.) thick carbon steel, all hardware is grade 5, and most surfaces are powder coated
- Door and materials are critical aspects of any storm shelter

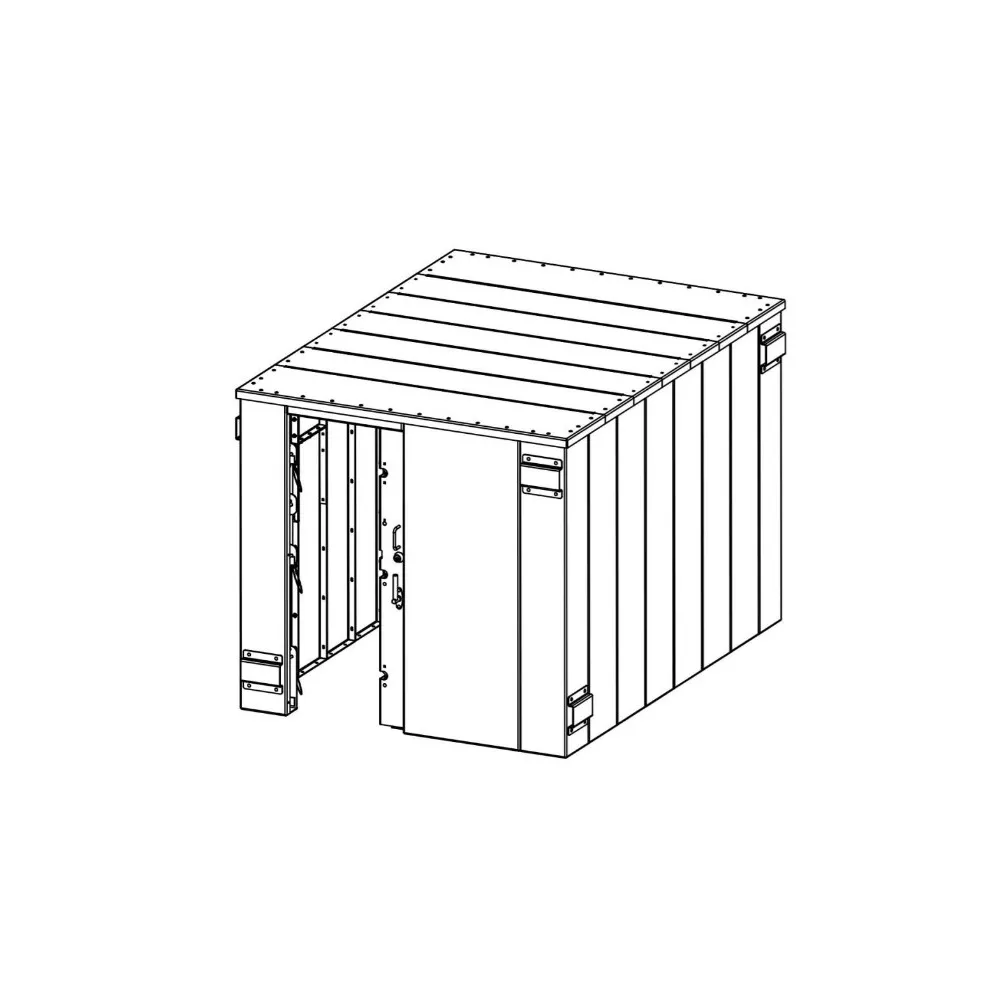

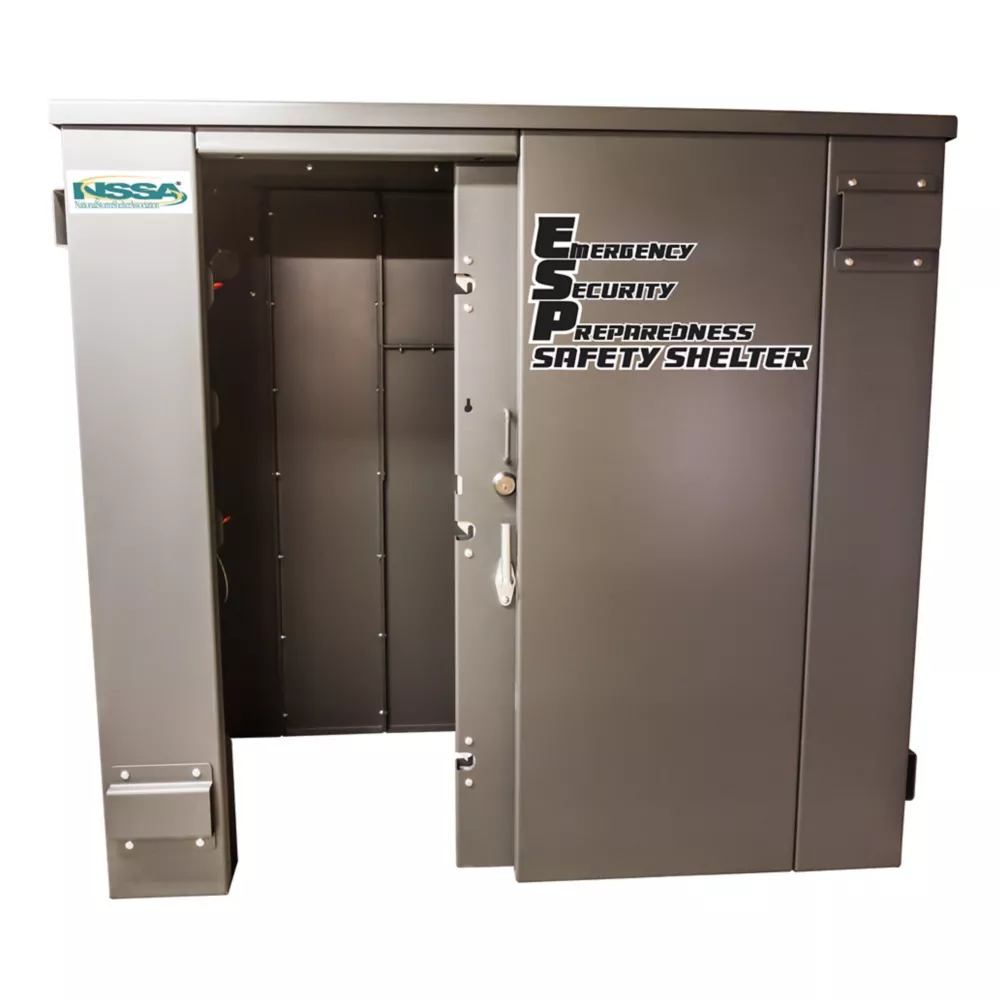

- Sliding reinforced steel door eliminates problems commonly associated with inward and outward swinging doors
- When opened, the sliding door takes up no additional space
- Security grade deadbolt holds the latch bar into the locked position and keeps the door from being opened from the outside
- 3 steel pins securely lock the door closed within a 3 in. deep steel jamb pocket, and the single handle operation locks all 3 pins into place in a single motion
- 4th locking pin that can only be installed and removed from the inside
- When closed, entire hinge side (top to bottom) is locked into the adjacent front wall, no screws to pull out or pins that may break
- 5 Year limited warranty
Swisher ESP safety shelter 20 people private/12 people business - SR84X114G Storm Shelters Outdoor Living> Sheds & Outdoor Storage> Storm Shelters
| Specification | Description |
|---|---|
| Brand | Swisher |
| Country of Origin | Made in USA |

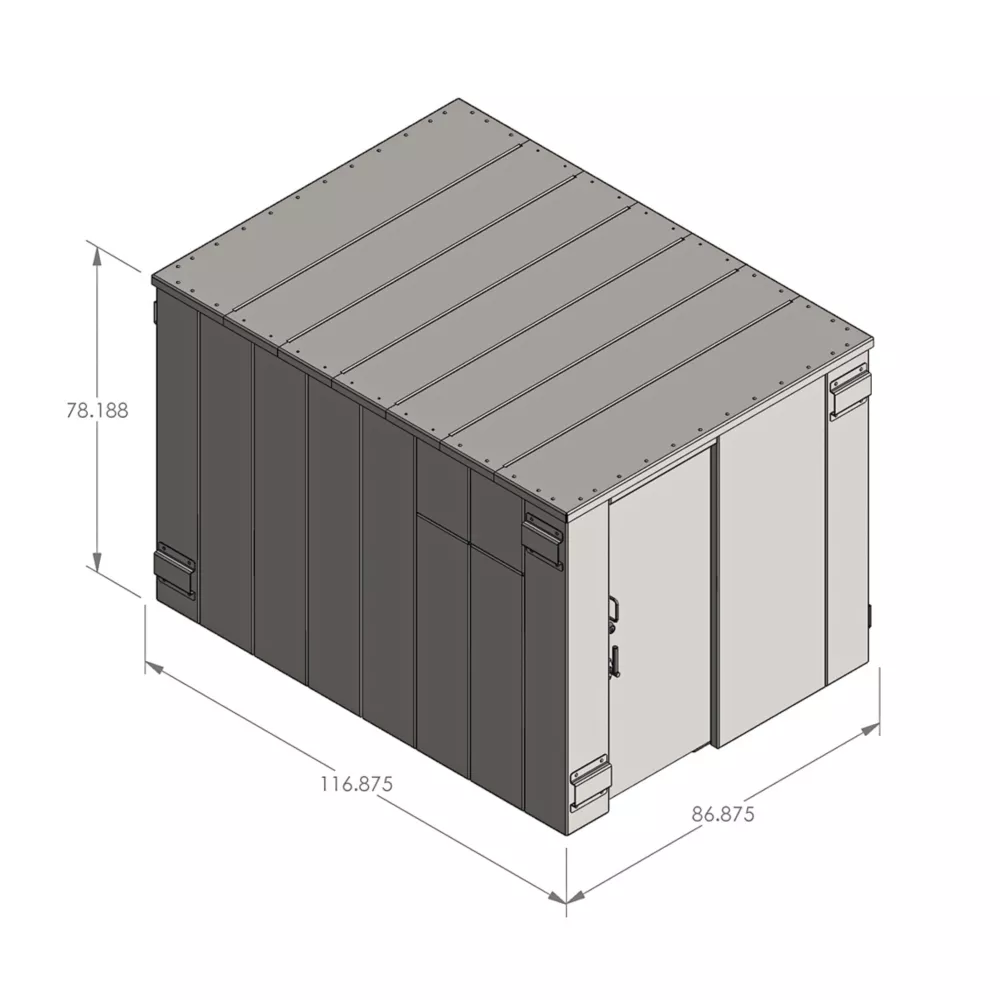

| Exterior Height | 78 in. |
| Exterior Length | 87 in. |
| Exterior Width | 117 in. |
| Features | Powder-Coated |
| Interior Height | 76 in. |
| Interior Length | 80 in. |
| Interior Width | 110 in. |
| Maximum Number of Occupants | 20 Person Private / 12 Person Business |
| Maximum Wind Resistance | 250 mph |
| Number of Doors | 1 |
| Primary Color | Gray |
| Primary Material | Steel |
| Product Weight | 3,000 lb. |
| Shape | Rectangular |
| Installation Type | Above Ground |
| Warranty | 5 Year limited warranty |
| Manufacturer PartNumber | SR84X114G |
