ToolTuff Direct Cat 2 Hydraulic Top Link 20-7/8 in to 29-1/8 in. Hydraulic Hoses Tractor Repair & Parts

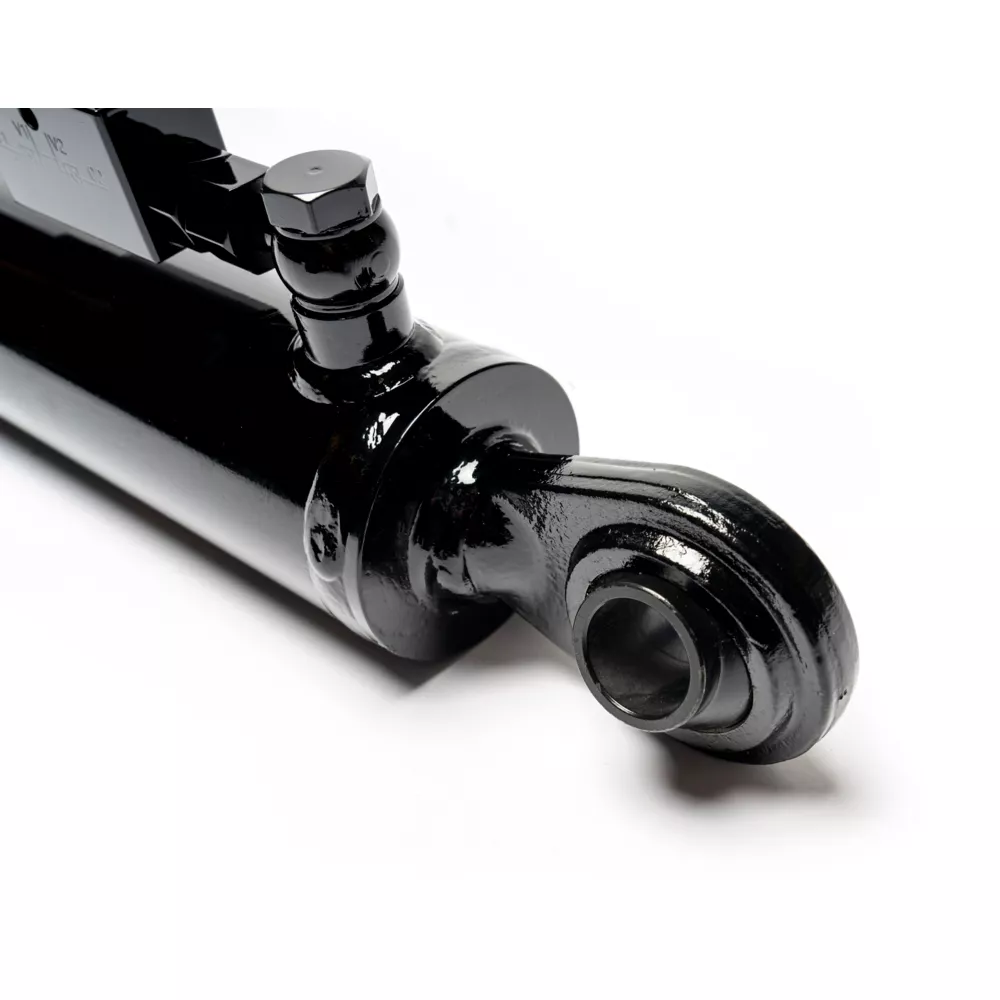

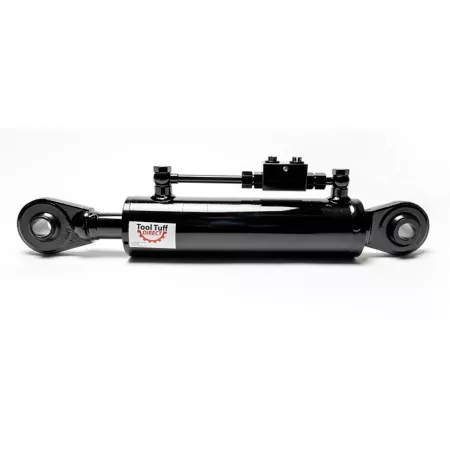

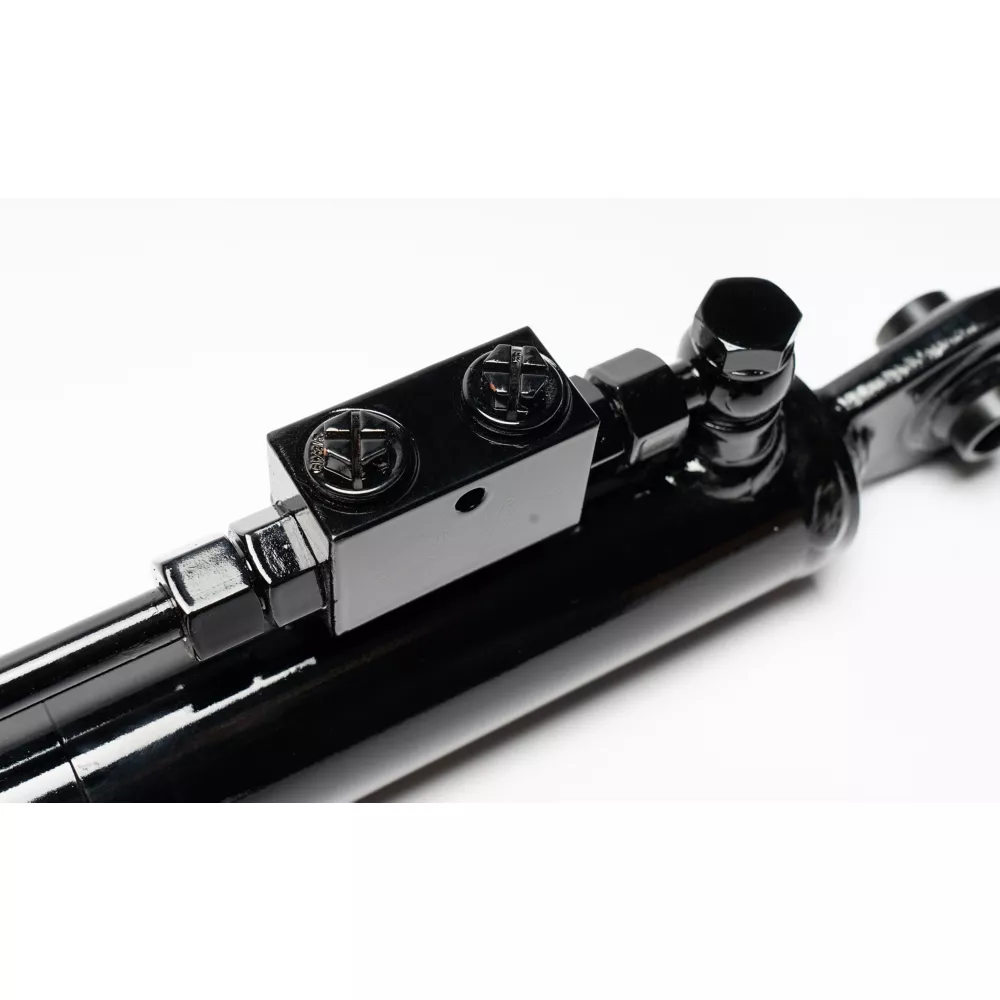

Category 2 Hydraulic Top Link with check valve and double acting cylinder

1" pin holes on both ends
Ball width measures 2"
Offers a minimum to maximum length of 20-7/8" to 29-1/8"
Stroke measures 8-1/4"; cylinder bore measures 3-1/8"; Category 2 top link rod diameter measures 1-9/16"
Pushing/lifting capacity of 17,100 lb./12,900 lb. (estimates based on a working pressure of 2,175 PSI)
Ports: 3/8" BSP

ToolTuff Direct Cat 2 Hydraulic Top Link 20-7/8 in to 29-1/8 in. Hydraulic Hoses Farm & Ranch> Tractor Parts & Accessories> Tractor Repair & Parts> Tractor Hydraulics> Hydraulic Hoses

Specification	Description
Brand	ToolTuff Direct
Country of Origin	Imported
Brand Compatibility	Other
Compatibility	All
End 1 Diameter	0.75 in.
End 2 Diameter	0.75 in.
Features	N/A
Hose Type	Hydraulic Hose
Maximum Operating Pressure	2,500 lb.
Maximum Temperature	100 deg.
Minimum Temperature	0 deg.
Model Compatibility	CAT 2 Hydraulic Top Link
Primary Material	Steel
Product Height	7 in.
Product Length	27 in.
Product Weight	34 lb.
Product Width	4 in.
Manufacturer PartNumber	43-085

ToolTuff Direct Cat 2 Hydraulic Top Link, 20-7/8 in. to 29-1/8 in. Specifications expand/collapse Specification Description Brand ToolTuff Direct Country of Origin Imported Brand Compatibility Other Compatibility All End 1 Diameter 0.75 in. End 2 Diameter 0.75 in. Specifications N/A Hose Type Hydraulic Hose Maximum Working Pressure 2,500 lbs. Minimum temperature 0 deg. Model Compatibility CAT 2 Hydraulic Top Link Primary Material Steel Product Height 7 in. Product length 27 in. Product weight 34 lbs. Product width 4 in. Manufacturer part number 43-085
