Top Pump 1/2 HP 115/230 V 1.25 in Convertible Electric Jet Pump 9.9 GPM Well Pumps Home Improvement

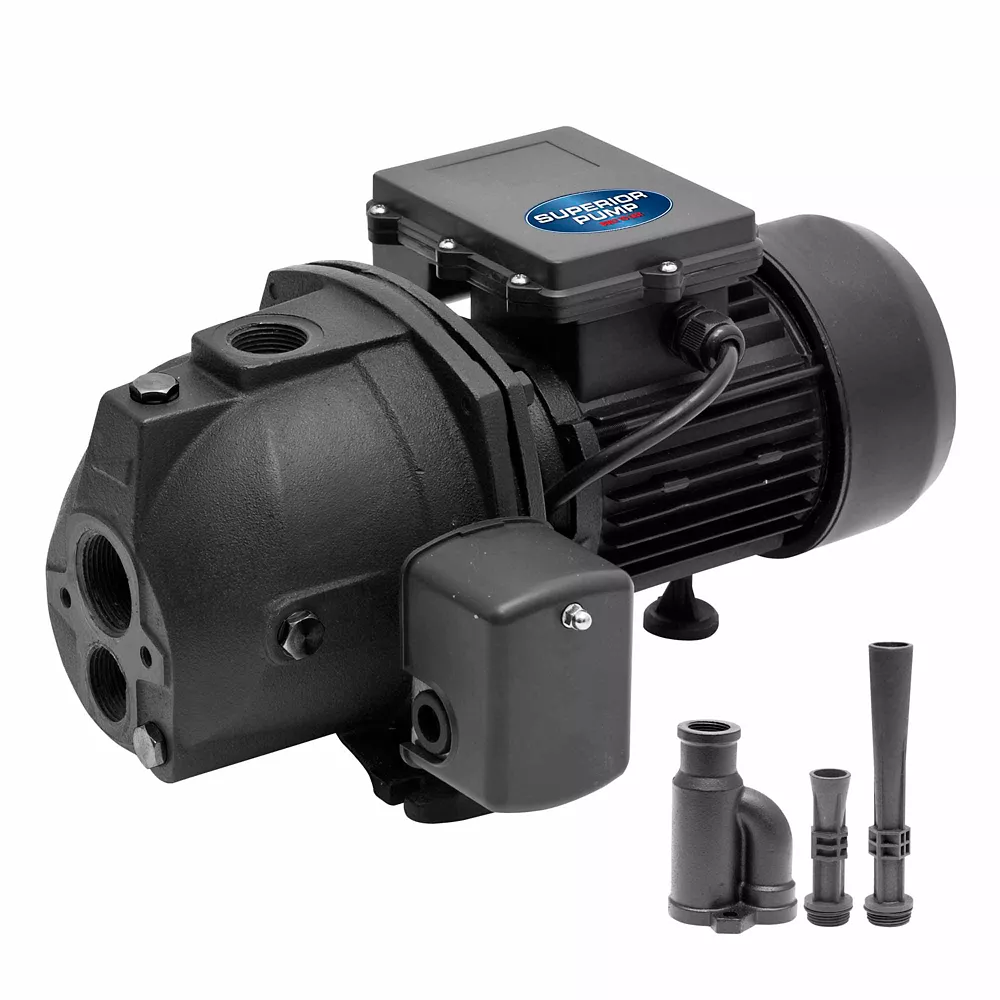

Superior Pump builds pumps that are truly built to last and are 100% factory tested. Superior Pump uses quality components including solid copper motor windings, heavy duty stainless steel jacketed shaft seals, double o-ring seals on motor plate, and electronically controlled split capacitors. Superior Pump model 94515, 1/2 HP dual voltage cast iron convertible well jet pump, will move water up to 50 Ft. of lift. This pump is UL/cu listed and backed by a 3 year warranty.- Rugged cast iron construction
- Pumps water from well up to 50 vertical feet of lift
- Dual voltage motor (115/230V)

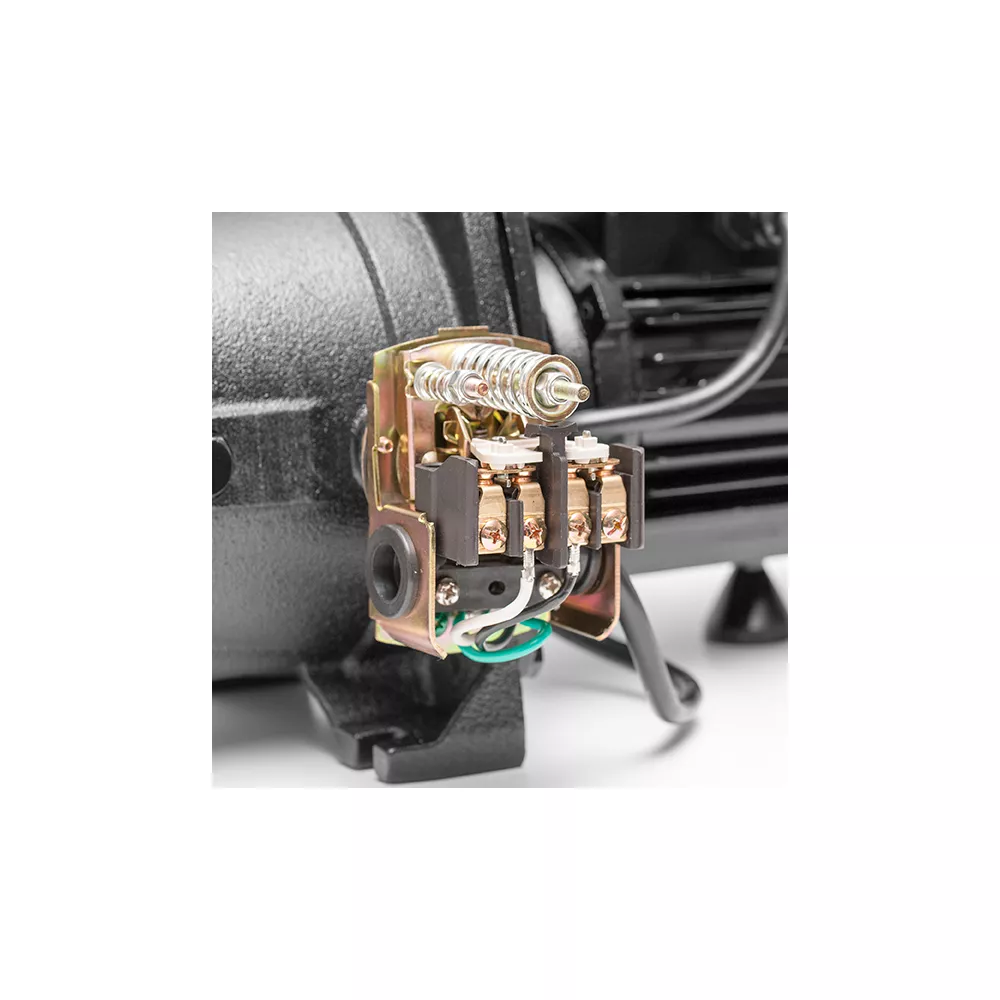

- Pre-mounted fully adjustable pressure switch
- Cast iron seal plate

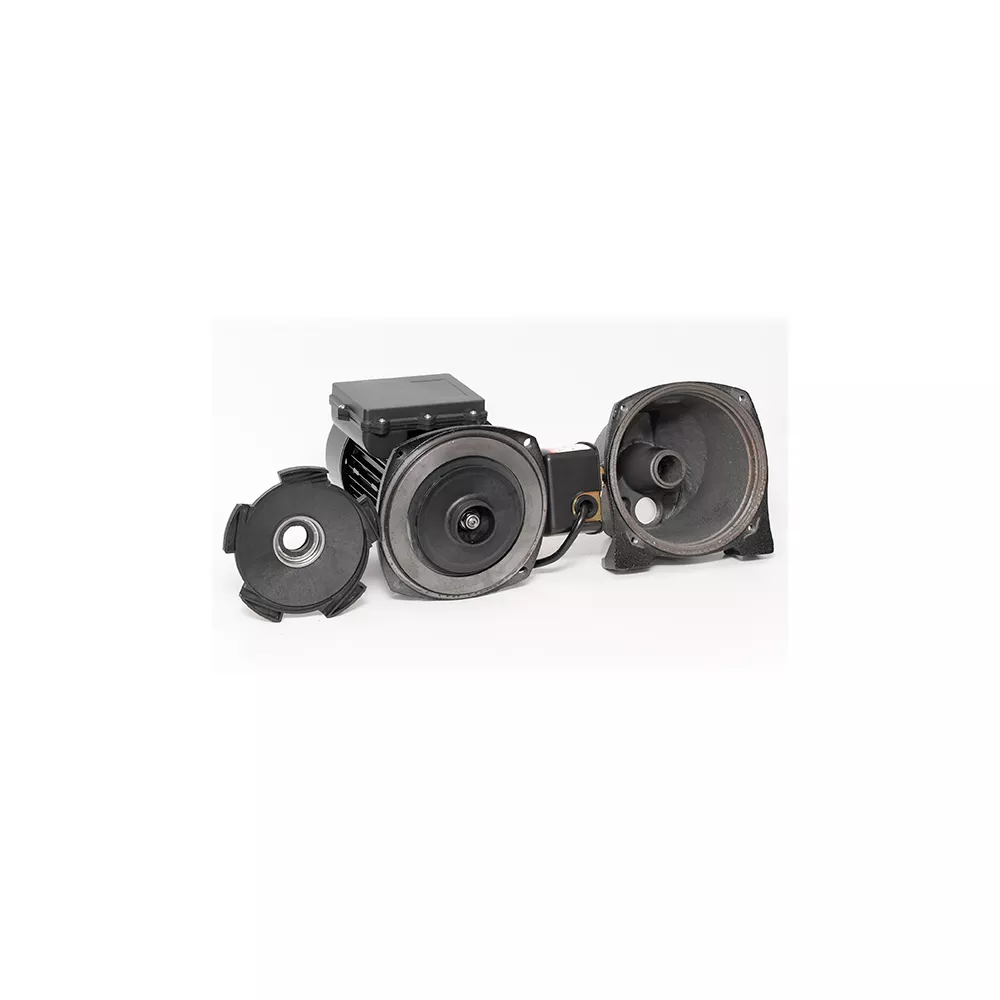

- Tough thermoplastic impeller and glass filled thermoplastic diffuser
- Can be used in shallow and deep well applications up to 50 feet

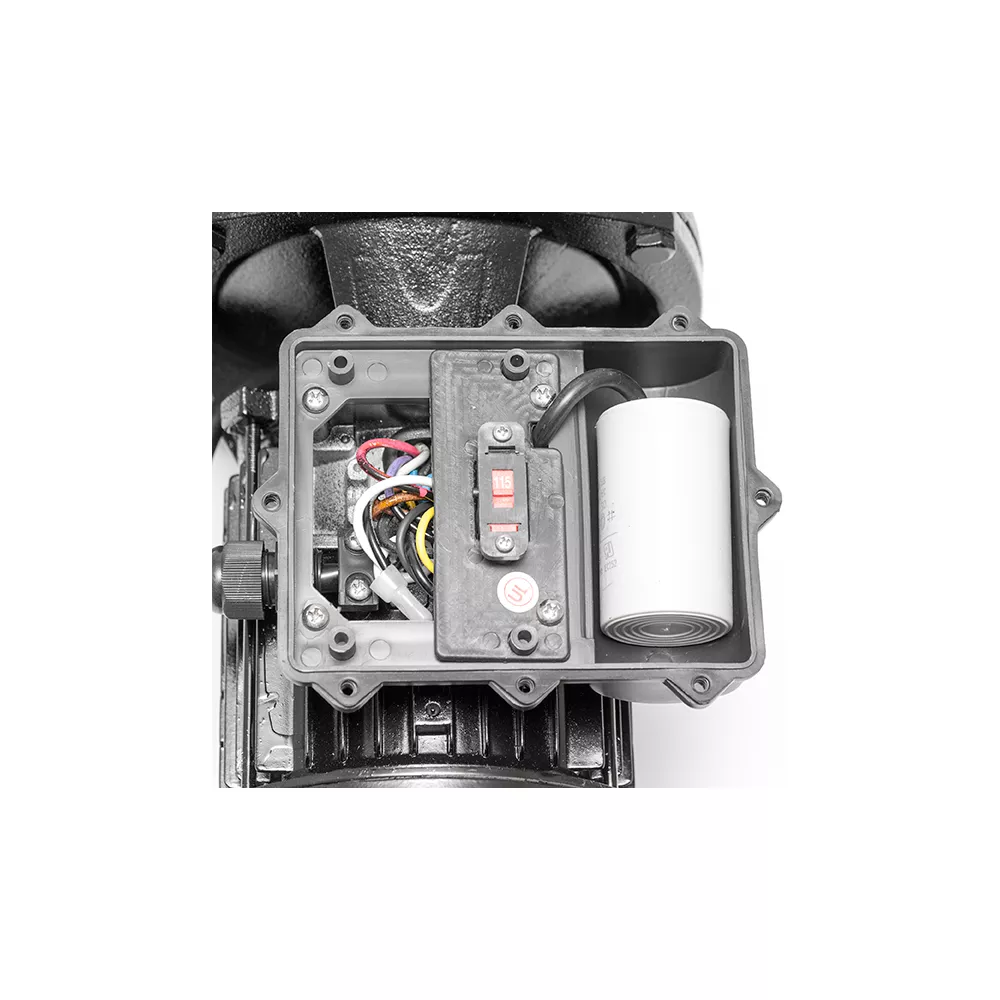

- Continuous duty, thermally protected split capacitor motor
- Includes three piece ejector kit
- Prop 65: Vinyl chloride chemical not found in water delivery system
Top Pump 1/2 HP 115/230 V 1.25 in Convertible Electric Jet Pump 9.9 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps
| Specification | Description |
|---|---|
| Brand | Superior Pump |
| Country of Origin | Imported |
| Amperage | 6.43.2 |
| Body Material | Cast iron |
| Compatible Pipe Material | ABS |
| Compatible Well Diameter | 1.5 in. or larger |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. NPT |
| Discharge Rate at 0 ft. | 7 ft. |
| Discharge Rate at 25 ft. | 228 GPH |
| Discharge Rate at 50 ft. | 48 GPH |
| Features | 1/2 HP dual voltage motor (115/230v), Rugged cast iron pump body for durability, Tough thermoplastic impeller, Glass filled thermoplastic diffuser, Cast iron seal plate, Pre-mounted, fully adjustable pressure switch For shallow well applications |
| Horsepower | 0.5 HP |
| Impeller Material | Thermolplastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1-14 in. |
| Maximum Flow Rate | 9.9 gpm |
| Maximum Head Lift | 50 ft. |
| Maximum Operating Depth | 50 ft. |
| Maximum Operating Temperature | 90 deg. |
| Minimum Operating Temperature | 32 deg. |
| Power Type | Electric |
| Product Height | 8 in. |
| Product Length | 16 in. |
| Product Weight | 32.5 lb. |
| Product Width | 10-12 in. |
| Motor Type | Centrifugal |
| Voltage | 115V230V |
| Warranty | 3 Year Limited |
| Manufacturer PartNumber | 94515 |
