Torin Big Red Welded Hydraulic Bottle Jack 12 Ton Red Bottle Jacks Automotive Tools & Shop Equipment

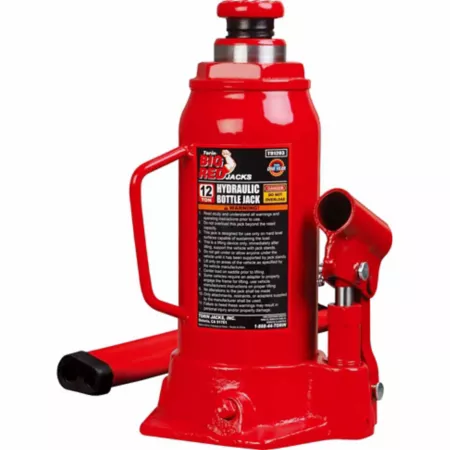

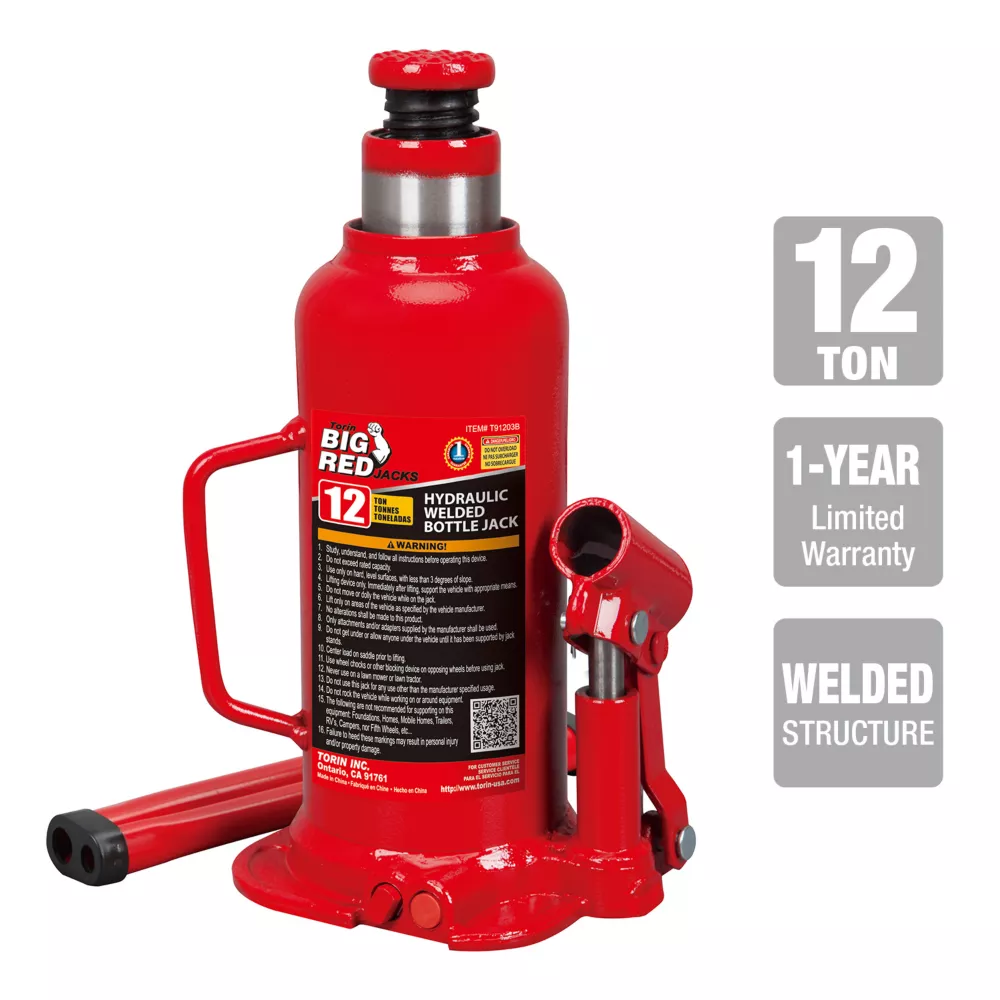

The Torin Big Red 12-Ton Hydraulic Welded Bottle Jack is engineered using a drop forged alloyed steel construction that will keep the fully welded structure leak free is designed for hard-hitting commercial use, making large loads easy to lift. The lightweight bottle jack is ideal for lifting farm vehicles, heavy-duty machinery, industrial construction equipment and more. This powerful hydraulic welded jack has a high-quality glide-action pressure pump designed to lift with minimal muscle and effort. The robotically welded inner/outer structure and drop forged steel construction will keep your jack leak free and will give an overall stronger build. An integrated built-in oil-bypass and overload valve protects the hydraulic system from extending beyond its travel limits. The treated cylinder rams give this bottle jack a longer lasting seal life for increased performance. Great for military applications, agricultural and industrial atmospheres, where equipment receives heavier abuse. This unit is 100% factory tested for reliability and safety to meet ASME safety standards.

Great for use at home and in the shop
Lifting Capacity: 24,000 lb.
All critical stress points on the welded bottle jack are reinforced for added durability and dependability
Integrated bypass and overload valves
Lead-free paint is applied to the bottle jack after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy cleanup
High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
Piston-ram is treated, hardened, and polished to resist skiving
Piston-ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift

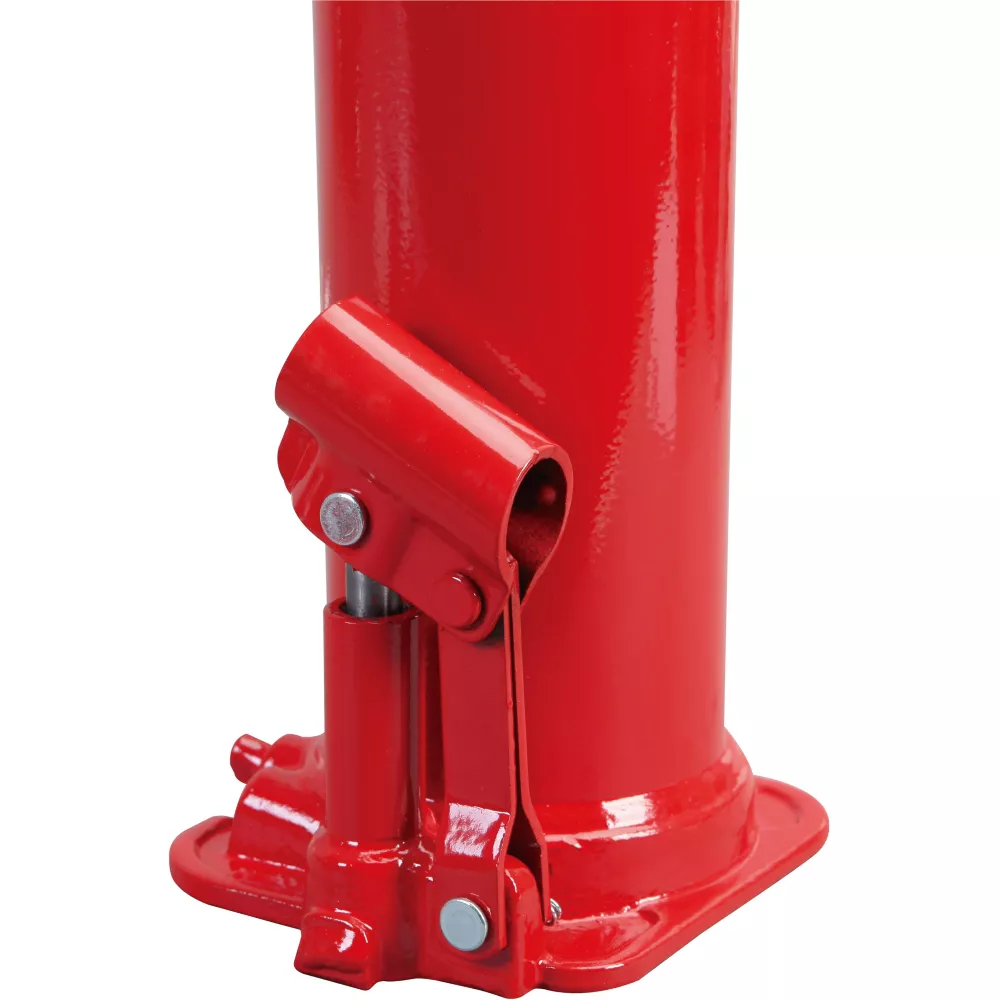

Hydraulic pump is constructed of drop forged steel which has a higher strength than other types of iron resulting in greater durability
Hydraulics are powered with a high-quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40 degrees F and 105 degrees F
Knurled heat-treated pad with extension screw height adjustment for versatility
Lifting handle is sectional and connects quickly making storage easier
Convenient steel carrying handle makes it easy to transport the hydraulic welded bottle jack
Wide, rugged base of the bottle jack adds stability and strength
Built-in ISO certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector
Meets and complies with ASME safety standards
What's Included: one jack, one handle and one manual
Heat treated extension screw allows low pickup height adjustment and maximum lift height

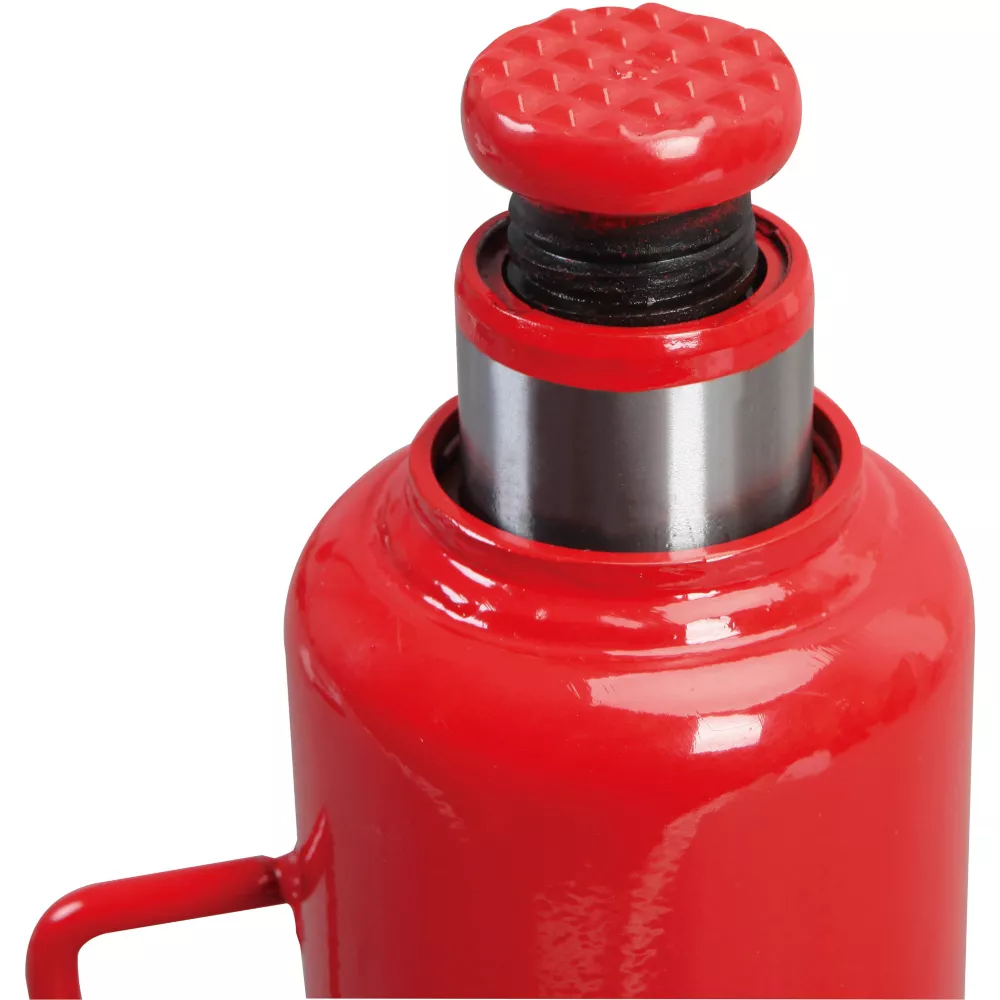

Serrated, heat treated saddle provides generous lifting area and secure grip
1 year limited warranty

Torin Big Red Welded Hydraulic Bottle Jack 12 Ton Red Bottle Jacks Truck & Automotive> Garage & Shop Equipment> Automotive Tools & Shop Equipment> Jacks, Lifts, & Engine Hoists> Jacks & Stands> Jacks> Bottle Jacks

Specification	Description
Brand	Torin
Country of Origin	Imported
Base Length	6-1/2 in.
Base Width	10-7/16 in.
Features	Features a lifting range of 9 in. to 18 in. with a 12 ton (24,000 lb.) capacity; Adjustable screw top extension adds versatility
Hoist Lift Height	5.91 in
Hoist Weight Capacity	24000 lb
Length Of Stroke	9 in.
Mechanism Type	Hydraulic
Minimum Lift Height	9 in.
Package Quantity	1
Primary Color	Red
Primary Material	Steel
Product Height	9 in.
Product Length	6-1/2 in.
Product Weight	14.33 lb.
Product Width	10-7/16 in.
Warranty	1 Year Limited
Manufacturer PartNumber	T91203B

Torin 12-Ton Big Red Hydraulic Welded Bottle Jack, Red Specifications expand/collapse Specification Description Brand Torin Country of Origin Imported Base Length 6-1/2 in. Base width 10-7/16 in. Features Includes a lifting range of 9 in. to 18 in. with a weight capacity of 12 tons (24,000 lb.); Adjustable screw top extension adds versatility Hoist lifting height 5.91 in. Hoist weight capacity 24,000 lb. Stroke length 9 in. Mechanism type Hydraulic Minimum lifting height 9 in. Package Quantity 1 Primary Color Red Main Material Steel Product Height 9 in. Product length 6-1/2 in. Product weight 14.33 lbs. Product width 10-7/16 in. 1 Year Limited Warranty Manufacturer Part Number T91203B
