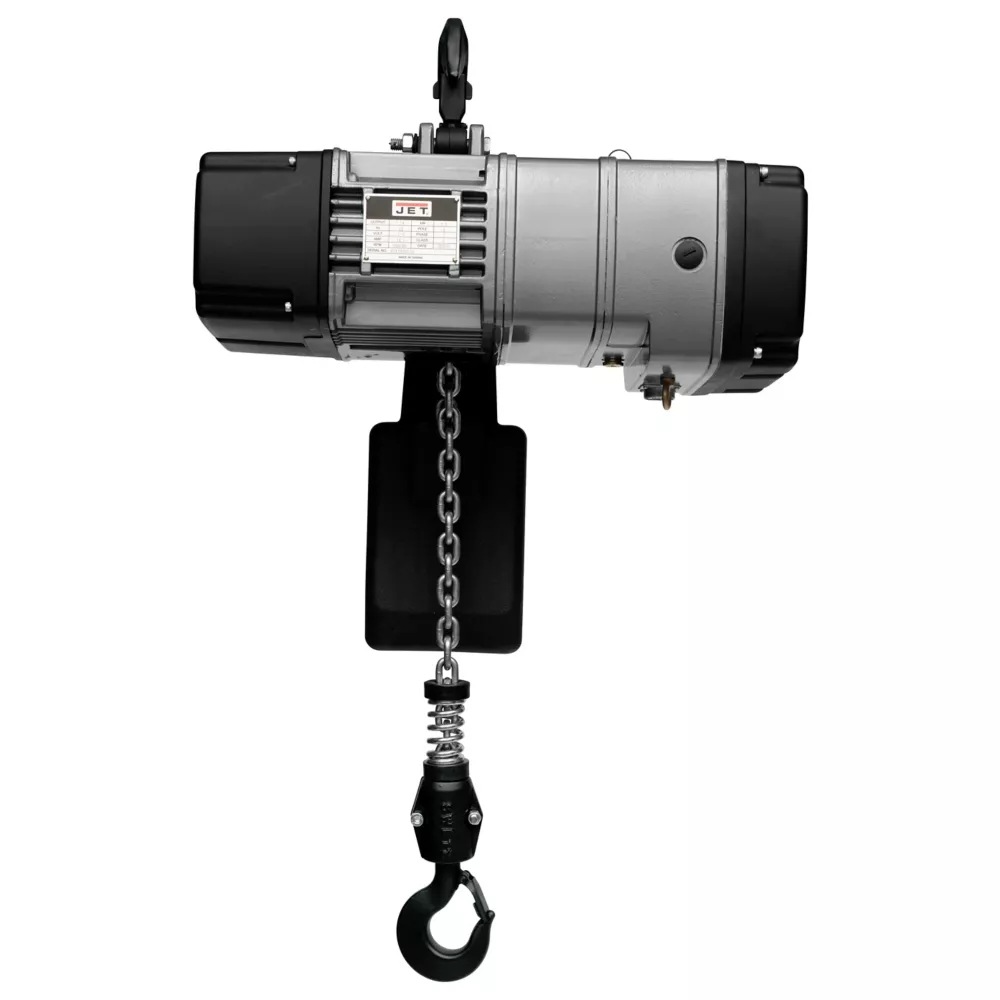

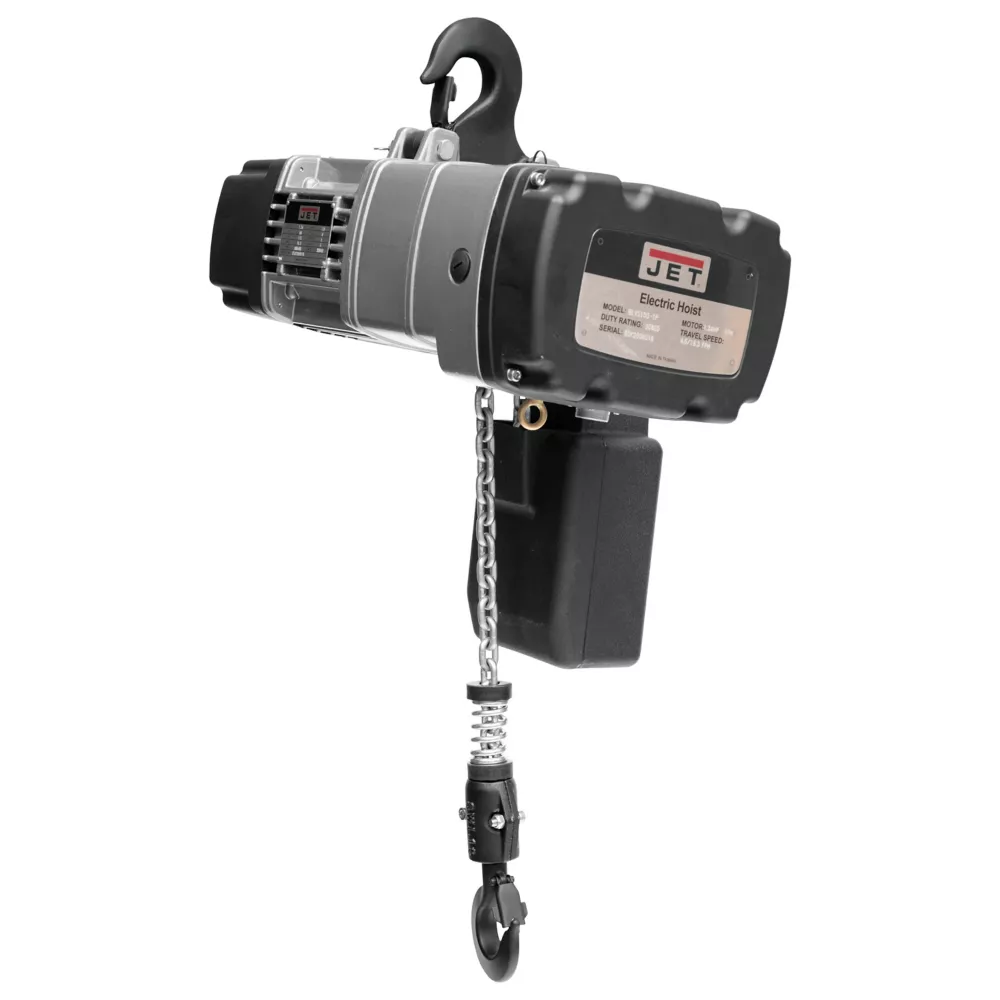

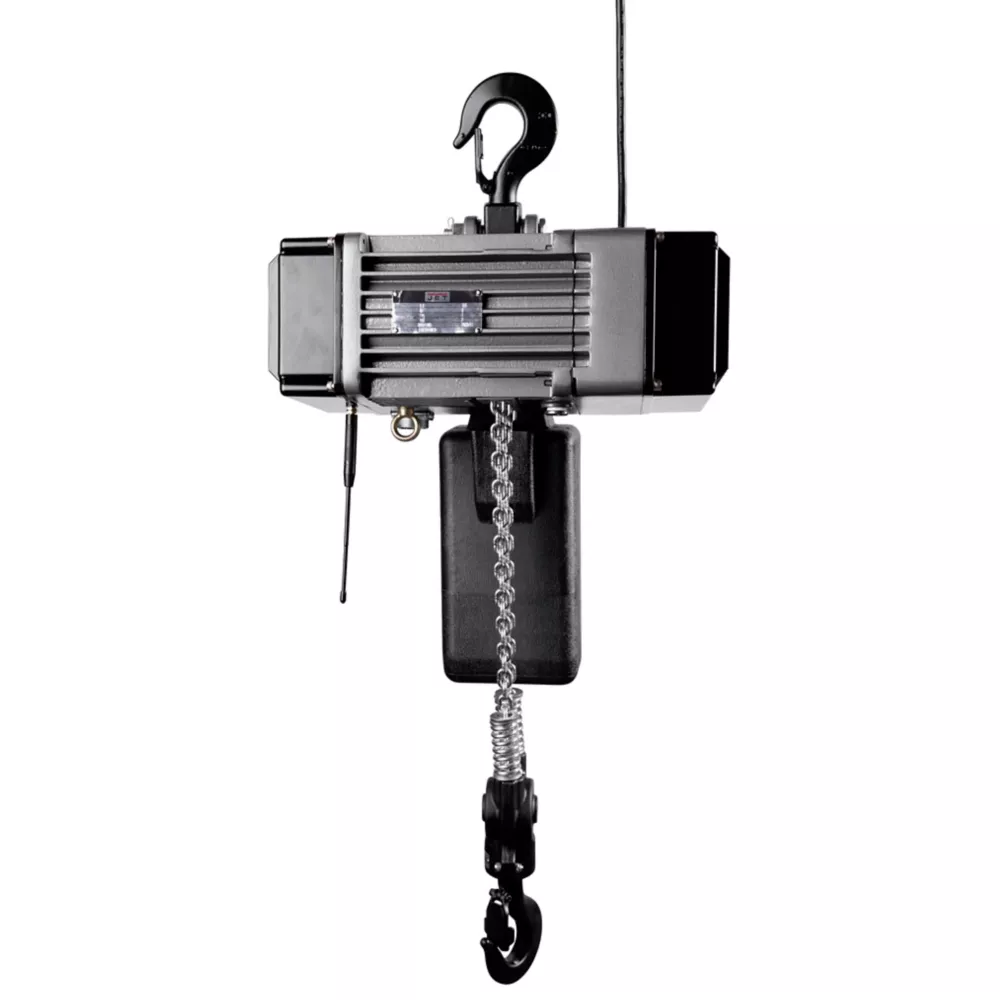

Trademaster JET Electric Chain Hoist 1/4 Ton Single Phase 20 Feet Lift Electric Hoists Ceiling Hoists

JET Trademaster Series electric hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. with its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. with the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster Series comes in 1/8Ton to 2Ton capacities and standard lifts of 10 and 20ft. (custom lifts up to 100ft are available)

1/8 to 1/2 ton models come in plastic carry case for exceptional mobility
30 / 7.5 Time ratings
Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4ft/min with speed dial and max of 41ft/min in high speed
DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs
Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting
Low noise at less than 75 dBA
Overload protection using slip clutch system to protect hoist from loads over rated capacities
Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp.
TAA Approved

2 year

Trademaster JET Electric Chain Hoist 1/4 Ton Single Phase 20 Feet Lift Electric Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Electric Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Amperage	10A
Features	Brushless
Full Load Lifting Speed	41 FPM
Horsepower	0.8 HP
Lift Assist Ratio	0
Lift Height	20 ft.
Maximum Pull Length	20 ft.
Maximum Weight Capacity	500 lb.
Phase	Single
Primary Material	Steel
Product Height	16.500 in.
Product Length	19.300 in.
Product Weight	47 lb.
Product Width	8.700 in.
Voltage	120V
Warranty	2 Year
Manufacturer PartNumber	104013

JET 1/4 Ton Trademaster Electric Chain Hoist, 1 Phase, 20 ft. Lift Specifications expand/collapse Specification Description Brand JET Country of Origin Imported Amperage 10A Features Brushless Full Load Lift Speed 41 FPM Power 0.8 HP Lift Assist Ratio 0 Lift Height 20 Feet Maximum Pull Length 20 Feet Capacity maximum weight 500 lbs Phase Single main material Product height steel 16,500 in. Product length 19,300 in. Product weight 47 lbs. Product width 8,700 in. Voltage 120 V Warranty 2 years Manufacturer part number 104013
