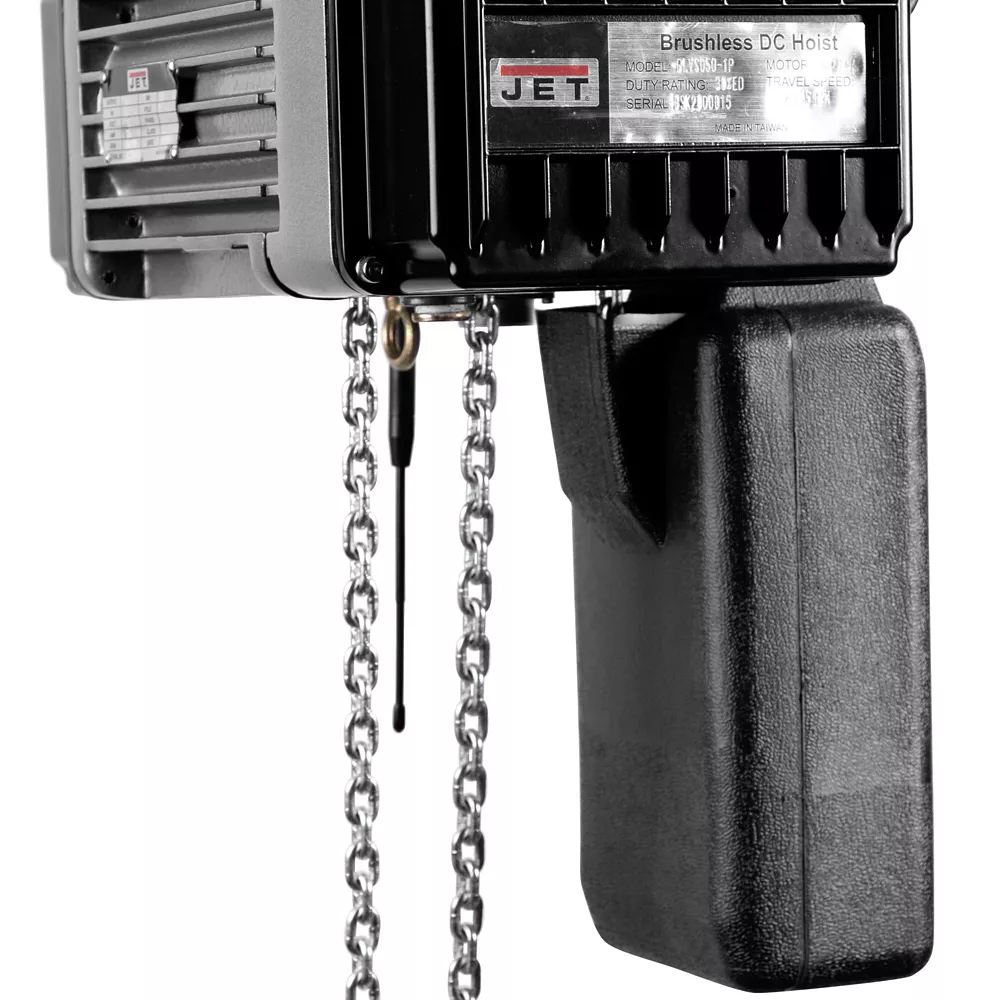

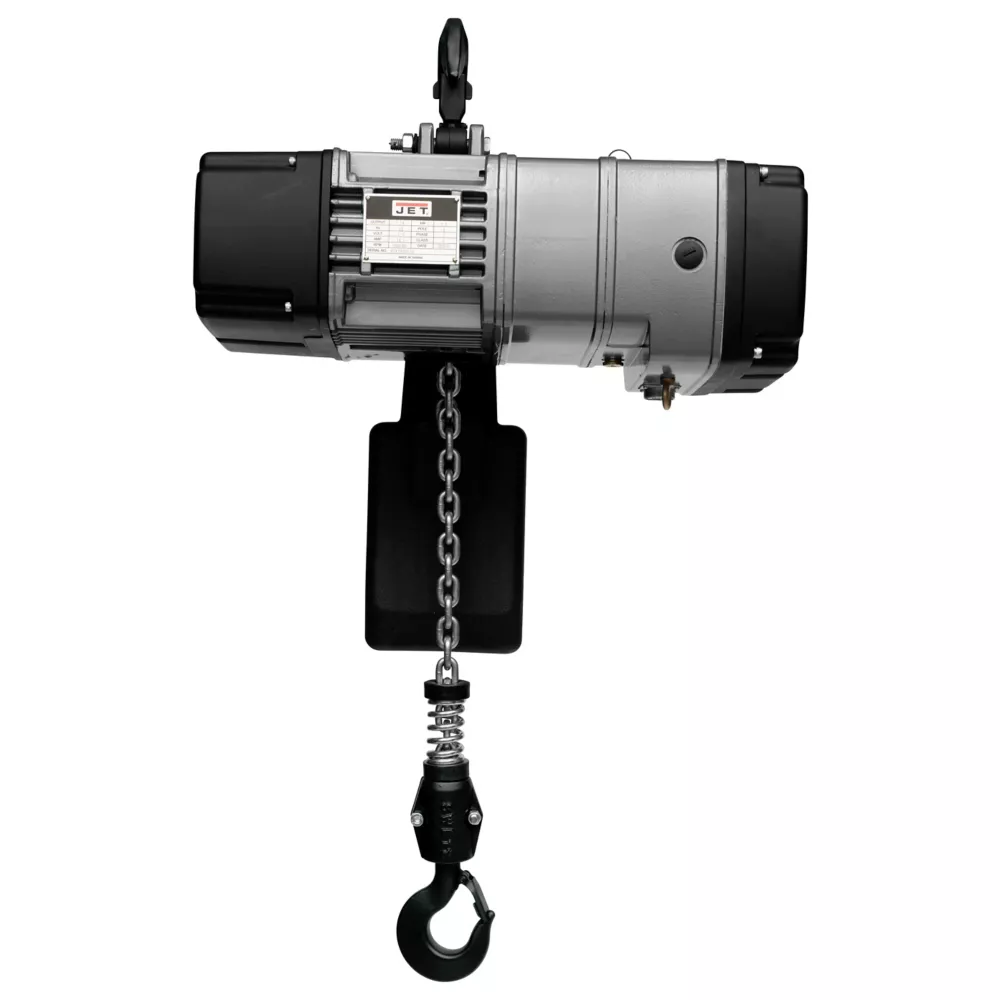

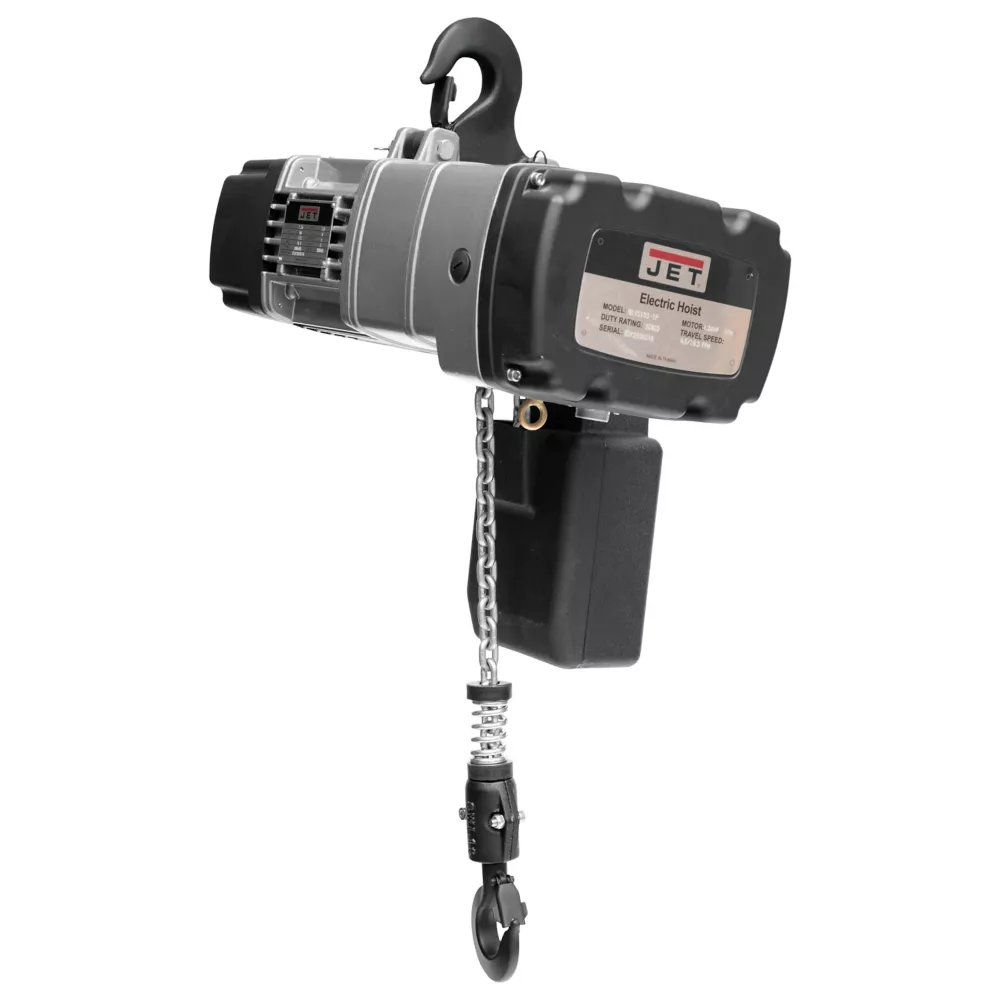

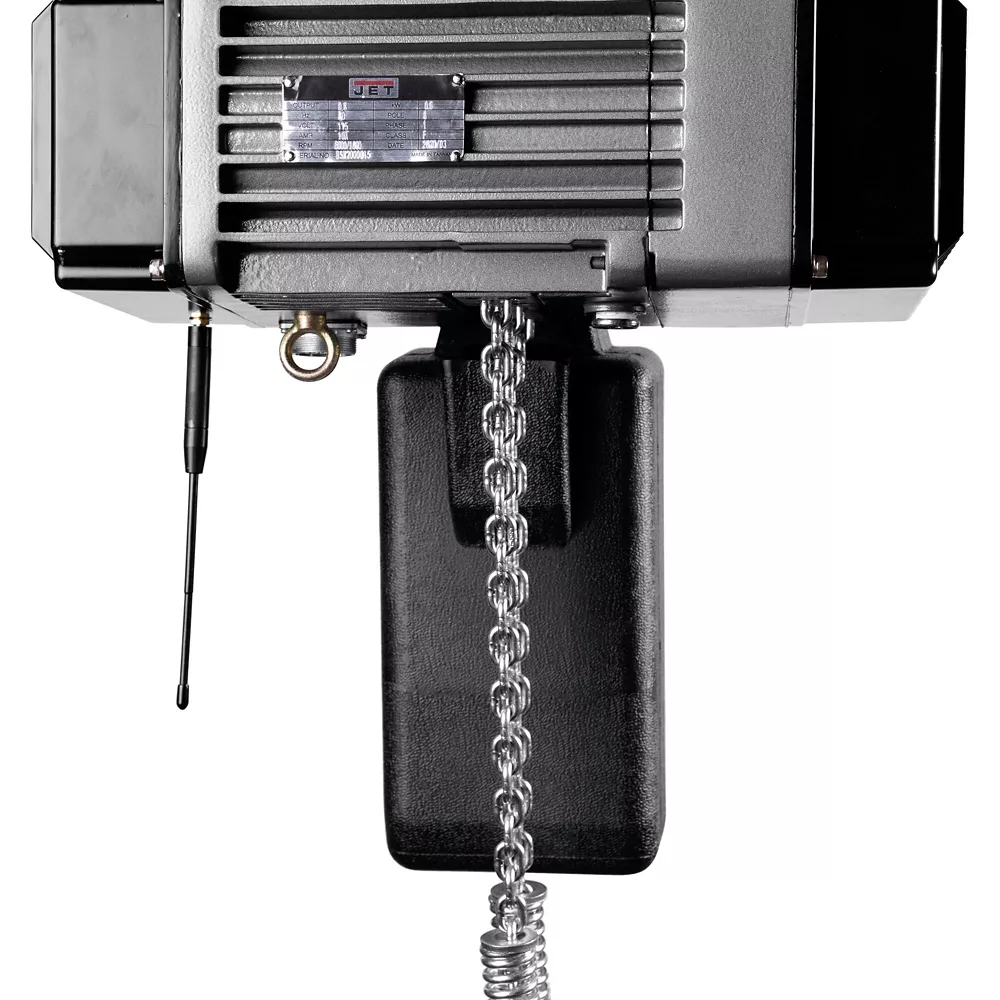

Trademaster JET Electric Chain Hoist 1/8 Ton Single Phase 10 Feet Lift Electric Hoists Ceiling Hoists

JET Trademaster Series electric hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. with its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. with the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster Series comes in 1/8Ton to 1/2Ton capacities and standard lifts of 10 and 20ft. (custom lifts up to 100ft are available)

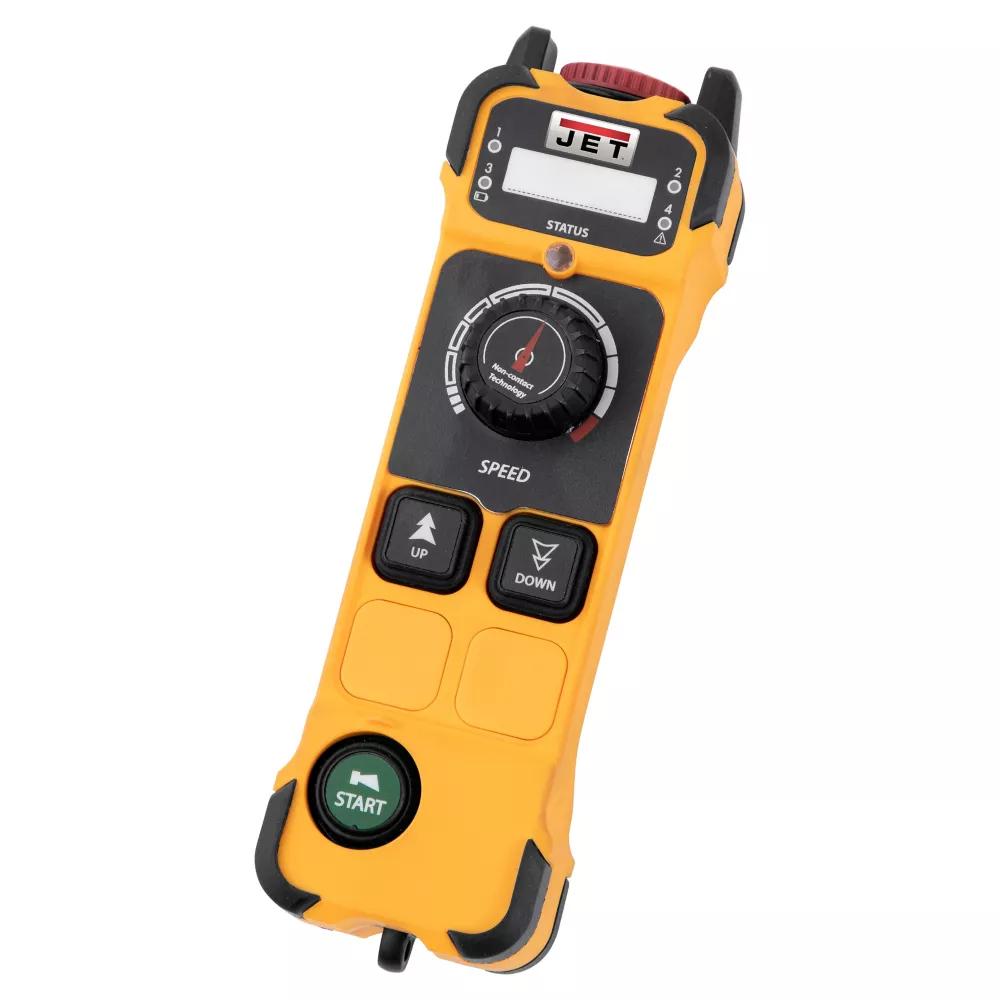

Comes standard with Wireless Transmitter that can can infinitely adjust speed from creep to 5.3ft/min with speed dial and a max of 21ft/min in high speed
Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp.
Overload protection using slip clutch system to protect hoist from loads over rated capacities
DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs
Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting

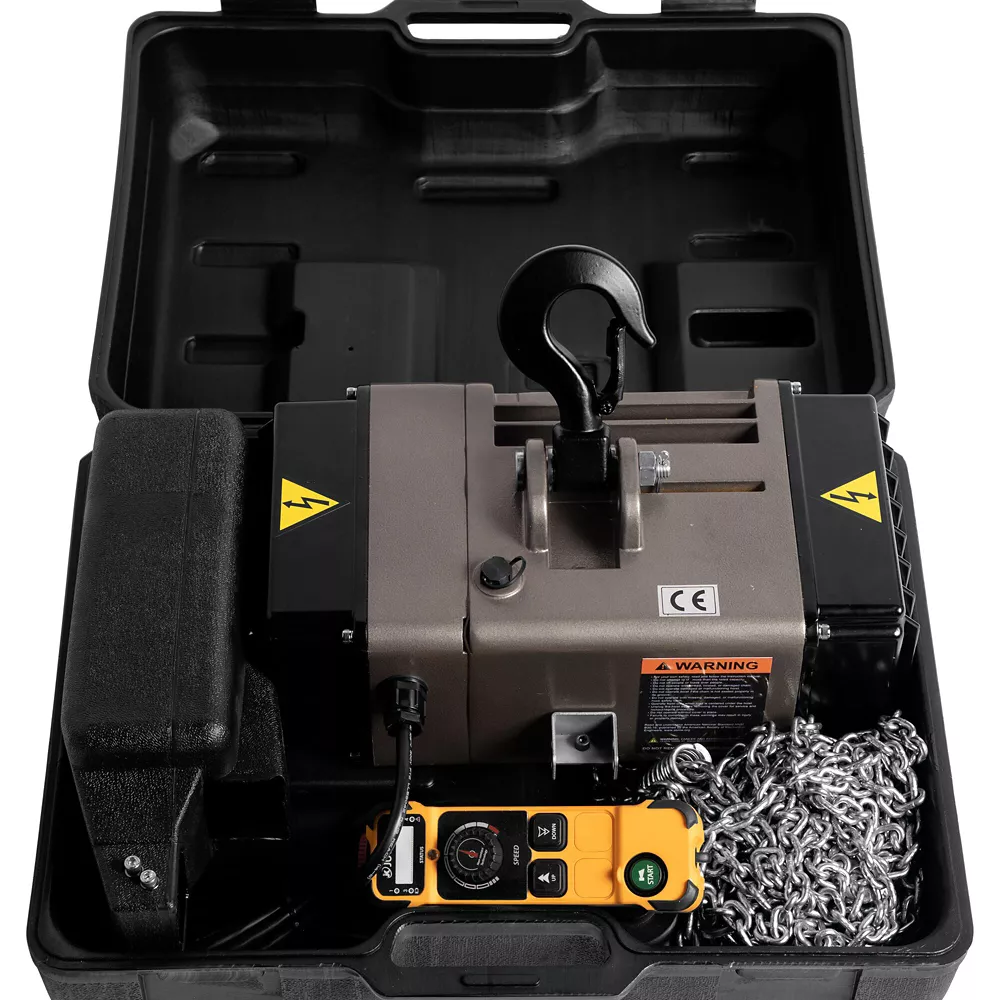

1/8 to 1/2 ton models come in plastic carry case for exceptional mobility
Low noise at less than 75 dBA

Trademaster JET Electric Chain Hoist 1/8 Ton Single Phase 10 Feet Lift Electric Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Electric Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Amperage	10A
Chain Length	0 in.
Chain Width	0 in.
Features	Brushless
Full Load Lifting Speed	21 FPM
Full Load Lowering Speed	15FPM
Hoist Mount Type	Hook mount
Number Of Speeds	Variable
Horsepower	0.4 HP
Lift Assist Ratio	0
Lift Height	10 ft.
Lift Mechanism	Other
Maximum Pull Length	10 ft.
Maximum Weight Capacity	500 lb.
Phase	Single
Primary Material	Steel
Product Height	16.500 in.
Product Length	19.300 in.
Product Weight	36 lb.
Product Width	8.700 in.
Voltage	120V
Warranty	2 Year
Manufacturer PartNumber	104000

JET 1/8 Ton Trademaster Electric Chain Hoist, 1 Phase, 10 ft. Lift Specifications expand/collapse Specification Description Brand JET Country of Origin Imported Amperage 10A Chain Length 0" Chain Width 0" Features Brushless Full Load Lift Speed 21 FPM Full Load Lower Speed 15 FPM Mounting Type on hoist Hook mounting Number of speeds Variable power 0.4 HP Lifting Assist ratio 0 Lifting height 10 ft. Lifting Mechanism Other Maximum Pull Length 10 ft. Maximum weight capacity 500 lbs. Primary monomaterial phase Steel Product height 16,500 in. Product length 19,300 in. Product weight 36 lbs. Product width 8,700 in. Voltage 120 V Warranty 2 years Manufacturer part number 104000
