Trailer Jack 5 000 lb Capacity Side Trailer Crank Jack TVJX5-S Trailer Jacks Trailer Jacks

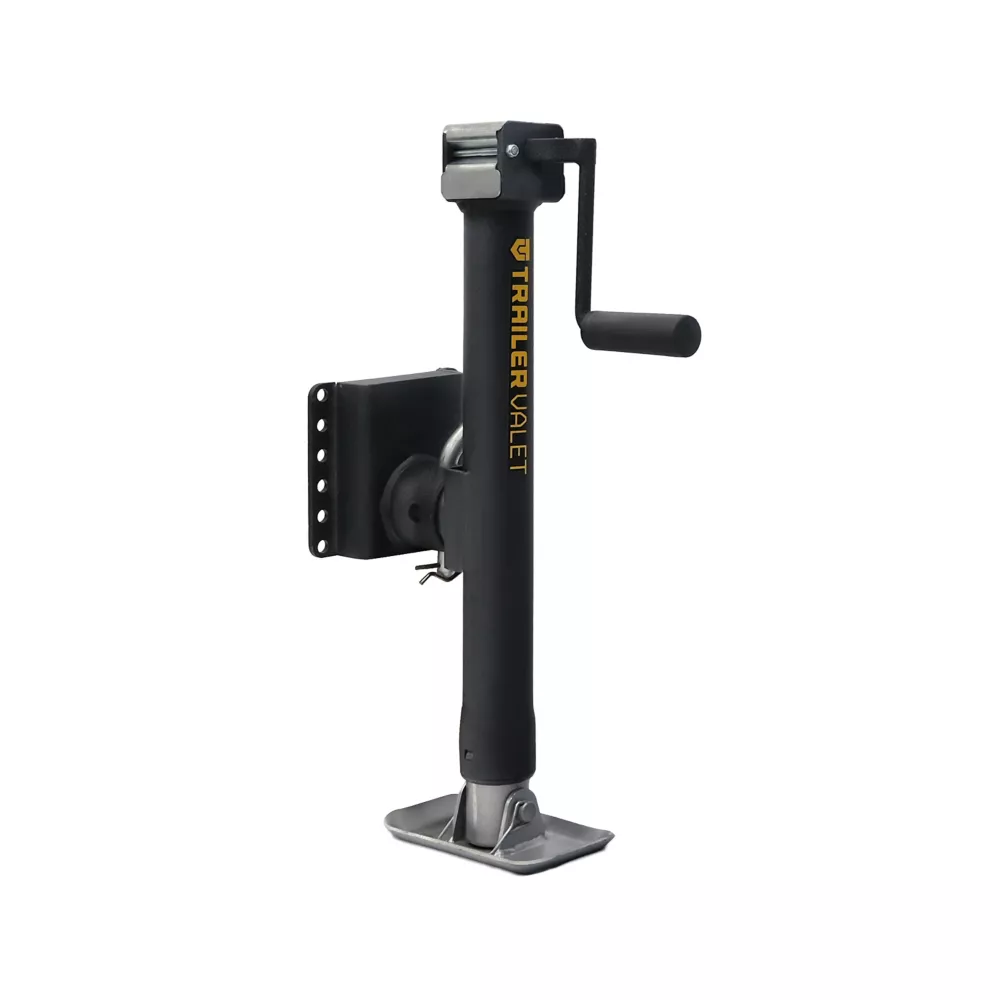

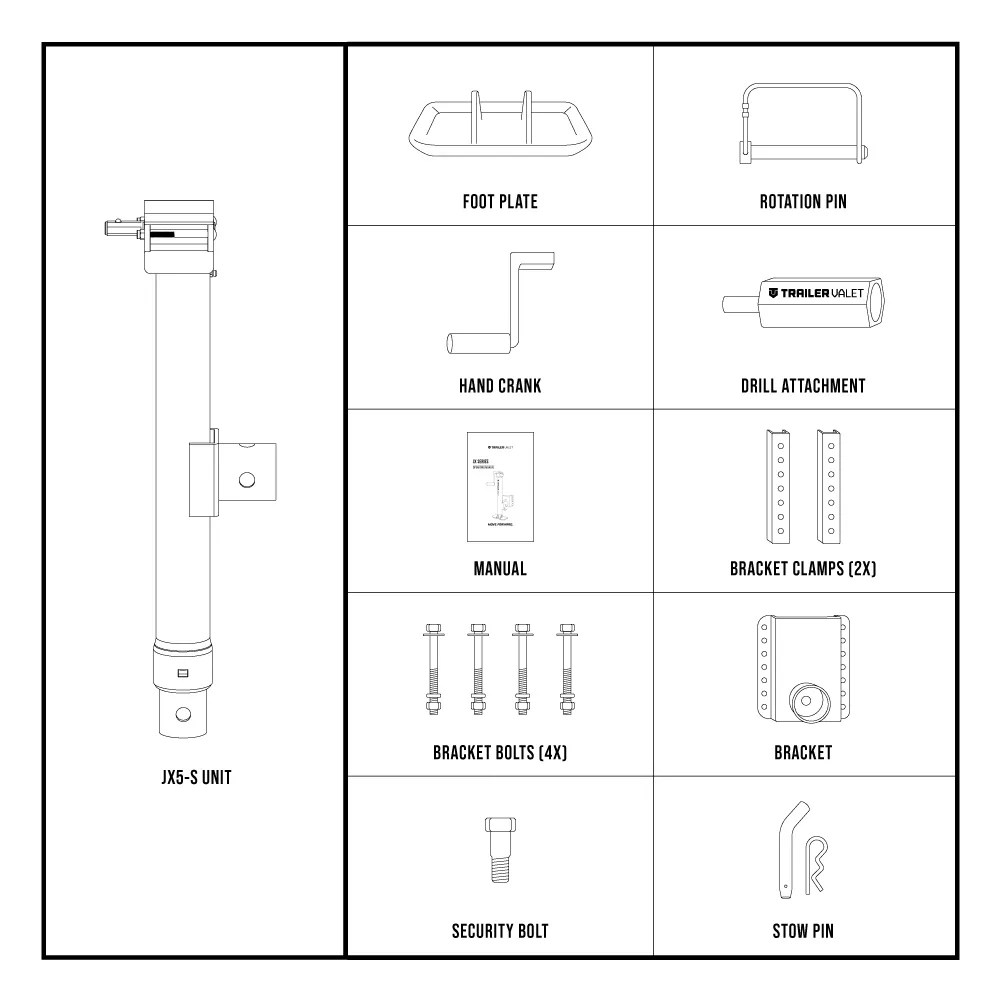

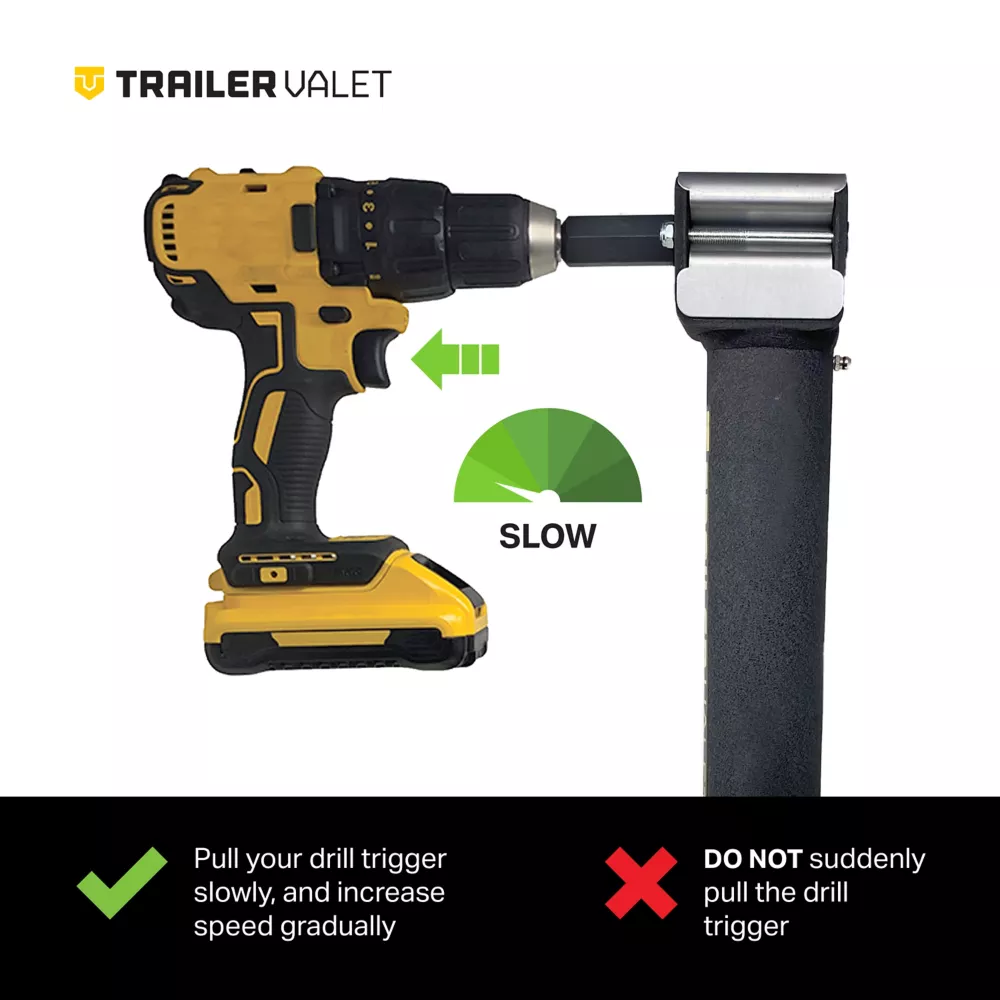

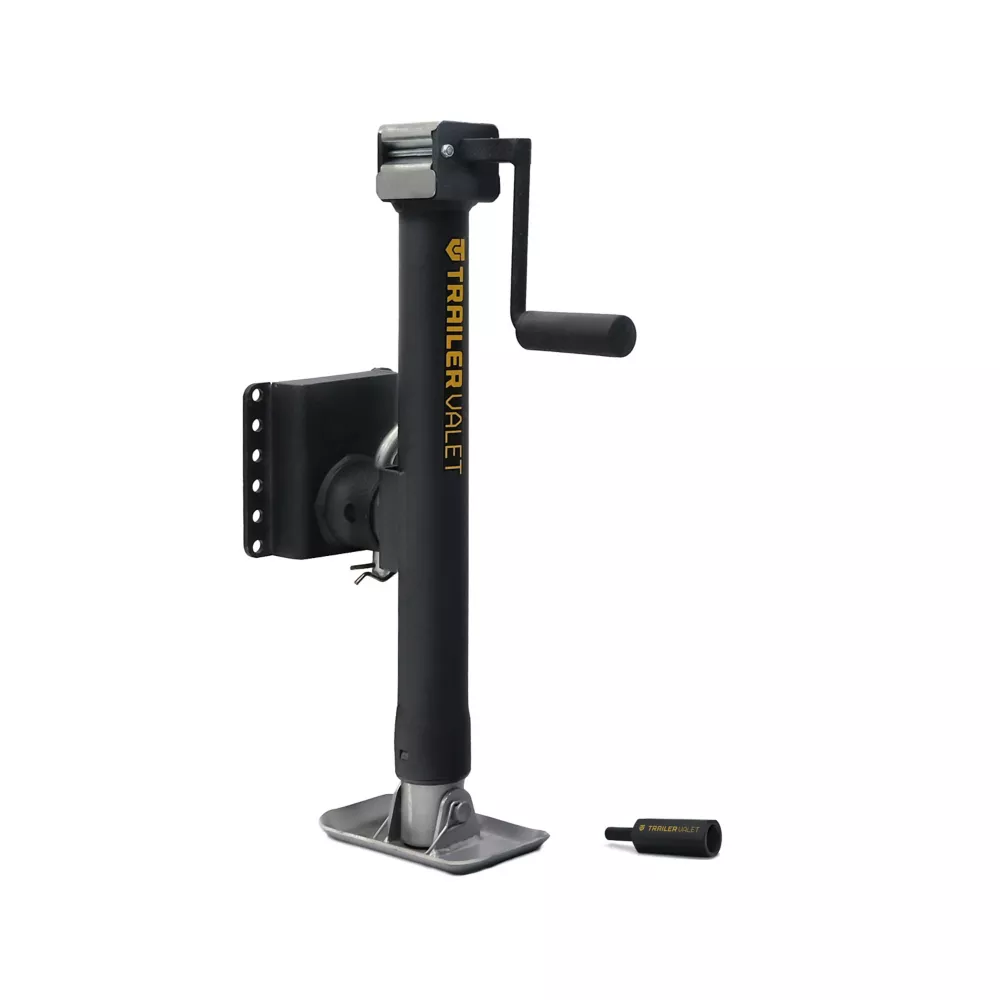

The Trailer Valet JX 5K Side is a manual hand-crank jack that has the versatility and capability to be powered by any 20-24V compact drill with the Trailer Valet Drill Attachment. It has a 5,000 lb static capacity and a lift capacity of 1,600 lbs (800 lbs with a drill). Its patented gear material composition delivers maximum efficiency while reducing heat retention. We've built in a sleeve fitting to offer the ultimate protection while ensuring a smooth glide every time. The JX 5K Side comes with a pipe mount bracket, weather resistant shield protection, and is topped with our signature wrinkle black powder coating so that you can go further, longer. It's time to MOVE FORWARD and replace the standard jack on your trailer! Power it up and save time, effort, and hassle and get to what you love most. Comes standard with foot plate and Trailer Valet Drill Attachment. JX Wheel attachment sold separately. NOTE: Using the Wheel Attachment instead of the Footplate reduces the static weight capacity to 1,200 lbs.- Includes Trailer Valet Drill Attachment, footplate and hand crank
- Zinc-rich coating, nickel plating and wrinkle black powder-coating finish for durability
- Patented Trailer Valet Gear System (12:16 ratio)
- Patented gear material composition delivers maximum efficiency while reducing heat retention
- Weather-resistant shield protection and protective sleeve to ensure smooth glide every time
- Hand crank jack with 5,000 lb. weight capacity for heavy-duty use

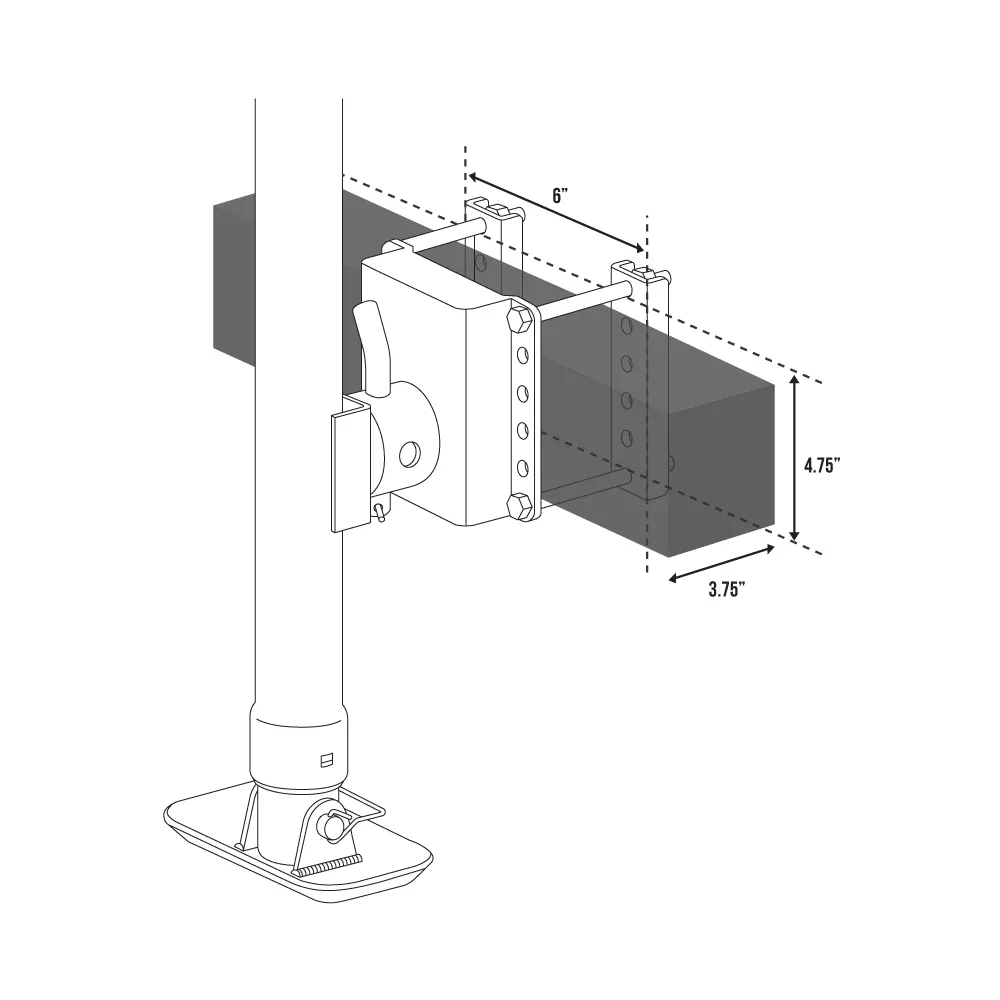

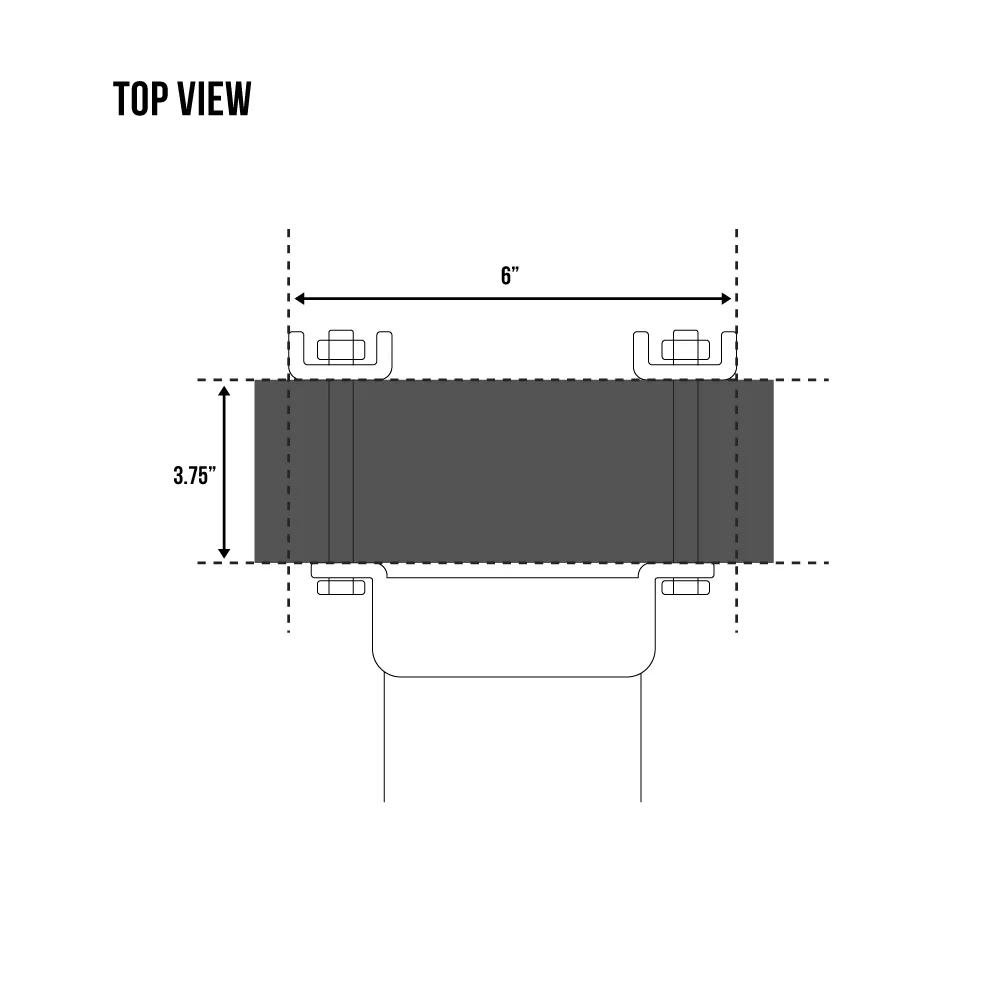

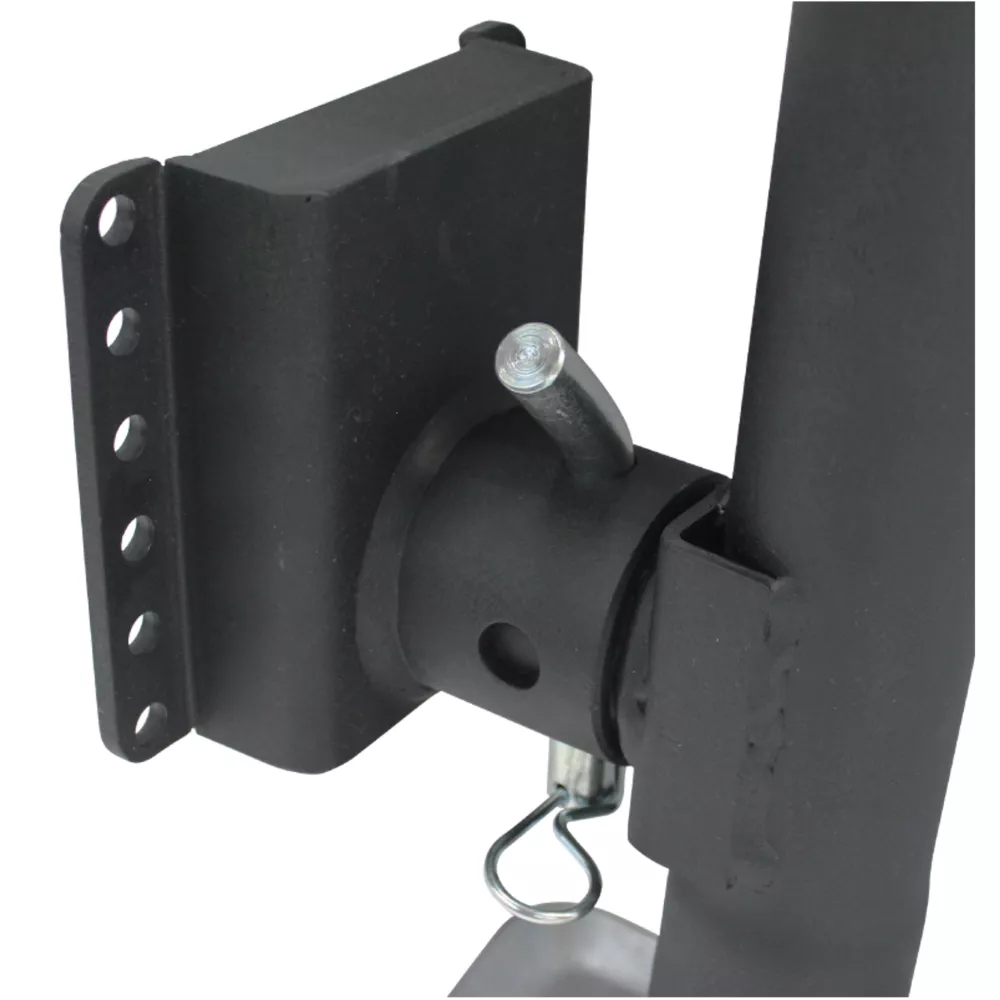

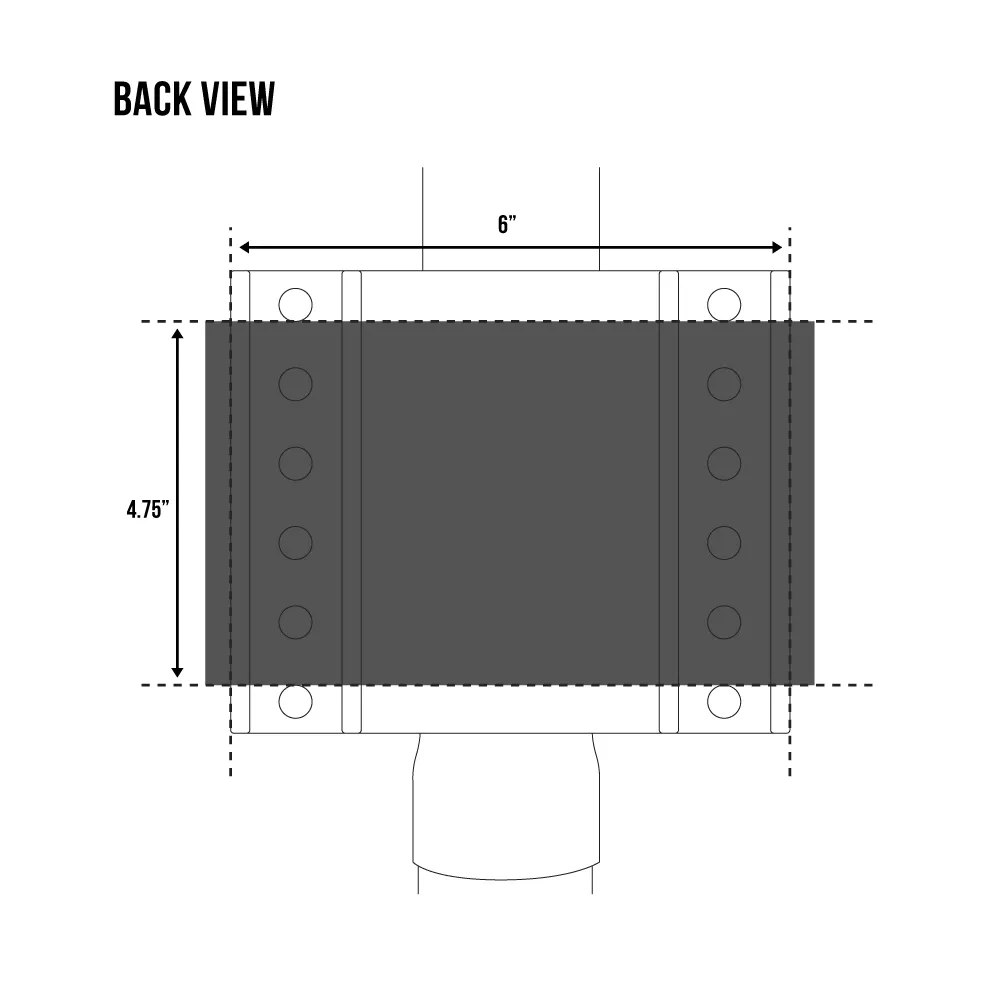

- Pipe mount bracket system with stow pin for easy stow and removal
- Compatible with JX wheel option (TVJXMW) sold separately

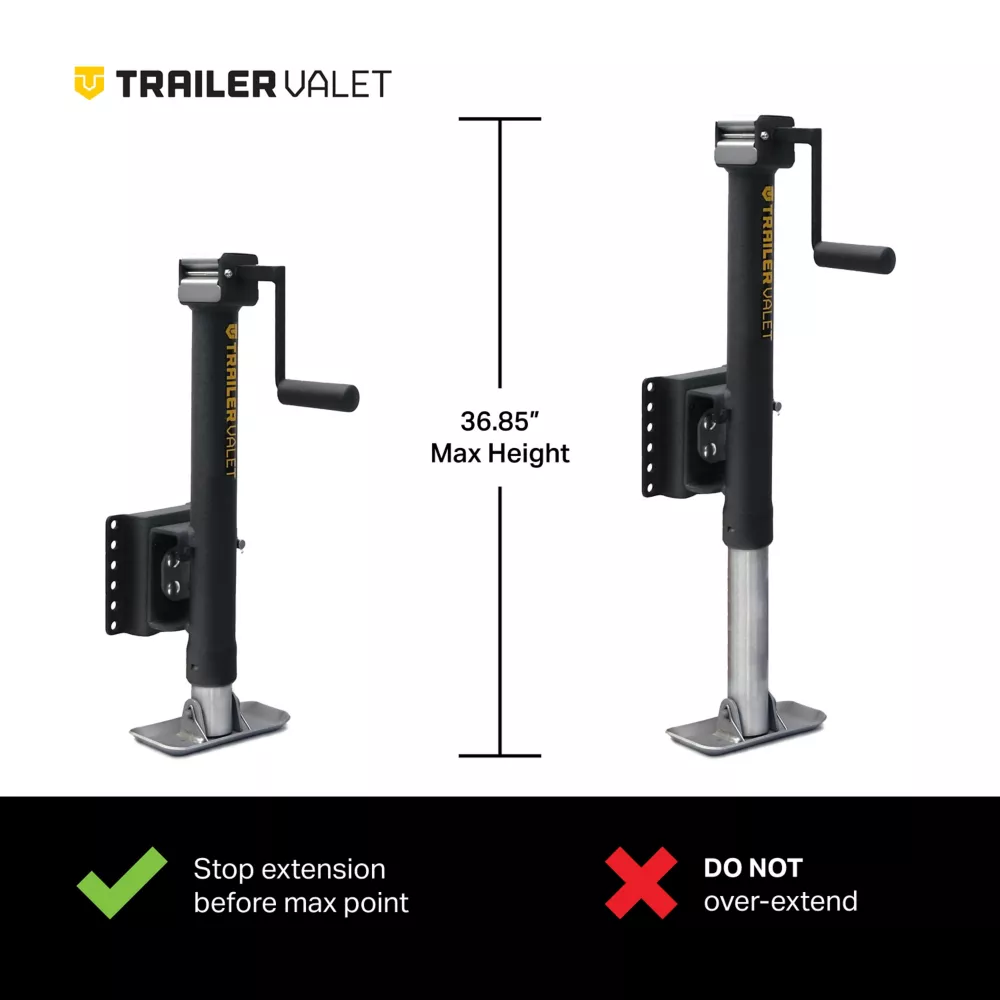

- Retracted height measures 23 in.; extended height measures 37 in.; total travel measures 14 in.
- Outer tube diameter measures 57 mm; inner tube diameter measures 51 mm
- Total trailer lift measures 11.5 in. to 25.5 in.
- Static Capacity (with footplate): 5,000 lbs
- Static Capacity (with wheel): 1,200 lbs
- Lift Capacity: 1,600 lbs
- Lift Capacity w/ Drill: 800 lbs
Trailer Jack 5 000 lb Capacity Side Trailer Crank Jack TVJX5-S Trailer Jacks Trailers & Towing> Trailer Accessories> Trailer Jacks
| Specification | Description |
|---|---|
| Brand | Trailer Valet |
| Country of Origin | Imported |
| Base Type | Foot |
| Compatibility | Trailers with 8 in. of open space on tongue to install |
| Crank Type | Hand |
| Extended Height | 37 in. |
| Features | Drill Powered |
| Handle Length | 9 in. |
| Hoist Lift Height | 36 in |
| Hoist Weight Capacity | 5000 lb |
| Jack Style | Trailer jack |
| Lift Capacity | 5,000 lb. |
| Mechanism Type | Mechanical |
| Mounting Type | Other |
| Power Type | None, Cordless Drill |
| Primary Material | Steel |
| Product Height | 22 in. |
| Product Length | 8 in. |
| Product Weight | 22 lb. |
| Product Width | 8 in. |
| Retracted Height | 23 in. |
| Tube Width | 0 in. |
| Warranty | 1 Year Limited |
| Manufacturer PartNumber | TVJX5-S |
