Trailer Jack 5 000 lb Center Mount Drill Jack TVJX5-C Trailer Jacks Trailer Jacks

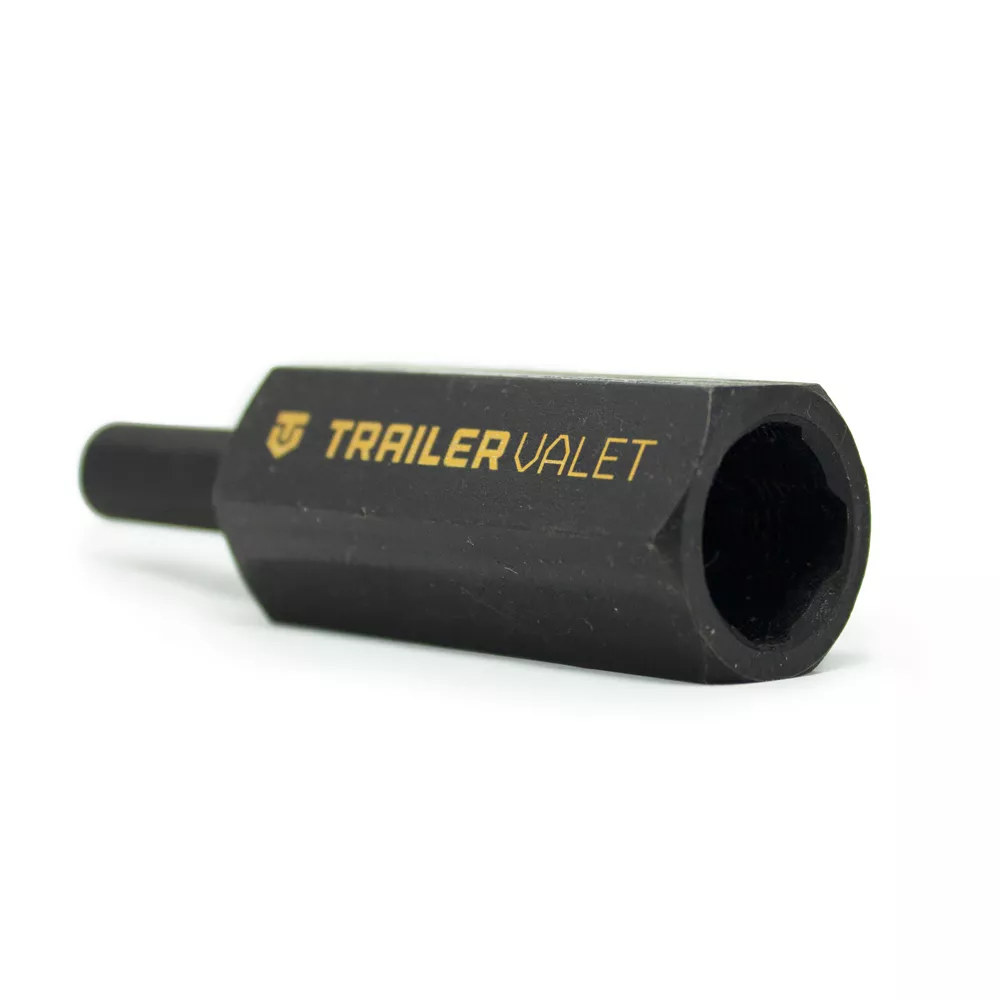

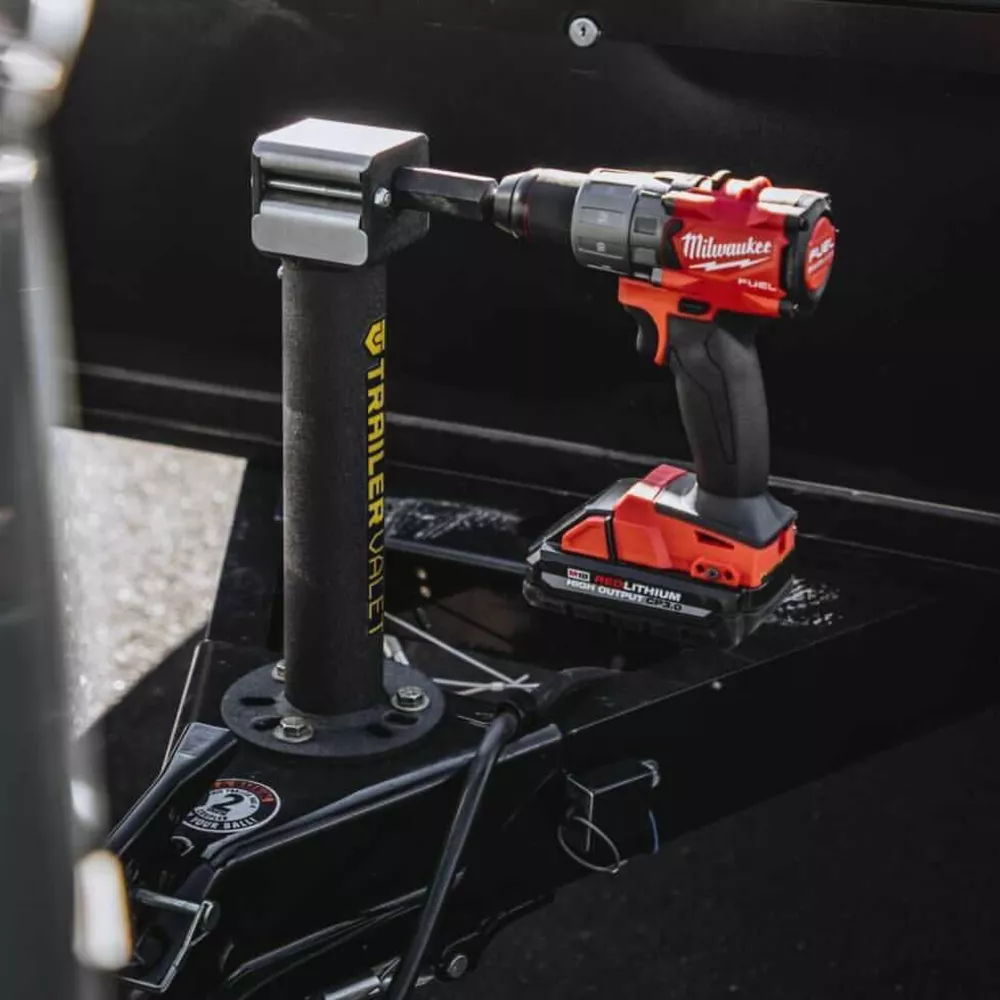

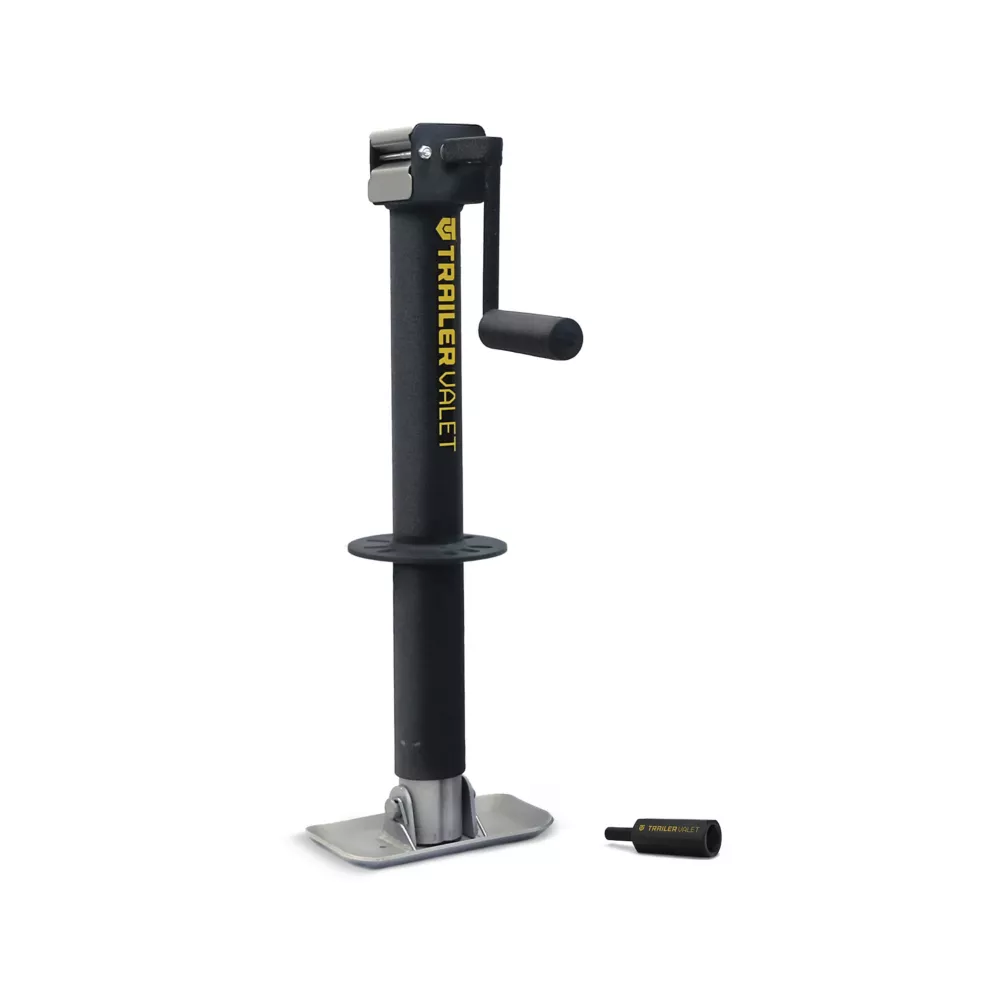

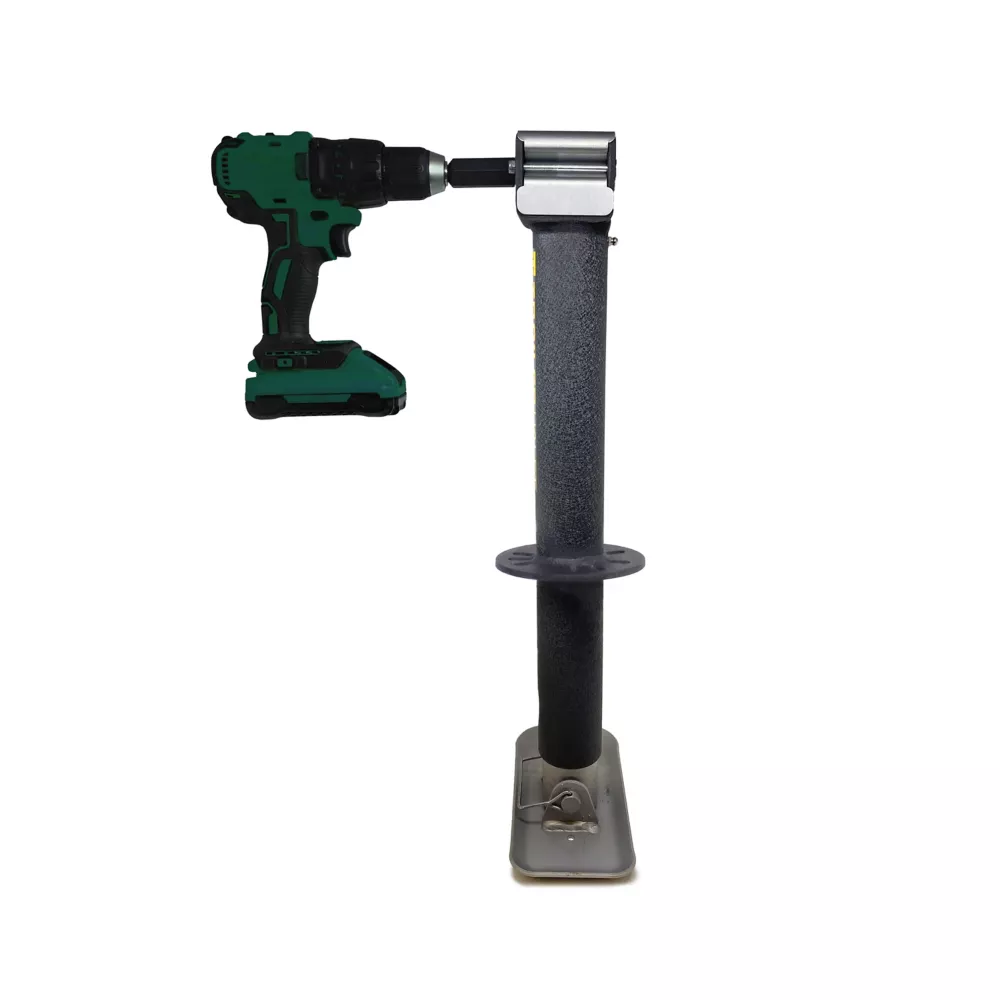

The Trailer Valet 5,000 lb. Center Mount Drill Jack is a manual hand-crank jack that has the versatility and capability to be powered by any 18-24V compact drill with the Trailer Valet Drill Attachment. It has a lift capacity of 5,000 pounds and its patented gear material composition delivers maximum efficiency while reducing heat retention. The center comes with weather-resistant shield protection, and is topped with our signature wrinkle black powder coating so that this durable jack can keep up with even the most demanding jobs. When it's time to replace the standard manual jack on your trailer, this is the ideal drill jack for you! Comes standard with foot plate and a Trailer Valet Drill Attachment.- Trailer jack includes Trailer Valet Drill Attachment (TVDA), footplate, and hand crank
- Zinc-rich coating, nickel plating and finished with our signature wrinkle black powder coating for durability
- Patented Trailer Valet gear system (12:16 Ratio)
- Patented gear material composition delivers maximum efficiency while reducing heat retention
- Weather resistant shield protection
- JX Wheel Attachment sold separately
- Center mount system
- Compatible with JX Wheel option (TVJXMW), sold separately
- Retracted height: 23 inches; Extended height: 37 inches; Total travel: 14 inches
- Inner tube diameter: 51mm
- Outer tube diameter: 57mm
- Clearance (from bottom of bracket to top of jack): 13.5 inches
- Total lift: 5,000 pounds
- 5000 pound lift (static), 5000 pound lift (without drill), 1250 pound lift (with drill)
- 1 year warranty
Trailer Jack 5 000 lb Center Mount Drill Jack TVJX5-C Trailer Jacks Trailers & Towing> Trailer Accessories> Trailer Jacks
| Specification | Description |
|---|---|
| Brand | Trailer Valet |
| Country of Origin | Imported |
| Compatibility | Most Center Mount Trailer Couplers |
| Crank Type | Hand |
| Extended Height | 37 in. |
| Features | Weather-Resistant |
| Hoist Weight Capacity | 5000 lb |
| Jack Style | Drill Jack |
| Lift Capacity | 5,000 lb. |
| Mounting Type | Other |
| Primary Material | Steel |
| Product Height | 22 in. |
| Product Length | 5 in. |
| Product Weight | 14 lb. |
| Product Width | 6 in. |
| Warranty | 1 Year |
| Manufacturer PartNumber | TVJX5-C |
