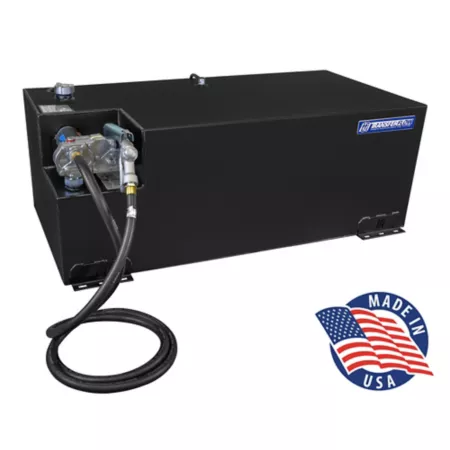

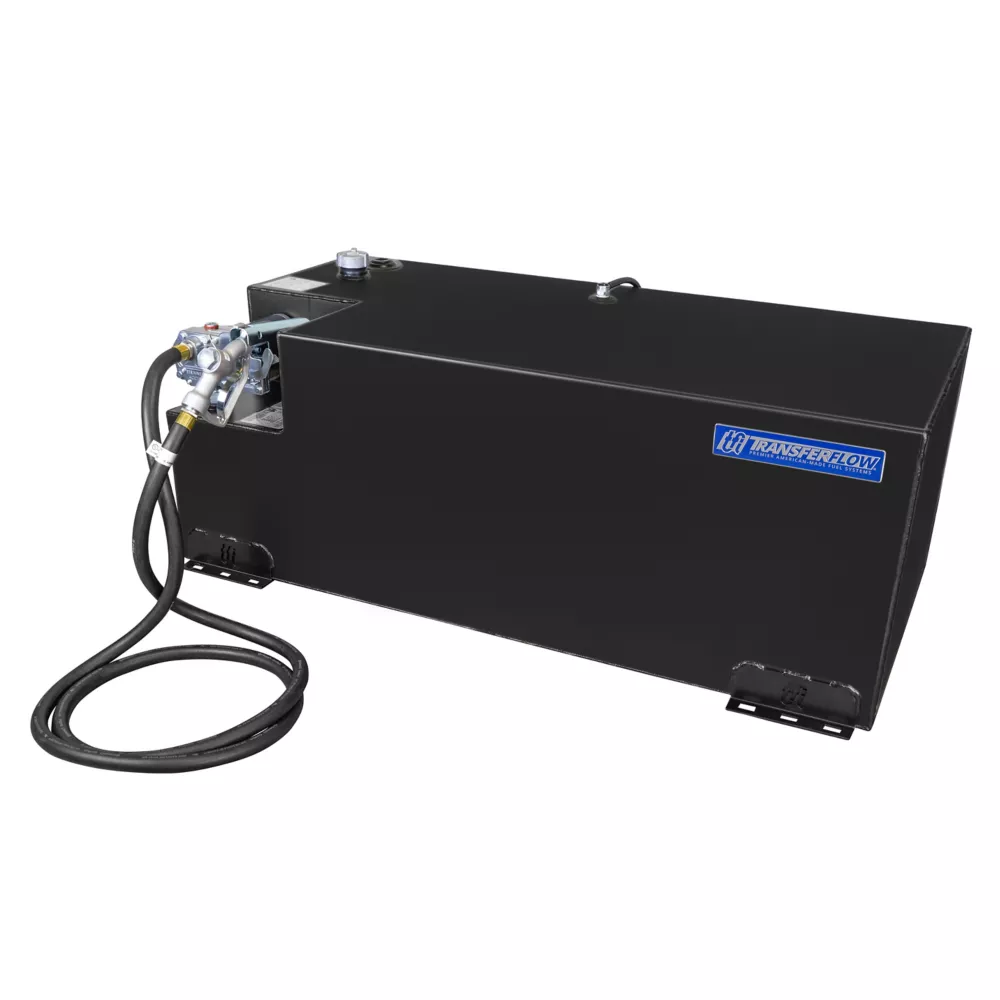

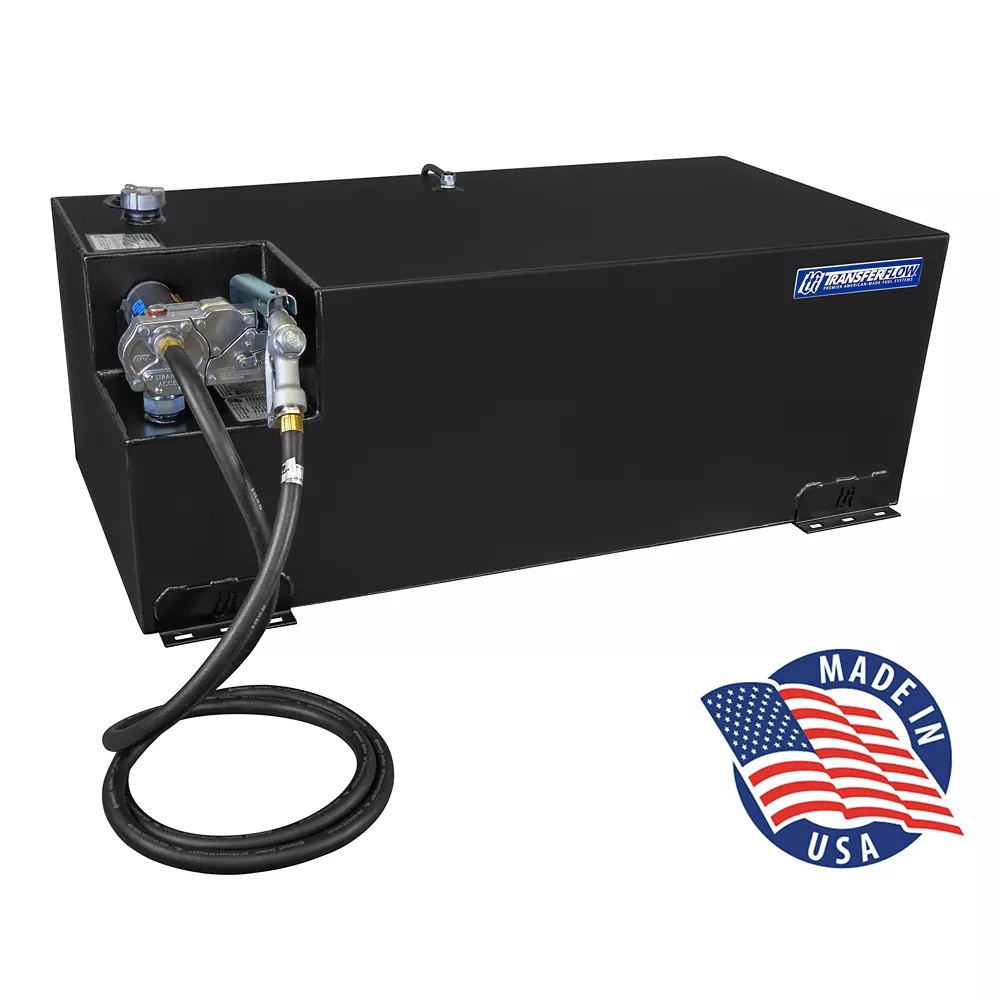

Transfer Flow Inc 109 gal Refueling tank system Fuel Transfer Tanks Truck & Automotive

Whether you're refueling equipment, vehicles, or ATVs, this tank is designed for the ultimate go-getters. Our 109-gallon refueling tank system is Department of Transportation (DOT) legal to carry and transfer gasoline, diesel, methanol/ethanol, and kerosene. The easy-to-use hose-purge feature allows you to pull any fuel left in the hose back into the refueling tank to eliminate messes in the truck bed and stretch your extra fuel capacity even further. The 109-gallon refueling tank is made from 12-gauge high-yield U.S. aluminized steel for superior durability and strength and powder-coated black for a durable satin finish. As with all Transfer Flow fuel tank systems, this refueling tank comes complete with all parts needed for installation.

Recommended for drivers who own ATVs, boats, generators, landscape or farming equipment, or want the option to fuel their truck or additional vehicles

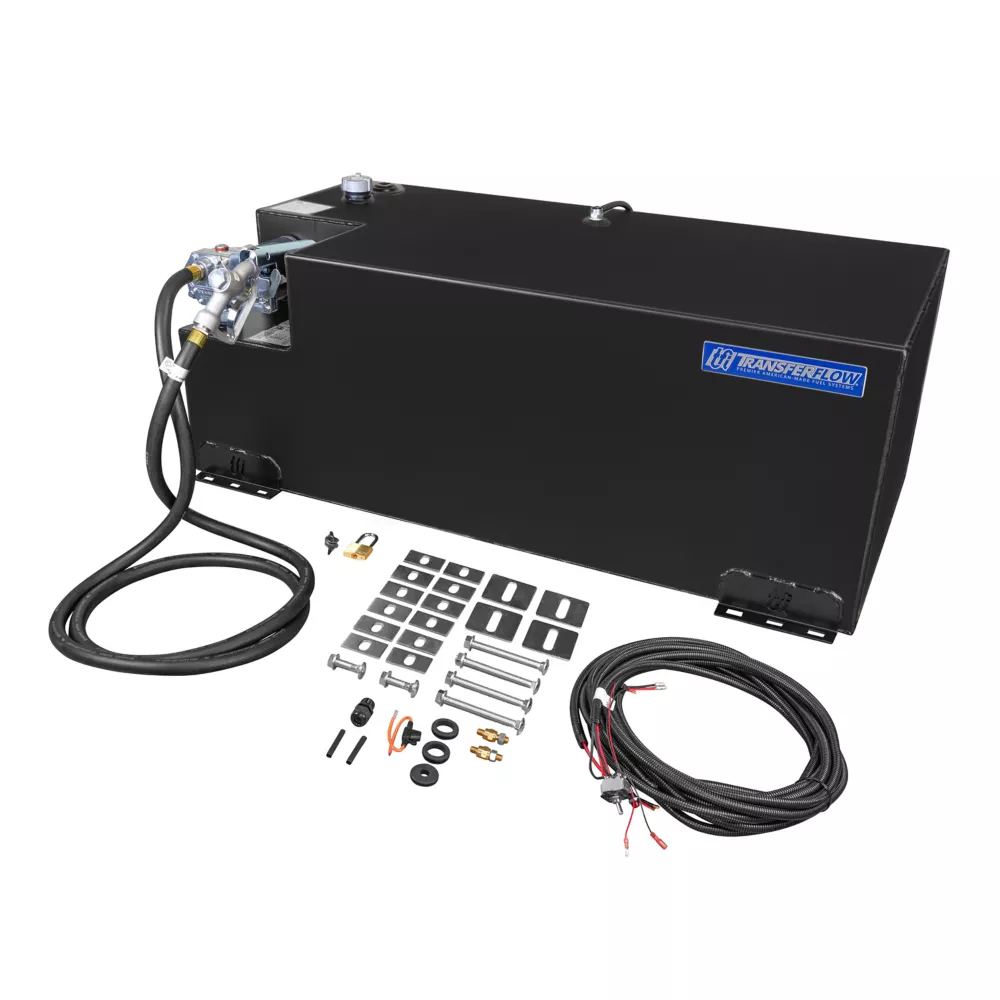

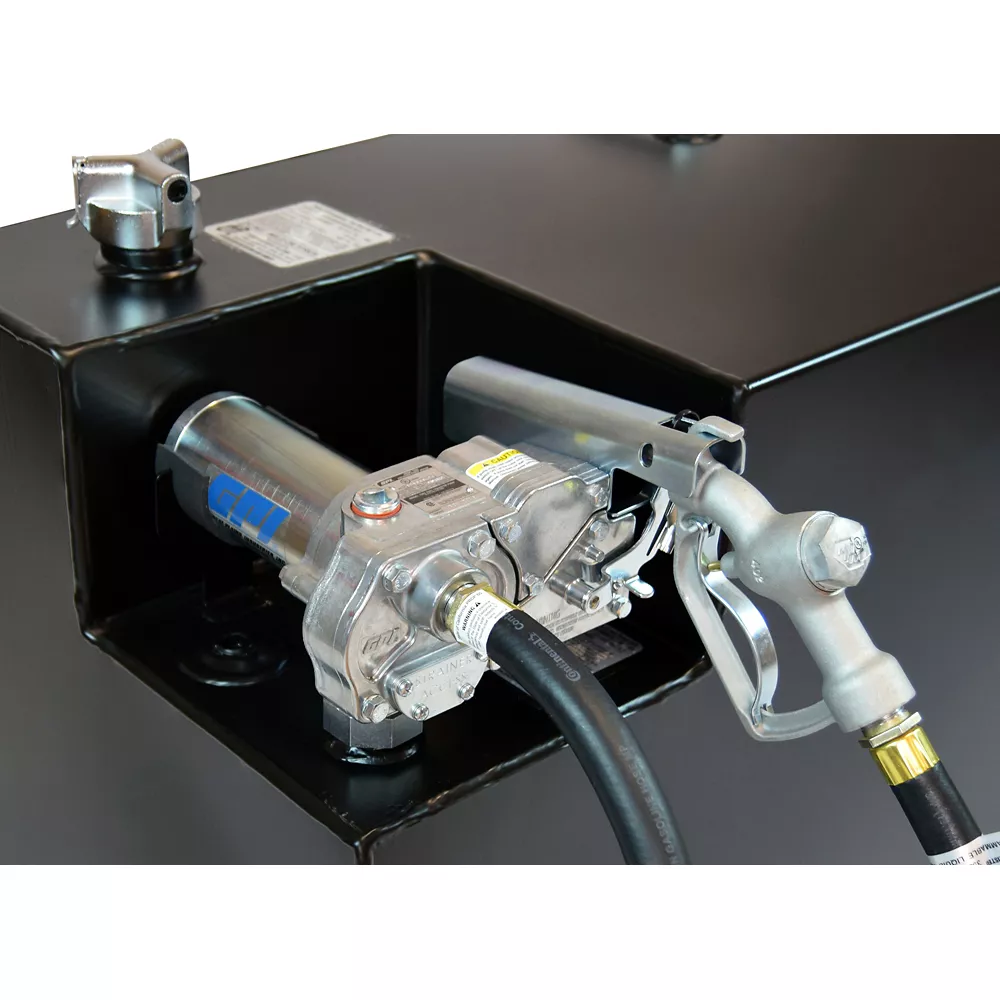

Tank comes with 12V GPI fuel pump, 12 ft. hose, nozzle, fuel cap, wiring harness with cab-mounted power switch, and mounting hardware
DOT legal for gasoline, diesel, methanol/ethanol, and kerosene
Diesel fuel transfer tank system is built from 12-gauge ReliaSteel, high-yield U.S. aluminized steel, for superior durability and strength
Fuel transfer tank system is powder coated black for durable satin finish
Made in the USA
Pumps up to 15 GPM
Portable transfer tank system is baffled to prevent fuel sloshing
6 year, unlimited mile warranty
Dimensions of the fuel storage tank: 54.75 in. L x 30 in. W x 23 in. H
Fits all full-size trucks
NOTE: Product dimensions include 3 in. in width for the mounting brackets and 3 in. in height for the filler neck
NOTE: Accuracy of optional Rochester fuel gauge may be less depending upon tank shape and if tank is on a level surface; accuracy may be less near full and empty

Transfer Flow Inc 109 gal Refueling tank system Fuel Transfer Tanks Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Tanks

Specification	Description
Brand	Transfer Flow Inc.
Country of Origin	Made in USA
Features	Mounting Kit Included
Fill Opening Diameter	2 in.
Maximum Fill Capacity	109 gal.
Maximum Tank Fill Capacity	109 gal
Outlet Diameter	2 in.
Primary Color	Black
Primary Material	Steel
Product Height	22.62 in.
Product Length	54.75 in.
Product Weight	297 lb.
Product Width	30 in.
Tank Shape	Rectangular
Warranty	6 Year, Unlimited Mile
Manufacturer PartNumber	800109416

Transfer Flow Inc. 109 gal. Refueling Tank System Specifications expand/collapse Specification Description Brand Transfer Flow Inc. Country of Origin Made in USA Features Mounting kit included Fill opening diameter 2 in. Maximum fill capacity 109 gal. Maximum tank fill capacity 109 gal Outlet diameter 2 in. Primary Color Black Main Material Steel Product Height 22.62 in. Product length 54.75 in. Product weight 297 lbs. Product width 30 in. Rectangular tank shape Warranty 6 years, unlimited mileage Manufacturer part number 800109416
