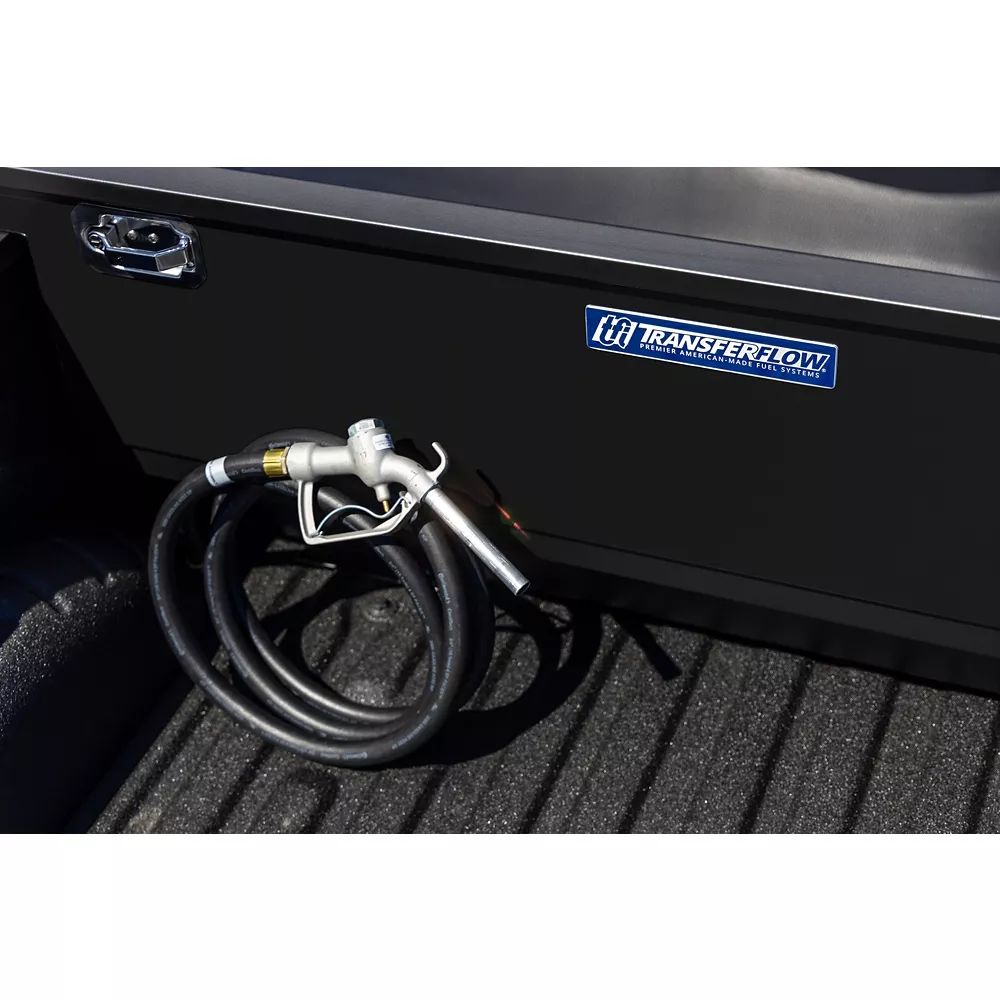

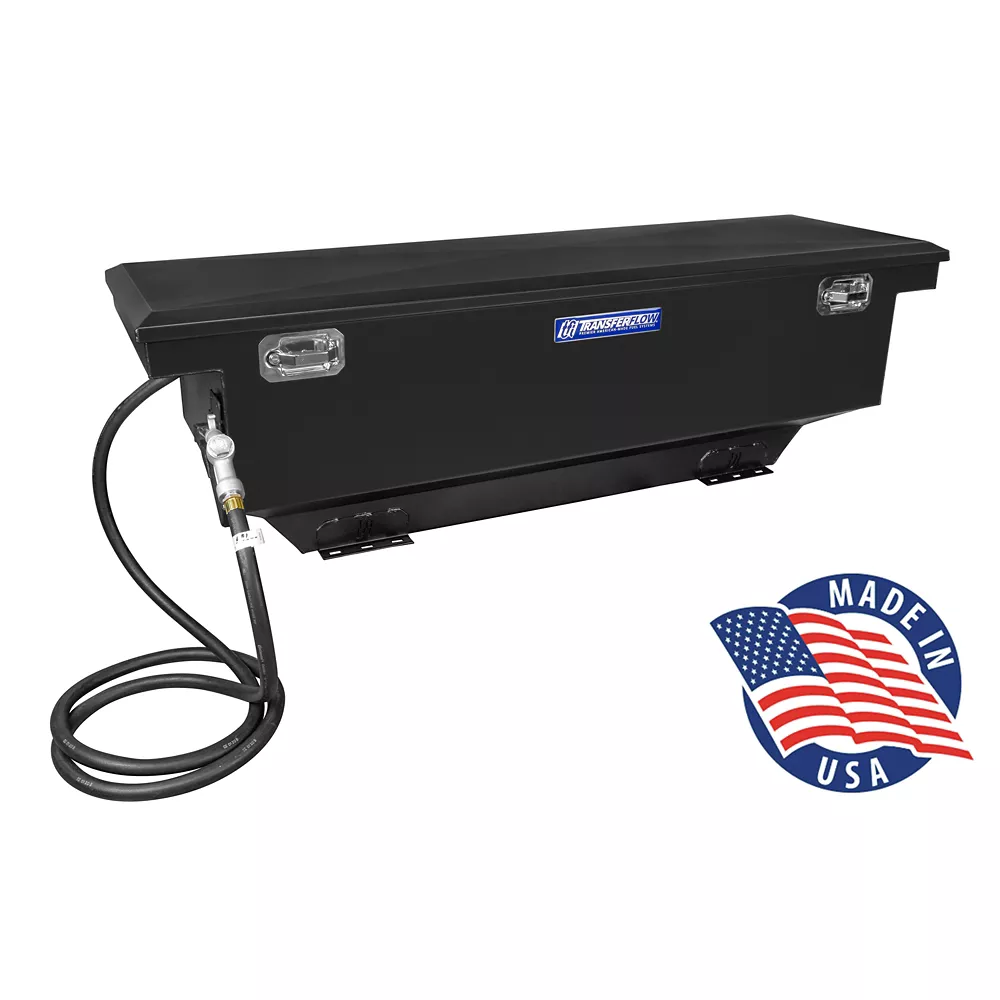

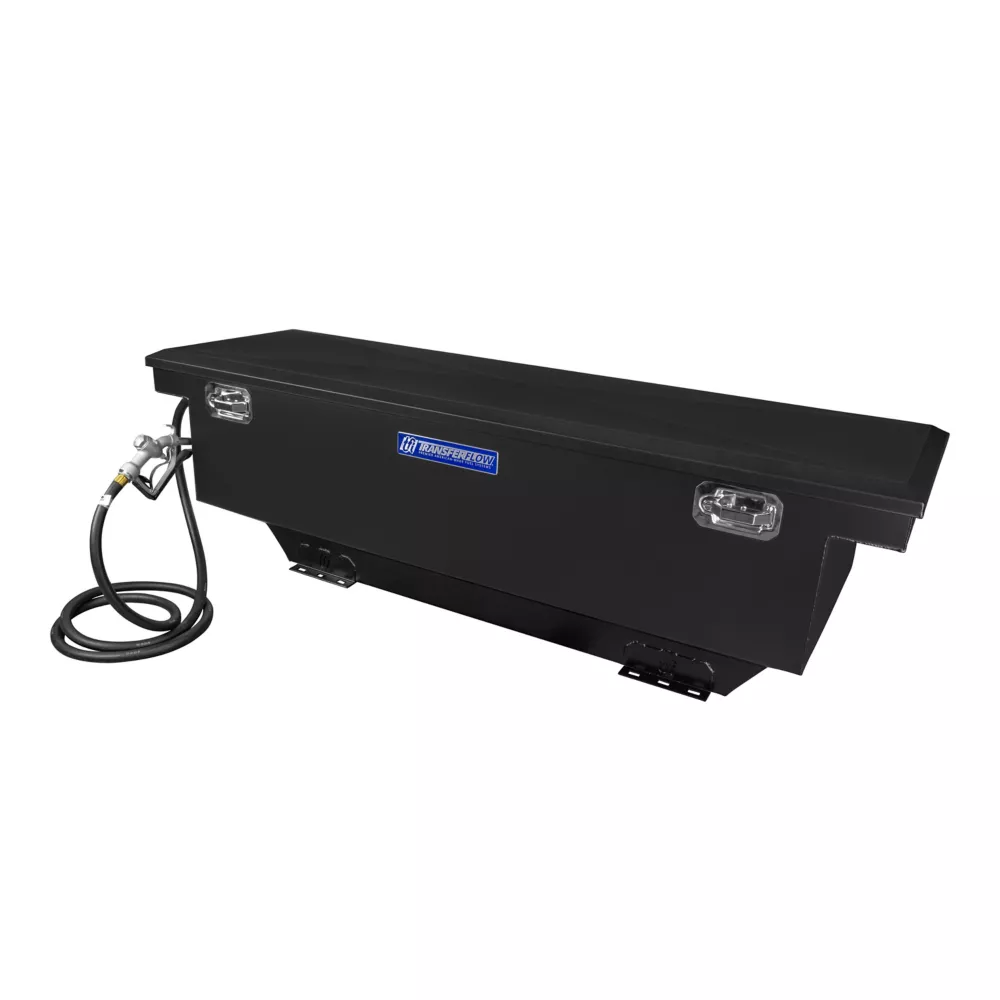

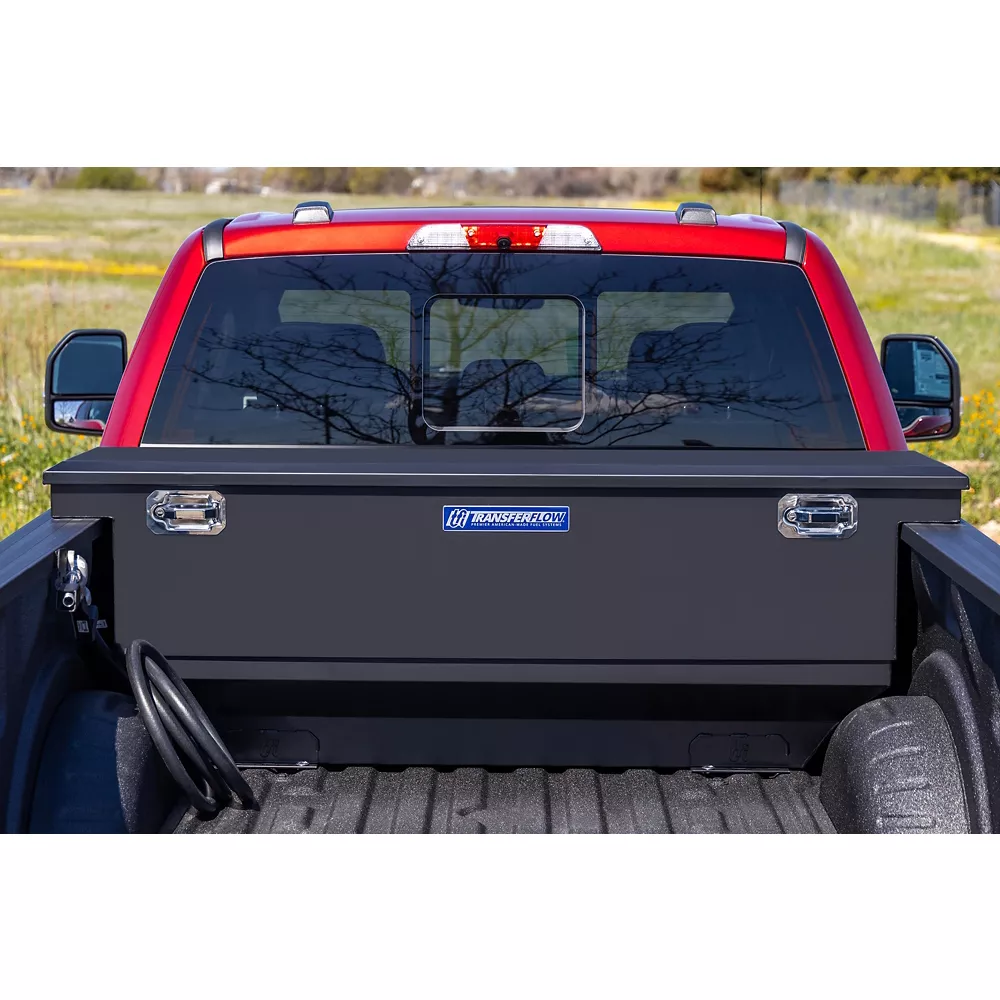

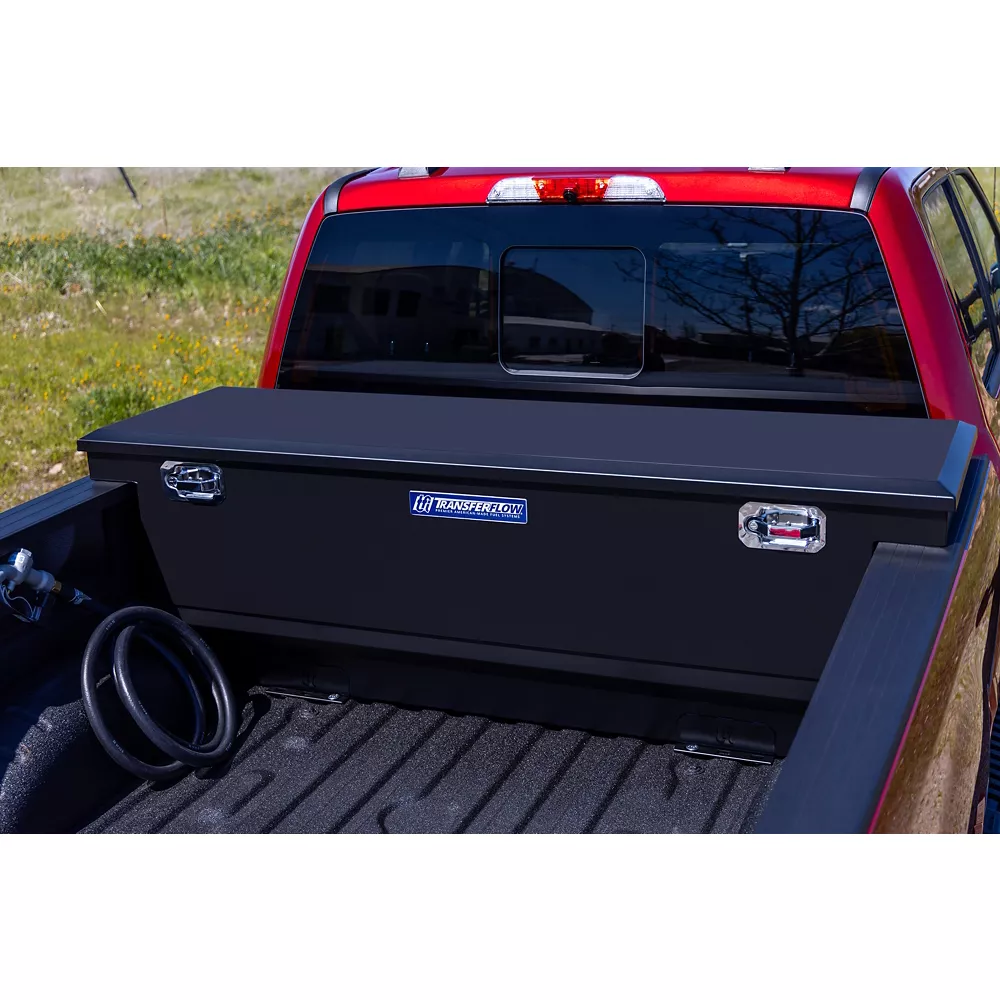

Transfer Flow Inc 70 gal Refueling tank and toolbox combo Fuel Transfer Tanks Truck & Automotive
The Transfer Flow Inc. 70 gal. Refueling Tank and Tool Box Combo is Department of Transportation (DOT) legal to carry and transfer gasoline, diesel, methanol/ethanol, and kerosene and features an easy-to-use purge function that moves remaining fuel from the hose back into the fuel transfer tank system. The tool box accompanying the diesel fuel transfer tank system is equipped with locking handles and gas-filled shocks that make it easy to open and close the tool box lid. As with all Transfer Flow fuel tanks, this portable fuel transfer tank system comes complete with all parts needed for installation.- Recommended for drivers who own ATVs, boats, generators, landscape or farming equipment, or want the option to fuel their truck or additional vehicles
- Fuel tank comes with 12V GPI fuel pump, 12 ft. hose, nozzle, fuel cap, wiring harness with cab-mounted power switch, and mounting hardware
- Easy-to-use hose purge feature eliminates messes
- Pumps up to 8 GPM
- Up to 9 cubic ft. of storage space (storage dimension: 56-3/4 in. L x 14-1/2 in. W x 9-1/2 in. to 13-1/2 in. H)
- Diesel fuel transfer tank system built from 14-gauge ReliaSteel, high-yield U.S. aluminized steel powder coated black for superior durability and strength
- Fuel transfer tank system is baffled to prevent fuel sloshing
- Portable fuel transfer tank system has gas-filled shocks for easy opening and closing
- Stainless steel locking handles
- 6 year, unlimited mile warranty
- Made in the USA
- Dimensions of the fuel storage tank: 73 in. L x 24.5 in. W x 27.25 in. H
- Fits all full-size heavy-duty trucks
- Note: product dimensions include 1-1/2 in. in width for the mounting brackets
- Note: the In-Line Fuel Filter Kit (020-01-13958) is not compatible with the 70 gal. Refueling Tank and Tool Box Combo due to fitment restrictions
Transfer Flow Inc 70 gal Refueling tank and toolbox combo Fuel Transfer Tanks Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Tanks
| Specification | Description |
|---|---|
| Brand | Transfer Flow Inc. |
| Country of Origin | Made in USA |
| Features | Mounting Kit Included |
| Fill Opening Diameter | 2 in. |
| Maximum Fill Capacity | 70 gal. |
| Maximum Tank Fill Capacity | 70 gal |
| Outlet Diameter | 2 in. |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 27.75 in. |
| Product Length | 73 in. |
| Product Weight | 293 lb. |
| Product Width | 24.5 in. |
| Tank Shape | Rectangular |
| Warranty | 6 Year, Unlimited Mile |
| Manufacturer PartNumber | 800116230 |
