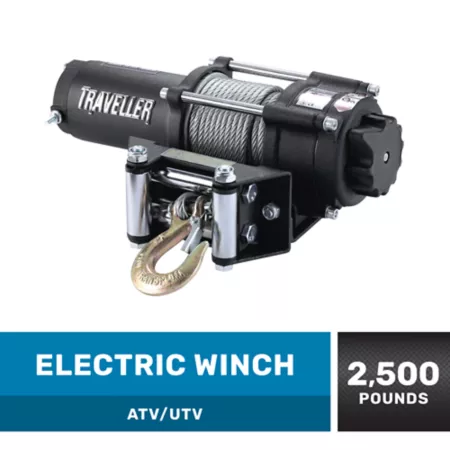

Traveler Electric ATV Winch 12V 2 500 lb Capacity ATV & UTV Winches Trailers & Towing

No ATV is complete without a good winch. The Traveller 12V ATV Electric Winch has a wired remote and automatic braking action for safety. Designed to hold up to 2,500 lb. the Traveller Winch is perfect for most ATVs, boats and snowplows.

Permanent magnet DC 12V motor with 1.1 HP output
Maximum Load Capacity: 2500 lb.
Automatic braking action
Free Spooling clutch
Remote switch with handlebar mount
Roller fairlead minimizes damage to wire when pulling from different angles
Universal flat bed winch mounting plate
Comes with 46 ft. x 3/16 in. of galvanized aircraft cable
Electric Winch is design to work with ATV's, boats, and snowplows.
1/4 in, hook
Copper, steel, aluminum construction

Traveler Electric ATV Winch 12V 2 500 lb Capacity ATV & UTV Winches Trailers & Towing> Winches & Recovery> Electric Winches> ATV & UTV Winches

Specification	Description
Brand	Traveller
Country of Origin	Imported
Braking Mechanism	Automatic
Brand Compatibility	TSC, Universal
Clutch Type	Free-spooling
Engine Brand	N/A
Engine Displacement	0 ft.
Engine Type	Electric
Features	Cable Included, Fairlead Included
Gear Ratios	170:1 ratio
Handle Length	Switch with 8.5 ft. (2.6 m) lead
Horsepower	1.1 HP
Line Capacity	3,750 lb.
Line Diameter	3/16 in.
Line Length	46 ft.
Line Pull Capacity	2,500 lb.
Line Speed	4.3 FPM
Maximum Operating Range	43 ft.
Maximum Strap Width	1.1 in.
Model Compatibility	Universal
Mounting Bolt Length	4.88 in.
Mounting Bolt Width	3 in.
Number of Speeds	1
Power Type	Electric
Primary Material	Steel
Product Height	7-5/16 in.
Product Length	16 in.
Product Weight	24.26 lb.
Product Width	10-7/16 in.
Line Type	Wire
Voltage	12V DC
Warranty	1 Year Limited
Motor Type	Electric
Manufacturer PartNumber	EWP2500A

Traveller 12V Electric ATV Winch, 2,500 lb. Capacity Specifications Expand/Collapse Specification Description Brand Traveler Country of Origin Imported Brake Mechanism Automatic Brand Compatibility TSC, Universal Clutch Type Free-Spool Motor Brand N/A Engine Displacement 0 ft. Motor Type Electric Features Cable included, cable guide included Gear ratios 170:1 ratio Handle length Switch with 8.5 ft (2.6 m) cable Power 1.1 HP Line capacity 3,750 lbs. Line diameter 3/16 in. Line length 46 ft. Line pulling capacity 2,500 lbs. Line speed 4.3 FPM Maximum operating range 43 ft. Maximum Strap Width 1.1 in. Model Compatibility Universal Mounting Bolt Length 4.88 in. Mounting bolt width 3 in. Number of Speeds 1 Power Type Electric Main Material Steel Product Height 7-5/16 in. Product length 16 in. Product weight 24.26 lbs. Product width Line type Voltage12V DC wire Warranty 1 year limited Electric motor type Manufacturer part number EWP2500A
