TVJX Trailer Jack Drill Powered Side Jack 5 000 lbs with Wheel TVJX5S-MW Trailer Jacks Trailer Jacks

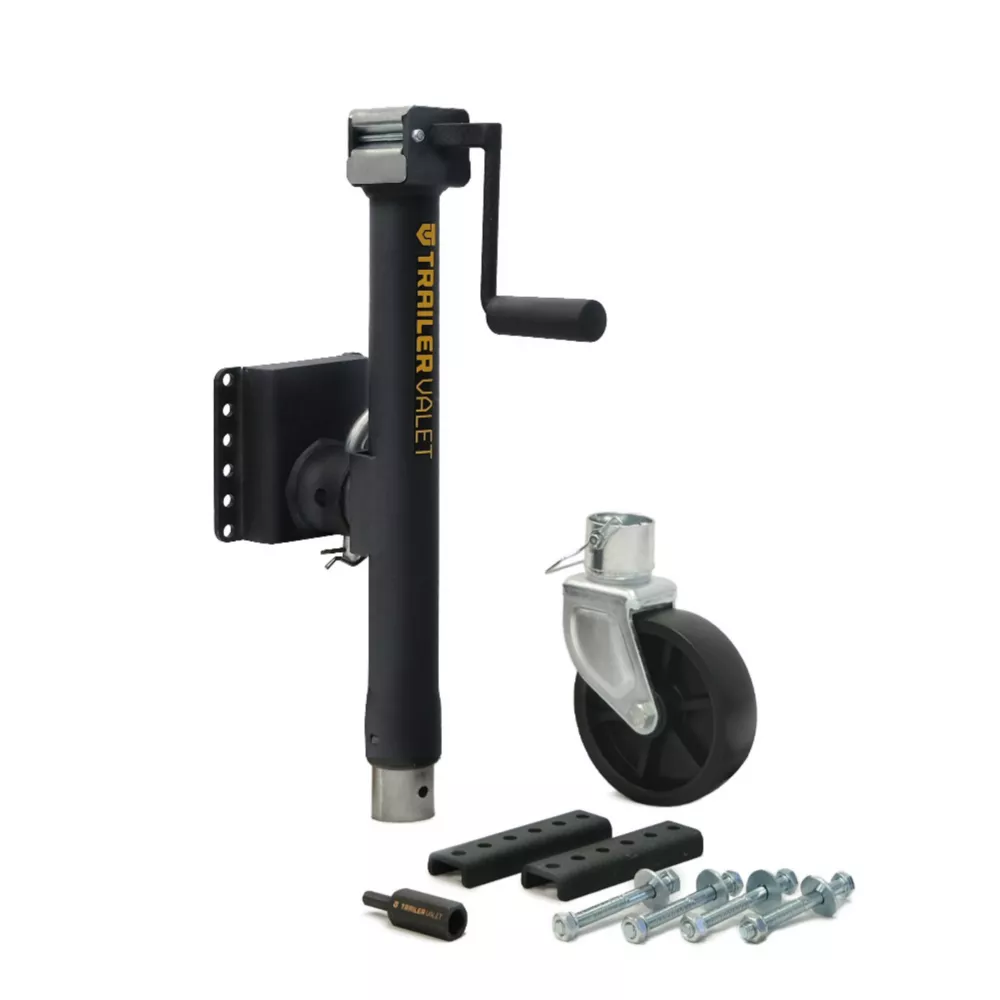

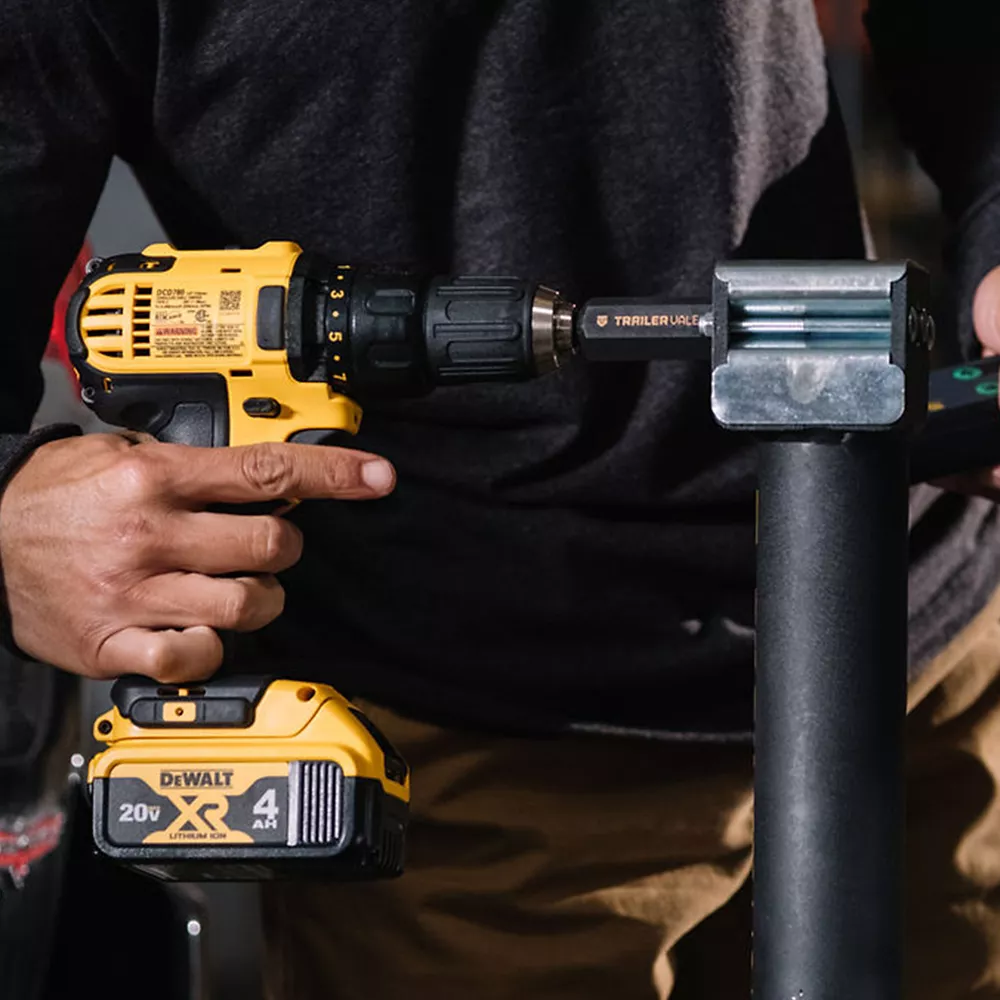

It's time to replace your trailer's jack with something better, faster, and stronger: the Trailer Valet JX Side Mount Jacks with Wheel. Although they can raise and lower with the built-in manual crank, they have a faster option: you can use any 20-24V compact drill to work these trailer jacks. Patented, internal gear material delivers better efficiency and less heat retention. The protective, smooth-gliding sleeve fitting prolongs the life of these aftermarket trailer accessories. These Trailer Valet jacks add a weather-resistant shield and wrinkle powder coating for long-lasting outdoor protection. Includes strong pipe-mount bracket and trailer-jack drill attachment. Retracted Height: 23 inch. Extended Height: 37 inch. Total Extension: 14 inch. NOTE: Using the Wheel Attachment instead of the Footplate reduces the static weight capacity to 1,200 lbs.- Includes Trailer Valet Drill Attachment (TVDA), wheel, footplate, and hand crank
- Patented Trailer Valet Gear System (12:16 Ratio)
- Patented gear material composition delivers maximum efficiency while reducing heat retention
- Weather resistant shield protection and a protective sleeve to ensure a smooth glide every time
- 5,000 lb weight capacity
- Weather resistant shield protection and a protective sleeve to ensure a smooth glide every time

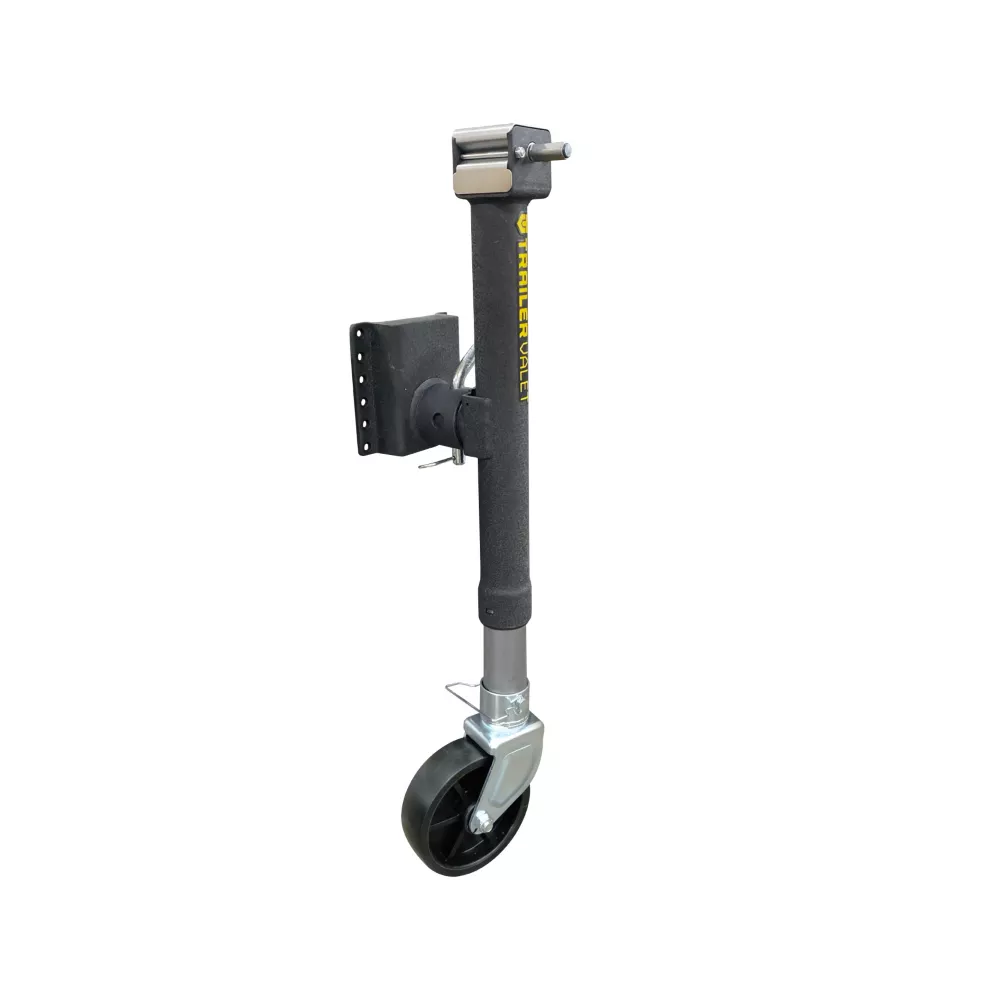

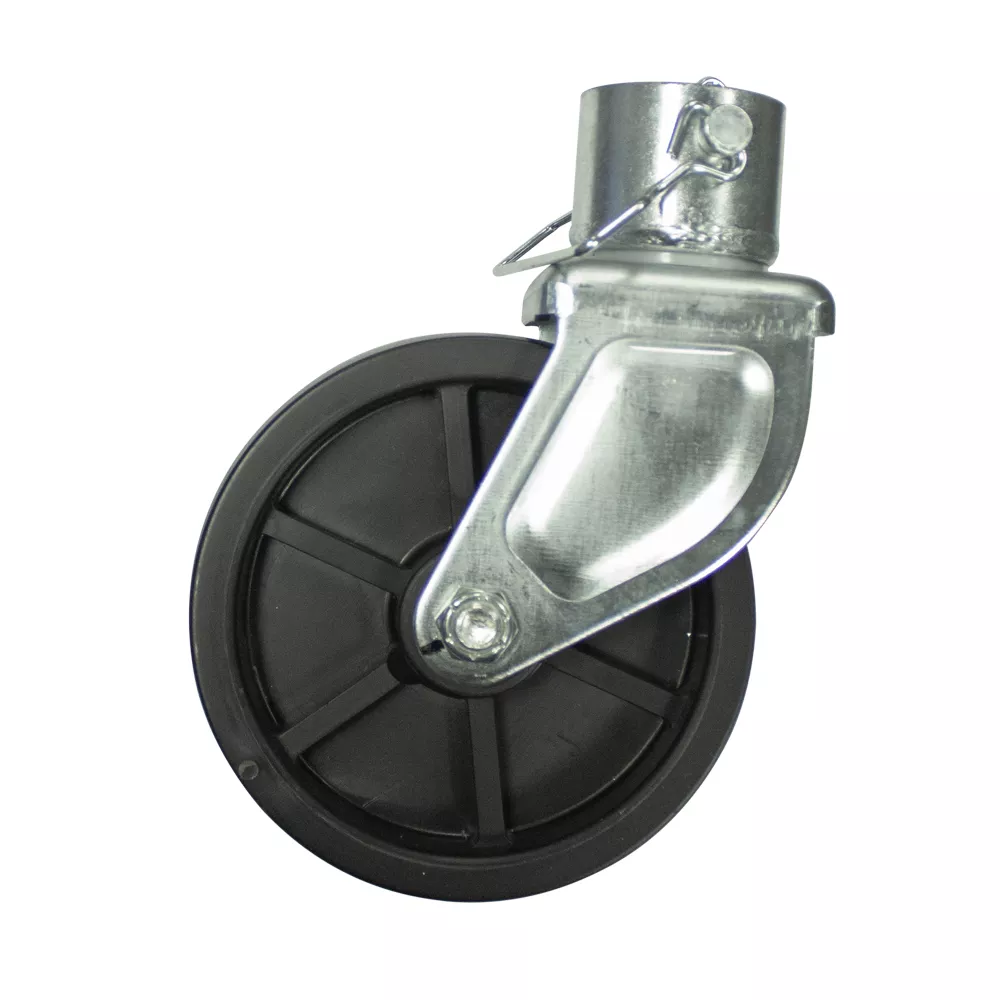

- Compatible with JX Wheel option (TVJXMW), sold separately
- Retracted height: 23in, Extended height: 37in, Total travel: 14in
- 5000lb (static), 5000lb (lift w/o drill), 1250lb (lift w/ drill)

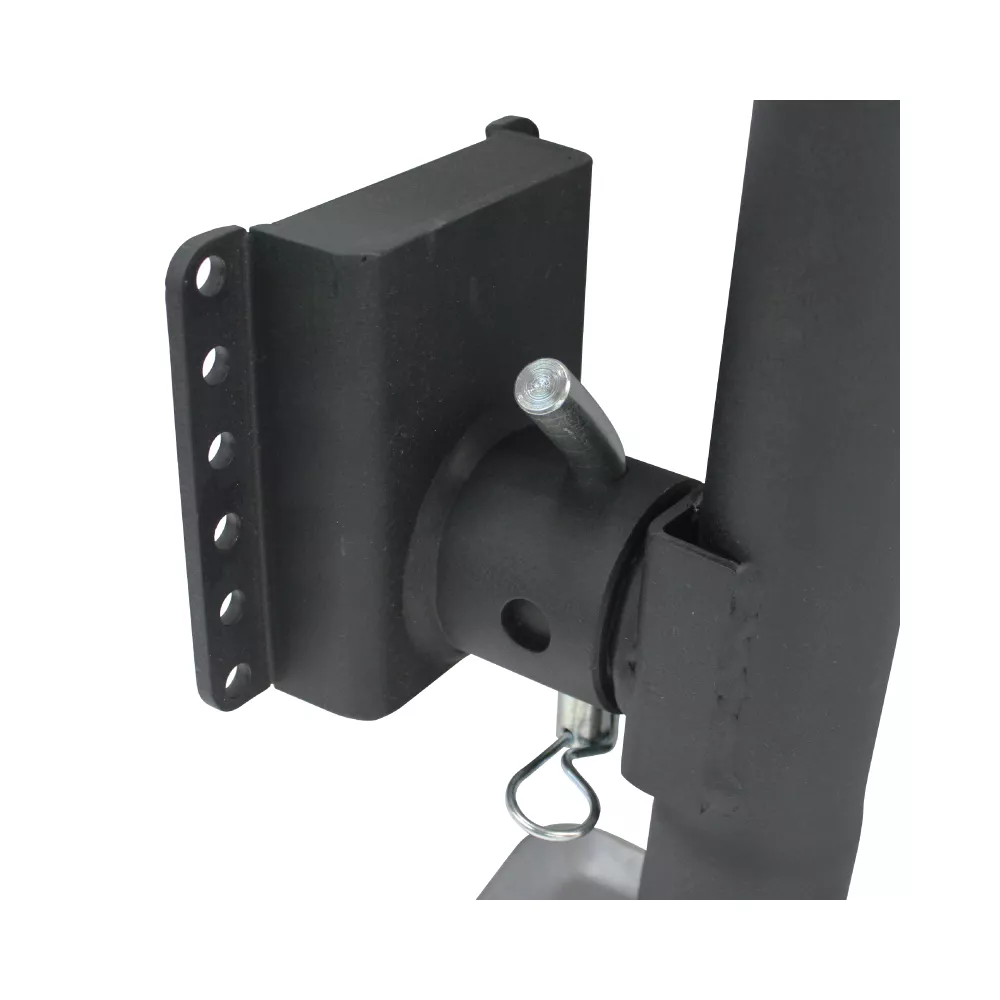

- Clearance (from bottom of bracket to top of jack): Approximately 14in, center of mount point to top of jack is 11.5in
- Total Trailer Lift: 11.5in to 25.5in

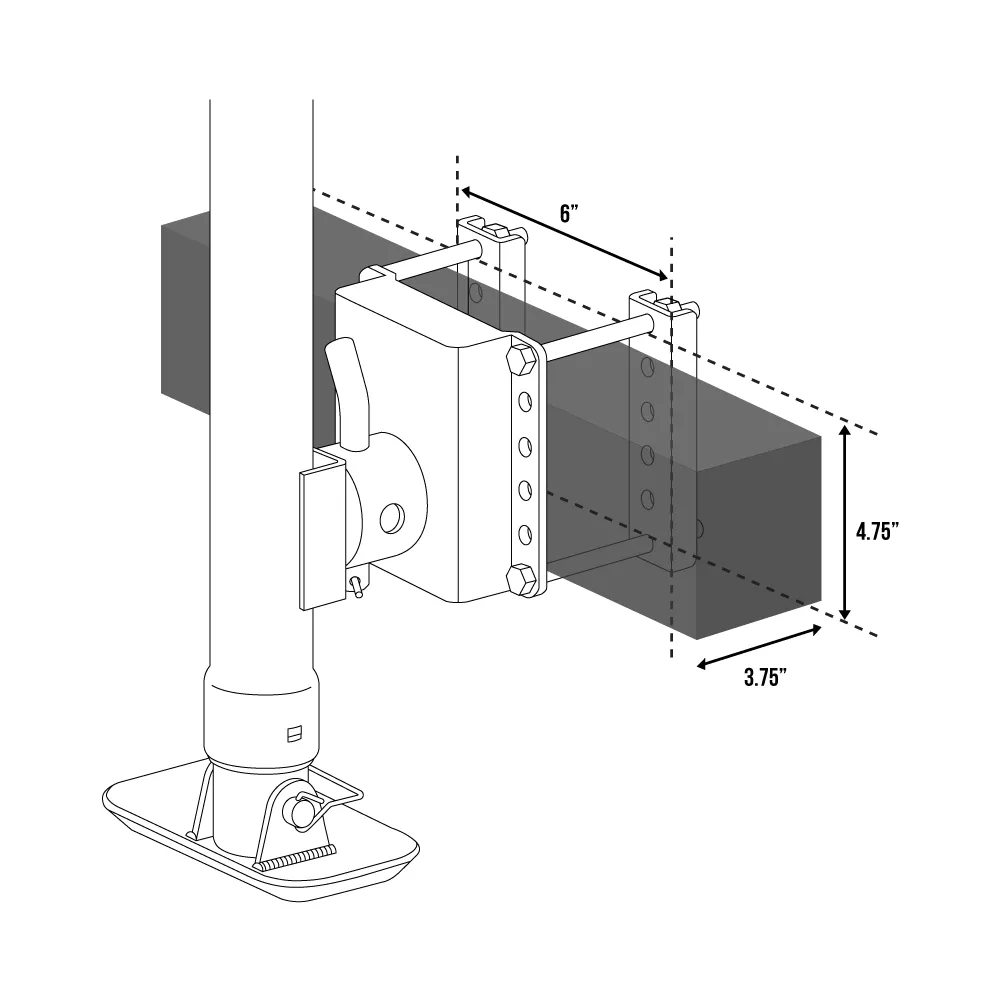

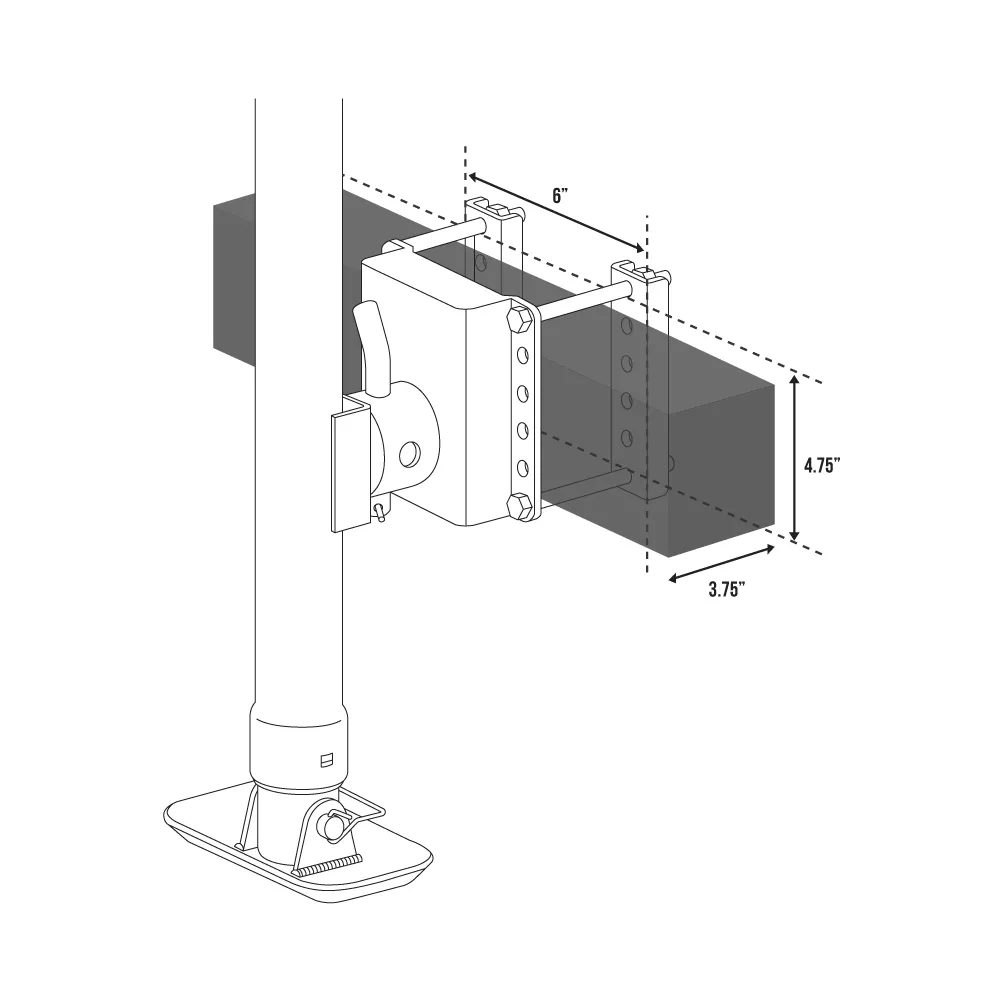

- Max Frame Size Fit: 4.75 in high, 3.75 in deep
- Use your own bolt for deeper frames - Uses M10 1.5
- Installation: Requires 8 in of clearance
- For frames from 4.75 inches to 5.75 inches use the mounting bracket option TVJLMB Sold Separately
- Static Capacity (with footplate): 5,000 lbs
- Static Capacity (with wheel): 1,200 lbs
- Lift Capacity: 1,200 lbs
- Lift Capacity w/ Drill: 800 lbs
TVJX Trailer Jack Drill Powered Side Jack 5 000 lbs with Wheel TVJX5S-MW Trailer Jacks Trailers & Towing> Trailer Accessories> Trailer Jacks
| Specification | Description |
|---|---|
| Brand | Trailer Valet |
| Country of Origin | Imported |
| Base Type | Footplate or wheel |
| Collapsed Height | 23 in. |
| Compatibility | Trailer |
| Crank Type | Hand and Drill |
| Extended Height | 37 in. |
| Features | Drop Leg, Drillable Powered |
| Handle Length | 7 in. |
| Hoist Lift Height | 14 in |
| Hoist Weight Capacity | 5000 lb |
| Jack Style | Side Mount |
| Lift Capacity | 1,200 lb. |
| Mechanism Type | Mechanical |
| Mounting Type | Bracket |
| Power Type | Hand Crank, Cordless Drill |
| Primary Material | Steel |
| Product Height | 29.5 in. |
| Product Length | 11 in. |
| Product Weight | 23 lb. |
| Product Width | 6.5 in. |
| Retracted Height | 23 in. |
| Tube Width | 2 in. |
| Warranty | One Year Manufacturer Limited Warranty |
| Manufacturer PartNumber | TVJX5S-MW |
