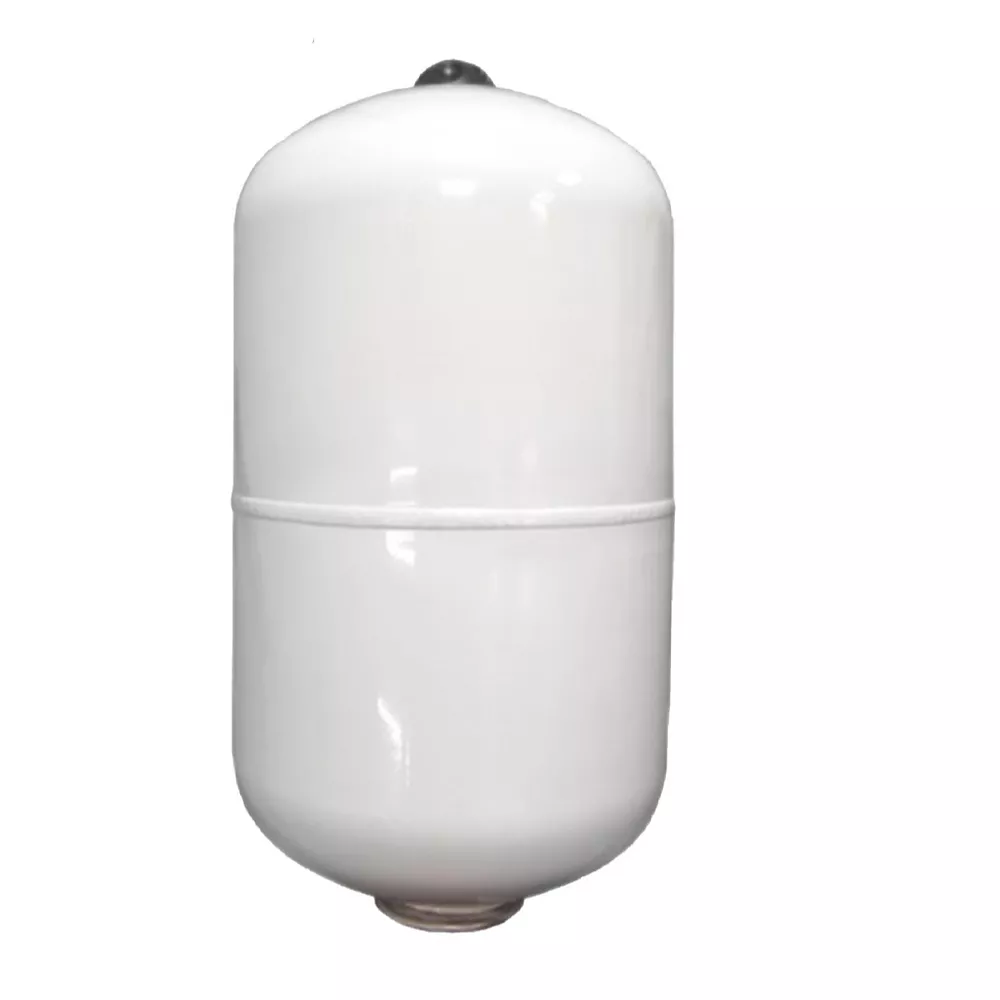

Varem 1.3 gal 145 PSI 30 PSI 1" Pre-Charged Pressure Tank Pressure Tanks Farm & Ranch

The 1.3 Gal., 30 psi Precharge Pressure Tank best to save energy. Max working temperature 210°F and Max working pressure 145 psi. The Replaceable Bladder. The pressure tanks of Varem-usa line are a basic element of a potable water distribution system. The pressure tank stores the pressurized water of the booster systems working as hydrodynamic flywheel during drawing. This application reduces the frequency of switching on of the booster system. A pressure switch adjust the internal pressure and activates the pump only if the water pressure in the tank is lower than minimum required. Switching on, the pump loads the storage tank again.

NSF61 certified for safe drinking water with replaceable bladder
Max working temperature 210F and Max working pressure 145 psi
Stainless steel NPT Flange
White color tank
Good for all type of weather
5 year limited warranty

Varem 1.3 gal 145 PSI 30 PSI 1" Pre-Charged Pressure Tank Pressure Tanks Farm & Ranch> Tanks & Pumps> Pressure Tanks

Specification	Description
Brand	Varem
Country of Origin	Imported
Capacity	1.3 gal.
Drawdown at 30 PSI	1 gal.
Inlet Diameter	1 in.
Maximum Water Temperature	210 deg. F
Outlet Diameter	1 in.
Precharge Pressure	35 PSI
Primary Color	White
Primary Material	Iron
Product Height	13 in.
Product Length	6.3 in.
Product Weight	5 lb.
Product Width	6.3 in.
Tank Orientation	Vertical
Warranty	5 year limited warranty
Manufacturer PartNumber	1580171

Varem 1.3 gal. 145 PSI 30 PSI Precharged 1 in. Pressure Tank Specifications expand/collapse Specification Description Brand Varem Country of Origin Imported Capacity 1.3 gal. Draft at 30 PSI 1 gal. Inlet diameter 1 in. Maximum water temperature 210 degrees. F Outlet diameter 1 in. Precharge Pressure 35 PSI Primary Color White Primary Material Iron Product Height 13 in. Product length 6.3 in. Product weight 5 lbs. Product width 6.3 in. Tank Orientation Vertical Warranty 5 Year Limited Warranty Manufacturer Part Number 1580171
