Veratron Deep Tube Level Transmitter - 490mm - 240 to 33 OHM Marine Navigation & Instruments
Deep Pipe Level Transmitter - 490mm - 240 to 33 OHM

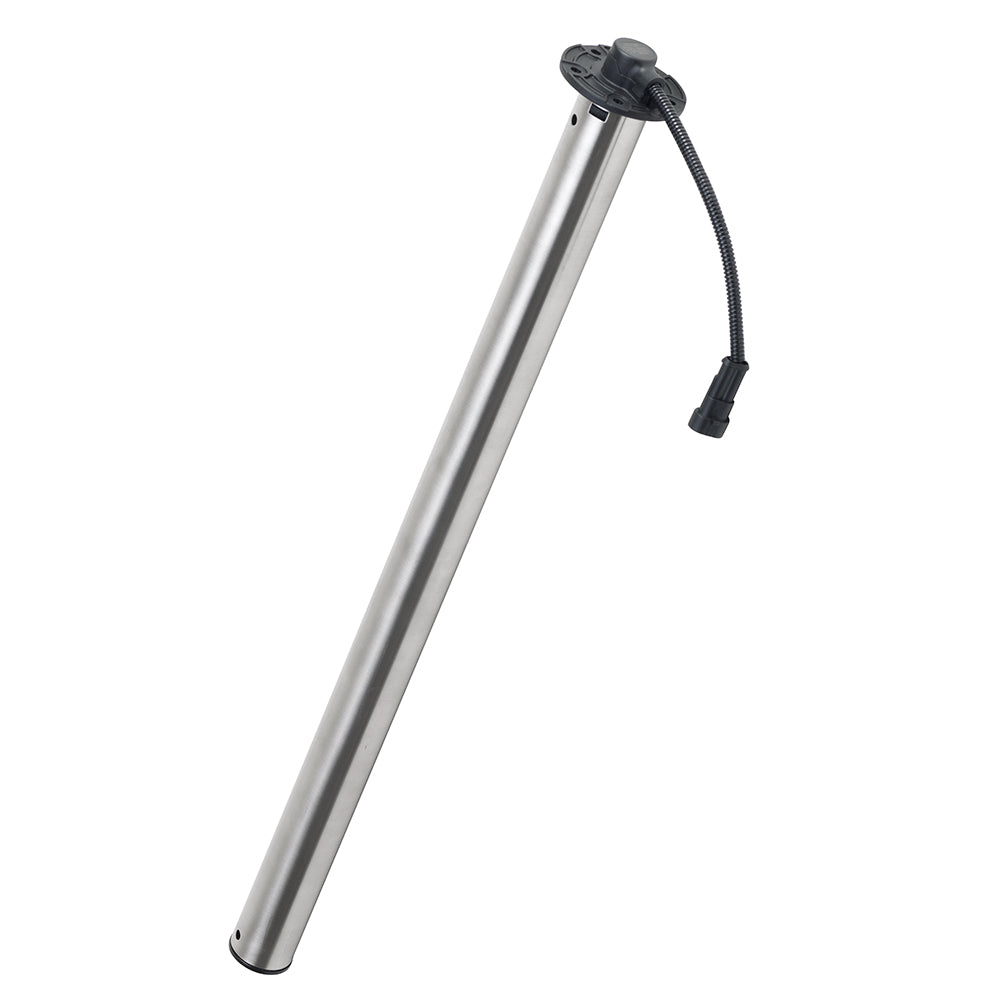

The Deep Pipe Level Sensor is ideal for use in fuel tanks. Its vertical tube of 38 mm in diameter contains inside a float which measures a liquid level. Small holes at the top and bottom of the tube act as a baffle to prevent fuel from flowing into the fuel tank, so the position of the float remains stable regardless of sea conditions.
The sensors are manufactured in different lengths, ranging from 150 mm up to 1200 mm. Please ensure your chosen length is at least 4mm from the base of the fuel tank when installed.
Features:
- Stainless steel tubular sensor
- Suitable for fuel (Oi -Oil-Diesel-Petrol) and Water
- Length: 490 mm
Technical specifications:
- CoTE Superseal connector 2 poles IP67
- Temp. operating voltage: -25°C to 65°C or -13°F to 149°F
- Operating voltage: 6 to 24 VDC
- Chamber compensation
- Flange: SAE 5-hole flange 54mmPA66 GF30
- 200mm length wiring harness
- Signal ranges: 240 to 33 OHM
- Index protection IP67
- Communication: Analog
In the box:
- Level sensor for pipes deep
- Installation kit
- Safety instructions
- Installation instructions
*Sold individually
Vessel part number 1080601 is the new ViewLine Sterling series fuel gauge and transmitter kit released by VDO, part number A2C53406054-K.
PRODUCT ID: 82758
SKU: NVN-82758
CSKU: CWR-82758
REWRITE: 93869-veratron-deep-pipe-level-sender-490mm
MPN: A2C1747240001
UPC:
ASIN:
WSKU:
SSKU:
KSKU:
GSKU:
MSKU:
LSKU:
NAME: Veratron Deep Pipe Level Transmitter - 490 mm - 240 to 33 OHM
NOM_EX: VERAtron DEEP-PIPE LEVEL TRANSMITTER - 490MM - INOX
TITLE: Veratron Deep-PipeLevel Transmitter - 490 mm - 240 to 33 OHM
TYPE: Navigation and Marine Instruments | Gauge Accessories
SELLER: Veratron
ELECTRONICS> MARINE ELECTRONICS VDO Marine Viewline Sterling Fuel Level Gauge & Sender Kit
Gtags:
Boat |
Specifications G:
Veratron Deep Pipe Level Transmitter - 490 mm - 240 to 33 OHM Product Description
Deep Pipe Level Transmitter - 490 mm - 240 to 33 OHM
The deep pipe level sensor is ideal for use in fuel tanks. Its vertical tube of 38 mm in diameter contains inside a float which measures a liquid level. Small holes at the top and bottom of the tube act as a baffle to prevent fuel from flowing into the fuel tank, so the position of the float remains stable regardless of sea conditions.
The sensors are manufactured in different lengths, ranging from 150 mm up to 1200 mm. Please ensure your chosen length is at least 4mm from the base of the fuel tank when installed.
Features:
- Stainless steel tubular sensor
- Suitable for fuel (Oi -Oil-Diesel-Petrol) and Eau
- Length: 490 mm
Technical specifications:
- TE Superseal connector 2 poles IP67
- Temp. operating voltage: -25°C to 65°C or -13°F to 149°F
- Operating voltage: 6 to 24 VDC
- Compensation chamber
- Flange: SAE 5-hole flange 54mm PA66 GF30
- 200mm length wiring harness
- Signal ranges: 240 to 33 OHM
- IP67 protection rating
- Communication: analog
In the box:
- Level sensor for deep pipes
- Installation kit
- Safety instructions
- Installation instructions
*Sold per pack 'unit
Ship part number 1080601 is the new ViewLine Sterling series fuel gauge and transmitter kit released by VDO, part number A2C53406054-K.
