VIAIR 0.25 HP 2 gal High Flow Tank Air Source Kit 150 PSI Portable Air Compressors

$62

SKU: VIAIR 0.25 HP 2 gal High Flow Tank Air Source Kit 150 PSI Portable Air Compressors
Category:

VIAIR 0.25 HP 2 gal High Flow Tank Air Source Kit 150 PSI Portable Air Compressors Air Compressors

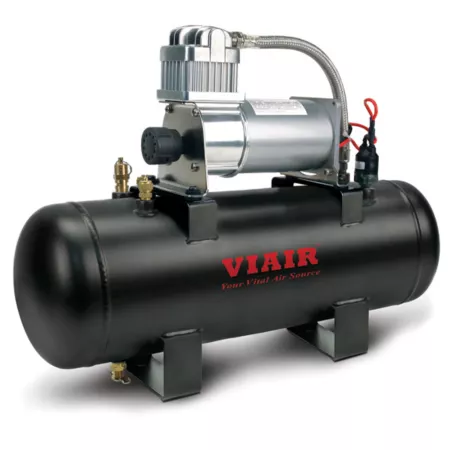

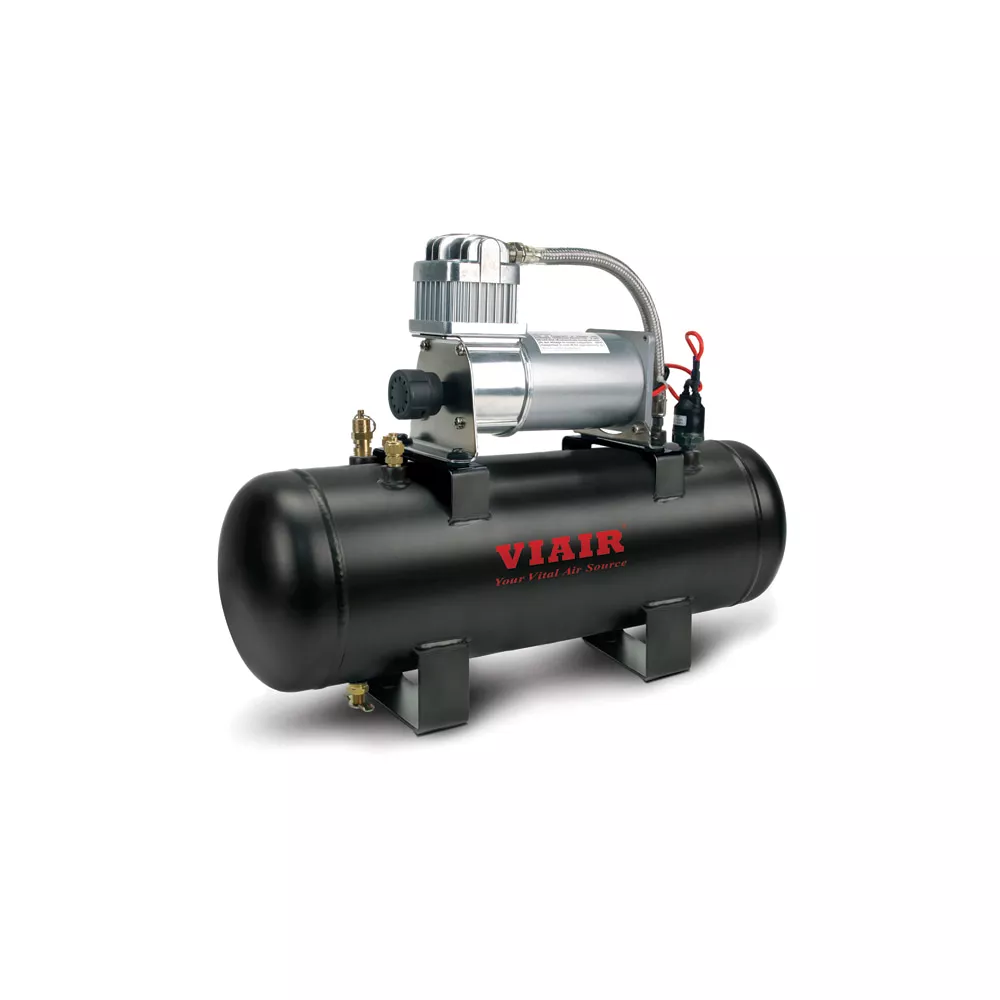

The Viair 2.0 gal. High Flow 150 PSI Tank Air Source Kit comes with a powerful, 30% duty cycle, 280C VIAIR compressor mounted on a 150 PSI-rated 2.0 gal. Matte Black air tank with 5 ports. All Air Source kits come with a pre-wired pressure switch (P/N / 110-150 PSI). The 150 PSI Tank Air Source kit comes complete with a 1/4 in. NPT brass drain cock, 1/4 in. NPT ASME coded and certified safety valve, 1/2 in. NPT port compression fitting for 3/8 in. (I.D.) air line pre-installed. To use the Air Source kit, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.
  • 150 PSI/ 1.59 cfm rated 2.0 gal. matte black air tank with 5 ports
  • 280C Pewter Air Compressor
  • Thermal Overload Protector

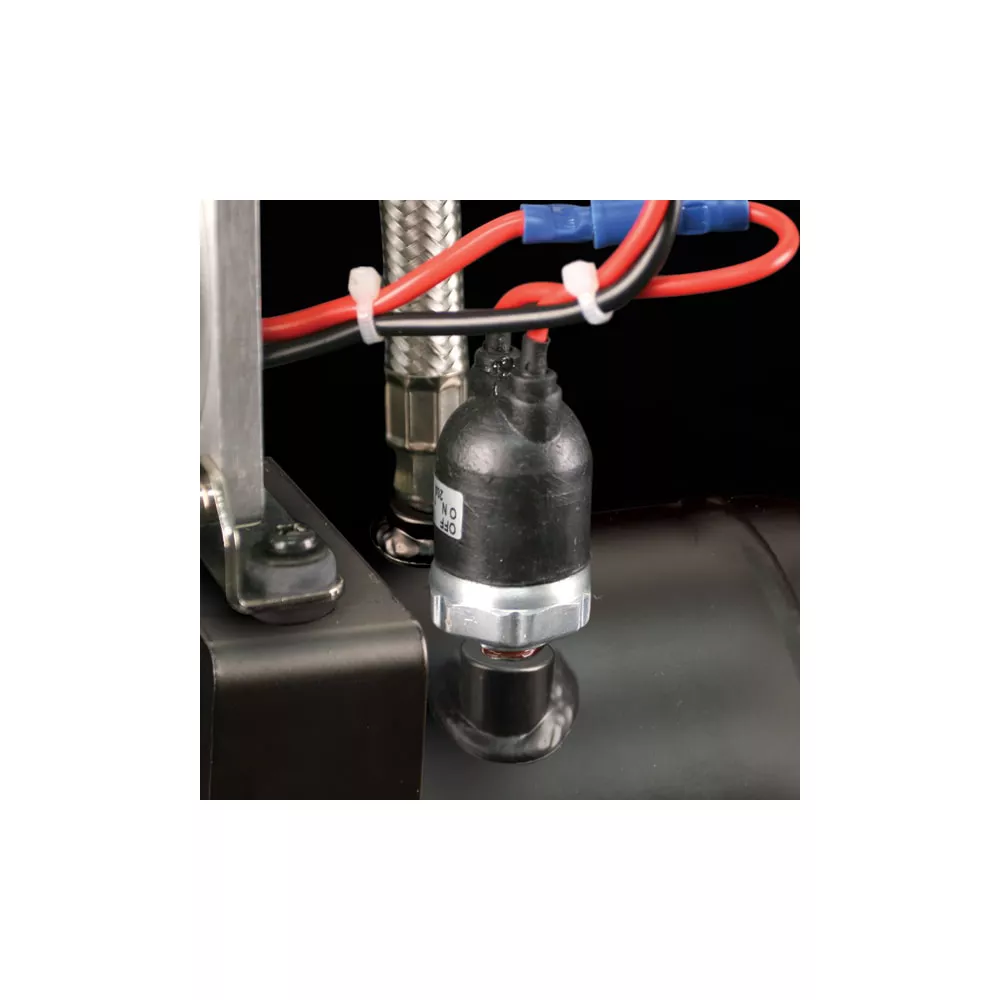

  • Air Source kit comes with a pre-wired pressure switch (110 PSI On / 145 PSI Off)

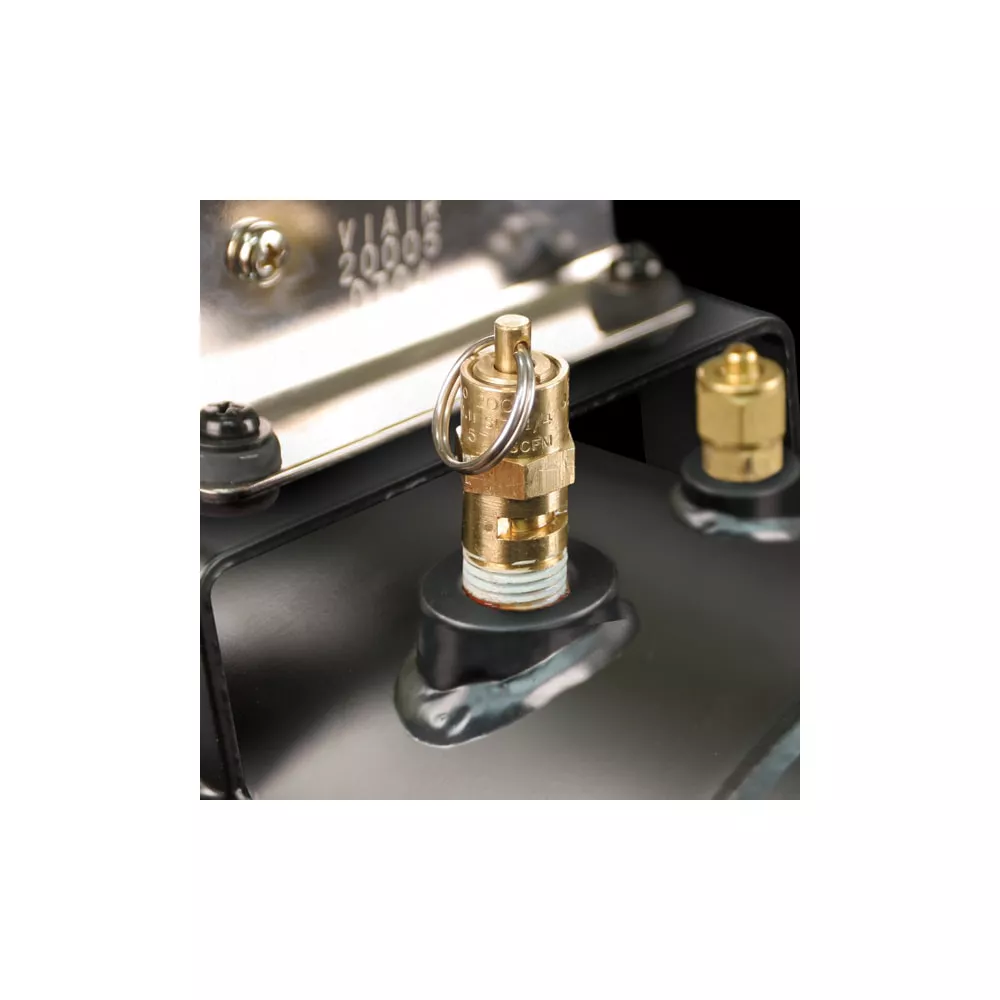

  • 1/4 in. NPT ASME coded and certified safety valve (175 PSI)

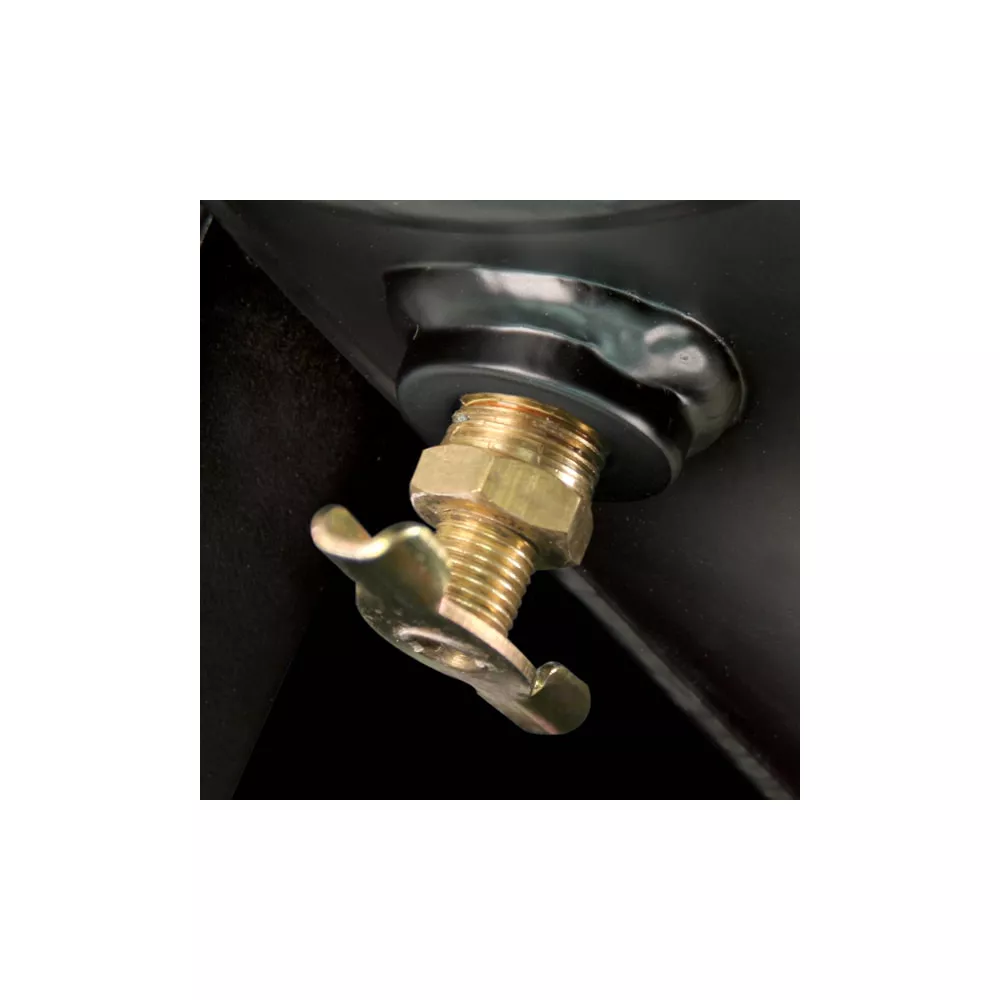

  • 1/4 in. NPT Brass Drain Cock
  • Leader Hose with Check Valve
  • 12-volt 150 PSI tank Air Source kit
  • Permanent Magnetic Motor
  • Duty Cycle: 30% @ 100 PSI
  • Max. Working Pressure: 150 PSI
  • Max. Amp Draw: 19 Amps
  • Ingress Protection Rating: IP54
  • Dimensions: 18.9 in. L x 5.9 in. W x 13.7 in. H
  • Net Weight: 19.75 lb.
  • Pre-installed 1/2 in. NPT port compression fitting for 3/8 in. (I.D.) air line
  • Connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting to use the 150 PSI tank Air Source kit
  • Use of a 40-amp relay and appropriately-rated fuse with the Air Source kit is strongly recommended to preserve the life of the pressure switch

VIAIR 0.25 HP 2 gal High Flow Tank Air Source Kit 150 PSI Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification Description
Brand VIAIR
Country of Origin Imported
Airflow Volume 1.59 CFM
Air Outlet Size 1/4 in. NPT
Amperage 19A
Compressor Horsepower 0.25 HP
Compressor Maximum PSI 150 PSI
Compressor Tank Capacity 2 gal
Compressor Type Oil less
Compressor Voltage 12V
Cord Length 1 ft.
Drain System Included
Drive Type DC
Features None
Number Of Power Speeds Single
Primary Color No Color
Product Height 16.0 in.
Product Length 22.0 in.
Product Weight 24.0 lb.
Product Width 9.0 in.
Pump Material Steel
Tank Fill Time 3 minutes 40 seconds
Tank Orientation Horizontal
Warranty 1 Year
Manufacturer PartNumber 20005
VIAIR 0.25 HP 2 gal. High Flow Tank Air Source Kit, 150 PSI Specifications Expand/Collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow Volume 1.59 CFM Air Outlet Size 1/4" NPT Amperage 19 Amp Compressor Power 0.25 HP Maximum Compressor PSI 150 PSI Compressor Tank Capacity 2 gal Compressor Type Oil-Free Compressor Voltage 12V Cord Length 1' Drainage System Included Drive Type DC Features None Number of Power Speeds Single Primary Color No Color Product Height 16. 0 in. Product length 22.0 in. Product weight 24.0 lbs. Product width 9.0 in. Pump Material Steel Reservoir Fill Time 3 minutes 40 seconds Reservoir Orientation Horizontal Warranty 1 Year Manufacturer Part Number 20005
