VIAIR 1/4 HP 1.5 gal 120 PSI Quick Fill Tank Air Source Kit Portable Air Compressors Air Compressors

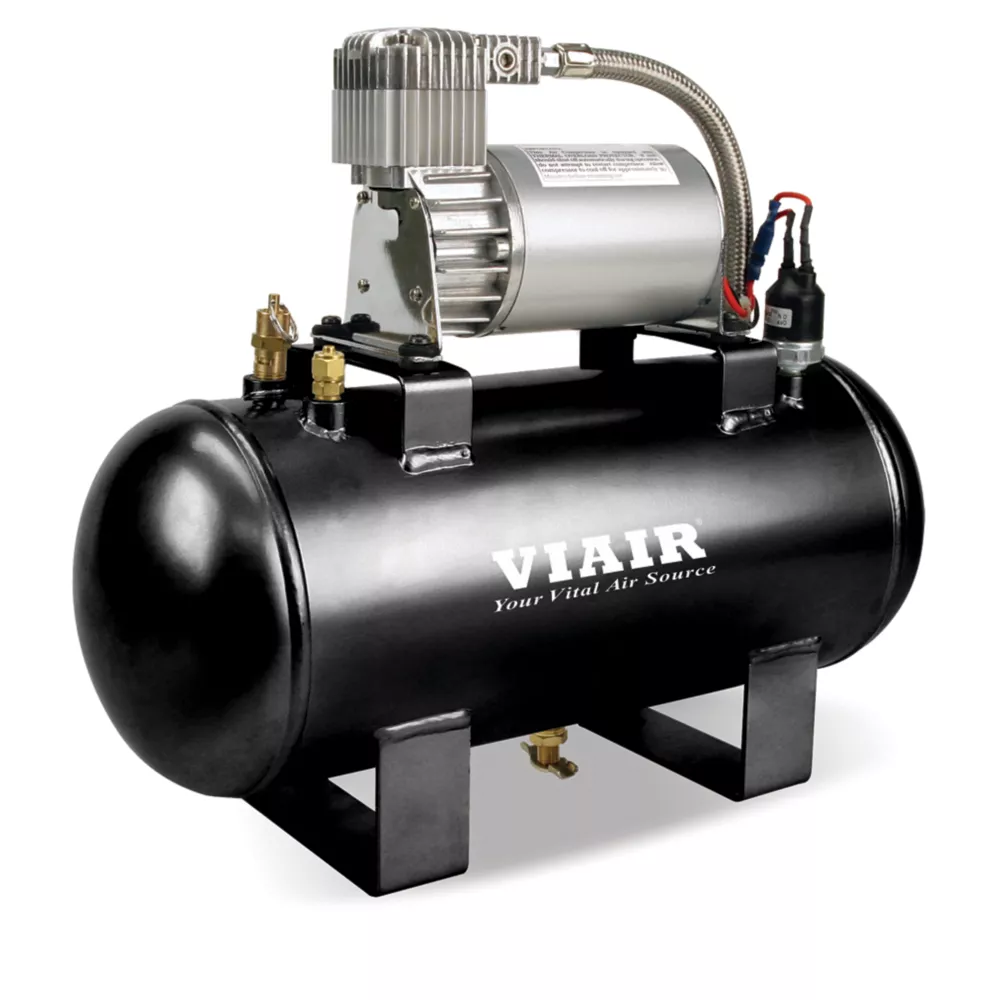

The Viair 1.5 gal. Fast Fill 120 PSI Tank Air Source Kit comes with a low amp-draw, 25% duty cycle, 275C VIAIR compressor mounted on a 150 PSI-rated 1.5 gal. air tank with 5 ports. 120 PSI Tank Air Source kits come with a pre-wired 90 PSI on / 120 PSI off pressure switch. The 120 PSI Tank Air Source kit comes complete with a 1/4 in. NPT brass drain cock, 1/4 in. NPT ASME coded and certified safety valve, 1/2 in. NPT port compression fitting for 3/8 in. (I.D.) air line pre-installed. To use the Air Source kit, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.

275C Pewter Air Compressor
1.5 gal. air tank in the Air Source kit has 5 ports
Thermal Overload Protector
Pre-wired 90 PSI on / 120 PSI off pressure switch
1/4 in. NPT ASME coded and certified safety valve (145 PSI)

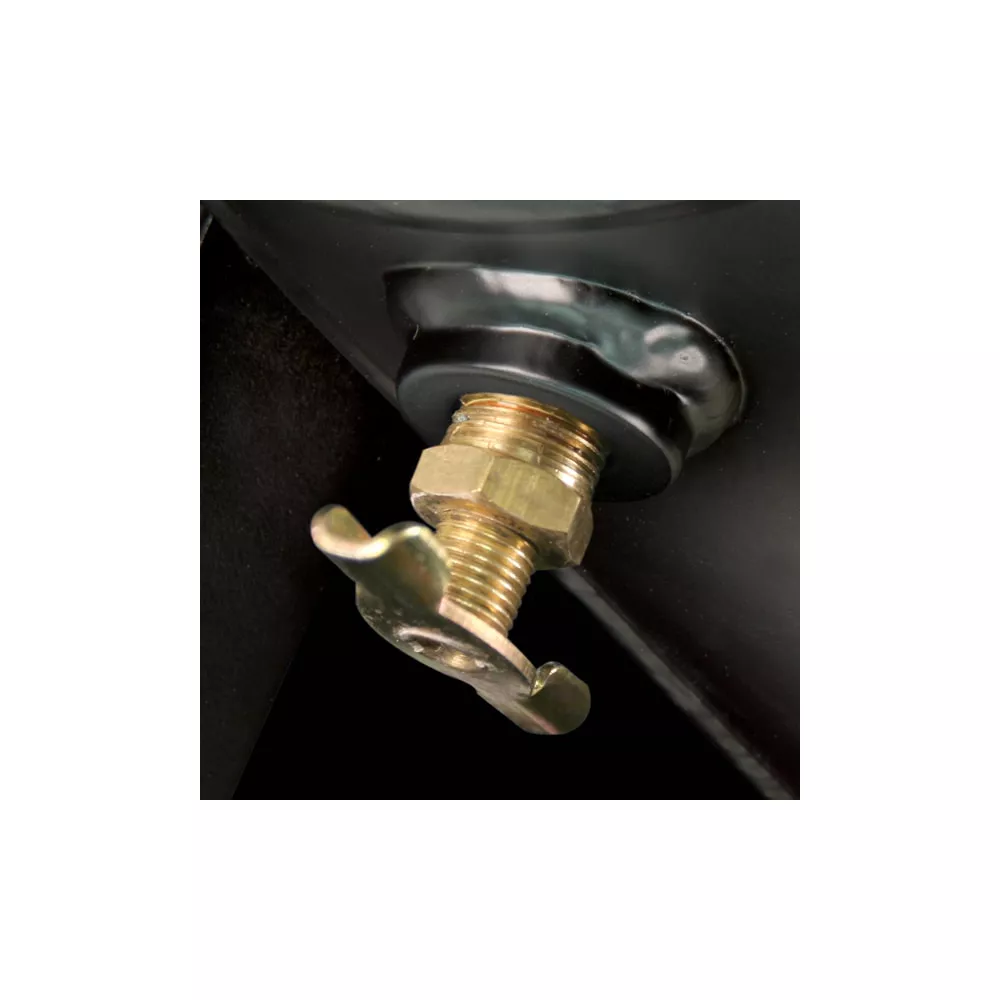

1/4 in. Brass Drain Cock
Leader Hose with Check Valve
12-Volt 120 PSI tank Air Source kit
Permanent Magnetic Motor
Duty Cycle: 25% @ 100 PSI
Max. working pressure: 120 PSI
Max. amp draw of 120 PSI tank Air Source kit: 18 Amps
Ingress protection rating: IP54
Dimensions: 15.2 in. L x 5.9 in. W x 12.8 in. H
Net weight: 15.65 lb.
1/2 in. NPT port compression fitting for 3/8 in. air line pre-installed
Use of 40-amp relay and appropriately-rated fuse with the Air Source kit is recommended to preserve the life of the pressure switch

VIAIR 1/4 HP 1.5 gal 120 PSI Quick Fill Tank Air Source Kit Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.79 CFM
Airflow Volume	2.03 CFM
Air Outlet Size	1/4 in. NPT
Amperage	18A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	120 PSI
Compressor Tank Capacity	1.5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Decibel Rating	73 dB
Drain System	Manual
Drive Type	DC
Features	Pre-installed pressure switch and drain valve
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	12 Volt
Primary Color	No Color
Primary Material	Steel
Product Height	12.8 in.
Product Length	15.2 in.
Product Weight	15.65 lb.
Product Width	5.9 in.
Pump Material	Metal
Tank Fill Time	2 minutes 10 seconds
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	20003
