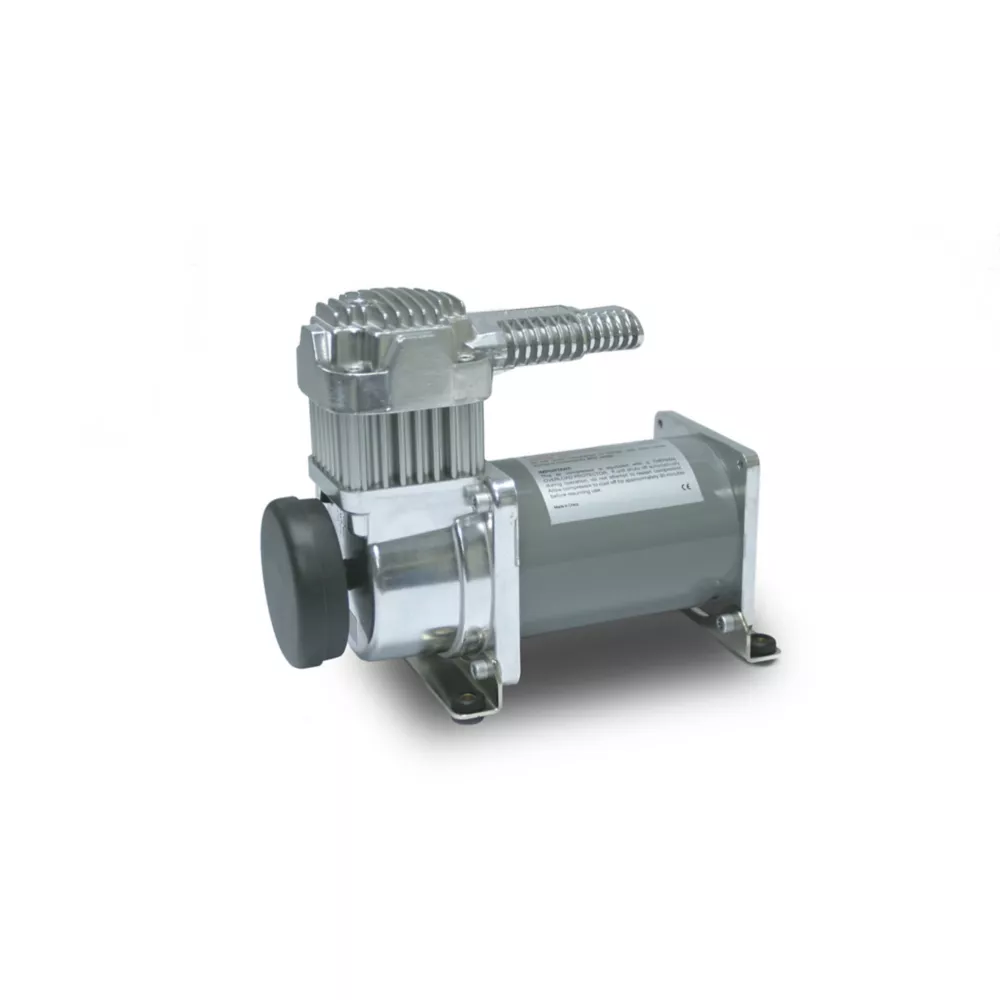

VIAIR 1/4 HP 2.5 gal 250C IG Series Compressor Kit Portable Air Compressors Air Compressors

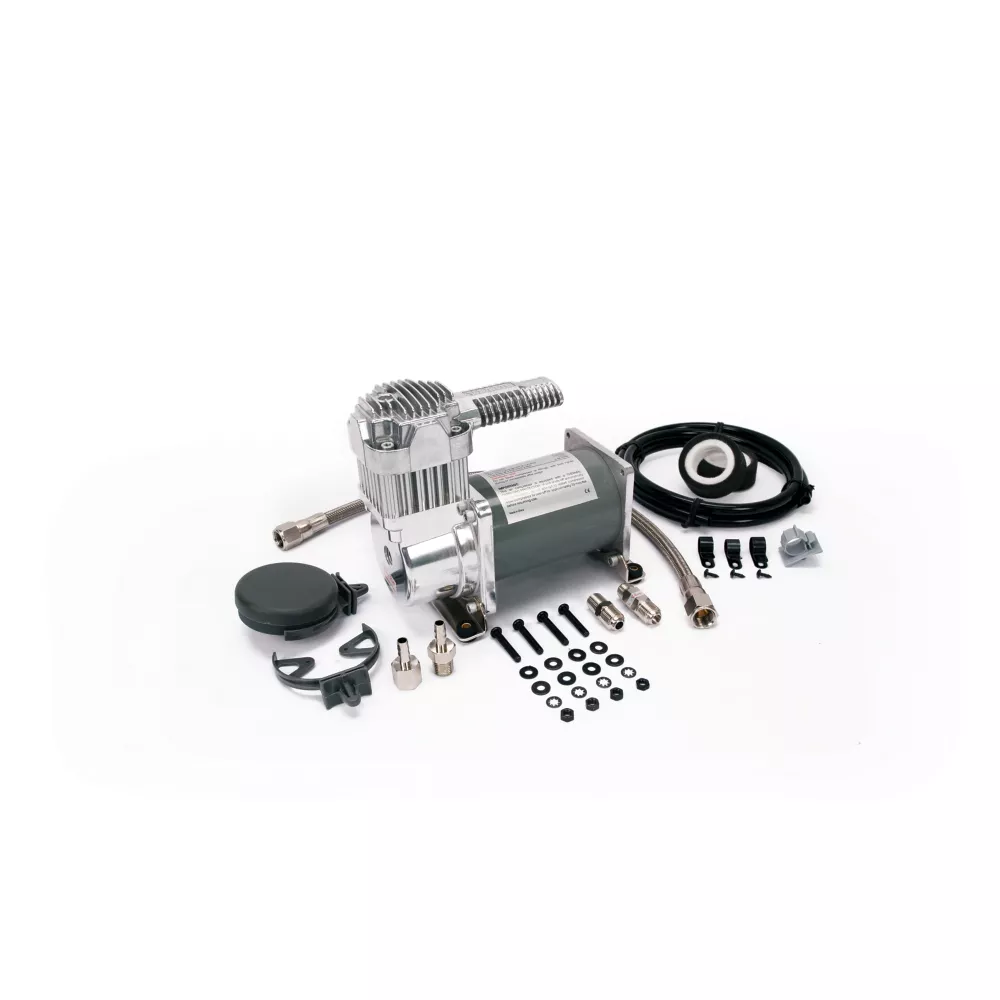

The Viair 250C IG Series Compressor Kit is specifically designed to fill air reservoir tanks and features a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG compressor kits are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressor kits are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts. The included mounting hardware and installation instructions make set-up of the compressor kit simple.

150 PSI/ 0.88 cfm
12-volt IG compressor kit
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 2.5 gal.
Max. 12V Amp Draw: 11 Amps
Thermal Overload Protector
Vibration Isolators
Mounting hardware included in compressor kit for easy installation
Heavy Duty 1/4 in. NPT check valve protects IG compressor kit against high amperage restarts
Stainless steel braided PTFE-lined leader hose
Air line for remote mount air filter
Remote mount air filter assembly
Two replacement air filter elements included in IG series compressor kit
Installation instructions included
Permanent magnetic motor
Ingress Protection Rating: IP67
Max. Ambient Temp: +158 deg F
Min. Ambient Temp: -40 deg F
Dimensions: 7.4 in. L x 3.9 in. W x 6.75 in. H
Net Weight: 6.75 lb.

VIAIR 1/4 HP 2.5 gal 250C IG Series Compressor Kit Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.49 CFM
Airflow Volume	0.88 CFM
Air Outlet Size	1/4 in. NPT
Amperage	11A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	2.5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	PTFE Hose and check valve, No tank
Phase	Single
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	12 Volt
Primary Color	Gray
Primary Material	Aluminized steel
Product Height	9 in.
Product Length	11.0 in.
Product Weight	9.0 lb.
Product Width	8 in.
Pump Material	Steel
Stage Type	Single-Stage
Tank Fill Time	7 minutes
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	25050

VIAIR 1/4 HP 2.5 gal. 250C IG Series Compressor Kit Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 0.49 CFM Air Flow Volume 0.88 CFM Air Outlet Size 1/4 in. NPT Amperage 11 A Wattage Compressor Capacity 0.25 HP Compressor Maximum PSI 150 PSI Compressor Tank Capacity 2.5 gal Compressor Type Oil-Free Compressor Voltage 12 V Cord Length 1 ft. Drain System None DC Drive Type Features PTFE Hose and Check Valve Return, Tankless Phase Single Number of Power Speeds Single Number of Wheels 0 Power Type 12 Volt Primary Color Gray Primary Material Aluminized Steel Product Height 9 in. Product Length 11.0 in. Product Weight 9.0 lb. Product Width 8 in. Pump Material Steel Stage Type Single Stage Tank Fill Time 7 minutes Tank Orientation Horizontal Warranty 1 Year Manufacturer Part Number 25050
