VIAIR 1/4 HP 2 gal Fast-Fill-200 200 PSI Air Source Kit Portable Air Compressors Air Compressors

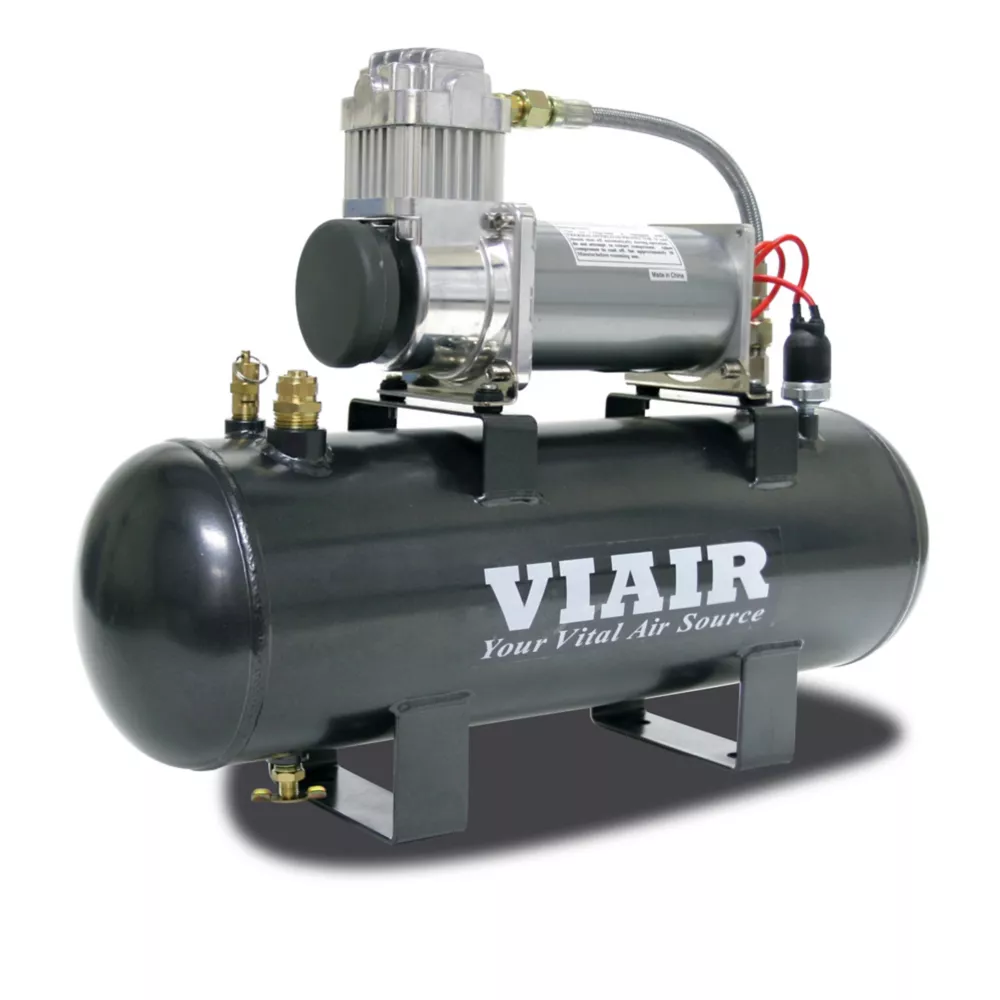

The Viair 200 PSI 2.0 Gal Fast-Fill-200 Air Source Kit comes with a powerful, low amp-draw 380C VIAIR compressor mounted on a 200 PSI-rated 2.0 gal. air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry's leading 200 PSI compressors but also come with a drain cock, safety valve, and 1/2-inch port compression fitting for 3/8 (I.D.) air line pre-installed! To use the 200 PSI Air Source kit, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this Air Source kit.

200 PSI/ 1.58 cfm
380c Pewter Air Compressor
2.0 gal. Air Tank with 5 Ports
Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
Max. Working Pressure: 200 PSI

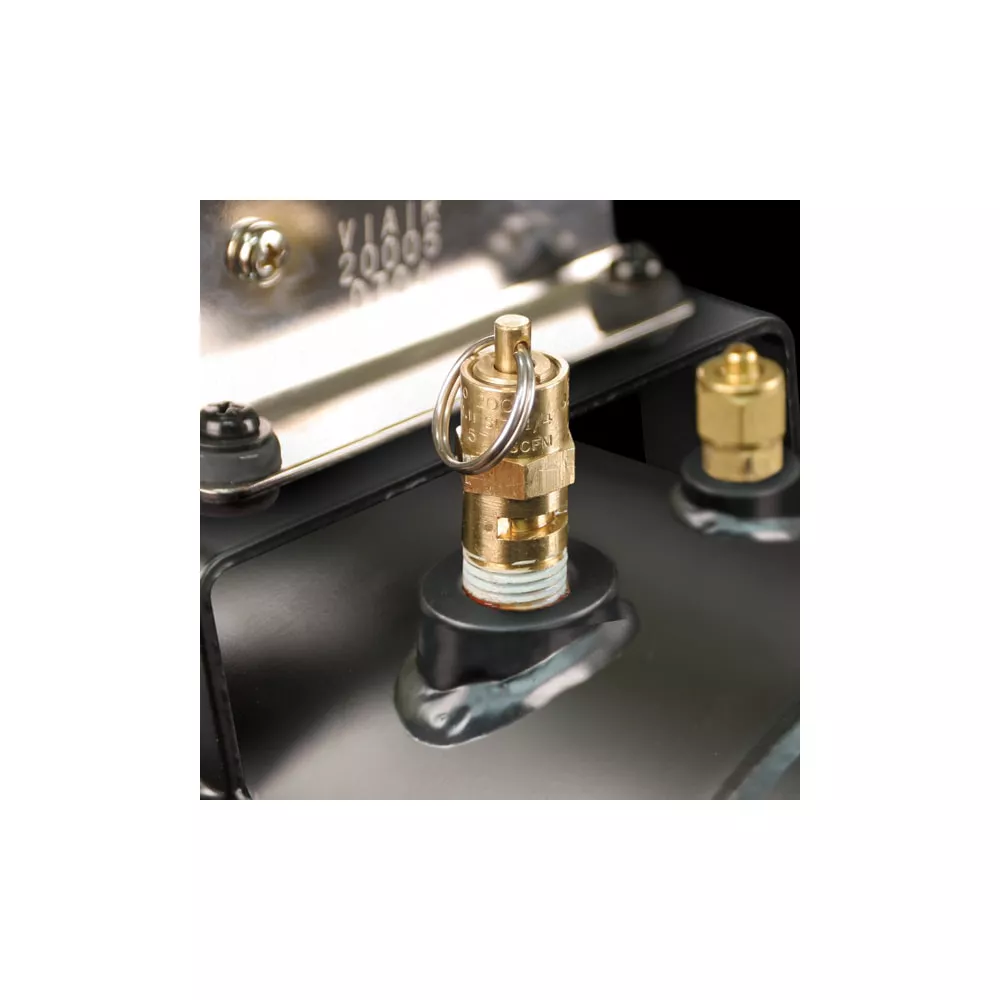

Safety Valve (250 PSI)
Drain Cock
Leader Hose with Check Valve
12-Volt 200 PSI Air Source kit
Permanent Magnetic Motor
Max. Amp Draw: 23 Amps
Ingress Protection Rating: IP67
Dimensions: 19 in. L x 5.9 in. W x 14.2 in. H
Net Weight: 21.05 lb.
Comes with a pre-wired 165/200 PSI pressure switch

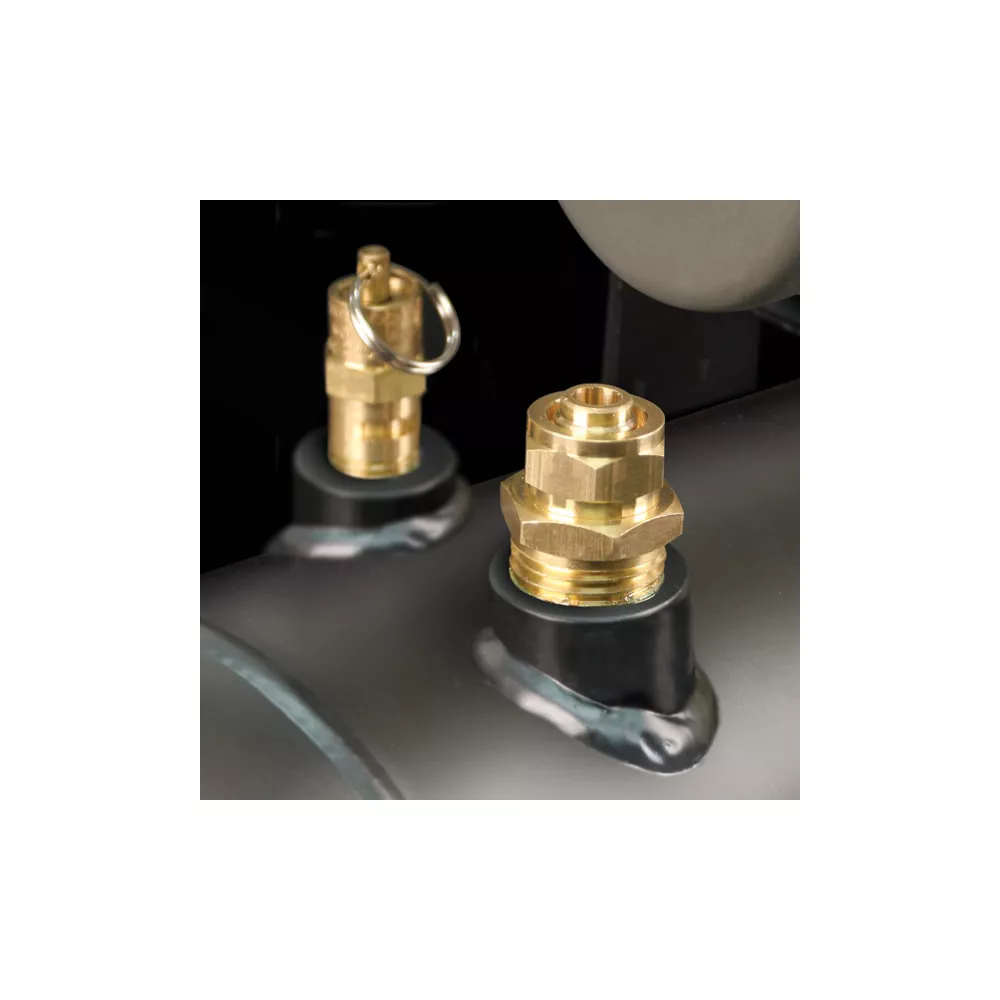

1/2 in. port compression fitting for 3/8 in. (I.D.) air line is pre-installed with the Air Source kit
Connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting to use the 200 PSI Air Source kit
40-amp relay and appropriately-rated fuse is recommended for use with the Air Source kit

VIAIR 1/4 HP 2 gal Fast-Fill-200 200 PSI Air Source Kit Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.88 CFM
Airflow Volume	1.58 CFM
Air Outlet Size	1/4 in. NPT
Amperage	23A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	200 PSI
Compressor Tank Capacity	2 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Decibel Rating	72dB
Drain System	Manual
Drive Type	DC
Features	None
Phase	Single
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	12 Volt, 12V
Primary Color	Black
Primary Material	Steel
Product Height	17.0 in.
Product Length	23.0 in.
Product Weight	26.0 lb.
Product Width	9.0 in.
Pump Material	Steel
Stage Type	Single-Stage
Tank Fill Time	5 minutes
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	20007

VIAIR 1/4 HP 2 gal. 200 PSI Fast-Fill-200 Air Source Kit Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 0.88 CFM Air Flow Volume 1.58 CFM Air Outlet Size 1/4 in. NPT Amperage 23 A Compressor Power 0.25 HP Compressor Maximum PSI 200 PSI Compressor Tank Capacity 2 gal Compressor Type Oil-Free Compressor Voltage 12 V Cord Length 1 ft. Decibel Rating 72 dB Drain System Manual Drive Type DC Features None Phase Single Phase Number of Power Speeds Single Number of Wheels 0 Power Type 12 Volt, 12 V Primary Color Black Main Material Steel Product Height 17.0" . Product length 23.0 in. Product weight 26.0 lbs. Product width 9.0 in. Pump Material Steel Stage Type Single Stage Tank Fill Time 5 minutes Tank Orientation Horizontal Warranty 1 Year Manufacturer Part Number 20007
