VIAIR 100C chrome compressor kit with Omega support 12 V Portable Air Compressors Air Compressors

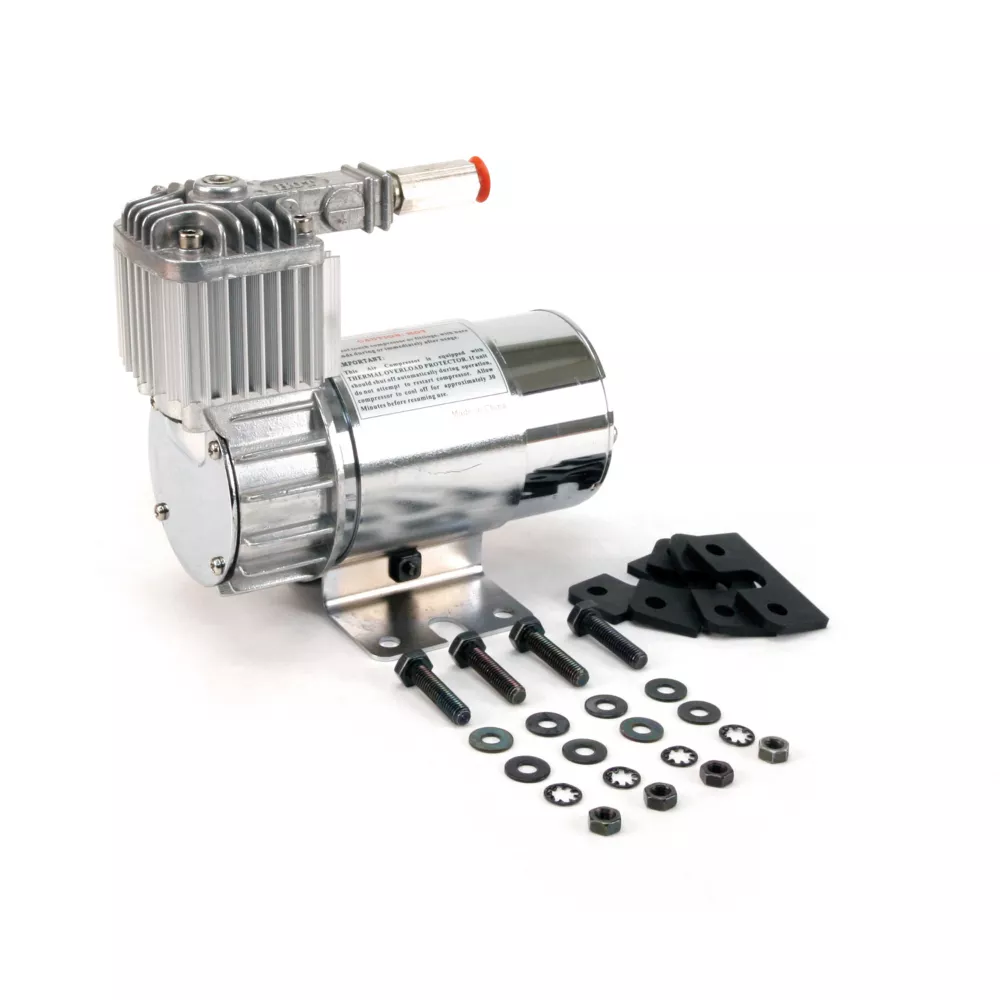

The Viair 100C Chrome Compressor Kit with Omega Bracket is a bare compressor that comes standard with a chrome motor housing and chrome end plates. Insulated wiring in the compressor kit is pre-installed. This compressor kit does not come equipped with a leader hose but does come with an inline check valve. The chrome compressor kit comes with mounting hardware and installation instructions for simple set-up.

1.27 CFM
12-Volt chrome compressor kit
Duty Cycle: 15% @ 100 PSI
Max. working pressure: 130 PSI
Omega Bracket
Compressor kit has an inline check valve
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lb.
Thermal Overload Protector
Vibration Isolators
Mounting hardware and installation instructions included with chrome compressor kit for easy installation
Permanent magnetic motor
Max. air tank size: 1.0 gal.
Max. 12V amp draw: 14 amps
Ingress Protection Rating: IP54
Dimensions: 6 in. L x 3.5 in. W x 5.3 in. H
Net weight: 3.45 lb.
Compressor kit comes standard with a chrome motor housing and chrome end plates
Insulated wiring in the chrome compressor kit is pre-installed

VIAIR 100C chrome compressor kit with Omega support 12 V Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.59 CFM
Airflow Volume	1.27 CFM
Air Outlet Size	1/4 in. NPT
Amperage	14A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	130 PSI
Compressor Tank Capacity	1 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	Omega Bracket
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminized steel
Product Height	8 in.
Product Length	9 in.
Product Weight	4 lb.
Product Width	6.0 in.
Pump Material	Steel
Tank Fill Time	2 min.
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	10016

VIAIR 100C Chrome Compressor Kit with Omega Bracket, 12V Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 0.59 CFM Air Flow Volume 1.27 CFM Air Outlet Size 1/4 in. NPT Amperage 14 A Compressor Power 0.25 HP Compressor Maximum PSI 130 PSI Compressor Tank Capacity 1 gal Compressor Type Oil-Free Compressor Voltage 12 V Cord Length 1 ft. Drain System None Drive Type DC Features Omega Support Number of power gears Single Number of Wheels 0 Power Type 12 Volts Primary Color No Color Primary Material Aluminized Steel Product Height 8 in. Product Length 9 in. Product Weight 4 lbs. Product width 6.0 in. Pump material Steel Tank filling time 2 min. Tank Orientation 1 Year Horizontal Warranty Manufacturer Part Number 10016
