VIAIR 2 gal Heavy Duty Onboard Air System 150 PSI 12V Portable Air Compressors Air Compressors

The Viair Heavy Duty Onboard Air System is a pre-packaged compressed onboard air system that provides a faster 33% duty cycle 400C compressor, 2.5 gal. air tank, and all components needed to install a working system capable of inflating tires right out of the box. The heavy duty onboard air system has a maximum working pressure of 150 PSI. The onboard air system operates on 12 volts of power.

Max working pressure of onboard air system: 150 PSI / 2.62 cfm
12 volt heavy duty onboard air system
Duty cycle of onboard air system: 33% @ 100 PSI

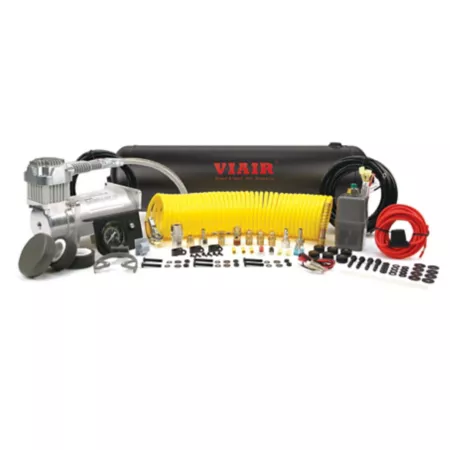

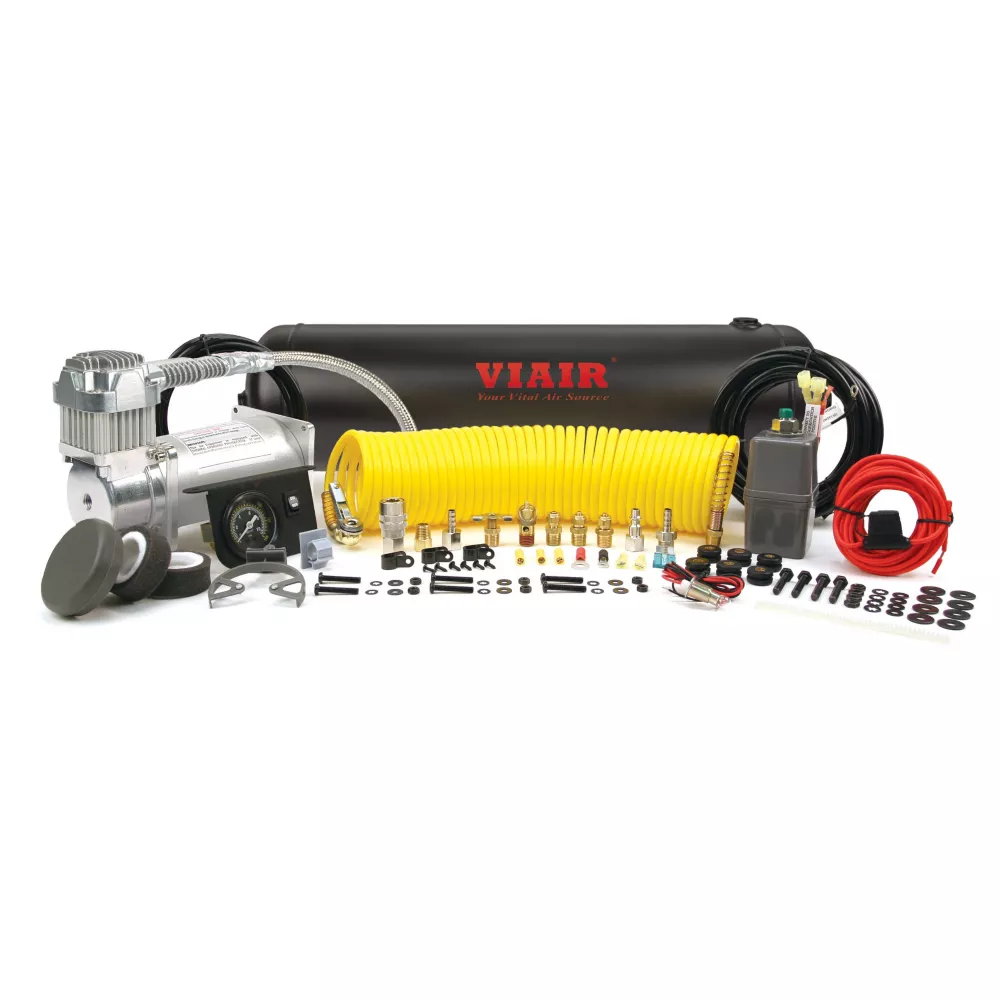

Heavy duty onboard air system includes 400C VIAIR Compressor
2.5 gal. VIAIR Air Tank
35 ft. Nylon Coil Hose with Tire Chuck
Dash Panel Gauge with ON/OFF Switch
Pressure Switch with Relay (110 PSI on, 145 PSI off)
Please Note: The included pressure Switch w/Relay is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure. Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8 is 10 ~ 11 ft. lb. Recommended torque for 1/4 and 3/8 is 12 ~ 15 ft. lb.

VIAIR 2 gal Heavy Duty Onboard Air System 150 PSI 12V Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	1.52 CFM
Airflow Volume	2.62 CFM
Air Outlet Size	1/4 in. NPT
Amperage	28A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	2.5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	Manual
Drive Type	DC
Features	Air tank, fittings and Hose Included
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	12 Volt
Primary Color	No Color
Primary Material	Steel
Product Height	10.0 in.
Product Length	27.0 in.
Product Weight	30.0 lb.
Product Width	15.0 in.
Pump Material	Aluminum
Tank Fill Time	2 min. 20 sec.
Tank Orientation	Horizontal
Warranty	Https://www.viaircorp.com/warranty
Manufacturer PartNumber	10005

VIAIR 2 gal. Heavy-Duty Onboard Air System, 150 PSI, 12V Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 1.52 CFM Air Flow Volume 2.62 CFM Air Outlet Size 1/4 in. NPT Amperage 28 A Compressor Power 0.25 HP Compressor Maximum PSI 150 PSI Compressor Tank Capacity 2.5 gal Compressor Type Oil-Free Compressor Voltage 12 V Cord Length 1 ft. Drain System Manual Drive Type DC Features Air Tank, Fittings and Hose Included Number of Power Speeds Single Number of Wheels 0 Power Type 12 Volts Primary Color No Color Primary Material Steel Product Height 10.0 in. Product length 27.0 in. Product weight 30.0 lbs. Product width 15.0 in. Pump material Aluminum Reservoir filling time 2 min. 20 seconds. Tank Orientation Horizontal Warranty https://www.viaircorp.com/warranty Manufacturer Part Number 10005
