VIAIR 2 gal High Flow Air Source Kit 200 PSI 12V Portable Air Compressors Air Compressors

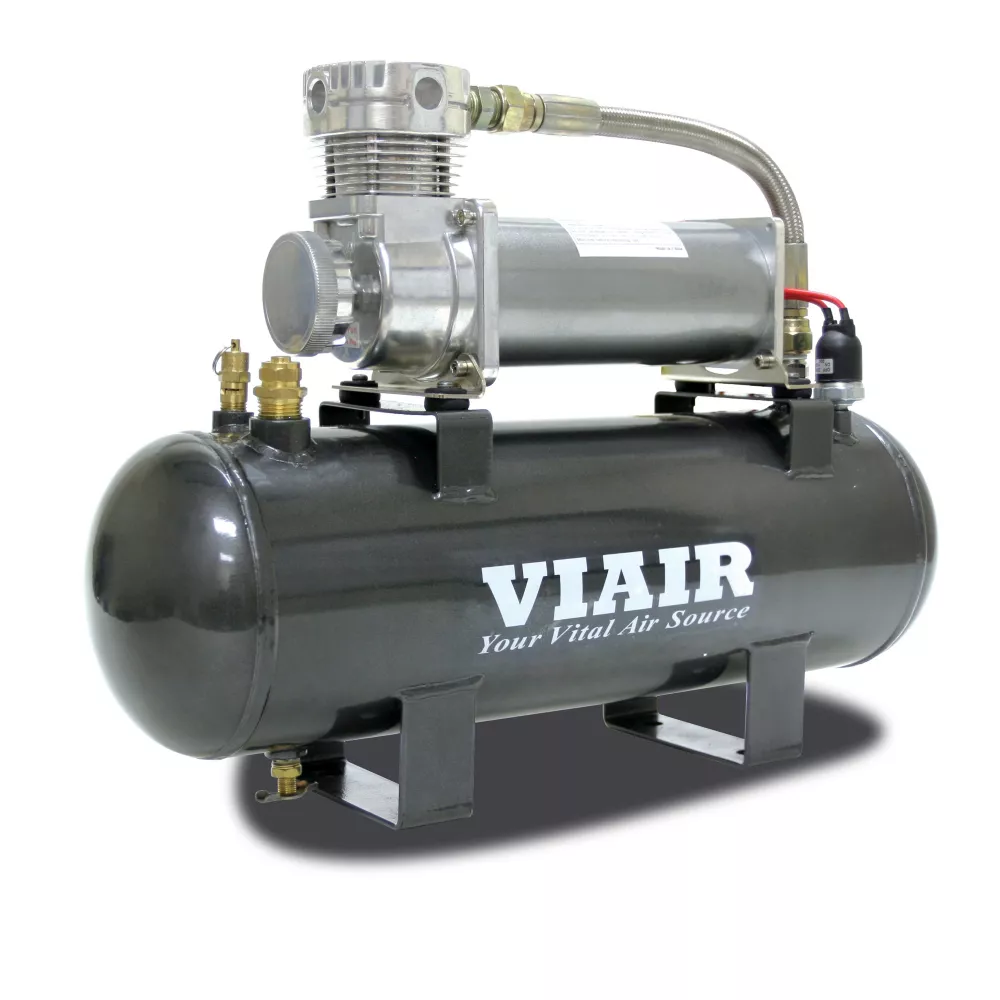

The Viair 200 PSI 2.0 gal. High-Flow-200 Air Source Kit comes with a powerful, low amp-draw 480C VIAIR compressor mounted on a 200 PSI-rated 2.0 gal. air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry's leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2 in. port compression fitting for 3/8 (I.D.) air line pre-installed! To use the 200 PSI Air Source kit, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this Air Source kit.- 200 PSI/ 1.86 cfm Air Source kit
- 480c Pewter Air Compressor
- 2.0 gal. Air Tank with 5 Ports

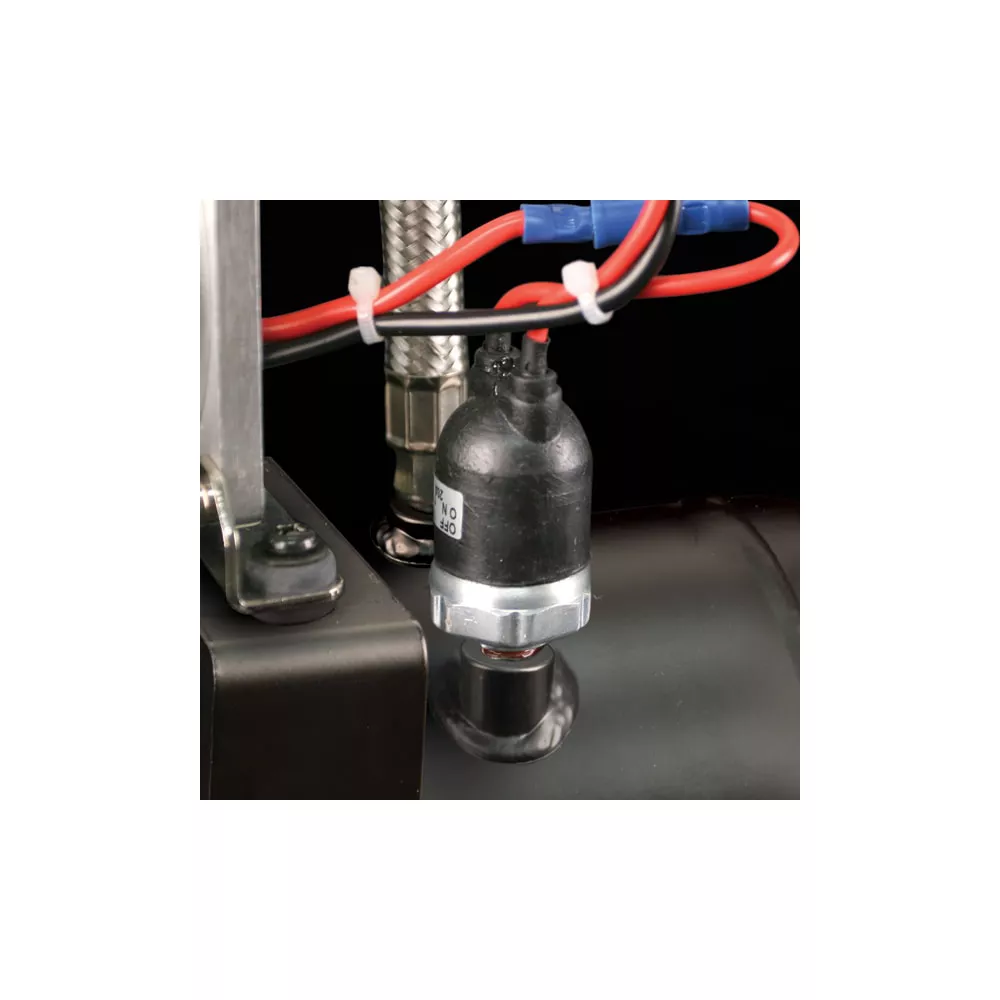

- Pressure Switch (165 PSI On / 200 PSI Off)
- Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
- Max. Working Pressure: 200 PSI

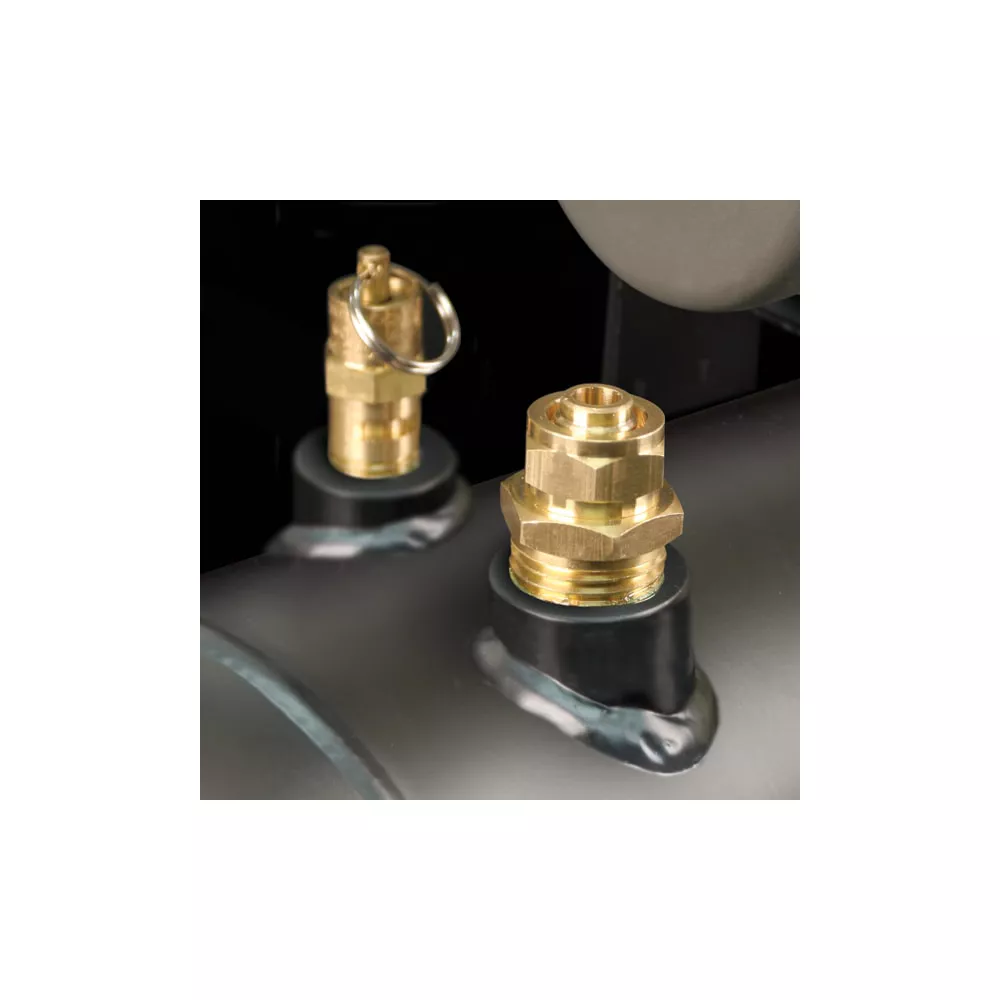

- Safety Valve (250 PSI)

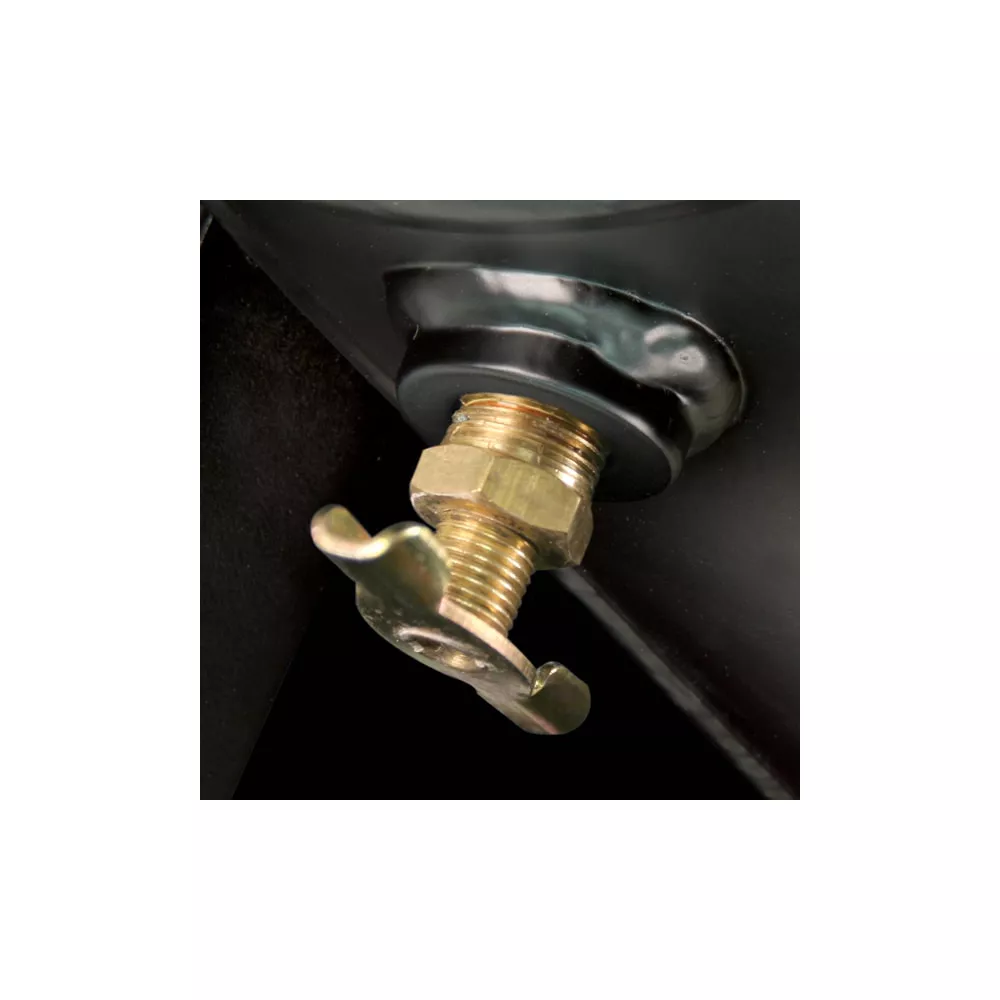

- Drain Cock
- Leader Hose with Check Valve
- 12-Volt 200 PSI air source kit
- Permanent Magnetic Motor
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 19.7 in. L x 5.9 in. W x 13.9 in. H
- Net Weight: 22.95 lb.
- 1/2 in. port compression fitting for 3/8 (I.D.) air line is pre-installed
- Connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting to use the 200 PSI Air Source kit
- 40-amp relay and appropriately-rated fuse is recommended for use with the Air Source kit
VIAIR 2 gal High Flow Air Source Kit 200 PSI 12V Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors
| Specification | Description |
|---|---|
| Brand | VIAIR |
| Country of Origin | Imported |
| Air Delivery SCFM At 90 PSI | 1.13 CFM |
| Airflow Volume | 1.86 CFM |
| Air Outlet Size | 1/2 in. NPT |
| Amperage | 23A |
| Compressor Horsepower | 0.25 HP |
| Compressor Maximum PSI | 200 PSI |
| Compressor Tank Capacity | 2 gal |
| Compressor Type | Horizontal |
| Compressor Voltage | 12V |
| Cord Length | 1 ft. |
| Drain System | Manual |
| Drive Type | DC |
| Features | None |
| Number Of Power Speeds | Single |
| Power Type | 12 Volt |
| Primary Color | No Color |
| Primary Material | Steel |
| Product Height | 13.9 in. |
| Product Length | 19.7 in. |
| Product Weight | 22.95 lb. |
| Product Width | 5.9 in. |
| Pump Material | Metal |
| Tank Fill Time | 3 min. 56 sec. |
| Tank Orientation | Horizontal |
| Warranty | 1 Year |
| Manufacturer PartNumber | 20008 |
