VIAIR 280C Silver Air Compressor Kit 150 PSI 12V Portable Air Compressors Air Compressors

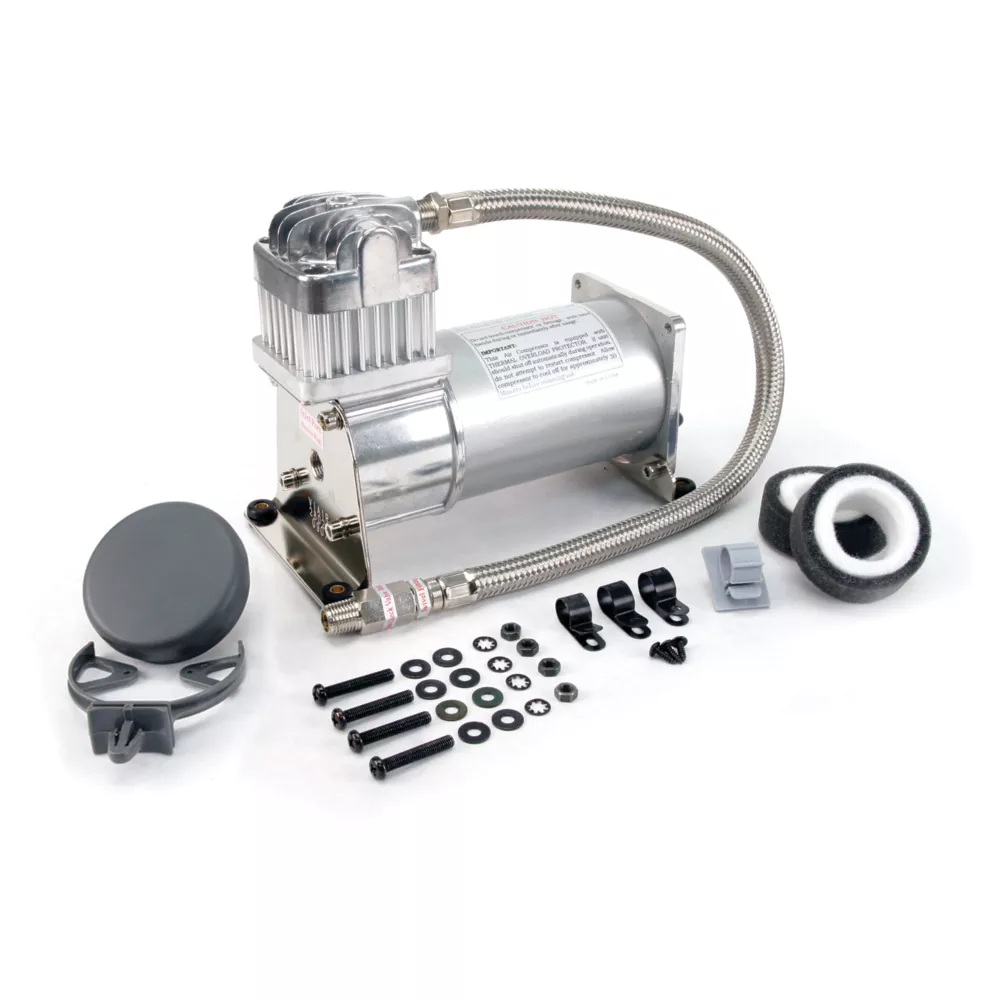

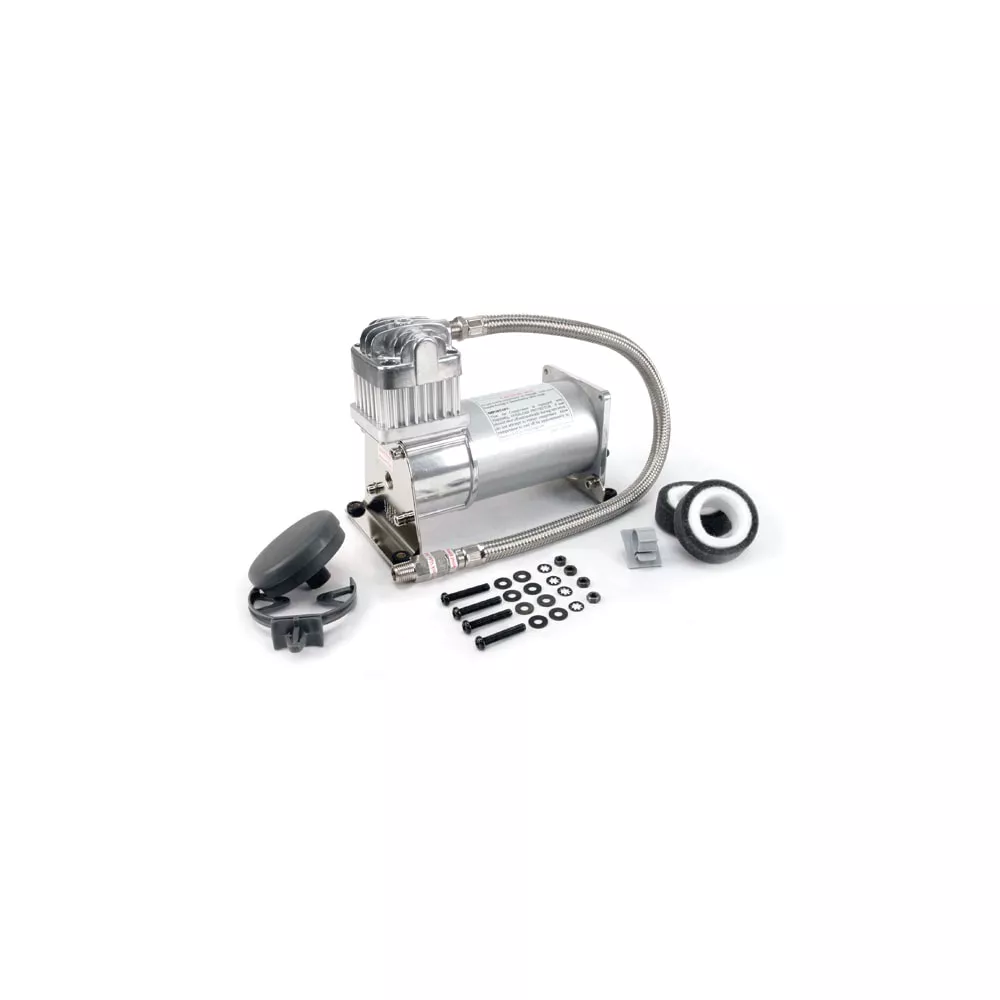

The Viair - 280C Silver Compressor Kit features a standard 1/4 in. NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation. This 12-volt silver compressor kit has an amp draw of 19 amps. The included installation instructions and mounting hardware allow for simple set-up of the 280C silver compressor kit. The maximum working pressure of the silver compressor kit is 150 PSI.

150 PSI/ 1.59 cfm rating
12-volt 280C silver compressor kit
Duty Cycle: 30% @ 100 PSI
Max. working pressure of silver compressor kit: 150 PSI
Max. air tank size of silver compressor kit: 2.5 gal.
Standard 1/4 in. NPT stainless steel braided leader hose with inline check valve and insulated wiring
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lb.
Direct Air Filter Assembly
Two Replacement Air Filter Elements
Installation Instructions
Thermal Overload Protector
Permanent Magnetic Motor
Max. 12V Amp Draw: 19 Amps
Ingress Protection Rating: IP54
Dimensions: 7.8 in. L x 3.95 in. W x 6.35 in. H
Net Weight: 6.95 lb.
Mounting hardware comes with 275C silver compressor kit for easy installation
Vibration Isolators

VIAIR 280C Silver Air Compressor Kit 150 PSI 12V Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.76 CFM
Airflow Volume	1.59 CFM
Air Outlet Size	1/4 in. NPT
Amperage	19A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	2.5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	Https://www.viaircorp.com/c-models/280c-compressor
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminum
Product Height	6.35 in.
Product Length	7.8 in.
Product Weight	6.95 lb.
Product Width	3.95 in.
Pump Material	Metal
Tank Fill Time	4 min. 30 sec.
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	28021

VIAIR 280C Silver Air Compressor Kit, 150 PSI, 12V Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 0.76 CFM Air Flow Volume 1.59 CFM Air Outlet Size 1/4 in. NPT Amperage 19 A Wattage Compressor Capacity 0.25 HP Compressor Maximum PSI 150 PSI Compressor Tank Capacity 2.5 gal Compressor Type Oil-Free Compressor Voltage 12V Cord Length 1 ft. Drain System None Drive Type DC Features https://www.viaircorp .com/c-models/280c-compressor Number of Power Speeds Single Power Type 12 Volts Primary Color No Color Primary Material Product Height Aluminum 6.35 in. Product length 7.8 in. Product weight 6.95 lbs. Product width 3.95 in. Pump material Metal Reservoir filling time 4 min. 30 seconds. Tank Orientation 1 Year Horizontal Warranty Manufacturer Part Number 28021
