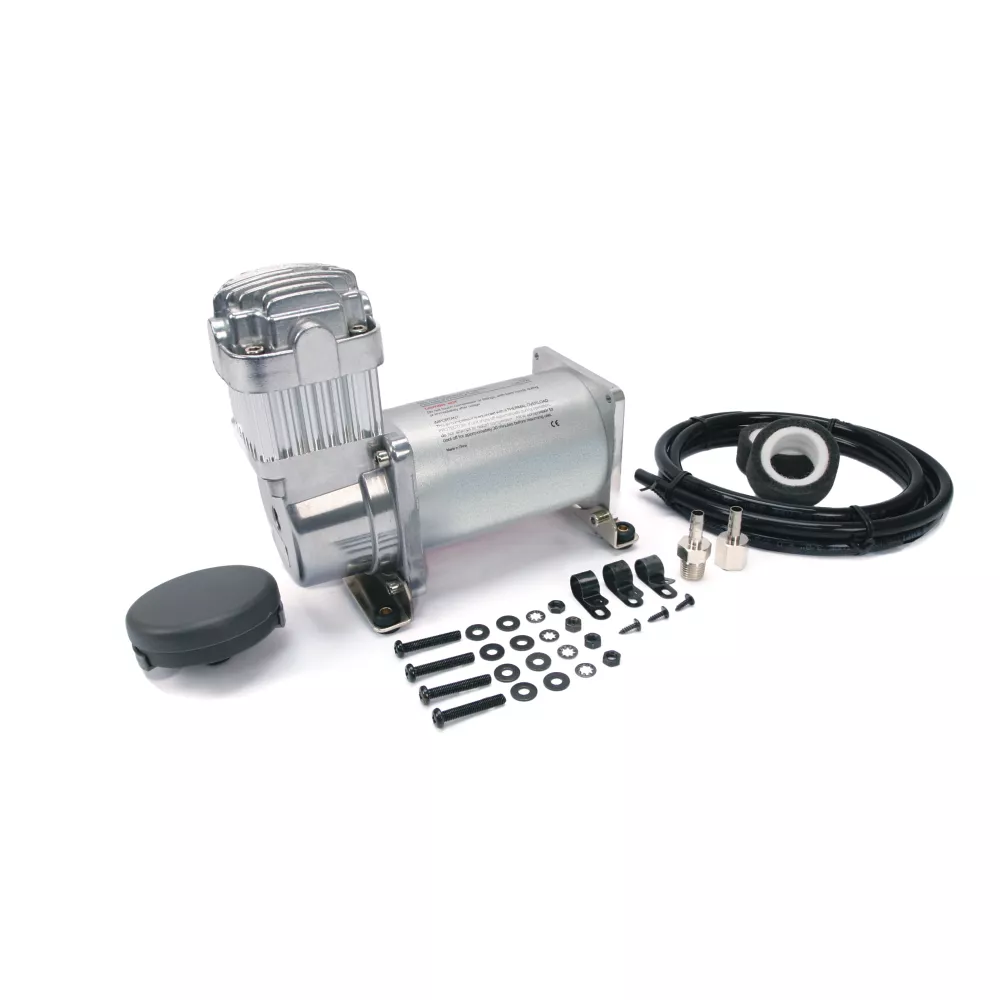

VIAIR 325C Bare Compressor Kit without Main Hose or Check Valve 12V 150 PSI Portable Air Compressors Air Compressors

The Viair - 325C Silver Compressor Kit with No Leader Hose or Check Valve works with low amp draw. Features of the compressor kit include an air line for remote mount air filter installation, vibration isolators and insulated wiring for simple installation. The maximum working pressure of the compressor kit is 150 PSI. The silver compressor kit has a maximum air tank size of 5.0 gal.

150 PSI / 1.59 cfm
12- volt silver compressor kit
Duty Cycle: 33% @ 100 PSI
Max. working pressure of compressor kit: 150 PSI
Max. air tank size of compressor kit: 5.0 gal.
No leader hose or check valve
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lb.
Air line for remote mount air filter installation
Vibration Isolators
Insulated wiring for simple installation

VIAIR 325C Bare Compressor Kit without Main Hose or Check Valve 12V 150 PSI Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	0.82 CFM
Airflow Volume	1.59 CFM
Air Outlet Size	1/4 in. NPT
Amperage	21A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	Https://www.viaircorp.com/c-models/325c-12v-24v
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminum
Product Height	6.75 in.
Product Length	8 in.
Product Weight	7.5 lb.
Product Width	4 in.
Pump Material	Metal
Tank Fill Time	8 min. 45 sec.
Tank Orientation	Horizontal
Warranty	Https://www.viaircorp.com/warranty
Manufacturer PartNumber	32534

VIAIR 325C Bare Compressor Kit with No Leader Hose or Check Valve, 12V, 150PSI Specifications expand/collapse Specification Description Brand VIAIR Country of Origin Imported Air Flow SCFM at 90 PSI 0.82 CFM Air Flow Volume 1.59 CFM Air Outlet Size 1/4 in. NPT Amperage 21 A Compressor Horsepower 0.25 HP Compressor Maximum PSI 150 PSI Compressor Tank Capacity 5 gal Compressor Type Oil-Free Compressor Voltage 12 V Cord Length 1 ft. Drain System None Drive Type DC Features https:// www.viaircorp.com/c-models/325c-12v-24v Number of Power Speeds Single Power Type 12 Volts Primary Color No Color Primary Material Aluminum Product Height 6.75 in. Product length 8 in. Product weight 7.5 lbs. Product width 4 in. Pump material Metal Reservoir filling time 8 min. 45 seconds. Tank Orientation Horizontal Warranty https://www.viaircorp.com/warranty Manufacturer Part Number 32534
