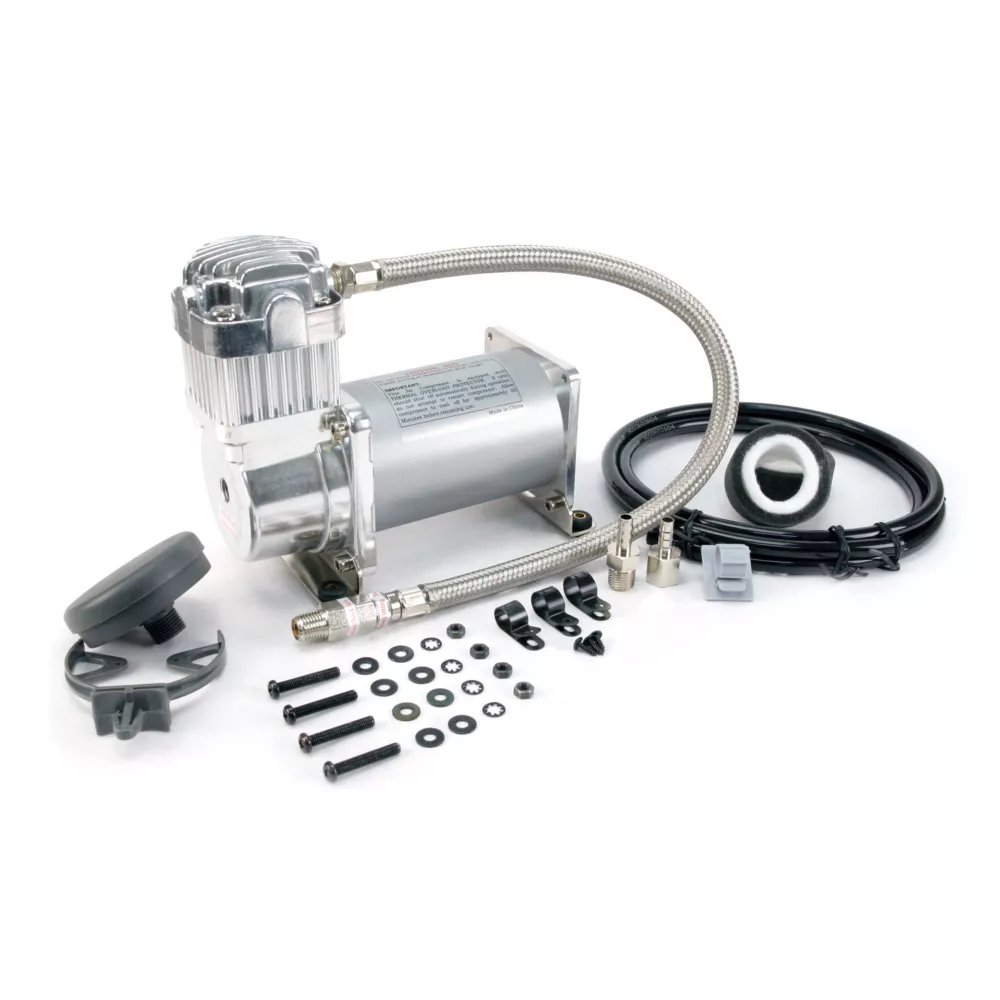

VIAIR 325C Compressor Kit Silver 24 V 150 PSI Portable Air Compressors Air Compressors

The Viair - 325C Silver Compressor Kit works with low amp draw. Features of the compressor kit include a standard 1/4 NPT stainless steel braided leader hose with check valve and insulated wiring for simple installation. The maximum working pressure of the compressor kit is 150 PSI. The silver compressor kit has a maximum air tank size of 5.0 gal..

150 PSI / 1.80 cfm
24-volt silver compressor kit
Duty Cycle: 33% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 gal.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lb.
Silver compressor kit works with low amp draw
Standard 1/4 in. NPT stainless steel braided leader hose with check valve included with compressor kit
Insulated wiring in compressor kit for simple installation

VIAIR 325C Compressor Kit Silver 24 V 150 PSI Portable Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Portable Air Compressors

Specification	Description
Brand	VIAIR
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	1.04 CFM
Airflow Volume	1.80 CFM
Air Outlet Size	1/4 in. NPT
Amperage	13A
Compressor Horsepower	0.25 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	5 gal
Compressor Type	Oil less
Compressor Voltage	12V
Cord Length	1 ft.
Drain System	None
Drive Type	DC
Features	Https://www.viaircorp.com/c-models/325c-12v-24v
Hose Fitting Size	1/4 in. NPT
Number Of Power Speeds	Single
Power Type	12 Volt
Primary Color	No Color
Primary Material	Aluminum
Product Height	6.75 in.
Product Length	8 in.
Product Weight	7.5 lb.
Product Width	4 in.
Pump Material	Metal
Tank Fill Time	7 min. 25 sec.
Tank Orientation	Horizontal
Warranty	Https://www.viaircorp.com/warranty
Manufacturer PartNumber	32538
